I
39
MONITORING
Service indicator
This information is displayed for a
few seconds when the ignition is
switched on. It informs the driver
when the next service is due, in ac-
cordance with the manufacturer's
servicing schedule.
The point at which the service is due
is calculated from the last indicator
zero reset. It is determined by two
parameters:
- the distance travelled,
- the time elapsed since the last
service.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on,
no service information appears on
the instrument panel central screen.
Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For 7 seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
instrument panel central screen indi-
cates the distance remaining before
the next service is due.
Example:
1 900 miles (2 800 km)
remain before the next service is due.
For 7 seconds after the ignition is switched
on, the central screen indicates:
Less than 600 miles (1 000 km)
remain before the next service is due
Example:
500 miles (900 km) re-
main before the next service is due.
For 7 seconds after the ignition is
switched on, the central screen in-
dicates:
Service overdue
For 7 seconds after the ignition is
switched on, the spanner fl ashes
to indicate that the service must be
carried out as soon as possible.
Example:
the service is overdue by
180 miles (300 km).
For 7 seconds after the ignition is switched
on, the central screen indicates:
The spanner remains on
in the
screen to indicate that a service
must be carried out soon.
The distance remaining may be
weighted by the time factor, de-
pending on the driver's driving
habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
The spanner remains on
in the
screen to indicate that a service
should have been carried out.
Page 42 of 340
I
40
MONITORING
Service indicator zero reset
After each service, the service indi-
cator must be reset to zero.
The procedure for resetting to zero
is as follows:
)
switch off the ignition,
)
press and hold the trip distance
recorder zero reset button,
)
switch on the ignition; the dis-
tance recorder display begins a
countdown,
)
when the display indicates "=0"
,
release the button; the spanner
disappears.
Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be taken into
account.
Engine oil level indicator
System which informs the driver
whether the engine oil level is correct
or not.
This information is indicated for a
few seconds when the ignition is
switched on, after the service infor-
mation.
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Oil level correct
Oil level incorrect
This is indicated by displaying of the
message "Oil level incorrect".
If the low oil level is confi rmed by a
check using the dipstick, it is essen-
tial that the level is topped up to pre-
vent damage to the engine.
Oil level gauge fault
This is indicated by displaying of the
message "Oil level measurement in-
valid". Contact a CITROËN dealer
or a qualifi ed workshop.

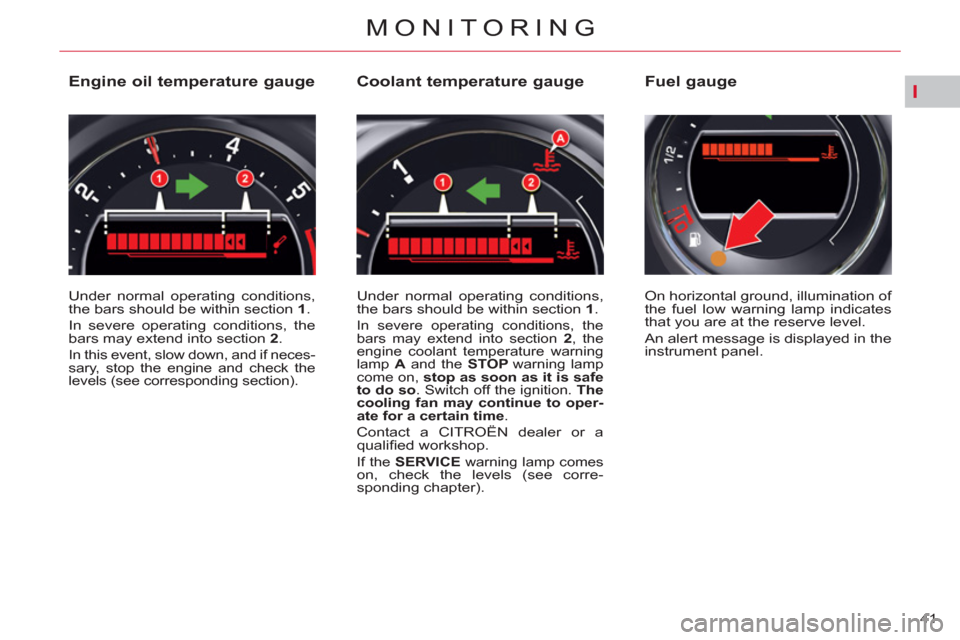

Page 43 of 340
I
41
MONITORING
Engine oil temperature gauge
Under normal operating conditions,
the bars should be within section 1
.
In severe operating conditions, the
bars may extend into section 2
.
In this event, slow down, and if neces-
sary, stop the engine and check the
levels (see corresponding section).
Coolant temperature gauge
Under normal operating conditions,
the bars should be within section 1
.
In severe operating conditions, the
bars may extend into section 2
, the
engine coolant temperature warning
lamp A
and the STOP
warning lamp
come on, stop as soon as it is safe
to do so
. Switch off the ignition. The
cooling fan may continue to oper-
ate for a certain time
.
Contact a CITROËN dealer or a
qualifi ed workshop.
If the SERVICE
warning lamp comes on, check the levels (see corre-
sponding chapter). On horizontal ground, illumination of
the fuel low warning lamp indicates
that you are at the reserve level.
An alert message is displayed in the
instrument panel.
Fuel gauge
Page 44 of 340
I
42
MONITORING
Total distance recorder
System which measures the total
distance travelled by the vehicle
during its life.
The total and trip distances are dis-
played for thirty seconds when the
ignition is switched off, when the
driver's door is opened and when
the vehicle is locked or unlocked.
In order to observe legislation,
change the units of distance (miles
or km) to those for the country you
are passing through, using the con-
fi guration menu.
Lighting dimmer
System for manual adjustment of
the brightness of the instruments
and controls in relation to the exte-
rior brightness.
Operation
)
Press button A
to decrease the
brightness of the instruments
and controls.
)
Press button B
to increase the
brightness of the instruments
and controls.
Deactivation
When the lighting is off, or in day
mode on vehicles fi tted with daytime
running lamps, pressing the buttons
does not have any effect.
Trip distance recorder
System which measures a distance
travelled during a day or other pe-
riod since it was reset to zero by the
driver.
)
With the ignition on, press the
button until zeros appear.
Page 45 of 340
II
43
MULTIFUNCTION SCREENS
MONOCHROME SCREEN C
Main Menu
Press on the button A
to view the
Main Menu of the multifunction
screen. This menu gives you access
to the following functions:
Presentation
Radio-CD
(see "Audio and Telematics"
chapter)
Bluetooth ®
system
(see "Audio and Telematics"
chapter)
Controls
1.
Time
2.
Ambient temperature
3.
Date and display zone
When the outside temperature is
between +3 °C and -3 °C, the tem-
perature display fl ashes (ice risk).
The ambient temperature displayed
may be greater than the actual tem-
perature, if the vehicle is parked in
bright sunlight.
It is recommended that the driver
should not operate the controls
while the vehicle is in motion.
Personalisation -
Configuration
This permits activation/deactivation of the:
- brightness and contrast of the
multifunction screen,
- date and time,
- units of the outside temperature
displayed.
A.
Access to the "Main Menu"
B.
Cancellation of the operation or
return to the previous display
C.
Scrolling in the screen menus
Confi rmation at the steering
wheel
D.
Confi rmation on the audio equip-
ment control panel
Page 46 of 340
II
44
MULTIFUNCTION SCREENS
Adjusting the brightness and
contrast
)
Press on A
.
)
Use C
to select the "Brightness -
video adjustment" menu. Confi rm with a press on C
on the steering
wheel or D
on the audio equip-
ment.
)
Select the confi guration of the
screen using C
. Confi rm with a
press on C
on the steering wheel
or D
on the audio equipment.
)
Select the brightness setting.
Confi rm with a press on C
on the
steering wheel or D
on the audio
equipment.
)
Select the inverse or normal dis-
play mode using C
then validate
with a press on C
on the steering
wheel or D
on the audio equip-
ment. To adjust the brightness
select "+" or "-" and save your
setting with a press on C
.
)
Confi rm with "OK"
on the screen.
Adjusting the date and the
time
)
Press on A
.
)
Use C
to select the "Date and
time adjustment" menu, then
confi rm your choice with a press
on C
on the steering wheel or D
on the audio equipment.
)
Select the screen confi guration
using C
. Confi rm with a press
on C
on the steering wheel or D
on the audio equipment.
)
Select the date and the time set-
tings, using B
. Confi rm with a
press on C
on the steering wheel
or D
on the audio equipment.
)
Press C
to select the values you
wish to modify. Confi rm your
choice with a press on C
on the
steering wheel or D
on the audio
equipment.
)
Confi rm with "OK"
on the screen.
Choosing the units
)
Press on A
.
)
Use C
to select the "Choice of
units" menu, then confi rm your
choice with a press on C
on the
steering wheel or D
on the audio
equipment.
)
Using C
, select the unit then val-
idate with a press on C
on the
steering wheel or D
on the audio
equipment.
)
Confi rm with "OK"
on the screen.
Selection of the type of
information displayed (Mode)
Successive presses on the end of
the wiper stalk or on the MODE
but-
ton on the audio equipment permit
selection of the type of informa-
tion presented on the multifunction
screen (date or radio, CD, MP3 CD,
CD changer).
Page 47 of 340
II
45
MULTIFUNCTION SCREENS
16/9 COLOUR SCREEN
(WITH MYWAY )
Displays on the screen
It displays the following information
automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value
displayed fl ashes if there is a risk
of ice),
- audio functions,
- satellite navigation system infor-
mation.
Controls
From the MyWay control panel, to
select one of the applications:
)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"SETUP"
or "PHONE"
button
for access to the corresponding
menu,
)
turn the dial to move the selection,
)
press the dial to confi rm the se-
lection,
or
)
press the "ESC"
button to aban-
don the current operation and re-
turn to the previous display.
* According to country. For more information on these
applications, refer to the "Audio
Equipment" section or to the spe-
cifi c user guide given to you with
the other owner's documents.
"SETUP" menu
)
Press the "SETUP"
button to
gain access to the "SETUP"
menu. This allows you to select
from the following functions:
- "System language",
- "Date & time",
- "Display",
- "Units",
- "System".
System language
This menu allows you to select the lan-guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues,
Türkçe * .

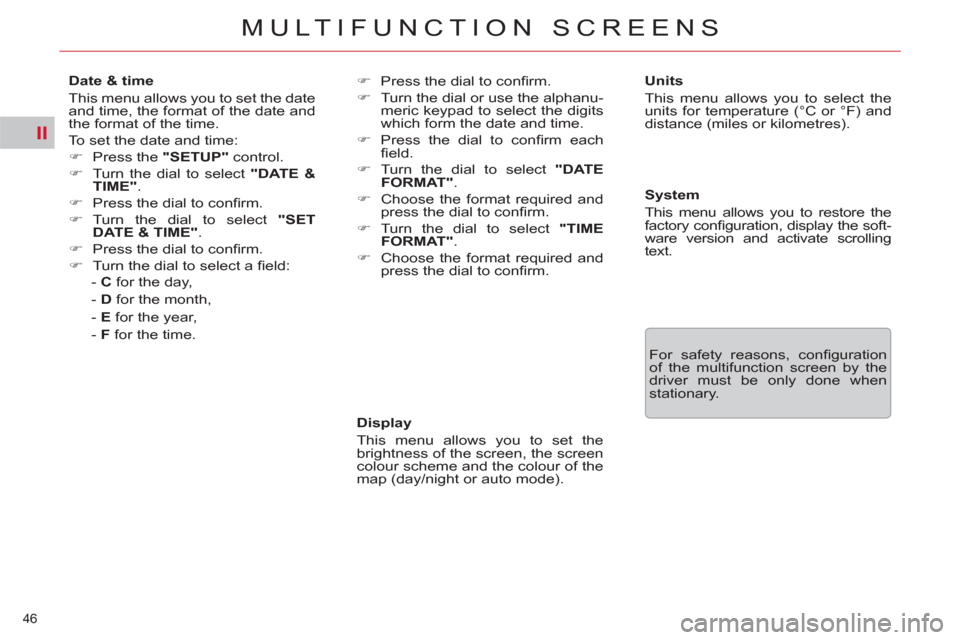

Page 48 of 340
II
46
MULTIFUNCTION SCREENS
Display
This menu allows you to set the
brightness of the screen, the screen
colour scheme and the colour of the
map (day/night or auto mode).
Units
This menu allows you to select the
units for temperature (°C or °F) and
distance (miles or kilometres).
System
This menu allows you to restore the
factory confi guration, display the soft-
ware version and activate scrolling
text.
For safety reasons, confi guration
of the multifunction screen by the
driver must be only done when
stationary.
Date & time
This menu allows you to set the date
and time, the format of the date and
the format of the time.
To set the date and time:
)
Press the "SETUP"
control.
)
Turn the dial to select "DATE &
TIME"
.
)
Press the dial to confi rm.
)
Turn the dial to select "SET
DATE & TIME"
.
)
Press the dial to confi rm.
)
Turn the dial to select a fi eld:
- C
for the day,
- D
for the month,
- E
for the year,
- F
for the time.
)
Press the dial to confi rm.
)
Turn the dial or use the alphanu-
meric keypad to select the digits
which form the date and time.
)
Press the dial to confi rm each
fi eld.
)
Turn the dial to select "DATE
FORMAT"
.
)
Choose the format required and
press the dial to confi rm.
)
Turn the dial to select "TIME
FORMAT"
.
)
Choose the format required and
press the dial to confi rm.
Page 49 of 340
II
47
MULTIFUNCTION SCREENS
16/9 HIGH DEFINITION
COLOUR SCREEN
(WITH NAVIDRIVE 3D)
Displays on the screen
It displays the following information
automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value
displayed fl ashes if there is a risk
of ice),
- audio functions,
- telephone and address book in-
formation,
- satellite navigation system infor-
mation.
Controls
From the NaviDrive 3D control panel,
to select one of the applications:
)
press the dedicated "RADIO"
,
"MEDIA"
, "NAV"
, "TRAFFIC"
,
"ADDR BOOK"
or "SETUP"
button for access to the corre-
sponding menu,
)
turn the dial to move the selection,
)
press the dial to confi rm the selection,
or
)
press the "ESC"
button to aban-
don the current operation and re-
turn to the previous display. For more information on these
applications, refer to the "Audio
Equipment" section or to the spe-
cifi c user guide given to you with
the other owner's documents.
Page 50 of 340
II
48
MULTIFUNCTION SCREENS
* According to country.
"SETUP" menu
)
Press the "SETUP"
button to gain
access to the "SETUP"
menu.
This allows you to select from
the following functions:
- "Languages and Speech",
- "Date & Time",
- "Display",
- "Units",
- "System".
Language & Speech
This menu allows you to:
- select the language used by
the display (Deutsch, English,
Espanol, Français, Italiano,
Nederlands, Polski, Portugues,
Türkçe * ),
-
select the voice recognition pa-
rameters (activation/deactivation,
advice on use, personal voice
programming, etc.),
- set the volume of the voice syn-
thesiser.
Date & Time
This menu allows you to set the date
and time, the format of the date and
the format of the time (refer to the
"Audio Equipment" section or to the
specifi c user guide given to you with
the other owner's documents).
Display
This menu allows you to set the
brightness of the screen, the screen
colour scheme and the colour of the
map (day/night or auto mode).
Units
This menu allows you to select the
units: temperature (°C or °F) and
distance (km or miles).
System
This menu allows you to restore the
factory confi guration, display the
software version and activate scroll-
ing text.
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary.
