FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Sunshine sensor.

2.
Soft diffusion air conditioning adjustment wheel.

3.
Passenger’s airbag.

4.
Side window demist vent.

5.
Passenger’s air vents.

6.
Bonnet release.

7.
Hazard warning lamps switch.

8.
Switch in the glove box:


- Passenger’s airbag activation/deactivation

9.
Glove box:


- Vehicle document storage

- Audio-video sockets

- Fusebox access fl ap

10.
ESP/Parking Sensors/Lane Departure Warning
System controls.

11 .
Suspension controls:


- Ground clearance adjustment

- Sport mode

12.
Armrest with cup-holder.

13.
Electric parking brake.

14.
Automatic gearbox SPORT/SNOW mode controls.

15.
Ashtray with cigar lighter.

16.
Gear lever.

17.
Storage.

18.
Audio and telematics system.

19.
Air conditioning controls.

20.
Storage.

21.
Multifunction screen.

22.
Emergency or assistance call controls.

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS

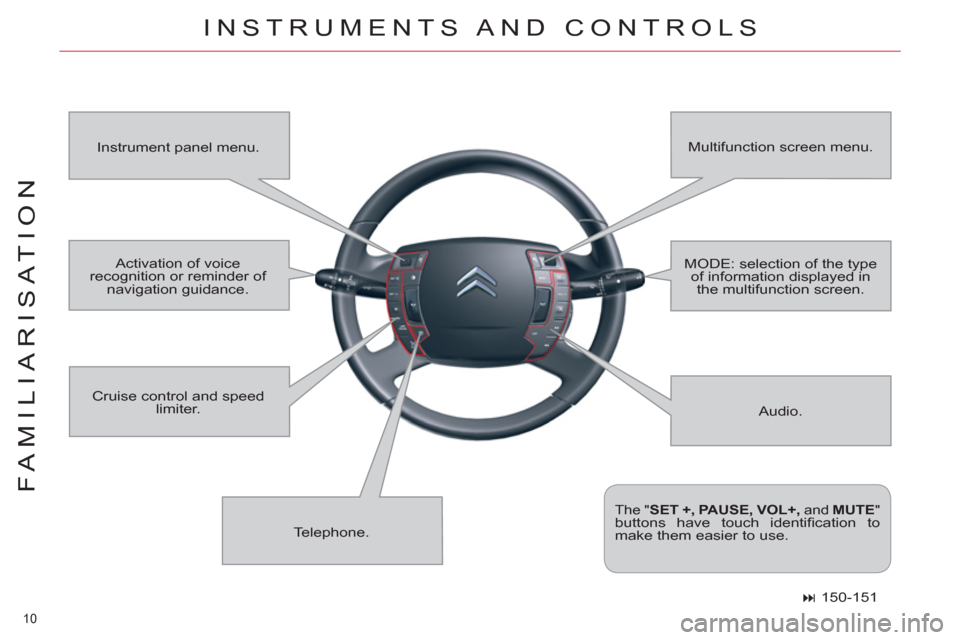

Audio. Instrument panel menu. Multifunction screen menu.
Telephone. Cruise control and speed
limiter.

The " SET +, PAUSE, VOL+,
and MUTE
" buttons have touch identifi cation to
make them easier to use. Activation of voice
recognition or reminder of
navigation guidance. MODE: selection of the type
of information displayed in
the multifunction screen.



150-151

11
FAMILIARISATION
SITTING COMFORTABLY



1.
Seat cushion height, angle and slide
adjustments.

2.
Adjustment of the backrest angle.

3.
Adjustment of top of backrest.

4.
Adjustment of lumbar support height
and level.

5.
Massage function.

6.
Heated seat control.


A.
Adjustment of the backrest angle.

B.
Adjustment of the seat height.

C.
Heated seat control.

D.
Longitudinal adjustment of seat.

E.
Adjustment of the backrest lumbar
support.


Storing settings

This function allows you to programme
and store the driver’s seat and the air
conditioning settings. The correct position
for the upper seat
belt anchorage places the belt across
the middle of the shoulder.


)
To adjust the seat belt for height,
compress the control and slide
it in
the desired direction.


Seat belt height adjustment

Front seats


Electrical adjustments

Manual adjustments



62



63




122




65

12
FAMILIARISATION
SITTING COMFORTABLY


Electro-chromatic rear view
mirror


)
Release the steering wheel by push-
ing control A
forwards.


)
Adjust the height and the reach of
the steering wheel, then lock the po-
sition by pulling the lever upwards.


Steering wheel adjustment

Electric door mirrors



1.
Selection of door mirror:



A.
Left.

B.
Right.

C.
Fold/Unfold.

2.
Adjustment control for mirror se-
lected
.



67

Automatic day/night model


1.
Automatic detection of day/night
mode.

2.
Mirror adjustment.



68




68
As a safety precaution, these opera-
tions must not be carried out while
moving.

13
FAMILIARISATION
VISIBILITY


Front wipers

Control stalk positions

2
Fast wipe.

1
Normal wipe.

I
Intermittent wipe.

0
Off.


Lighting

Sidelamps.
Dipped/main beam. Lighting off.


)
Pull the control stalk towards you

to change between dipped and main
beam.

Front and rear foglamps on. Front foglamps on. Automatic illumination of head-
lamps.

Rear wiper (Tourer)



)
Rotate control C
to the desired position.

Off
Intermittent wipe
Screenwash
Ring A

Ring B



88



Screenwash



)
Pull the screen wipe control stalk
towards you.



94-95



94

One press downwards:



-
Auto:
Automatic rain sensitive wipers
activated.

- Single wipe.
If the ignition has been switched off for
around 1 minute, automatic wiping must
be selected again.

14
FAMILIARISATION
VENTILATION


Dual-zone digital air conditioning

Rear screen and door mirrors
demisting - defrosting. Adjustment of temperature
on passenger’s side. Adjustment of air fl ow. Adjustment of temperature
on driver’s side.
Adjustment of air distribution
on passenger’s side. Passenger’s side
automatic operation. Front demisting -
defrosting.
Air recirculation - fresh air
intake.
Use of automatic mode is recommended by pressing the "AUTO"
button. Driver’s side automatic
operation. Adjustment of air distribution
on driver’s side.
Activation/deactivation of
air conditioning.




54

15
FAMILIARISATION
MONITORING


Instrument panel

The hazard warning lamps
can also be used with the
ignition switched off.

A.
Fuel gauge and low fuel warning lamp.

B.
Cruise control/speed limiter information.

C.
Coolant temperature.

D.
Speedometer.

E.
Instrument panel screen.

F.
Mileage recorder.
G.
Trip mileage recorder reset button.

H.
Rev counter.

I.
Engine oil temperature.

J.
Automatic gearbox information.



- When the ignition is switched on, the orange and
red warning lamps come on.

- When the engine is running, these warning lamps
should go off .

- If any warning lamps remain on, refer to the
"Monitoring" section.



Hazard warning lamps




26




116

16
FAMILIARISATION
MONITORING


Tyre under-inflation detection

The tyre under-infl ation detection sys-
tem is a driving aid which informs you
of the state of your tyres.
It does not replace either vigilance or
responsibility on the part of the driver.

Economy mode

After switching off the engine, some sys-tems (radio, wipers, electric windows,
opening roof, electric seats, telephone,
video, interior lighting, motorised tail-
gate, etc.) are supplied electrically for a
maximum of no more than around one
hour, so as to avoid discharging the
battery.
This period may be reduced considerably
if the battery’s state of charge is low.
Once this period is over, a message is
displayed in the instrument panel screen
and the active functions are placed on
standby.
These functions will be automatically
reactivated when the vehicle is restarted.


117




200

17
FAMILIARISATION
PASSENGER SAFETY


Front passenger’s airbag
deactivation
Child lock

Seat belts and front
passenger’s airbag
The seat belt fastened/unfastened sta-
tus for each seat category is indicated
by the illumination or fl ashing of the
warning lamps for each position:


A.
Not fastened/unfastened front and/
or rear seat belts warning lamp.

B.

Front left-hand seat belt warning lamp.


C.
Front right-hand seat belt warning
lamp.

D.
Rear right-hand seat belt warning
lamp.

E.
Rear centre seat belt warning lamp.

F.
Rear left-hand seat belt warning
lamp.

G.
Front passenger’s airbag deactiva-
tion warning lamp.

H.
Front passenger’s airbag activation
warning lamp.



35, 37-38
To use a rear facing child seat in the front
passenger’s seat position, the passenger’s
airbag must fi rst be deactivated.
To do this:


)
With the ignition switched off, insert
the key into the switch I
.

)
Turn the key to the "OFF"
position; the
passenger’s airbag is deactivated.
The front passenger’s airbag deactiva-
tion warning lamp G
comes on when
the ignition is switched on.



125
This deactivates the controls in the rear
of the vehicle, both for the rear windows
and for opening the rear doors from the
inside. The electric child safety device is
activated by pressing button J
.
The activation of the function is indicated
by a message on the instrument panel
screen and the lamp on button J
.



115

!!!
18
FAMILIARISATION

Electric parking brake

Never leave a child alone inside
the vehicle with the ignition
on, as they could release the
parking brake.

Hill start assist


Manual operation
The MANUAL application/release of
the parking brake is always possible
by pulling/pushing the control lever B
,
keeping your foot on the brake pedal.
Before leaving the ve-
hicle, check that warn-
ing lamp A (!)
(red) in
the instrument panel is
on fi xed (not fl ashing) and that warn-
ing lamp P
(red) in the control lever B

is on.
If you leave the vehicle with the
engine still running, apply the
parking brake manually. Do not leave the vehicle while
it is being held in the temporary
immobilisation hill start assist
phase.
To aid starting on a gradient, your vehicle is equipped with a system which keeps
it immobilised for a short time (about
2 seconds), the approximate time it
takes to move your foot from the brake
pedal to the accelerator pedal.
This system is only active when:


-
The vehicle is completely stationary,
with your foot on the brake pedal.

- In certain conditions on a gradient.

- With the driver’s door closed. Before leaving the ve-
hicle, check that warn-
ing lamp A (!)
(red) in
the instrument panel is
on fi xed (not fl ashing) and that warn-
ing lamp P
(red) in the control lever B

is on.
Automatic operation
The electric parking brake releases
automatically and progressively when
you press the accelerator. With the
vehicle stationary, the parking brake
is automatically applied when the
engine is switched off.

DRIVING




130
