GENERAL

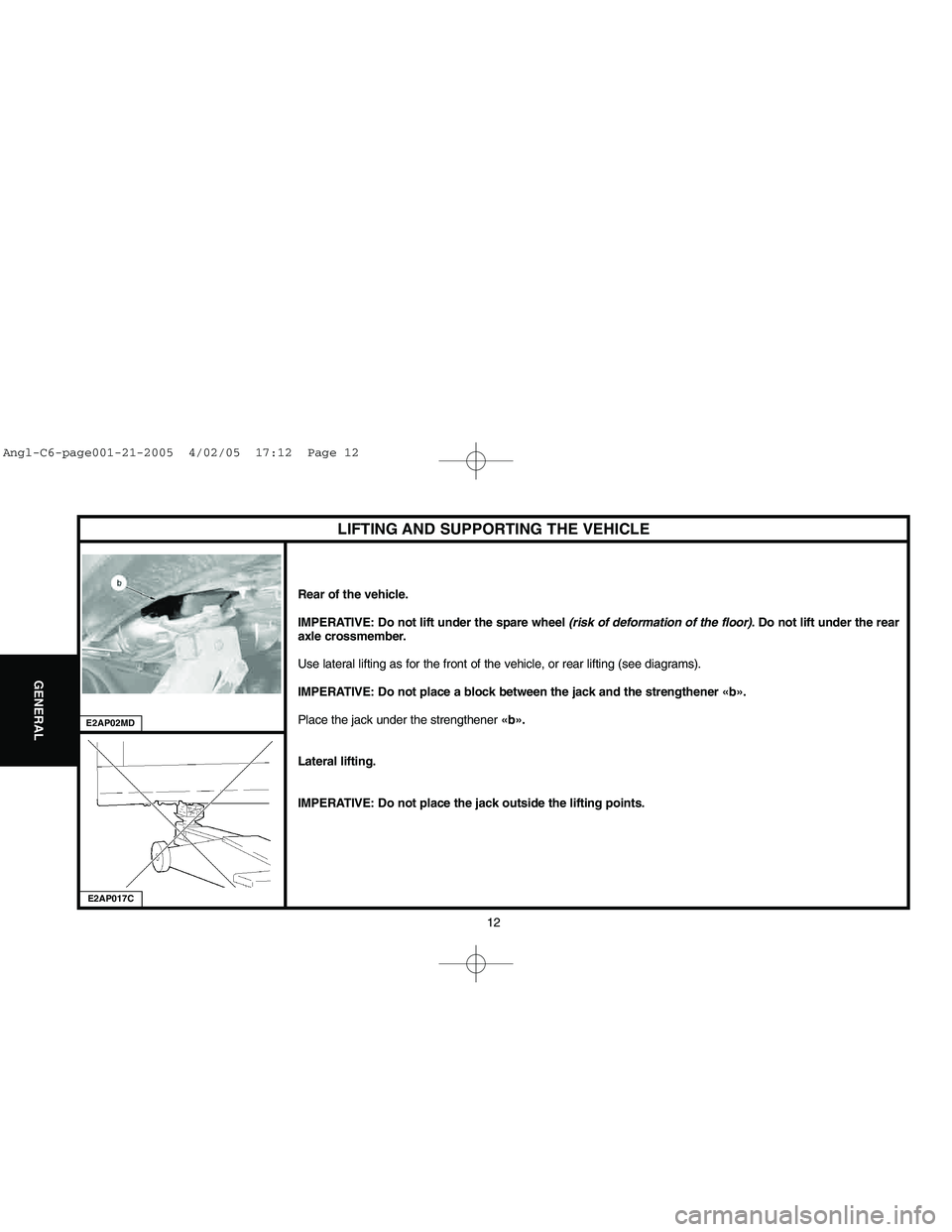

LIFTING AND SUPPORTING THE VEHICLE
Rear of the vehicle.
IMPERATIVE: Do not lift under the spare wheel (risk of deformation of the floor). Do not lift under the rear
axle crossmember.
Use lateral lifting as for the front of the vehicle, or rear lifting (see diagrams).
IMPERATIVE: Do not place a block between the jack and the strengthener «b».
Place the jack under the strengthener «b».
Lateral lifting.
IMPERATIVE: Do not place the jack outside the lifting points.
E2AP017CE2AP02MD
Angl-C6-page001-21-2005 4/02/05 17:12 Page 12

Downloaded from www.Manualslib.com manuals search engine 14
GENERAL
LIFTING AND SUPPORTING THE VEHICLE
Supporting the vehicle.
Incorrect positioning of the axle stand.
IMPERATIVE: Do not place the axle stands under the lugs of the jacking points.
Correct positioning of the axle stand.
E2AP02PDE2AP018C
Angl-C6-page001-21-2005 4/02/05 17:12 Page 14

Downloaded from www.Manualslib.com manuals search engine 15
GENERAL
LIFTING AND SUPPORTING THE VEHICLE
Raising the vehicle on a lift, supported from the jacking points.
Equipment involved:
- Two-column lift.
- Auxiliary lift with blocks.
IMPERATIVE: Position the safety straps, if placing the vehicle on a lift supported from the jacking points
(risk of the vehicle overbalancing when a heavy component is removed).
Tooling required.
[1] Safety straps
Using the safety straps.
WARNING: Check the condition of the safety straps before using them, do not use worn safety straps.
WARNING: Do not use straps that show any signs of oil or grease (risk of soiling the carpets and/or
seats).
Place protections on the front seats and on the fragile parts of the vehicle.
Example:
- Two-column lift.
- Place the safety straps[1] under the arm of the lift and criss-crossing the vehicle.
E2AP02FCE5AP2DNC
