THIS HANDBOOK summarises the specifications, adjustments, checks and special features of CITROËNprivate vehicles, not including UTILITY vehicles for which there exists a
separate handbook.
The handbook is divided into groups representing the main functions:
GENERAL - ENGINE - INJECTION - IGNITION - CLUTCH, GEARBOX, DRIVESHAFTS - AXLES, SUSPENSION, STEERING - BRAKES - HYDRAULICS - AIR CONDITIONING.
Angl-C6-Index-2005 4/02/05 17:10 Page I

Downloaded from www.Manualslib.com manuals search engine GENERAL
Vehicle identification1 - 4
General specifications: dimensions 5 - 6
General specifications: weights7
Operations to be performed before and
after a disconnection of the battery8
Towing specifications9 - 10
Lifting and supporting the vehicle11 - 15
Capacities18
Lubricants18 - 20
ENGINE
Engine specifications22
Engine suspension tightening torques: ES9A23
Tightening torques: ES9A engine24 - 28
Suspension tightening torques: DT1729 - 31
Adjustment of torque reaction rod32
Tightening torques: DT17 engines33 - 41
Cylinder head tightening42 - 43IGNITION
Sparking plugs100
CLUTCH - GEARBOX - TRANSMISSION
Speedometer101
AM6 automatic gearbox specifications
102
Procedure before operations103
Precautions: AM6 gearbox104
AM6 gearbox specifications105
Tightening torques: AM6 gearbox106 - 107
AM6 gearbox control specifications 108 - 110
Shift lock function111
Initialisation of the AM6 gearbox112 - 113
Draining-filling-topping up
the AM6 gearbox114 - 116
Oil pressure checks: AM6 gearbox117 - 119
Transmission120
CONTENTS
Auxiliary equipment drive belt45
Checking and setting the valve timing50
Exhaust line specifications68 - 72
Cooling system specifications73 - 75
Checking the oil pressure76
Valve clearances77
Drain-fill-bleed the engine cooling circuit78 - 82
INJECTION
BOSCH 7.4.7 injection system83 - 89
Prohibited operations: SIEMENS HDi
direct injection90 - 91
Safety requirements: HDi direct injection92
Checking the low pressure fuel
supply circuit 93 - 94
Turbo pressure checks95 - 97
Air supply circuit specifications98
Checking the air supply circuit99
Angl-C6-Index-2005 4/02/05 17:10 Page III

Downloaded from www.Manualslib.com manuals search engine AXLES - SUSPENSION - STEERING
Wheels and tyres121 - 124
Checking and adjusting the vehicle height125 - 128
Values for checking and adjusting
the axle geometries129 - 133
Front axle134 - 135
Front axle tightening torques136 - 139
Rear axle140 - 141
Rear axle tightening torques142 - 143
Active suspension with variable damping144 - 149
Suspension tightening torques150 - 154
Draining-filling-bleeding
the hydraulic steering/suspension circuit155 - 158
Power steering specifications159 - 162
Power steering tightening torques163 - 164
Checking the steering assistance
pressure (ES9A engine)165 - 168
Bleeding the hydraulic steering
assistance circuit169AIR CONDITIONING
Quantities: aircon system R134.a 203
Special features: air conditioning circuit 204 - 205
Pollen filter206
Checking the compressor oil level207 - 208
Checking the efficiency of
the air conditioning circuit209 - 215
Air conditioning circuit: ES9A216
Air conditioning circuit: DT17217
CONTENTS
BRAKES
Brake specifications170
Braking system: general specifications171 - 173
Braking system: tightening torques174 - 177
Values for checking and adjusting
the braking system178
General feataures of
the electric parking brake179 - 189
Brake fluid checks190
Drain-fill-bleed the braking system191 - 194
HYDRAULICS
Safety requirements:
active suspension with variable damping195 - 197
Suspension spheres: general specifications 198
Suspension spheres:
specification - identification199 - 200
Depressurising the hydraulic
suspension circuit201 - 202
Angl-C6-Index-2005 4/02/05 17:10 Page IV

Downloaded from www.Manualslib.com manuals search engine 10
GENERAL
GENERAL SPECIFICATION: TOWING THE VEHICLE
Vehicle with automatic gearbox.
IMPERATIVE: Never tow the vehicle with the wheels hanging (towing by the wheels).
Towing:
- It is necessary to raise the front of the vehicle, in order to tow it.
- If it is not possible to raise the front of the vehicle.
- It is essential to place the selection lever in position "N".
- Do not add any oil.
- Do not exceed a speed of 70 km/h(45 mph)on a journey of 100 Km (60 miles).
- Never tow the vehicle backwards.
- Check that the parking brake is released.
Driving:
- Never drive with the ignition switched off.
NOTE: The automatic gearbox is only lubricated when the engine is running.
Never push the vehicle to attempt to start it (impossible with an automatic gearbox).
Angl-C6-page001-21-2005 4/02/05 17:12 Page 10

Downloaded from www.Manualslib.com manuals search engine 15
GENERAL
LIFTING AND SUPPORTING THE VEHICLE
Raising the vehicle on a lift, supported from the jacking points.
Equipment involved:
- Two-column lift.
- Auxiliary lift with blocks.
IMPERATIVE: Position the safety straps, if placing the vehicle on a lift supported from the jacking points
(risk of the vehicle overbalancing when a heavy component is removed).
Tooling required.
[1] Safety straps
Using the safety straps.
WARNING: Check the condition of the safety straps before using them, do not use worn safety straps.
WARNING: Do not use straps that show any signs of oil or grease (risk of soiling the carpets and/or
seats).
Place protections on the front seats and on the fragile parts of the vehicle.
Example:
- Two-column lift.
- Place the safety straps[1] under the arm of the lift and criss-crossing the vehicle.
E2AP02FCE5AP2DNC
Angl-C6-page001-21-2005 4/02/05 17:12 Page 15

Downloaded from www.Manualslib.com manuals search engine Draining methods
Oil capacities are defined according to the following methods
16
GENERAL
CAPACITIES (in litres)
Draining of the engine lubrication system by GRAVITY
Place the vehicle on horizontal ground (in the high position if
hydropneumatic suspension).
The engine should be hot (oil temperature 80°C).
Drain the sump by gravity.
Remove the oil filter cartridge (time for draining and drip-drip = 15
minutesapprox.).
Refit the cap with a new seal.
Refit a new oil filter cartridge.
Refill the engine with oil (see table for oil capacity).
Start the engine to fill the oil filter cartridge.
Stop the engine (allow to stabilise for 5 minutes).Draining of the engine lubrication system by SUCTION
Place the vehicle on horizontal ground (in the high position if
hydropneumatic suspension).
The engine should be hot (oil temperature 80°C).
Remove the oil by suction through the dipstick tube.
Remove the oil filter cartridge.
Maintain the suction of oil in the sump (15 minutesapprox.).
Refit a new oil filter cartridge.
Refill the engine with oil (see table for oil capacity).
Start the engine to fill the oil filter cartridge.
Stop the engine (allow to stabilise for 5 minutes).
WARNING: Remove the suction container before starting the engine.
ESSENTIAL: Systematically check the oil level using the oil dipstick.
Angl-C6-page001-21-2005 4/02/05 17:12 Page 16

Downloaded from www.Manualslib.com manuals search engine 26
ENGINE
ENGINE TIGHTENING TORQUES
8 Crankshaft bearing
NOTE: Maximum length under heads for M11 = 131,5 mm.
NOTE: Maximum length under heads for M8 = 119 mm.
Perform the following operations:
- Brush the screw threads.
- Refit the screws having first pre-coated them with «MOLYKOTE G RAPID PLUS»grease on the threads and under heads.
Check the presence of the eight centring pins
Pre-tighten the screws M11(sequence from 1to 8)3 ± 0,3
Pre-tighten the screws M8(sequence from Ato H)1 ± 0,1
Tighten the screws M6 (sequence from ato 1)1 ± 0,1Slacken the screws screws M11and M8 Yes
Proceeding screw by screw
Tighten the screws M11(sequence from 1to 8)3 ± 0,3
Angular tightening180°
Tighten the screws M8(sequence from Ato H)1 ± 0,1Angular tightening180° Engine: ES9A
B1BP2D3D
Angl-C6-page022-82-2005 4/02/05 17:19 Page 26

Downloaded from www.Manualslib.com manuals search engine 46
ENGINE

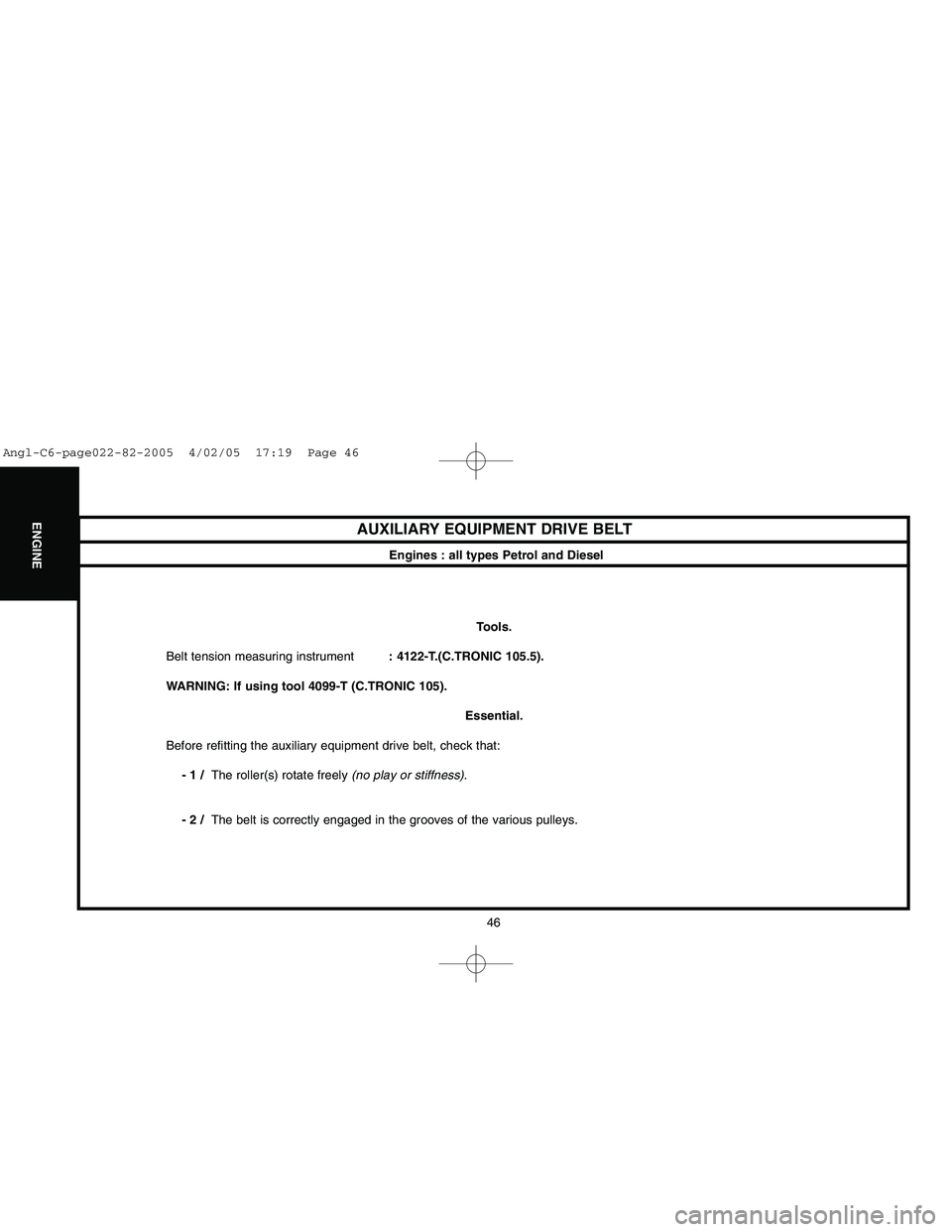

AUXILIARY EQUIPMENT DRIVE BELT
Engines : all types Petrol and Diesel
Tools.
Belt tension measuring instrument: 4122-T.(C.TRONIC 105.5).
WARNING: If using tool 4099-T (C.TRONIC 105).
Essential.
Before refitting the auxiliary equipment drive belt, check that:
- 1 / The roller(s) rotate freely (no play or stiffness).
- 2 / The belt is correctly engaged in the grooves of the various pulleys.
Angl-C6-page022-82-2005 4/02/05 17:19 Page 46

Downloaded from www.Manualslib.com manuals search engine 47
ENGINE
B1BP27EC
AUXILIARY EQUIPMENT DRIVE BELT
Engine: ES9A
Tools.
[1] Ratchet spanner S.171 FACOM (1/2 square): S 171
[2]Reduction box S.230 FACOM (1/2 - 3/8): S 230
Removing.
Remove the engine cover.
Pivot the tensioner roller bracket (1)clockwise, until it locks,
using tools [1]and [2]at «a».
Remove the auxiliary equipment drive belt.
ESSENTIAL: Check that the guide rollers are turning freely
(no play and no tightness).
Refitting.
Refit the auxiliary equipment drive belt.
Respect the following order of assembly:
- The crankshaft pulley (2).
- The tensioner roller (3).
Release the tensioner roller bracket (1), by turning it anti-clockwise,
using tools [1]and [2].
ESSENTIAL: Make sure that the belt is correctly positioned in
the grooves of the various pulleys.
B1BP27FC
Angl-C6-page022-82-2005 4/02/05 17:19 Page 47

Downloaded from www.Manualslib.com manuals search engine 48
ENGINE

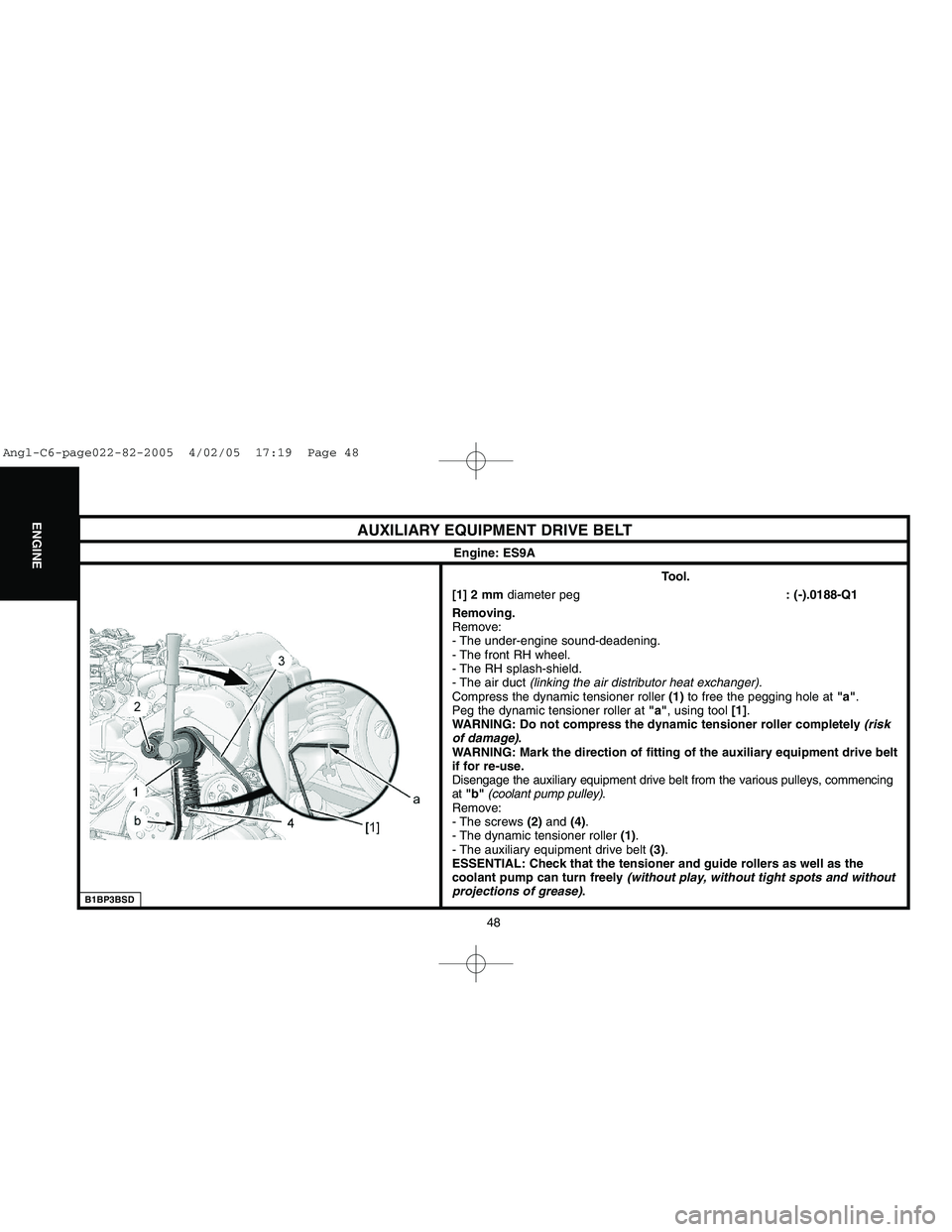

B1BP3BSD
AUXILIARY EQUIPMENT DRIVE BELT
Engine: ES9A
Tool.
[1] 2 mmdiameter peg: (-).0188-Q1
Removing.
Remove:
- The under-engine sound-deadening.
- The front RH wheel.
- The RH splash-shield.
- The air duct (linking the air distributor heat exchanger).
Compress the dynamic tensioner roller (1)to free the pegging hole at "a".
Peg the dynamic tensioner roller at "a", using tool [1].
WARNING: Do not compress the dynamic tensioner roller completely (risk
of damage).
WARNING: Mark the direction of fitting of the auxiliary equipment drive belt
if for re-use.
Disengage the auxiliary equipment drive belt from the various pulleys, commencing
at "b"(coolant pump pulley).
Remove:
- The screws (2)and (4).
- The dynamic tensioner roller (1).
- The auxiliary equipment drive belt (3).
ESSENTIAL: Check that the tensioner and guide rollers as well as the
coolant pump can turn freely (without play, without tight spots and without
projections of grease).
Angl-C6-page022-82-2005 4/02/05 17:19 Page 48
