Page 51 of 216
52
II
I N S T R U M E N T P A N E L
MAINTENANCE INDICATOR
It informs you when the next routine service is due in accordance with the vehicle servicing schedule in the Main-tenance Guide. This information is dependent on two parameters: the mileage covered, and the time elapsed since the last visit.
Operation
From switching on the ignition and for a few seconds, the span-ner symbolising maintenance operations lights up ; the instru-ment panel tells you the distance remaining to the next service.
Example: there remain up to the next service:
A few seconds after this, the engine oil level indicator is displayed, then the total mileage recorder resumes its normal role. The instrument panel gives the total and trip mile-ages.
Operation if the distance to the next service is less than 1 000 km (600 miles)
Each time you switch on the igni-tion and for 5 seconds, the span- n e r a n d t h e d i s t a n c e fl a s h .
Example: There remain up to the n e x t s e r v i c e : 5 0 0 k m ( 5 0 0 m i l e s ) . On switching on the ignition and for 5 seconds, the instrument panel indicates:
A few seconds after this, the engine oil level indicator is displayed, then the total mileage recorder resumes its normal role and the mainte-nance symbol remains lit up.
This is a warning to you that a service must be carried out at the earliest opportunity.
The instrument panel gives the total and trip mileages.
Operation if the service interval has been passed
Each time you switch on the igni-tion, the maintenance symbol and the distance covered (preceded by a m i n u s ) b e y o n d t h e r e c o m m e n d e d i n t e r v a l fl a s h .
Example: You have passed the serv- i c e i n t e r v a l b y 3 0 0 k m ( 3 0 0 m i l e s ) .
The routine service on your vehicle needs to be carried as soon as pos-sible.
A few seconds after switching on the ignition, the total mile-age recorder resumes its normal role and the maintenance symbol remains lit up.
Page 52 of 216
55
II2
14
3
H E A D - U P D I S P L A Y
The Head-up display projects essential driving data into the d r i v e r ' s fi e l d o f v i s i o n . T h i s e n a b l e s the driver never to take his eyes off the road.
ACTIVATION/DEACTIVATION
To activate/deactivate the Head-up display: when you switch on the ignition, press on button 1.
The function status (activated/deac- t i v a t e d ) w h e n y o u s t o p t h e e n g i n e is retained when you restart.
ADJUSTMENTS OF THE HEAD-UP DISPLAY
Height adjustment
To adjust the height for the Head-up display, press on buttons 2 and 3.
It is recommended to adjust it as low as possible.
Brightness adjustment
The Head-up display has a bright-ness sensor so that the information can be seen to the best advantage, whatever the ambient brightness.
You can enhance the display brightness at any time by rotating the control 1.
Note:In certain extreme weather con-ditions (rain and/or snow, strong sunlight), the Head-up display may be momentarily subject to interference.
When emerging from a tunnel, there is a certain delay before the system can re-adapt the display brightness to the out-side conditions.
Remark: Certain types of specta-cles may disperse the light coming from the Head-up display.
There is memorisation of driving positions as well as those for the Head-up dis-play
The adjustments you have made for the Head-up display are adopted alongside the driving posi-tion memorisations (see “Memori- s a t i o n ” ) : t h e y a r e :Height adjustment.
Brightness.The types of information selected.
Page 53 of 216
56
II
CB
DG
FE
A
H E A D - U P D I S P L A Y
CONTENT OF THE HEAD-UP DISPLAYA “Fuel low” alertB “STOP” warning lampC “ESP” warning lampD Navigation instructionsE “SERVICE” warning lampF Main beams warning lampG Vehicle speed
T o b e a w a r e o f t h e s i g n i fi c a n c e o f the information projected on the screen, see “Warning lamps”.
Remark: when navigation is in operation, direction arrows will fl a s h . S e e N a v i D r i v e i n s t r u c t i o n s .
To suspend display of a cer-tain type of information:Press button 4.
Rotate the control 1 to select the type of information you wish to suspend.Press button 1.
T h e i n f o r m a t i o n fl a s h e s ; i t w i l l n o longer be displayed.
To quit the selection mode, press button 4.Note: The vehicle speed informa- t i o n , t h e “STOP t i o n , t h e “ t i o n , t h e “ ” w a r n i n g l a m p a n d t h e “ESP t h e “ t h e “ ” w a r n i n g l a m p c a n n o t b e suspended.
To restore display of a type of information:Press button 4.Rotate the control to select the information you wish to restore, w h i c h fl a s h e s .
Press button 1.
T h e i n f o r m a t i o n s t o p s fl a s h i n g : i t will be displayed.
To quit the selection mode, press button 4.
Page 54 of 216
57
II
1432
C
A
B
BB
BD
1 - Outside temperature2 - Display zone3 - Date4 - Time
When the outside temperature is between +3 °C and –3 °C, the t e m p e r a t u r e d i s p l a y fl a s h e s ( r i s k o f i c e ) .Note: The outside temperature displayed may be higher than the actual temperature if the vehicle is stationary in bright sunlight.
The driver is advised not to oper-ate the controls described below while the vehicle is moving.
CONTROLSA Access to the “Main menu” of the display.B Scroll through display menus.C Selection in the menus of the function chosen or value to modify.D Cancellation of the operation or return to the previous display.
M U L T I F U N C T I O N D I S P L A Y S
C O L O U R S C R E E N C
Main Menu
Press on button A to bring up the “Main menu” of the multifunc-tion display. This menu gives you access to the following functions:
Radio mono CD
See chapter “RDS Audio Compact Disc system”.
Trip computer
For:Entering the distance to the destination.Access to the log of alerts (recall of the alerts signalled previously.
Access to the status of func-tions, for example automatic lighting of headlamps, ESP, windscreen wipe.
Page 55 of 216
58
II
C
A
B
BB
BD
M U L T I F U N C T I O N D I S P L A Y S
C O L O U R S C R E E N C
TRIP COMPUTER
To enter the distance to be travelled on the trip compu-ter:1. Press on A.2. Use B to select the icon “Trip c o m p u t e r ” , t h e n c o n fi r m w i t h a press on C.3. Select entry of distance using B . C o n fi r m y o u r c h o i c e with a press on C.4. To choose the distance, select t h e fi g u r e y o u w i s h t o m o d i f y by using B , t h e n c o n fi r m w i t h a press on C.5. Use B to adjust the value, then validate by pressing C.6. Validate “OK” on the screen.
TO ACCESS THE TRIP COM-PUTER'S LOG OF ALERTS:1. Press on A.2. Use B to select the icon “Trip c o m p u t e r ” , t h e n c o n fi r m w i t h a press on C.3. Select the log of alerts.4. When the list displays, use Bto scroll through it.5. Press D to return to the perma-nent display.
To access the status of func-tions: proceed in a similar man-ner.
P E R S O N A L I S AT I O N / C O N -FIGURATION
To activate/deactivate the automatic guide-me-home lighting:1. Press on A.2. Use B to select the icon “Per- s o n a l i s a t i o n - C o n fi g u r a t i o n ” t h e n c o n fi r m y o u r c h o i c e b y pressing C.3. Then select the sub-menu for the vehicle parameters. Con- fi r m y o u r c h o i c e w i t h a p r e s s on C.4. Using B, select lighting and s i g n a l l i n g . C o n fi r m y o u r c h o i c e with a press on C.5. Then press C to select/dese-lect the guide-me-home light-ing, to activate/ deactivate it.
After activation, choose the dura-tion: press C then use B to select the duration, then press C.
To activate/deactivate the automatic lighting of head-lamps:
Repeat stages 1 to 4 described above.5. Press on C to select/deselect the automatic lighting of head-lamps.Note: Activation of this function is immediate while deactivation requires the ignition to be switched off.
Page 56 of 216
59
II
M U L T I F U N C T I O N D I S P L A Y S
C O L O U R S C R E E N C
To activate/deactivate the daytime-running lamps:
Repeat stages 1 to 4 described above.5. Press on C to select/deselect daytime-running lamps.
If you activate the daytime-running lamps, they come on provided the signalling control stalk is in posi-tion 0 and the headlamps are off.
If the daytime-running lamps are active, the sidelamps will also be o n ( d e p e n d i n g o n c o u n t r y s p e c i fi - c a t i o n ) .
To activate/deactivate the Xenon dual-function direc-tional headlamps:
Repeat stages 1 to 3 described above.4. Press B to select the driv- i n g a s s i s t a n c e . C o n fi r m y o u r choice with a press on C.5. Press on C to select/deselect the Xenon dual-function direc-tional headlamps.
To activer/deactivate the wel-come function
Repeat stages 1 to 3 described above.4. Press B to select the driv- i n g a s s i s t a n c e . C o n fi r m y o u r choice with a press on C.5. Press on C to select/deselect welcome function.
To adjust the display bright-ness:1. Press on A.2. Use B to select the icon “Per- s o n a l i s a t i o n - C o n fi g u r a t i o n ” t h e n c o n fi r m y o u r c h o i c e b y pressing C.3. S e l e c t t h e d i s p l a y c o n fi g u r a -tion with a press on B . C o n fi r m your choice with a press on C.4. Select the brightness adjust- m e n t . C o n fi r m y o u r c h o i c e w i t h a press on C.5. Select with a press on B, then validate by pressing C, the normal or alternative display mode.To adjust the brightness, select the symbols “+” or “–” and con- fi r m y o u r a d j u s t m e n t b y p r e s s -ing C.
6. Validate “OK” on the screen.
To choose the display colour:proceed in a similar manner.
To adjust the date and the time:1. Press on A.2. Use B to select the icon “Per- s o n a l i s a t i o n - C o n fi g u r a t i o n ” t h e n c o n fi r m y o u r c h o i c e b y pressing C.3. S e l e c t t h e d i s p l a y c o n fi g u r a -tion with a press on B . C o n fi r m your choice with a press on C.4. Select the adustment for the date and the time, by press-ing B , t h e n c o n fi r m w i t h a press on C.5. Press B to select the values y o u w i s h t o m o d i f y . C o n fi r m your choice with a press on C.6. Do your adjustments with B, then validate each adjustment choice with a press on C.7. Validate “OK” on the screen.
Page 57 of 216
60
II
C
A
B
BB
BD
M U L T I F U N C T I O N D I S P L A Y S
C O L O U R S C R E E N C
To choose units (for tem-perature, fuel consumption etc.):1. Press on A.2. Use B to select the icon “Per- s o n a l i s a t i o n - C o n fi g u r a t i o n ” t h e n c o n fi r m y o u r c h o i c e b y pressing C.3. S e l e c t t h e d i s p l a y c o n fi g u r a -tion with a press on B . C o n fi r m your choice with a press on C.4. Then select the sub-menu for U n i t s . C o n fi r m y o u r c h o i c e w i t h a press on C.5. Use B to select the unit you wish to modify, then validate with a press on C.6. Validate “OK” on the screen.
To choose the language:1. Press on A.2. Use B to select the icon “Per- s o n a l i s a t i o n - C o n fi g u r a t i o n ” t h e n c o n fi r m y o u r c h o i c e b y pressing C.3. Select your choice of lan-guage, via B.4. Use B to select the desired language and validate your choice by pressing C.5. Validate “OK” on the screen.
AIR CONDITIONING
To activate/deactivate the air conditioning:1. Press on A.2. Press B to select the air condi- t i o n i n g i c o n , t h e n c o n fi r m y o u r choice by pressing C.3. Use B t o s e l e c t t h e m o d i fi c a -tion you wish to make to the air conditioning and validate your choice by pressing C.
To activate/deactivate the left/right differential adjust-ment of the air conditioning:1. Press on A.2. Press B to select the air condi- t i o n i n g i c o n , t h e n c o n fi r m y o u r choice by pressing C.3. Use B t o s e l e c t t h e m o d i fi c a -tion you wish to make to the differential adjustment and vali-date your choice with a press on C.
Page 58 of 216
61
II
124
35
C
A
B
BB
BD
M U L T I F U N C T I O N D I S P L A Y S
N A V I D R I V E C O L O U R D I S P L A Y
1 - Outside temperature.2 - Folder.3 - Date.4 - Telephone.5 - Time.
When the outside temperature is between +3 °C and –3 °C, the t e m p e r a t u r e d i s p l a y fl a s h e s ( r i s k o f i c e ) .Note: The outside temperature displayed may be higher than the actual temperature if the vehicle is stationary in bright sunlight.
The driver is advised not to oper-ate the controls described below while the vehicle is moving.
CONTROLSA Access to the “Main menu” of the display.B Scroll through display menus.C Selection in the menus of the function chosen or value to modify.Scroll through display menus.
D Cancellation of the operation or return to the previous display.
Main Menu
Press on button A to bring up the “Main menu” of the multifunc-tion display. This menu gives you access to the following functions:
Air conditioning
Refer to the explanations given in the section « Auto-matic air conditioning ».
T r a f fi c i n f o r m a t i o n
See NaviDrive instruc-tions.
N a v i g a t i o n - T r a f fi c information
See NaviDrive instruc-tions.
Audio
See NaviDrive instruc-tions.
Telephone and telematic services
See NaviDrive instruc-tions.
C o n fi g u r a t i o n, to activate/deactivate the guide-me-home lighting, automatic lighting of headlamps etc. as well as to adjust the var- i o u s p a r a m e t e r s ( t i m e , d a t e e t c . ) . See NaviDrive instructions.
Map
See NaviDrive instruc-tions.
Video
See NaviDrive instruc-tions.
Vehicle diagnosis
See NaviDrive instruc-tions.
Page 59 of 216
62
II

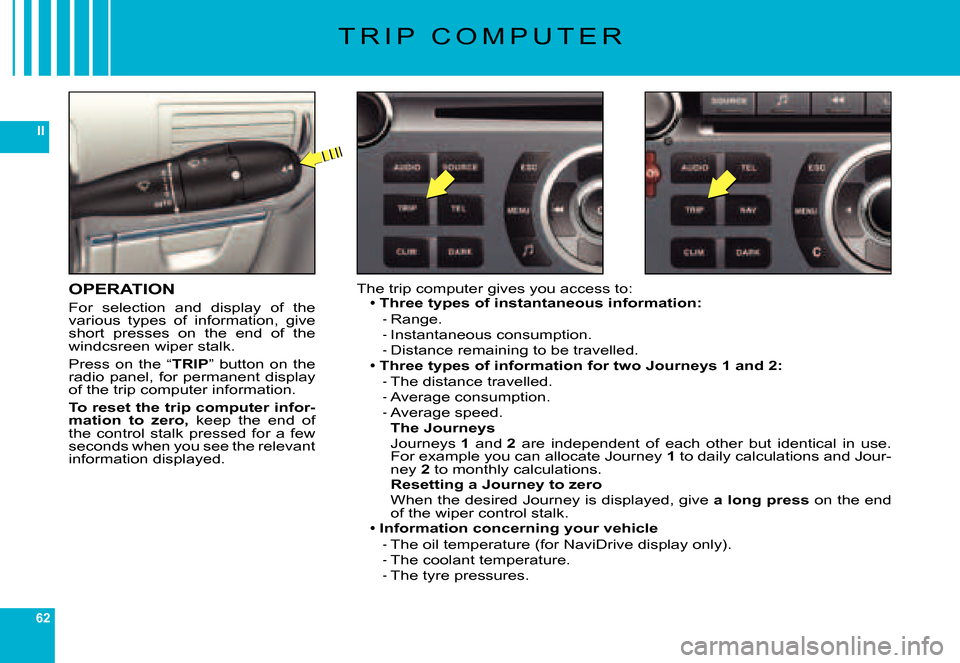

T R I P C O M P U T E R
OPERATION
For selection and display of the various types of information, give short presses on the end of the windcsreen wiper stalk.
Press on the “TRIP” button on the radio panel, for permanent display of the trip computer information.
To reset the trip computer infor-mation to zero, keep the end of the control stalk pressed for a few seconds when you see the relevant information displayed.
The trip computer gives you access to:Three types of instantaneous information:
Range.Instantaneous consumption.Distance remaining to be travelled.Three types of information for two Journeys 1 and 2:The distance travelled.Average consumption.Average speed.The JourneysJourneys 1 and 2 are independent of each other but identical in use. For example you can allocate Journey 1 to daily calculations and Jour-ney 2 to monthly calculations.Resetting a Journey to zeroWhen the desired Journey is displayed, give a long press on the end of the wiper control stalk.Information concerning your vehicle
The o i l t e m p e r a t u r e ( f o r N a v i D r i v e d i s p l a y o n l y ) .The coolant temperature.The tyre pressures.
Page 60 of 216
63
II
T R I P C O M P U T E R
Colour screen CNaviDrive colour display
Range
This is the distance that can still be travelled on the amount of fuel remaining in the tank. When the dis-tance you can still travel is less than around 30 km ( 2 0 m i l e s ) , o n l y f o u r d a s h e s a r e d i s p l a y e d .
Instantaneous consumption
This is the result from the consumption recorded within the last 2 seconds. This function displays only from 3 0 k m / h ( 1 8 m p h ) .
Distance to be travelled
To enter it, see “Multifunction display”.
Distance travelled
This is the distance that has been travelled since the last reset to zero of the Journey selected.
Average consumption
This is the relationship between the fuel consumed and the distance travelled since the last reset to zero of the trip computer.
Average speed
This is obtained, from the last reset to zero of the trip computer, by dividing the distance travelled by the time t a k e n ( w i t h i g n i t i o n s w i t c h e d o n ) .
