Page 61 of 216
64
II
T R I P C O M P U T E R
This gauge informs you of the temperature of the oil in your engine.
OIL TEMPERATURE (NAVIDRIVE COLOUR DISPLAY)
If the temperature is too high, the gauge indicates the maximum l e v e l a n d t h e l a s t , r e d b a r fl a s h e s .
Contact a CITROËN dealer.
This gauge informs you of the temperature of the c o o l a n t fl u i d i n y o u r e n g i n e .
If the temperature is excessive, the gauge indicates a maximum level, the « STOP » warning lamp comes on in the instrument panel as well as on the Head-Up display.
Stop and contact a CITROËN dealer.
COOLANT TEMPERATURE
Colour screen CNaviDrive colour display
Page 62 of 216
65
II
T R I P C O M P U T E R
TYRE DEFLATION DETECTION
T h i s f u n c t i o n w a r n s y o u o f t y r e s t h a t a r e d e fl a t e d o r p u n c t u r e d , b y m e a n s o f s e n s o r s t h a t c o n t i n u o u s l y m o n i t o r t h e status of the vehicle's wheels, giving you this information on the screen (press the end of the wiper control stalk or on the “TRIP ” b u t t o n f o r a p e r m a n e n t d i s p l a y ) .
Colour screen CNaviDrive colour display
Display of tyres in good condition
Status from the sensors in the course of initialisation
Page 63 of 216
66
II
T R I P C O M P U T E R
T y r e d e fl a t i o n a l e r t
The SERVICE warning lamp comes on and a vehicle outline is displayed.
T h e l o c a t i o n o f t h e w h e e l ( s ) c o n c e r n e d i s c l e a r f r o m t h e v e h i c l e o u t l i n e , o n w h i c h t h e a f f e c t e d w h e e l ( s ) w i l l b e fl a s h -ing. Check the tyre pressures as soon as possible.
Colour screen CNaviDrive colour display
T y r e v e r y d e fl a t e d
T y r e d e fl a t e d
Stop immediately, avoiding any sudden actions with the steering wheel or the brakes.
C h a n g e t h e w h e e l w i t h t h e a f f e c t e d t y r e ( w h e t h e r p u n c t u r e d o r v e r y d e fl a t e d ) , t h e n h a v e t h e t y r e r e p a i r e d a n d all the pressures checked at the earliest opportunity.
The wheel with a damaged tyre (either in the boot or under repair) can no longer be detected (information given by the vehicle outline or by a message) nor is the spare wheel able to be detected.
Puncture
The « STOP » a n d t y r e ( s ) p u n c t u r e d w a r n i n g l a m p s l i g h t u p , a n d a v e h i c l e o u t l i n e i s d i s p l a y e d . T h e l o c a t i o n o f t h e w h e e l ( s ) c o n c e r n e d i s c l e a r f r o m t h e v e h i c l e o u t l i n e , o n w h i c h t h e a f f e c t e d w h e e l ( s ) w i l l b e fl a s h i n g .
Colour screen CNaviDrive colour display
Page 64 of 216
67
II
T R I P C O M P U T E R
Wheel not detected
The SERVICE warning lamp comes on and a vehicle outline is displayed.
T h e w h e e l ( s ) c o n c e r n e d c a n b e i d e n t i fi e d f r o m t h e v e h i c l e o u t l i n e , o n w h i c h i t ( t h e y ) w i l l b e m i s s i n g . I f y o u h a v e n o t changed a wheel, such information indicates that the system is malfunctioning.
C o n t a c t a C I T R O Ë N d e a l e r t o h a v e t h e f a u l t y s e n s o r ( s ) r e p l a c e d .
Colour screen CNaviDrive colour display
T h e d e fl a t i o n d e t e c t i o n s y s t e m i s a d r i v i n g a i d , b u t w h i c h d o e s n o t a b s o l v e t h e d r i v e r f r o m t h e n e e d t o b e v i g i l a n t a n d responsible.
T h i s s y s t e m d o e s n o t d i s p e n s e w i t h t h e r e q u i r e m e n t t o c h e c k t h e t y r e s o n a r e g u l a r b a s i s ( s e e “ V e h i c l e i d e n t i fi c a - t i o n ” ) , t o m a k e s u r e t h a t t h e v e h i c l e i s b e h a v i n g c o r r e c t l y a n d t o a v o i d p r e m a t u r e t y r e w e a r a r i s i n g f r o m d r i v i n g t o o fast etc.
Do not forget to check the pressure in the spare wheel.
Any repair or replacement of a tyre on a wheel that is equipped with a sensor must be carried out b y a C I T R O Ë N d e a l e r .Any repair or replacement repair or
The system may suffer from temporary interference caused by radio transmissions on neighbouring frequencies.
Page 65 of 216
64
II
T R I P C O M P U T E R
This gauge informs you of the temperature of the oil in your engine.
OIL TEMPERATURE (NAVIDRIVE COLOUR DISPLAY)
If the temperature is too high, the gauge indicates the maximum l e v e l a n d t h e l a s t , r e d b a r fl a s h e s .
Contact a CITROËN dealer.
This gauge informs you of the temperature of the c o o l a n t fl u i d i n y o u r e n g i n e .
If the temperature is excessive, the gauge indicates a maximum level, the « STOP » warning lamp comes on in the instrument panel as well as on the Head-Up display.
Stop and contact a CITROËN dealer.
COOLANT TEMPERATURE
Colour screen CNaviDrive colour display
Page 66 of 216
68
IIP
R
N
A
A
M A N U A L G E A R B O X /
A U T O M A T I C G E A R B O X
For safety:The gear lever can only be disengaged from position P if you are pressing the brake pedal.
When a door is opened, an audible signal sounds if the gear selector is not in position P.
Before leaving the vehicle, make absolutely certain that position P is selected.
Page 67 of 216
69
II
A U T O M A T I C G E A R B O X
The engine can only be started when the lever is at position P or N.
A safety device ensures that starting is impossible in the other positions.
After starting the engine, with selector on P, depress the brake pedal then shift the selector to D, R or M:D for automatic mode.
R for reverse gear.M to change to manual mode.
The change from position D ( d r i v i n g i n a u t o m a t i c m o d e ) t o p o s i t i o n M (driv- i n g i n s e q u e n t i a l m o d e ) o r v i c e v e r s a c a n b e m a d e a t a n y t i m e .

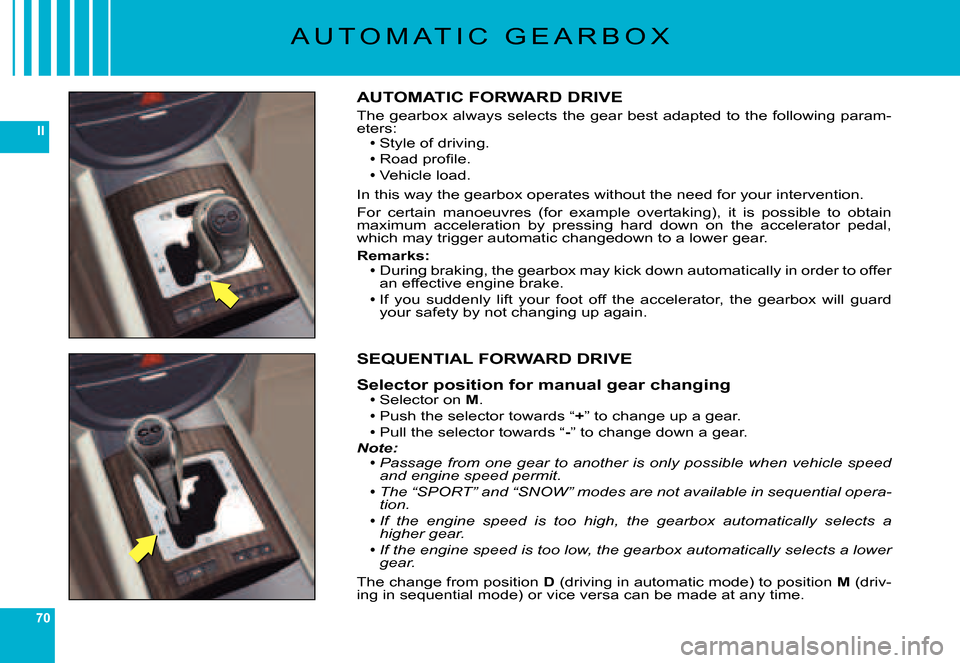

Page 68 of 216
70
II
A U T O M A T I C G E A R B O X
AUTOMATIC FORWARD DRIVE
The gearbox always selects the gear best adapted to the following param-eters:Style of driving.
Road p r o fi l e .Vehicle load.
In this way the gearbox operates without the need for your intervention.
F o r c e r t a i n m a n o e u v r e s ( f o r e x a m p l e o v e r t a k i n g ) , i t i s p o s s i b l e t o o b t a i n maximum acceleration by pressing hard down on the accelerator pedal , which may trigger automatic changedown to a lower gear.
Remarks:During braking, the gearbox may kick down automatically in order to offer an effective engine brake.
If you suddenly lift your foot off the accelerator, the gearbox will guard Ifyour safety by not changing up again.
Page 69 of 216
71
II
A
A U T O M A T I C G E A R B O X
OPERATION IN SPORT OR SNOW AUTOMATIC MODE
With the lever on D, press button A to select any of the driving modes SPORT, SNOW or NORMAL.
NORMAL mode is selected by default when you start the engine. This driv-ing mode is designed for the more usual types of driving condit ions.
No warning lamp will light up in the instrument panel.
SNOW mode is for a more cautious driving style on slippery roads.
The warning lamp in the instrument panel is lit up.
SPORT mode is for more responsive driving, to provide maximum performance and acceleration.
The warning lamp in the instrument panel is lit up.
Remark: The driving mode selected before you switched off the engine will be retained the next time you start up.
Flashing of the warning lamp for the position requested signals that this position has not yet been reached. W h e n t h e w a r n i n g l a m p i s p e r m a n e n t , t h e p o s i t i o n i s c o n fi r m e d .
If there is an operating fault:A sharp hesitation may be felt when you select AR for reverse gear.
The gearbox is stuck in a gear.
Do n o t e x c e e d 1 0 0 k m / h ( 6 2 m p h ) .
Consult a CITROËN dealer as soon as possible.

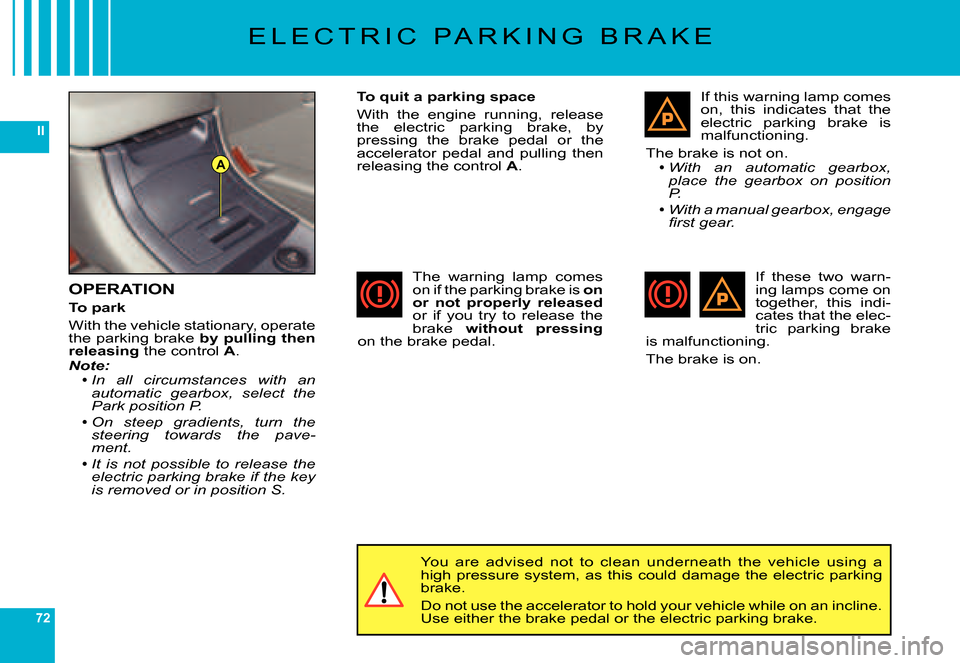

Page 70 of 216
72
II
A
E L E C T R I C P A R K I N G B R A K E
OPERATION
To park
With the vehicle stationary, operate the parking brake by pulling then releasing the control A.Note:In all circumstances with an automatic gearbox, select the Park position P.
On steep gradients, turn the steering towards the pave-ment.
It is not possible to release the Itelectric parking brake if the key i s r e m o v e d o r i n p o s i t i o n S .
