bulb CITROEN C6 2012 Handbook (in English)

3
i
CONTENTS
COMFORT
III82-118
MAINTENANCE
IV11 9 -132
PR ACTICAL ADVICE
V133-14 4
TECHNICAL SPECIFICATIONS
VI145 -148
Alphabetical index...........149 -152
User Precautions..............IÌXXIVÌ
Access .........................................82®84
Automatic air conditionin
g ...........85®91
Rear automatic air conditioning.........92
Programmable heating ................93®96
Rear seats...................................97®99
Pack Lounge seats...........................100
Airbags.......................................101-102
Child restraints ........................103®105
Suspension with electronically
controlled springing
an
d damping..................................106
Ground clearance adjustment ....107-108
Interior lighting...........................109 -110
Interior comfort .........................111®116
Boot...................................................117
Sun roof.............................................f11 8
Fuel................................................... 133
Changing bulbs ........................134®137
Safety recommendations.................138
Roof bars ..........................................139
Cold weather shield..........................140
Changing a wheel....................141®143
To w i ng – Lifting................................14 4
Bonnet release.................................120
Levels................................................121
Diesel engine ...................................12 2
Levels - topping up ...........................123
12 V battery..............................124®126
F
uses........................................127®131
Capacity ........................................... 132
General.............................................145
Dimensions...............................146 -147
Vehicle identifi cation ........................148
AUDIO/TELEMATICS
7.1 - 7.58

53
II
FEATURES
With dipped beams or main beams, theDirectional headlampsfunction turns the headlamps in the direction theroad ahead is taking.
Your vision on bends is considerably enhanced.Note:An automatic correction of the beam height enables you not to dazzle other drivers.
XENON DUAL FUNCTION DIRECTIONAL
HEADLAMPS
Function activatedFunction deactivated
ACTIVATION/DEACTIVATION
Activated by default, this functioncan be activated/deactivated in the"Main menu" on the multifunctionscreen. See "Multifunction displays".
Th
eactivated/deactivated status
is retained when you switch off
the engine.Note:This function is not activewhen the vehicle is stationary,moving at very low speed, or inreverse gear.
Should there be a malfunction the "Dipped beams" warning lamp fl ashes. Have the system checkedby a CITROËN dealer or a qualifi ed workshop.pp
It is recommended to change both Xenon bulbs at the same time if there is a failure of one of them.

109
III221
2
2
INTERIOR LIGHTING
Front
INTERIOR LAMPS
1. Interior lamps
A press on button 1 of the front
interior lamp, switches the interior lamps on or off.
Switching on and off is progressiveafter an action on the remote con-
trol, but immediate after a press on
button 1.
Rear
2. Spotlamps
A press on one of the buttons2switches the corresponding spot-lamp on or off.
These only work when the ignition
is switched on.
Automatic lighting of the
interior lampsThey come on when you
remove the ignition key, unlock
the vehicle or open a door.
They go out progressively
when the doors are closed, the
vehicle locked or the i
gnitionswitched on.
Deactivation/Activation of
automatic lighting
A long press on button1, deacti-
vates the operaton of the inerior lamps. To reactivate them, presson the same button.
Changing bulbsTo change a front interior lamp
bulb: Detach the transparent
screen. Use a W 5 W bulb.
To change a rear interior lamp bulb: Detach the two surroundsof the transparent screen and pull it away. Use a W 5 W bulb.
•
•
•
•

110
III
C
D

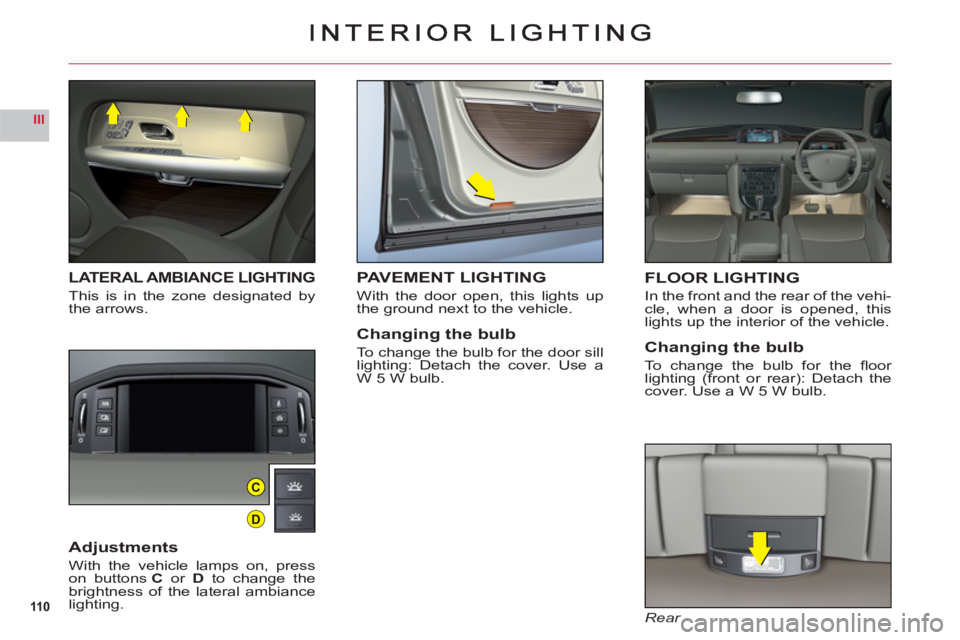

LATERAL AMBIANCE LIGHTING
This is in the zone designated bythe arrows.
Adjustments
With the vehicle lamps on, presson buttonsC or D to change the
brightness of the lateral ambiancelighting.
FLOOR LIGHTING
In the front and the rear of the vehi-cle, when a door is opened, thislights up the interior of the vehicle.
Changing the bulb
To change the bulb for the fl oor lighting (front or rear): Detach thecover. Use a W 5 W bulb.
Rear
PAVEMENT LIGHTING
With the door open, this lights up
the ground next to the vehicle.
Changing the bulb
To change the bulb for the door sill lighting: Detach the cover. Use a
W 5 W bulb.

111
IIIAB
INTERIOR COMFORT
GLOVEBOX
To open the glovebox, pull on thehandle and lower the lid.
The glovebox has three socketsAfor connecting audio/video equip-ment.
Changing the bulb
To change the bulb in the gloveboxlamp, detach the cover B, use aW 5 W bulb.
CUP-HOLDERS
To deploy the cup-holders, press on button C.
DRIVER'S ODDMENTS TRAY
To open the driver's oddments tray,pull the handle towards you.
While the vehicle is moving:The glovebox should remain closed.
The cup-holders should remain stowed.
•
•

117
III
5
4
4
1
3
2
6
1Pull strap (spare wheel stowage).
2Boot lamp.
To change the bulb, detach the cover and use a W 5 W bulb.
3 Elastic straps.
4 12 V accessories socket (functions with the ignition switched on).
5 B
oot lateral net.
6 Changer for 6 CDs.
BOOT

134
V
DEF
ACB
UPPER FRONT LENSALateral lampBDipped/main beamC Sidelamp
Note:In some climatic condi-tions, condensation can appear inthe lighting/signalling units. This is normal and should disappear
after a while (when the functions have been on for a few minutes for example).
If this is not the case, contact aCITROËN dealer or a qualifi ed ,
workshop.
For repairs to the front lamp unitsand for bulb replacement, contacta CITROËN dealer or a qualifi edp,
workshop.
The bulbs
for lampsD and E havea common bulb-holder.
CHANGING BULBS
Your headlamps have Xenon bulbs.
Because of the risk of electrocution, we recommend thatyou contact a CITROËN dealer or a qualifi ed workshop in the,
event of a fault.
It is recommended to change both bulbs at the same time if there is a failure of one of them.
Your vehicle is equipped with an active bonnet. To ensure thecorrect operation of this safety equipment, contact a CITROËNqpp
dealer or a qualifi ed workshop for the replacement of any part of the front panel.
LOWER FRONT LENSDDirection indicatorEDaytime-running lampFFront foglamp
SIDE REPEATER
To change the side repeater, pushtowards the front or rear to unclip itand contact a CITROËN dealer or p
a qualifi ed workshop.

135
V
A
B
holders and change the bulbs.Note: The tool for undoing thescrews is to be found in the toolbox in the spare wheel. See "Changing a wheel".
REAR CENTRAL LENSAReversing lampBFoglamp
The bulbs for lam
ps Aand Bhavea common bulb-holder. Contact
a CITROËN dealer or a qualifi ed
wor
kshop.
THIRD STOPLAMP
Contact a CITROËN dealer or aqualifi ed workshop.To
gain access to the bulb-holders, open the boot and undo the four
screws on the bodywork. Then lower the boot lid in order to be
able to pull out the two rear lamp
units, without pulling on the electric cables.
NUMBER PLATE
Detach the transparent shield, then pull out the bulb. Bulb: W 5 W.
After each operation,check that the lampswork.
CHANGING BULBS

136
V
A
BC
D
CHANGING BULBS

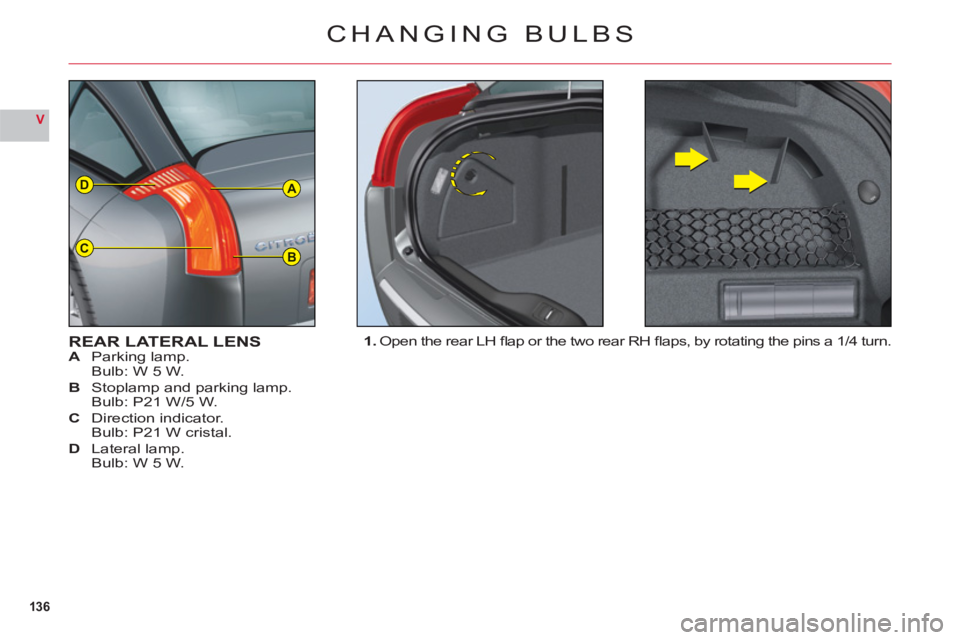

REAR LATERAL LENSA Parking lamp.
Bulb: W 5 W.
B Stoplamp and parking lamp.
Bulb: P21 W/5 W.
C Direction indicator.
Bulb: P21 W cristal.
DLateral lamp.
Bulb: W 5 W.
1. Open the rear LH fl ap or the two rear RH fl aps, by rotating the pins a 1/4 turn.

137
V
B
C
D
A
CHANGING BULBS

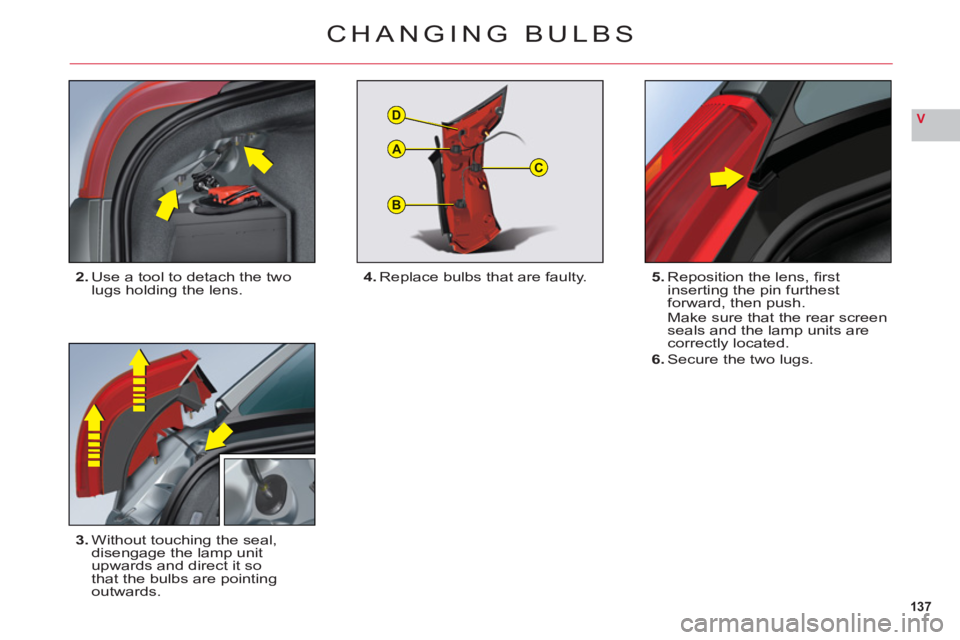

2.Use a tool to detach the twolugs holding the lens.
3.Without touching the seal,
disengage the lamp unit
upwards and direct it so
that the bulbs are pointingoutwards.5.
Reposition the lens, fi rst
inserting the pin furthest forward, then push.Make sure that the rear screen seals and the lamp units arecorrectly located.
6. Secure the two lugs.
4.Replace bulbs that are faulty.
