28IN BRIE
F
20. Passenger's airbag
21. Sunlight sensor
22.Multifunction display
23. Central air vents
24.Radio or NaviDrive
25. Controls - Lane Departure Warning System/
Anti-intrusion alarm
26. Gear lever
27. Hazard lamps button
28. Ashtray
29. Controls - Electronic stability programme
(ESP/ASR)/Central locking of doors and boot/
Parking assistance
30. Air conditioning controls
31.
Cup-holder
32.
Glovebox/Vehicle document storage/Fusebox
access fl ap/Audio-video sockets
33
.Lateral air vent
34. Bonnet release
DASHBOARD

15
A
KJIHGFE
DB
B
CA
ML
B
IN BRIE
F
Deactivation of passenger's airbag
When you switch on the ignition, the airbag warninglamp M lights up if the passenger's airbag has beendeactivated.
Hazard warning lamps
Driver's seat belt fastening sensor
When you switch on the ignition, seat belt warning lamp L lights up accompanied by a sound signal if the driver has not fastened his seat belt.
Warning lampLgoes out when the seat belt has been fastened.
INSTRUMENT PANEL
The hazard lamps can also be used with the ignition switched off.
MONITORING
A.Signalling warning lamps.B. Operational warning lamps.C. Cruise control/speed limiter information.D. Fuel gauge.E.Trip mileage recorder.F. Total mileage recorder, maintenance indicator.
G.Speed indicator.H.Display of automatic gearbox information.
I. Display of suspension sport mode.
J. Rev counter.K.Reset button for trip mileage recorder and
maintenance indicator.
Note:When the ignition is switched on, the orange and red warning lamps light up.
When the engine is running, these warning lamps should go out.
If any warning lamps remain lit, refer to the relevant page.
•
•
•

16
12
3
IN BRIE
F
SEAT BELTS WARNING LAMPTYRE DEFLATION DETECTION
This function warns you of tyres that are defl ated or punctured.
Tyre defl ation alert:TheSERVICEwarning lamp comes on and a vehicle
outline is displayed.
"Puncture": The"STOP"and tyre(s) punctured warning lamps light up,
and a vehicle outline is displayed.
Colour screen CNaviDrive colour display
Display of tyres in good condition
Tyre very defl ated
Tyre defl ated
"Puncture"
47
The driver's and the front and rear passengers' seats have sensors
that detect non-fastening/unfas-
tening of the seat belts.
The fastened
/non-fastened status
of the seat belts for each type of seat is indicated by the illumination
or fl ashing of the warning lamps 1,2 and 3.
MONITORING
61

26
II
A
ANTI-INTRUSION ALARM
Your vehicle may be equipped with
an ANTI-INTRUSION ALARM. Thisprovides:Exterior perimeter protection
by means of detectors on the
vehicle access points (doors,
boot, bonnet) as well as on the electrical supply.
Interior volumetric protection
by means of ultrasonic sensors (detecting movement inside thepassenger compartment). This can be deactivated using thecontrol1.


The installation also has a siren,
and a warning lamp on the control1which is visible from outside the
vehicle, indicating the three possi-ble statuses of the alarm:Alarm not active (disarmed),
warning lamp off.
Alarm active
(armed), the
warning lamp fl ashes slowly.
Alarm tri
ggered (signalling an
intrusion), the warning lamp
fl ashes rapidly if the alarm is deactivated by a press on thecontrol A. It stops as soon as you switch on the ignition.Note: If there is a malfunction,
the warning lamp remains perma-nently on.



DEACTIVATION OF THE
ALARM USNG THE REMOTE
CONTROL
The alarm is disarmed when youunlock the vehicle (with a press onbutton Aon the remote control).
DEACTIVATION OF THEALARM WITH THE KEY
Unlock the doors with the key. Thesiren triggers. Enter the vehicle,
insert the key in the ignition and
turn it to the drive position to stopthe siren. Otherwise the siren
will continue for approximately30 seconds.

37
II2
1
43
HEAD-UP DISPLAY
The Head-up display projectsessential driving datainto thedriver's fi eld of vision. This enablesthe driver never to take his eyesoff the road.
ACTIVATION/DEACTIVATION
To activate/deactivate the Head-up
display: when you switch on the
ignition, press on button 1.
The function status (activated/deac-
tivated) when you stop the engine is
retained when you restart.
ADJUSTMENTS
OF THE HEAD-UP DISPLAY
Hei
ght adjustment
To a djust the height for the Head-up display, press on buttons 2 and3.
It is recommended to adjust it as low as possible.
Brightness adjustment
The Head-up display has a bri-ghtness sensor so that the infor-
mation can be seen to the best
advantage, whatever the ambient
brightness.
You can enhance the display bri-
ghtness at any time by rotating the control 1.
Note:In certain extreme weather
conditions (rain and/or snow,strong sunlight), the Head-up display may be momentarily subject to interference.
When emerging
from a tunnel, there is a certain delay beforethe system can re-adapt thedisplay brightness to the outside conditions.
Note:
Certain types of spectaclesmay disperse the light coming from
the Head-up display.
There is memorisation of driving positions as well
as those for the Head-updisplay
The adjustments you have madefor the Head-up display are adop-
ted alongside the driving positionmemorisations (see "Memorisation").They are:Height adjustment.
Brightness.
The types of information selected.
•
•


If the Head-up display cannot beseen, it is recommended to adjustit for height (buttons 2 and 3) and tocheck that it is activated (button1).
The controls for the Head-up dis-play are located beneath the air
vent on the driver's side.

47
II
TRIP COMPUTER
TYRE DEFLATION DETECTION

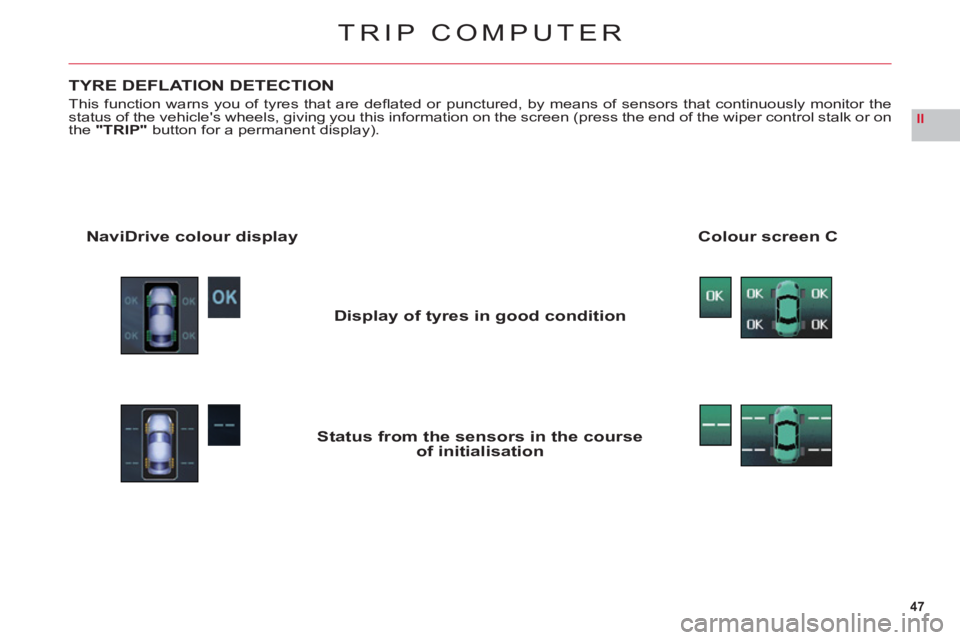

This function warns you of tyres that are defl ated or punctured, by means of sensors that continuously monitor thestatus of the vehicle's wheels, giving you this information on the screen (press the end of the wiper control stalk or on
the"TRIP" button for a permanent display).
Colour screen CNaviDrive colour display
Display of tyres in good condition
Status from the sensors in the course
of initialisation

49
II
TRIP COMPUTER
Wheel not detected
TheSERVICEwarning lamp comes on and a vehicle outline is displayed.
The wheel(s) concerned can be identifi ed from the vehicle outline, on which it (they) will be missing. If you have notchanged a wheel, such information indicates that the system is malfunctioning.
Contact a CITROËN dealer or a qualifi ed workshop for the replacement of the faulty sensor(s).
Colour screen CNaviDrive colour display
The defl ation detection system is a driving aid, but which does not absolve the driver from the need to be vigilant andresponsible.
This system does not remove the need to check the tyres on a regular basis (see "Vehicle identifi cation"), to makesure that the vehicle is behaving correctly and to avoid premature tyre wear arising from driving too fast etc.
Do not forget to check the pressure in the spare wheel.
All repairs or replacement of tyres on wheels fi tted with sensors must be done by a CITROËN dealer or a qualifi ed workshop.
The system may suffer from temporary interference caused by radio transmissions on neighbouringfrequencies.

51
II
A
SIGNALLING
LIGHTING CONTROL STALK
All vehicle lamps off
Sidelam
ps on
Dipped beams/main beams on
Rotate the ring Aforwards.
Rotate the ring Aforwards.
AUTOMATIC LIGHTING OF
HEADLAMPS
Sidelamps and dipped beams come on automatically in poor
ambient light, or if the wipers are
in continuous operation. They go out as soon as the ambient light
again become suffi cient or when
the wipers cease to operate.
Activation/deactivation of this
function is possible in the menu
"Personalisation/Confi guration" in
the "Main menu".
Note: Activation of this function is immediate while deactivation requi-res the ignition to be switched off.
In fo
g or snow, the light sensor may detect enough light. The lights will therefore not come on automatically.
Take care not to cover the bright-
ness sensor, which is visible from
outside the windscreen, behind
the interior rear view mirror.
GUIDE-ME-HOME LIGHTING
This function switches on your headlamps, to light your way whenyou wish to walk from a carpark,for example.
Thi
s function is activated:Manually by pulling thecontrolA towards you,
with the ignition switched off.Automatically, provided:
The automatic lighting of headlamps is activated.To activate the guide-
me-home lighting function, select in the "Main menu",
then in "Personalisation/Confi guration", the sub-menu
for lighting and signalling,
then activate the function.
See "Multifunction displays".
Note: It is possible to modify the dura-tion of the guide-me-home lighting (approx. 60, 30 or 15 seconds) inthe menu "Personalisation/Confi gu-ration".


-
-
Dipped beams/main beams dipswitch
Pull the control stalk towards you
to change between dipped beamand main beam.

61
II
23
1
SEAT BELTS NOT FASTENED/
UNFASTENED WARNING LAMPS
OPERATION
The driver's and the front and rear passengers' seats have sensors
that detect non-fastening/unfaste-ning of the seat belts.
The fastened
/non-fastened status
of the seat belts for each type of seat is indicated by the illumination
or fl ashing of the warning lamps 1,2 and 3.
FUNCTIONING OF THE SYSTEM OF DETECTION
Driver's and front passenger's seats
When you switch on the ignition:If the driver's seat belt is not fastened, the warning lamp 1 illuminates in
the instrument panel.
If the passenger's seat belt is not fastened, the warning lamp 3 lights up.
Above 20 km
/h (12 mph), the warning lamp fl ashes for non-fastening/ unfastening, accompanied by a message and a sound signal for around
2 minutes. Then the warning lamp(s) 1 and/or 3 remain on.
Rear passengers’ seats
When you switch on the ignition, warning lamp2lights up to make the driver
and any passengers aware.
Once the doors are closed and the engine started, a message tells you thefastening status of the rear belts for 30 seconds.
A
fter this time, if one or more of the rear belts are not fastened:Warning lamp 2comes on, if your speed is less than around 12 mph (20 km/h).Warning lamp 2fl ashes, accompanied by a message and a sound signal for about two minutes, if your speed is above around 12 mph (20 km/h).Note:The detection of non-fastening of rear seat belts is deactivated whenyou switch off the ignition or if one of the vehicle's doors is opened.
A child seat installed on the front passenger's seat may not bedetected.




•
•
The driver, after he has closed the doors and started the engine,mustmake sure that the passengers:Have allfastened their seat belts
Are using the seat belts correctly.

78
II
As the vehicle approaches the obs-
tacle, the sound signal becomesmore and more urgent and theshaded areas are displayed closer and closer to the vehicle. Proximit
y sensors are located in the front and rear bumpersof your vehicle.
When manœuvringin either forward or reverse gear, at a low speed less
than approx. 6 mph (10 km/h), they inform you of the presence of any obs-
tacle that is within their zone of detection by: A sound signal emitted by the front or rear loudspeakers.
Display of the outline of your vehicle with shading corresponding to
the area where an obstacle is detected.
As the vehicle approaches the obstacle, the sound signal tells you the posi-
tion of the obstacle according to whether the sound is coming from the front LH or RH or the rear LH or RH loudspeakers.
Note:The sound volume of your audio equipment reduces automatically when a signal is being emitted.


PARKING ASSISTA NCE
FrontRear
When the obstacle is less
than around 25 centimetres
from the vehicle, the sound signal becomes continuous
with display of a"WARNING"panel on the screen.
