A
1
A N T I - I N T R U S I O N A L A R M
Your vehicle may be equipped with an ANTI-INTRUSION ALARM. This provides:Exterior perimeter protection by Exteriormeans of detectors on the vehi-cle access points (doors, boot, bonnet) as well as on the elec-trical supply.
Interior volumetric protection Interiorby means of ultrasonic sensors (detecting movement inside the passenger compartment). This can be deactivated using the control 1.

45
II
AB
A N T I - I N T R U S I O N A L A R M
OPERATING THE ALARM
First make sure all the doors are closed.
The alarm is armed by pressing button B on the remote control.
With the alarm armed, the protections are active after 5 seconds (perimeter) and 45 seconds (volumetric).
When the alarm is armed (on standby), any intrusion will trigger the siren for 30 seconds, accompanied by the direction indicators lighting up.
The alarm then goes back on standby, but the trigger-ing remains memorised and is signalled by the rapid fl ashing of the warning lamp on control 1 after you have deactivated the alarm with a press on the unlocking button A. The fl ashing stops when you switch on the ignition.
The siren is also triggered if there is a cutting of the electrical supply. To stop it, restore the electrical supply then press on the unlocking button A.Note:If you want to lock your vehicle without arming the Ifalarm, just lock with the key only.
If you lock your vehicle and a door, or the boot, is still Ifopen, the central locking does not operate but the alarm will arm itself after approx. 45 seconds.Note: The siren is automatically deactivated (for exam-ple for disconnecting the battery) as soon as the vehicle is unlocked using the remote control.

46
II
S T E E R I N G L O C K – I G N I T I O N – S T A R T E R
NEVER REMOVE THE IGNITION KEY BEFORE THE ENGINE HAS COME TO A COMPLETE STOP.
IT IS ESSENTIAL ALWAYS TO DRIVE WITH THE ENGINE RUNNING, SO AS TO RETAIN STEERING AND BRAKING ASSISTANCE (risk of the steering lock engaging and loss of safety features).
When stationary, having removed the key, carefully turn the steering wheel if you wish to lock the steering.
S: STEERING LOCK
To unlock the steering, gently move the steering wheel while turning the key, without exerting undue force.
When you remove the key, turn your steering wheel to lock the steering. The key can only be removed when in position S.
M: DRIVE POSITION
The steering is unlocked (by turn-ing the key in position M, if neces-sary move the steering wheel).
STARTING AND STOPPING THE ENGINE
See “Driving”.
ECONOMY MODE
In order not to discharge the bat-tery while the engine is stopped, your vehicle goes automatically into economy mode after a max-imum of 30 minutes. Economy mode is indicated by a message on the screen.
The electrical components relating to comfort and also the headlamps (not sidelamps or hazard warning lamps) cut out automatically. To reactivate them, it is necessary to start the engine.
Depending on your vehicle ver-sion, the following warning lamps are tested:
If one of these warning lamps does not light up, this indicates a mal-function.
D: STARTING
Release the key as soon as the engine starts. Never turn it while the engine is running.

47
II
DO NOT RUN THE ENGINE IN A CLOSED SPACE OR IN ONE THAT IS INSUFFICIENTLY VENTILATED.
PETROL
Starting the engine
Do not touch the accelerator.
Turn the key to the drive position.
Action the starter until the engine starts up (not more than 10 seconds).
If the engine does not start at the fi rst attempt, switch off the ignition. Wait 10 seconds, then action the starter again as above.
DIESEL
Starting the engine
Turn the key to the drive position.
Wait for the preheater warning lamp to go out, if it is on, then action the starter until the engine starts (not more than 10 seconds).
If the engine does not start, switch off the ignition.
Recommence the operation.Note: During starting, do not touch the accelerator.
ADVICE
Diesel vehicle with turbo-chargers
Never stop the engine without fi rst having allowed it to idle for a few seconds, this being the time required for the turbochargers to return to a normal speed.
Do not “fl ick” the accelerator at the moment you switch off the ignition as this could seriously damage the turbochargers.
Check that the automatic gear selector is in position P or N.

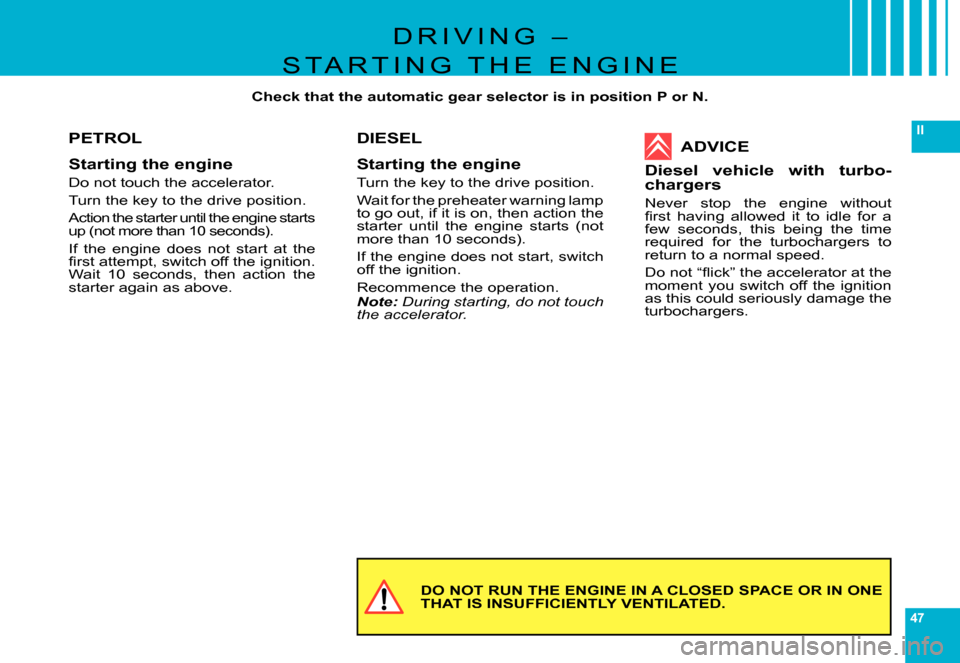

D R I V I N G –
S T A R T I N G T H E E N G I N E

48
IISTOP
STOP
0
STOP
STOP
49/54
ADBCA
STST
B
KJIHGFEB
KJIHGFEB
CAB
STST
DA
B
I N S T R U M E N T P A N E L
Remark: Certain types of screen may adversely affect the readability of t he instrument panel.
A Signalling warning lampsB Operational warning lampsC Cruise control/speed limiter informationD Fuel gaugeE Trip mileage recorderF Total mileage recorder, maintenance indicator
G Speed indicatorH Display of automatic gearbox informationI Display of suspension sport modeJ Rev counterK Reset button for trip mileage recorder and mainte-nance indicator
INSTRUMENT PANEL - PETROL VERSION
INSTRUMENT PANEL - DIESEL VERSION

53
II
00
00A
A
I N S T R U M E N T P A N E L
Maintenance intervals
If you use your vehicle in par-ticularly diffi cult conditions, it is essential to have recourse to the service schedule for “special con-ditions” comprising shorter inter-vals between services. See “Main-tenance Guide”.
Reset to zero
Your CITROËN technician resets the indicator to zero after each service. However, if you do your own servicing, the procedure for resetting to zero is as follows:1. Switch off the ignition.2. Press on button A and keep it pressed.3. Switch on the ignition.4. Keep button A pressed down until the screen indicates “=0” and the maintenance symbol disappears.
Note: If the maximum time between two oil changes is reached before the mileage has been covered, the mainte-nance spanner lights up and the instrument panel indicates “0instrument panel indicates “instrument panel indicates “”.
MILEAGE RECORDER
Display
When the driver's door is opened or the vehicle is unlocked with the remote control, for around 30 sec-onds there is display of the mile-age recorders and sometimes the maintenance spanner.
Trip mileage recorder reset
This can operate when the ignition is switched on.
With a long press on the zero reset button A, the trip mileage dis-played resets to zero.
FUEL GAUGE
If the fuel low warning lamp comes on permanently on horizontal ground, accompanied by a sound signal, there remain around 9 l of fuel (petrol version) or 8 l of fuel (Diesel version).
When the second-to-last bar dis-appears, you still have approx. 5 lof fuel.
REV COUNTER
When you approach maximum engine speed, crossing into the red zone indicates the need to engage a higher gear.

54
II
B
AC
D
NIGHT DRIVINGA fi rst pressA on the DARK button puts the display on standby. Only the time and the temperature remain displayed.
A second pressA switches off the display and the instrument panel, except for information concerning:
The speed indicator.The automatic gearbox.Cruise control / Speed limiter if this has been activated.Note:
Temporary lighting of the display for modifi cation of audio-CD adjust-emporaryments and air conditioning.The display lights up if any of the other buttons on the display is pressed. To revert to night driving, press just once on button DARK.DARKDARKAll the displays come on if there is an alert.AllA third pressA returns you to normal lighting.

49
II
I N S T R U M E N T P A N E L
W A R N I N G L A M P S
These warning lamps may be accompanied by a message and/or a sound signal
ESP/ASR
Operating
If either of the ESP or ASR systems is active, the warning lamp fl ashes.
For a malfunction
When the vehicle is moving, the lighting of this warning lamp indi-cates a system malfunction.
Contact a CITROËN dealer.
Deactivation
The lighting of the warning lamp and of the button ESP indicates that the system is deactivated.
Electric parking brake
When the engine is run-ning, this warning lamp lights up to indicate a mal-functioning of the electric parking brake. The brake is not working properly. Place the gearbox in the Park position (P).
Consult a CITROËN dealer as soon as possible.
ABS
The ABS warning lamp lights up when you switch on the ignition: it should go out after a few seconds. If it does not go out, there could be a sys-tem malfunction. See “Brakes”.
Puncture(s)
If this warning lamp comes on, it indicates a puncture on one or more wheels.
The screen displays an image which shows you which wheel is affected. Contact a CITROËN which shows you which wheel wheel
dealer.
Door open
If this warning lamp comes on while the engine is run-ning, it tells you that one of the doors and/or the boot is open.
Electric parking brake, brake fl uid level, brak-ing distribution mal-function
With the engine running, the light-ing of this warning lamp indicates that the parking brake is on or not properly released, that the brake fl uid level is low or that the braking system is malfunctioning.
If the warning lamp remains on even after you have released the parking brake, stop immediately and contact a CITROËN dealer.parking brake, stop immediately stop immediately
See “Brakes”.
SERVICE
This warning lamp remains on for a serious fault. Con-sult a CITROËN dealer as soon as possible.
This warning lamp remains on only for a short time for faults that are minor. Contact a CITROËN dealer if necessary.
To learn the origin of the corre-sponding alert, refer to the log of alerts (See chapter “Multifunction screen” or your NaviDrive instruc-tions).
STOP warning lamp
If this warning lamp comes on, it is imperative to stop the vehicle and to switch the engine off. The warn-ing lamp is accompanied by the STOP symbol on the screen as well as on the Head-up display.
Contact a CITROËN dealer as soon as possible.

50
II
I N S T R U M E N T P A N E L
W A R N I N G L A M P S
Front passenger's air-bag deactivation
See “Airbags”.
Left hand direction indicator
See “Signalling”.
Right hand direction indicator
See “Signalling”.
If the hazard lamps are activated, this means that the direction indica-tors fl ash on both sides at the same time.
Sidelamps
See “Signalling”.
Front foglamps
See “Signalling”.
Dipped beams
If this warning lamp fl ashes, it indicates that the direc-tional headlamps are mal-functioning.
Contact a CITROËN dealer.
Foglamps (rear)
See “Signalling”.
Main beams
See “Signalling”.
Driver's seat belt not fastened
If this warning lamp comes on, it is reminding the driver to fasten his seat belt. While the vehicle is stationary it remains on until the belt is fastened.
See “Seat belt not fastened warn-ing lamp”.
Depollution system
If this warning lamp fl ashes or lights up while you are driving, this indicates a problem with the depollution sys-tem.
Consult a CITROËN dealer as soon as possible.
Diesel engine preheater
See method for starting the engine.
See “Driving”.
Fuel low
If this warning lamp comes on, permanently on level ground, there remain around 9 l of fuel for a Petrol vehi-cle, or around 8 l of fuel for a Die-sel vehicle.
Diesel preheating

51
II
I N S T R U M E N T P A N E L
An incorrect engine oil level can seriously damage your engine. See “Levels”.
On switching on the ignition, the instrument panel indicates:Firstly, in suceesion:
Maintenance indicator. See “Maintenance indicator”.The engine oil level indicator.Secondly:
The total and trip mileage counters.
