Page 6 of 216
II
99
1
12
6
8
14
13
2
3
5
7910
15
16
1718
4
11
IN BRIEF
1. Controls - Windows / Rear view mirrors / Child
safety
2. Driver's seat adjustment controls and memories
3. Controls - Lighting / Direction indicators / Rear
foglamps / Voice recognition
4. Horn
5. Instrument panel
6. Head-up display cavity
7. Ignition switch
8. Controls - Wipers
9. Controls - Radio controls under the steering wheel
10. Controls at the steering wheel - Speed limiter and
Cruise control
11. Driver's airbag
12. Gear lever
13. Electric parking brake
14. Automatic gearbox SPORT/SNOW mode controls
15. Steering column adjustment
16. Head-up display controls
17. F u e l fl a p c o n t r o l
18. O d d m e n t s t r a y / F u s e b o x a c c e s s fl a p
D A S H B O A R D
Page 10 of 216
II
1313
154
212
ba
c
3
A
IN BRIEF
1133533
GLASS SUN ROOF
1. Driver's electric window control.
2. Passenger's electric window control.
3. Right-hand rear electric window control.
4. Left-hand rear electric window control.
5. Deactivation control for rear electric windows and rear door opening from inside.
1. Selection of rear view mirror: a - Left hand side. b - Right hand side. c - Folded / Automatic deployment.
2. Mirror directional control.
ELECTRIC EXTERIOR REAR VIEW MIRRORSELECTRIC WINDOWS CONTROL
The sun roof is operated by the electrical control A
A n a c t i o n t o t h e fi r s t n o t c h o f t h e control starts a movement which stops as soon as you release the control.
An action to the second notch of the control opens or closes the sun roof fully. A further action stops the movement.
G E T T I N G S T A R T E D

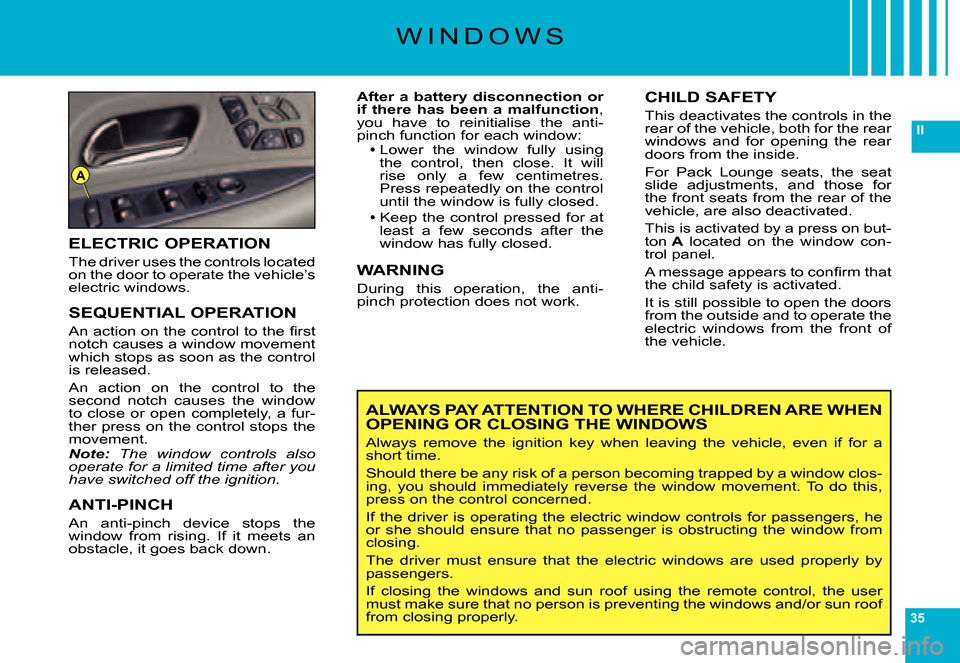

Page 32 of 216
35
II
A
W I N D O W S
After a battery disconnection or if there has been a malfunction, you have to reinitialise the anti-pinch function for each window:Lower the window fully using Lowerthe control, then close. It will rise only a few centimetres. Press repeatedly on the control until the window is fully closed.
Keep the control pressed for at least a few seconds after the window has fully closed.
WARNING
During this operation, the anti-pinch protection does not work.
Page 39 of 216
42
II
K E Y S
It is dangerous to operate the deadlocking when a person is in the vehicle as unlocking is impossible from the inside (without the remote control).
The key number is on the label attached to the key.
S h o u l d y o u l o s e y o u r k e y o r r e m o t e c o n t r o l , a C I T R O Ë N d e a l e r c a n s u p p l y r e p l a c e m e n t s .
If you unlock your vehicle using the key because of a problem with the battery, be aware that opening/closing a door with the window closed can ser iously damage the glass, even to the point of breaking it. See “Access”.
ELECTRONIC IMMOBILISER KEY
The key operates all the vehicle’s locks as well as the ignition.Note: For safety reasons, a buzzer will sound if you have switched off the ignition and opened the driv-er’s door without having removed the ignition key.
The key can be used to deactivate the front passenger’s airbag. See “Airbags”.
CENTRAL LOCKING USING THE KEY
A brief action with the key locks the vehicle.
Deadlocking: Central locking using the key
A second action straightaway with the key deadlocks the vehicle. It is then impossible to open the doors from either inside or outside the vehicle.Note:With the vehicle stationary and the engine switched off, locking is sig- n a l l e d b y t h e fl a s h i n g o f t h e i n t e r i o r l o c k i n g c o n t r o l w a r n i n g l a m p .If any of the doors, or the boot, is open or not properly closed , the central Iflocking does not operate.
ELECTRONIC IMMOBILISER
The ELECTRONIC IMMOBILISER device locks the engine supply system.
The system activates automatically as the key is removed from the igni tion.
All the vehicle’s keys contain an electronic immobiliser device.
After you switch on the ignition, a dialogue starts between the key and the electronic immobiliser device.
If the key is not recognised, you cannot start the vehicle .
If this occurs, leave your vehicle immobilised and contact a CITRO ËN dealer.
Page 81 of 216
83
IIIA
A C C E S S
To make it easier to open the doors, the windows automatically open by a few millimetres.Note: This movement occurs immediately you touch an interior door handle.
The window recloses, automati-cally adjusting for a perfect seal.
IMPORTANT
This function has no anti-pinch. Do not leave your hand on the window when you close the door
Any interruption of your vehicle's electrical supply will prevent the windows from opening and closing correctly.
Remark: Travelling at high speed, closing of windows may be hin-dered by the aerodynamic pres-sure. Acoustic comfort may then be adversely affected.
ELECTRICALLY-CONTROLLED CHILD SAFETY
This deactivates the controls in the rear of the vehicle, both for the rear win-dows and for opening the rear doors from the inside.
For Pack Lounge seats, the seat slide adjustments, and those fo r the front seats from the rear of the vehicle, are also deactivated.
Activation
The electric safety device is activated by pressing the control A located on t h e w i n d o w s c o n t r o l p a n e l . A m e s s a g e a p p e a r s t o c o n fi r m t h a t t h e c h i l d safety is activated.
It is still possible to open the doors from the outside and to operate the elec-tric windows from the front of the vehicle.
Before changing or repairing the battery, open all four windows.
If you unlock your vehicle using the key because of a problem with the battery, be aware that opening/closing a door wi th the window closed can seriously damage the glass, even to the point of breaking it.
Page 84 of 216
86
III
A U T O M A T I C A I R C O N D I T I O N I N G
AIR CONDITIONING
This system automatically adjusts the temperature, the fl o w o f a i r a n d t h e d i s t r i b u t i o n o f a i r i n s i d e t h e c a b i n , depending on your desired comfort level.
Provided you retain automatic mode (by pressing button “AUTO ” ) a n d a l l t h e a i r v e n t s a r e o p e n , y o u w i l l m a i n -tain an optimum comfort level, also removing humidity and misting, whatever the ambient climatic conditions.
The temperature inside the cabin cannot be lower than the temperature outside if the air conditioning is not operating.
To be effective, the air conditioning should only be used with the windows closed. If after a lengthy stop in bright sunlight the interior temperature is excessive, air the passenger compartment by opening the windows for a few moments, then close them again.
To keep the air conditioning compressor well sealed, it is essential to operate the air conditioning at least once in every month.
The air conditioning operates by using power from the engine. This results in a slight increase in fuel con-sumption.
Sensors
The automatic regulation of the air conditioning inside the cabin uses a number of sensors (sunlight, ambient t e m p e r a t u r e , i n s i d e t e m p e r a t u r e , e t c . ) r e l i e v i n g y o u o f the need to make your own adjustments within a normal temperature range.
The humidity sensor is there to prevent misting inside the vehicle.
Be careful not to obstruct the sensors A and C.
Air inlet
Check that the exterior grille for the air inlet, at the bot-tom of the windscreen, is clean and free of dead leaves, snow, etc.
If washing the vehicle with a high pressure jet, avoid targeting the air inlet zone.
Air circulation
For your comfort we advise you to maintain a proper distribution of air within the cabin, both at the front and at the rear.
The air vents to the face have thumbwheels so that you c a n a d j u s t t h e fl o w o f a i r , a n d g r i l l e s t o o r i e n t t h e d i r e c -tion.
T h e r e a r e a i r v e n t s o n t h e fl o o r u n d e r n e a t h t h e f r o n t seats and on the rear control panel, for enhanced heat-ing of the rear seat positions.
Do not obstruct the air outlets located in the boot area.
D u s t / p o l l e n fi l t e r
T h e r e i s a fi l t e r f o r e x c l u d i n g p o l l e n a n d d u s t .
T h i s fi l t e r h a s t o b e c h a n g e d a c c o r d i n g t o t h e v e h i c l e maintenance schedule. See “Maintenance Guide”.
Additional heating
Vehicles with an HDi engine may be provided with auto-matic additional heating for enhanced comfort.
It is normal to notice slight odours or smoke emissions, especially when the vehicle is idling or stationary.
Page 87 of 216
89
III
3a3b
4
A U T O M A T I C A I R C O N D I T I O N I N G
3. ADJUSTING THE AIR DISTRIBUTION
Successives or continuous presses on buttons 3a and 3b o r i e n t t h e fl o w o f a i r o n t h e d r i v e r ' s s i d e o r o n t h e passenger's side.
T h e s y m b o l ( a r r o w s ) c o r r e s p o n d i n g t o t h e o r i e n t a t i o n chosen is displayed on the multifunction screen:Windscreen and side windows.
Central, lateral and soft diffusion air conditioning v e n t s ( i f o p e n ) .
Passenger footwells.Passenger“AUTO” automatic distribution.
Page 88 of 216
90
III
5
6
7
A U T O M A T I C A I R C O N D I T I O N I N G
5. FRONT DEMISTING - DEICING
Press button 5 for rapid clear windows. The warning lamp comes on. This system controls the air condi- t i o n i n g , t h e a i r fl o w a n d t h e e n t r y o f a i r f r o m o u t s i d e . I t sends the ventilation towards the windscreen and side windows.
A press on the 1 button returns you to “AUTO” mode.
6. REAR DEMISTING - DEICING
Press button 6, with the engine running, to start a rapid deicing or demisting of the rear screen and rear view mirrors. The warning lamp comes on.
This mode stops automatically as a function of the out-side temperature. It can be paused by pressing again on button 6 or by stopping the engine.
In the latter case, demisting will resume when the engine is switched on again.Note: The heated rear screen operates independently of the automatic air conditioning.
7. AIR RECIRCULATION – ENTRY OF AIR FROM OUTSIDE
Press successively on button 7 to select air entry mode. The corresponding warning lamp lights up:Recirculation of air inside the cabinThis mode is for excluding unpleasant odours or smoke coming from outside. It should be cancelled as soon as possible to re-allow fresh air into the cabin and thus prevent misting.
Entry of air from outside“AUTO” mode is deactivated.
Note: To return to “AUTOto “to “” mode, press button 7 for 7a third time, or button 1.
Page 89 of 216
91
III
A U T O M A T I C A I R C O N D I T I O N I N G
To activate/deactivate the air conditioning system
Press on the control “CLIM” to go into the “air condition-ing” mode. Then press button “OK” or on the control to bring up the “Air Conditioning menu” on the multifunc-tion screen.
This menu allows you:To deactivate the air conditioning: “Cut aircon (A/C OFF ) ” .Press button “OK”, or on the control, to validate the offer to activate or deactivate the air conditioning.
The symbol “A/C OFF” displays on the multifunction screen in the case of deactivation.
Note:Your temperature adjustment value may not be ourreached and you risk having the windows misted up.You can cancel deactivation of the air conditioning, ouby pressing the control 1 “AUTO “ “”.

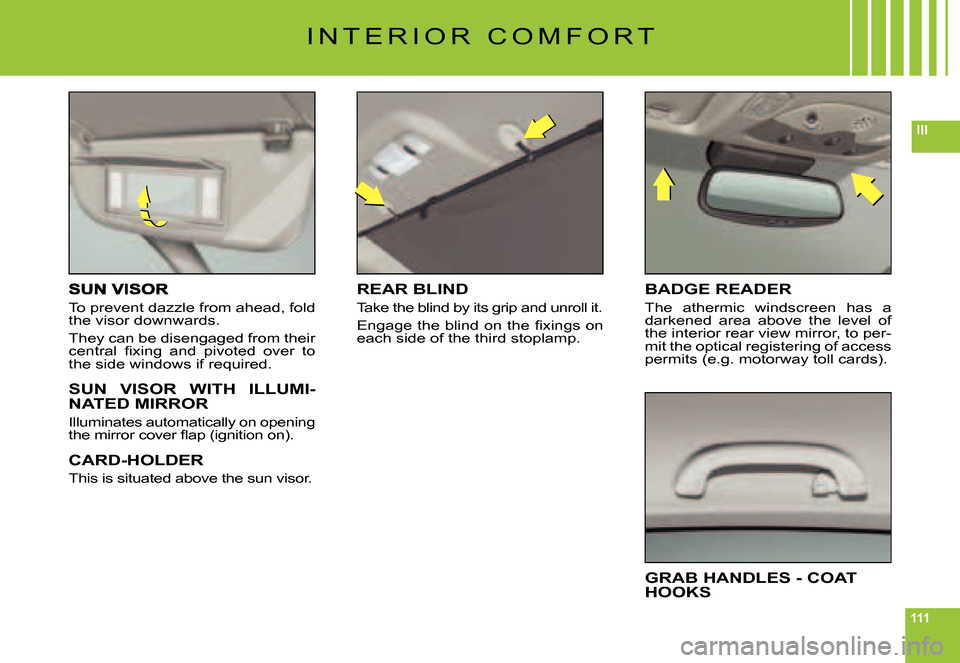

Page 109 of 216
111
III
To prevent dazzle from ahead, fold the visor downwards.
They can be disengaged from their c e n t r a l fi x i n g a n d p i v o t e d o v e r t o the side windows if required.
SUN VISOR WITH ILLUMI-NATED MIRROR
Illuminates automatically on opening t h e m i r r o r c o v e r fl a p ( i g n i t i o n o n ) .
CARD-HOLDER
This is situated above the sun visor.
REAR BLIND
Take the blind by its grip and unroll it.
E n g a g e t h e b l i n d o n t h e fi x i n g s o n each side of the third stoplamp.
BADGE READER
The athermic windscreen has a darkened area above the level of the interior rear view mirror, to per-mit the optical registering of access p e r m i t s ( e . g . m o t o r w a y t o l l c a r d s ) .
GRAB HANDLES - COAT HOOKS
I N T E R I O R C O M F O R T
