118
IVA
B
C
D

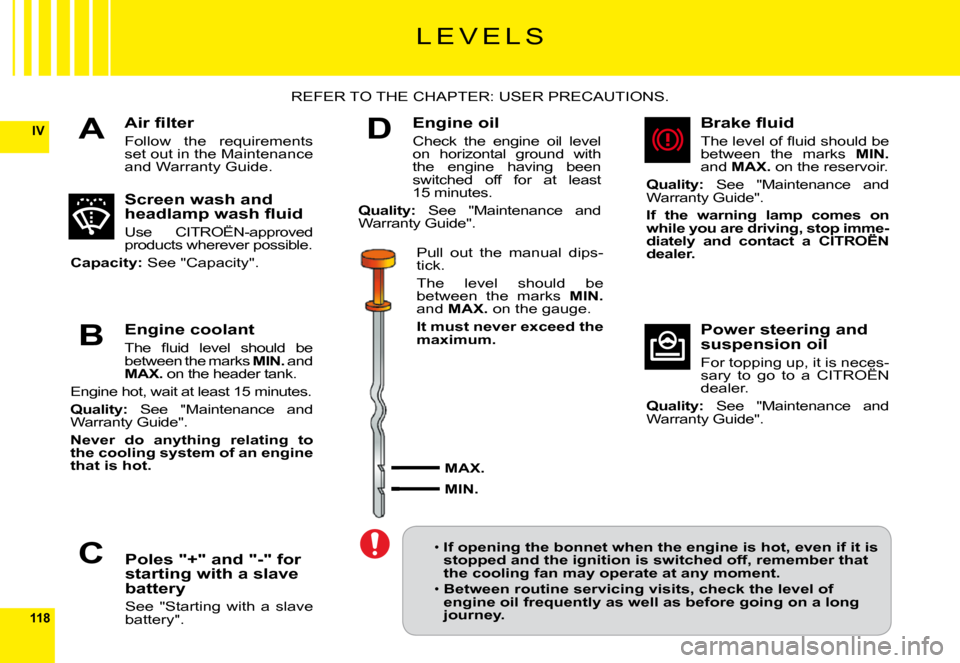

L E V E L S
A i r fi l t e r
Follow the requirements set out in the Maintenance and Warranty Guide.
REFER TO THE CHAPTER: USER PRECAUTIONS.
Screen wash and h e a d l a m p w a s h fl u i d
Use CITROËN-approved products wherever possible.
Capacity: See "Capacity".
Engine coolant
T h e fl u i d l e v e l s h o u l d b e between the marks MIN. and MAX. on the header tank.
Engine hot, wait at least 15 minutes.
Quality: See "Maintenance and Warranty Guide".
Never do anything relating to the cooling system of an engine that is hot.
Poles "+" and "-" for starting with a slave battery
See "Starting with a slave battery".
Engine oil
Check the engine oil level on horizontal ground with the engine having been switched off for at least 15 minutes.
Quality: See "Maintenance and Warranty Guide".
Pull out the manual dips-tick.
The level should be between the marks MIN.and MAX. on the gauge.
It must never exceed the maximum.
MAX.
MIN.
B r a k e fl u i d
T h e l e v e l o f fl u i d s h o u l d b e between the marks MIN.and MAX. on the reservoir.
Quality: See "Maintenance and Warranty Guide".
If the warning lamp comes on while you are driving, stop imme-diately and contact a CITROËN while you are driving, stop imme- imme-
dealer.
Power steering and suspension oil
For topping up, it is neces-sary to go to a CITROËN For topping up, it is neces-neces-
dealer.
Quality: See "Maintenance and Warranty Guide".
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
Between routine servicing visits, check the level of engine oil frequently as well as before going on a long journey.
Page 102 of 189
121
IVB
1
1
D
TOPPING UP ENGINE OIL
B e f o r e fi l l i n g , p u l l o u t t h e d i p s t i c k .
C h e c k t h e d i p s t i c k a f t e r fi l l i n g .
It must never exceed the maximum.
Screw the cap back on and close the bonnet.
Quality: See "Maintenance and Warranty Guide".
L E V E L S

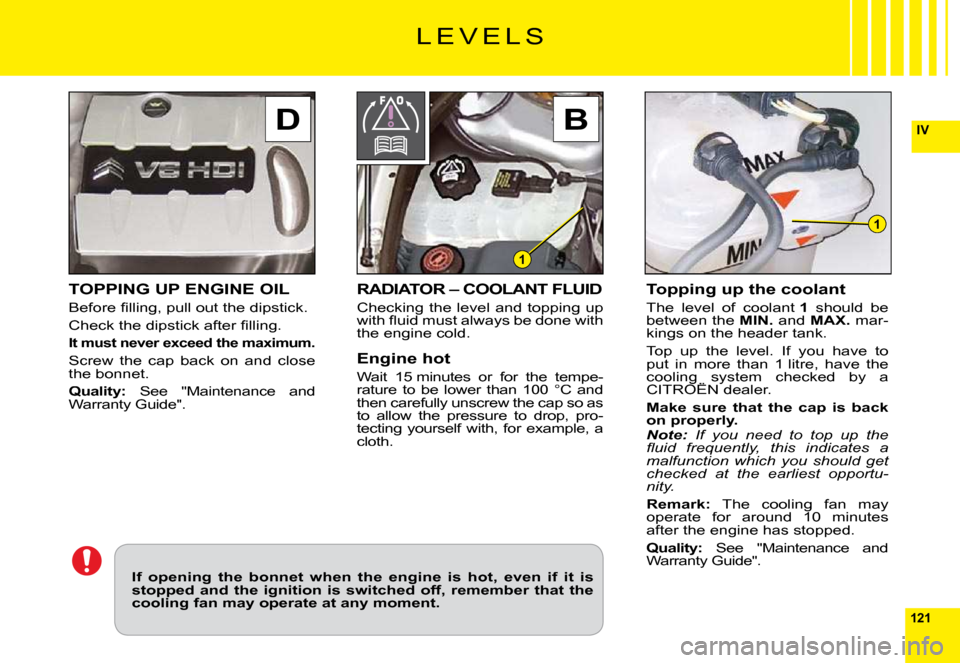

RADIATOR – COOLANT FLUID
Checking the level and topping up w i t h fl u i d m u s t a l w a y s b e d o n e w i t h the engine cold.
Engine hot
Wait 15 minutes or for the tempe-rature to be lower than 100 °C and then carefully unscrew the cap so as to allow the pressure to drop, pro-tecting yourself with, for example, a cloth.
Topping up the coolant
The level of coolant 1 should be between the MIN. and MAX. mar-kings on the header tank.
Top up the level. If you have to put in more than 1 litre, have the cooling system checked by a CITROËN dealer.cooling system checked cooling system
Make sure that the cap is back on properly.Note: If you need to top up the fl u i d f r e q u e n t l y , t h i s i n d i c a t e s a m a l f u n c t i o n w h i c h y o u s h o u l d g e t c h e c k e d a t t h e e a r l i e s t o p p o r t u - n i t y .
Remark: The cooling fan may operate for around 10 minutes after the engine has stopped.
Quality: See "Maintenance and Warranty Guide".
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
Page 103 of 189
119
IV
D
B
A
C

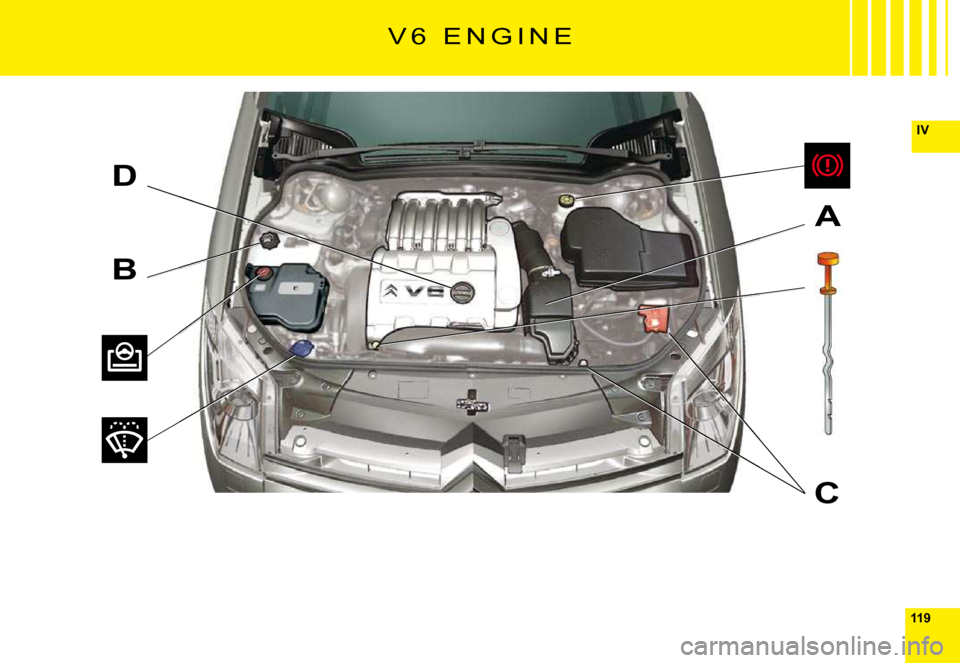

V 6 E N G I N E
Page 104 of 189
120
IV
D
BA
C
D
BA
C

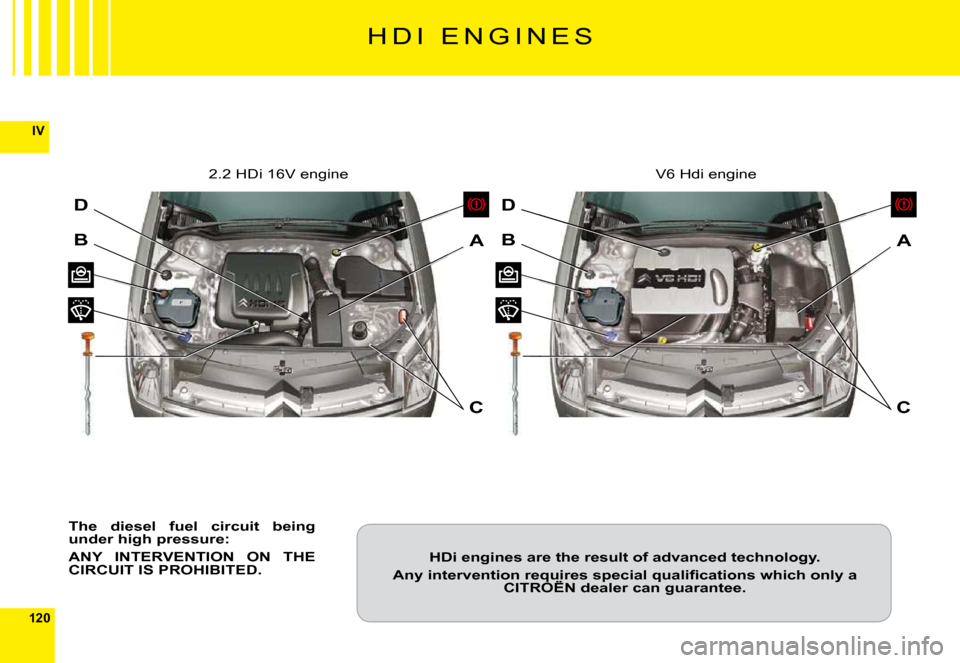

H D I E N G I N E S
The diesel fuel circuit being under high pressure:
ANY INTERVENTION ON THE CIRCUIT IS PROHIBITED.
2.2 HDi 16V engineV6 Hdi engine
HDi engines are the result of advanced technology.
A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a CITROËN dealer can guarantee. A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a
Page 105 of 189
122
IV
A
D
C
B
BATTERY LOCATION AND ACCESS

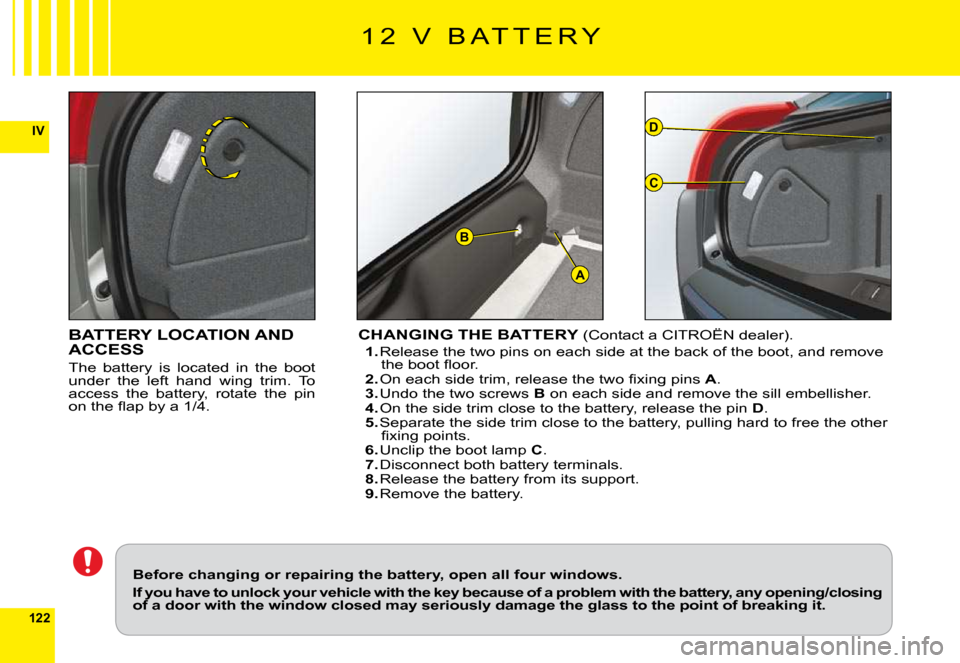

The battery is located in the boot under the left hand wing trim. To access the battery, rotate the pin o n t h e fl a p b y a 1 / 4 .
CHANGING THE BATTERY (Contact a CITROËN dealer).
1. Release the two pins on each side at the back of the boot, and remove t h e b o o t fl o o r .2. O n e a c h s i d e t r i m , r e l e a s e t h e t w o fi x i n g p i n s A.3. Undo the two screws B on each side and remove the sill embellisher.4. On the side trim close to the battery, release the pin D.5. Separate the side trim close to the battery, pulling hard to free the other fi x i n g p o i n t s .6. Unclip the boot lamp C.7. Disconnect both battery terminals.8. Release the battery from its support.9. Remove the battery.
1 2 V B A T T E R Y
Before changing or repairing the battery, open all four windows.
If you have to unlock your vehicle with the key because of a problem with the battery, any opening/clo sing of a door with the window closed may seriously dama ge the glass to the point of breaking it.
Page 106 of 189
123
IV
STARTING THE ENGINE AFTER DISCONNECTING AND RECONNECTING THE BATTERY
1. Turn the ignition key.2. Wait approximately 1 minute before operating the starter in order to allow the electronic systems to re-initialise.
After the battery has been disconnected for a lengthy period o f time, it may be necessary to re-initialise the following functions:The anti-pinch on the windows.
The anti-pinch on the sun roof.The multifunction display parameters (date, time, language, units of distance and of temperature).
The Radio stations.
The NaviDrive. See NaviDrive instructions.
IMPORTANT
In the event of a battery failure, and if the boot is closed, it is then necessary to feed an electrical supply to your vehicle. See following page.
Page 107 of 189
124
IV
BC
A
i
1 2 V B A T T E R Y

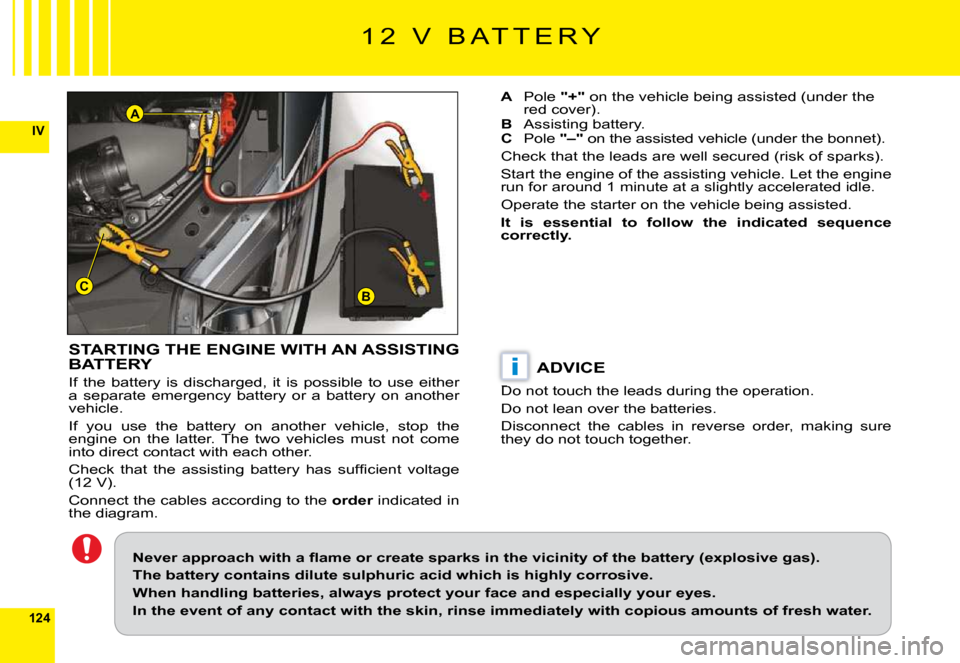

STARTING THE ENGINE WITH AN ASSISTING BATTERY
If the battery is discharged, it is possible to use either a separate emergency battery or a battery on another vehicle.
If you use the battery on another vehicle, stop the engine on the latter. The two vehicles must not come into direct contact with each other.
C h e c k t h a t t h e a s s i s t i n g b a t t e r y h a s s u f fi c i e n t v o l t a g e (12 V).
Connect the cables according to the order indicated in orderthe diagram.
A Pole "+" on the vehicle being assisted (under the red cover).B Assisting battery.C Pole "–" on the assisted vehicle (under the bonnet).
Check that the leads are well secured (risk of sparks).
Start the engine of the assisting vehicle. Let the engine run for around 1 minute at a slightly accelerated idle.
Operate the starter on the vehicle being assisted.
It is essential to follow the indicated sequence correctly.
ADVICE
Do not touch the leads during the operation.
Do not lean over the batteries.
Disconnect the cables in reverse order, making sure they do not touch together.
N e v e r a p p r o a c h w i t h a fl a m e o r c r e a t e s p a r k s i n t h e v i c i n i t y o f t h e b a t t e r y ( e x p l o s i v e g a s ) .
The battery contains dilute sulphuric acid which is hig hly corrosive.
When handling batteries, always protect your face and es pecially your eyes.
In the event of any contact with the skin, rinse immediatel y with copious amounts of fresh water.
Page 108 of 189
125
IV
F2 F9 F6 F5 F1 F7 F4 F3 F10 F8 F13 F12 F14F17
SH
F11
F15
F15
G29 G30 G31 G32
G33 G34 G35
G36 G38 G40 G37 G39
F U S E S
D A S H B O A R D
FUSEBOXES

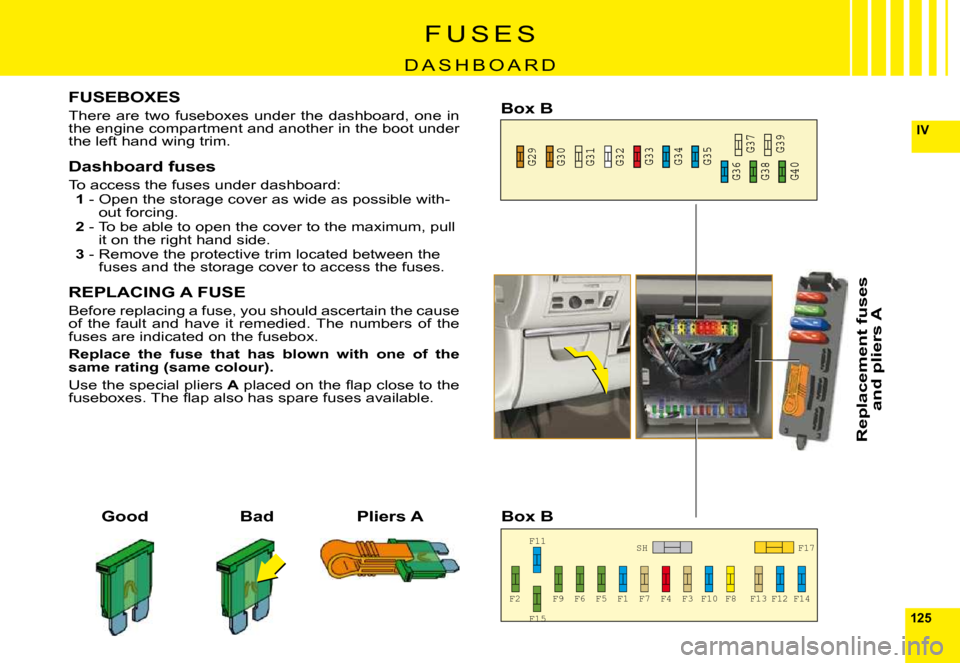

There are two fuseboxes under the dashboard, one in the engine compartment and another in the boot under the left hand wing trim.
Dashboard fuses
To access the fuses under dashboard:1 - Open the storage cover as wide as possible with-out forcing.2 - To be able to open the cover to the maximum, pull it on the right hand side.3 - Remove the protective trim located between the fuses and the storage cover to access the fuses.
REPLACING A FUSE
Before replacing a fuse, you should ascertain the cause of the fault and have it remedied. The numbers of the fuses are indicated on the fusebox.
Replace the fuse that has blown with one of the s a m e r a t i n g ( s a m e c o l o u r ) .
Use the special pliers A p l a c e d o n t h e fl a p c l o s e t o t h e f u s e b o x e s . T h e fl a p a l s o h a s s p a r e f u s e s a v a i l a b l e .
GoodBad
Replacement fuses
and pliers A
Pliers A
Box B
Box B
Page 109 of 189
126
IV

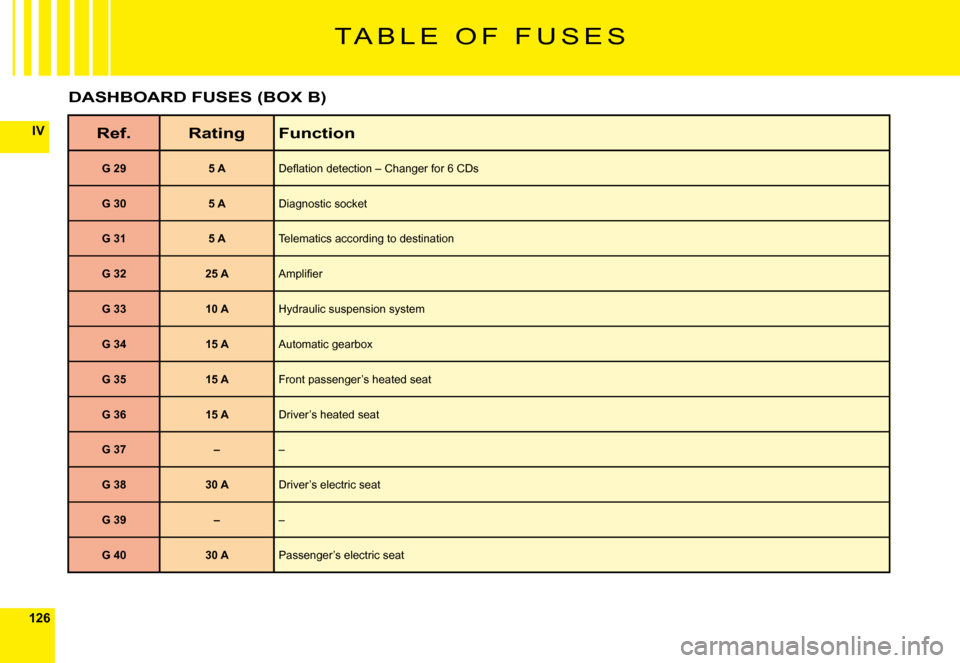

T A B L E O F F U S E S
Ref.RatingFunction
G 295 A D e fl a t i o n d e t e c t i o n – C h a n g e r f o r 6 C D s
G 305 ADiagnostic socket
G 315 ATelematics according to destination
G 3225 A A m p l i fi e r
G 3310 AHydraulic suspension system
G 3415 AAutomatic gearbox
G 3515 AFront passenger’s heated seat
G 3615 ADriver’s heated seat
G 37– –
G 3830 ADriver’s electric seat
G 39– –
G 4030 APassenger’s electric seat
D A S H B O A R D F U S E S ( B O X B )
Page 110 of 189
127
IV

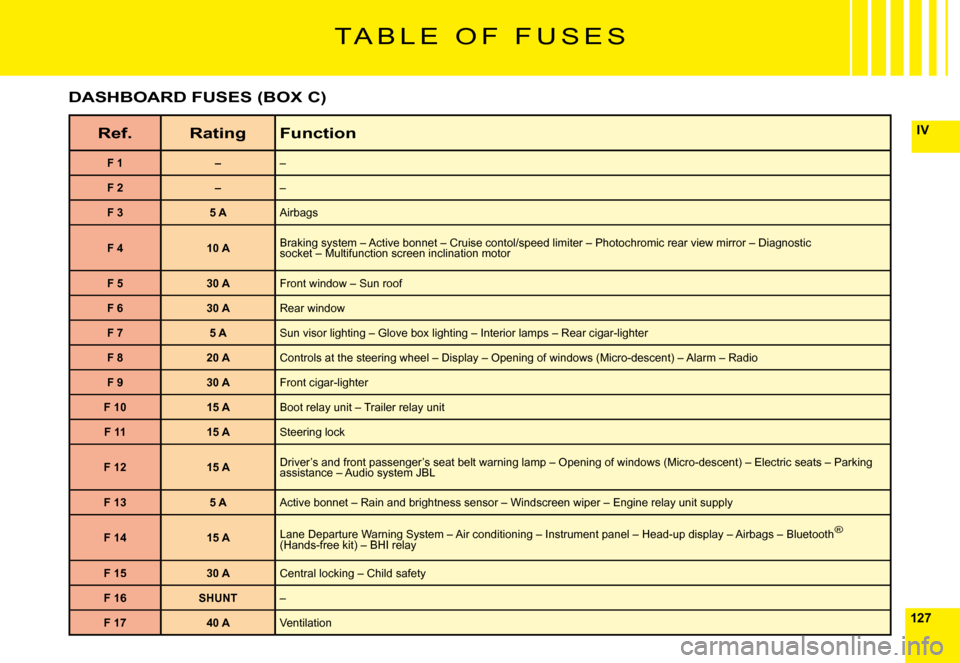

T A B L E O F F U S E S
Ref.RatingFunction
F 1– –
F 2– –
F 35 AAirbags
F 410 A B r a k i n g s y s t e m – A c t i v e b o n n e t – C r u i s e c o n t o l / s p e e d l i m i t e r – P h o t o c h r o m i c r e a r v i e w m i r r o r – D i a g n o s t i c s o c k e t – M u l t i f u n c t i o n s c r e e n i n c l i n a t i o n m o t o r B r a k i n g s y s t e m – A c t i v e b o n n e t – C r u i s e c o n t o l / s p e e d l i m i t e r – P h o t o c h r o m i c r e a r v i e w m i r r o r – D i a g n o s t i c B r a k i n g s y s t e m – A c t i v e b o n n e t – C r u i s e c o n t o l / s p e e d l i m i t e r – P h o t o c h r o m i c r e a r v i e w m i r r o r – D i a g n o s t i c
F 530 A F r o n t w i n d o w – S u n r o o f
F 630 ARear window
F 75 A S u n v i s o r l i g h t i n g – G l o v e b o x l i g h t i n g – I n t e r i o r l a m p s – R e a r c i g a r - l i g h t e r
F 820 A C o n t r o l s a t t h e s t e e r i n g w h e e l – D i s p l a y – O p e n i n g o f w i n d o w s ( M i c r o - d e s c e n t ) – A l a r m – R a d i o
F 930 AFront cigar-lighter
F 1015 A B o o t r e l a y u n i t – T r a i l e r r e l a y u n i t
F 1115 ASteering lock
F 1215 A D r i v e r ’ s a n d f r o n t p a s s e n g e r ’ s s e a t b e l t w a r n i n g l a m p – O p e n i n g o f w i n d o w s ( M i c r o - d e s c e n t ) – E l e c t r i c s e a t s – P a r k i n g a s s i s t a n c e – A u d i o s y s t e m J B L
F 135 A A c t i v e b o n n e t – R a i n a n d b r i g h t n e s s s e n s o r – W i n d s c r e e n w i p e r – E n g i n e r e l a y u n i t s u p p l y
F 1415 A L a n e D e p a r t u r e W a r n i n g S y s t e m – A i r c o n d i t i o n i n g – I n s t r u m e n t p a n e l – H e a d - u p d i s p l a y – A i r b a g s – B l u e t o o t h® ( H a n d s - f r e e k i t ) – B H I r e l a y L a n e D e p a r t u r e W a r n i n g S y s t e m – A i r c o n d i t i o n i n g – I n s t r u m e n t p a n e l – H e a d - u p d i s p l a y – A i r b a g s – B l u e t o o t h L a n e D e p a r t u r e W a r n i n g S y s t e m – A i r c o n d i t i o n i n g – I n s t r u m e n t p a n e l – H e a d - u p d i s p l a y – A i r b a g s – B l u e t o o t h
F 1530 A C e n t r a l l o c k i n g – C h i l d s a f e t y
F 16SHUNT –
F 1740 AVentilation
D A S H B O A R D F U S E S ( B O X C )
