I
IN BRIEF
1.
Volumetric alarm deactivation
switch.
2. Cruise control / speed limiter
controls.
3. Lighting, direction indicator
controls.
4. Driver’s airbag. Horn.
5. Multifunction display.
6. Radio controls under steering
wheel.
7. Screen wipe / screen wash /
trip computer controls.
8. Gear lever.
9. Ignition.
10. Headlamp height adjustment.
11. a/ ESP/ASR activation/
deactivation button.
b/ Parking assistance activation/deactivation button.
12. Steering column adjustment
control.

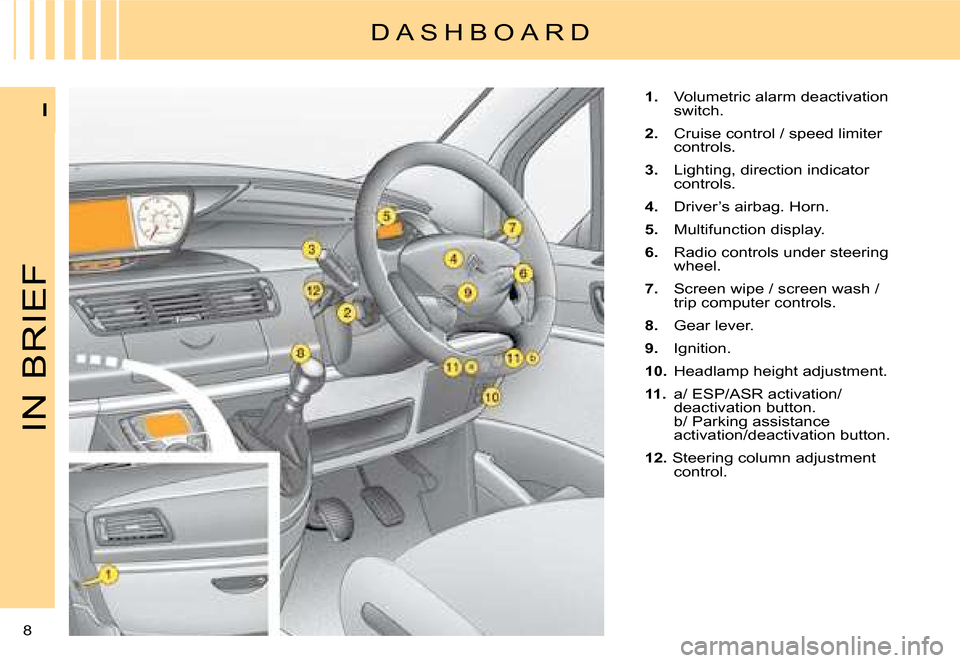

D A S H B O A R D
Page 14 of 194
17
II

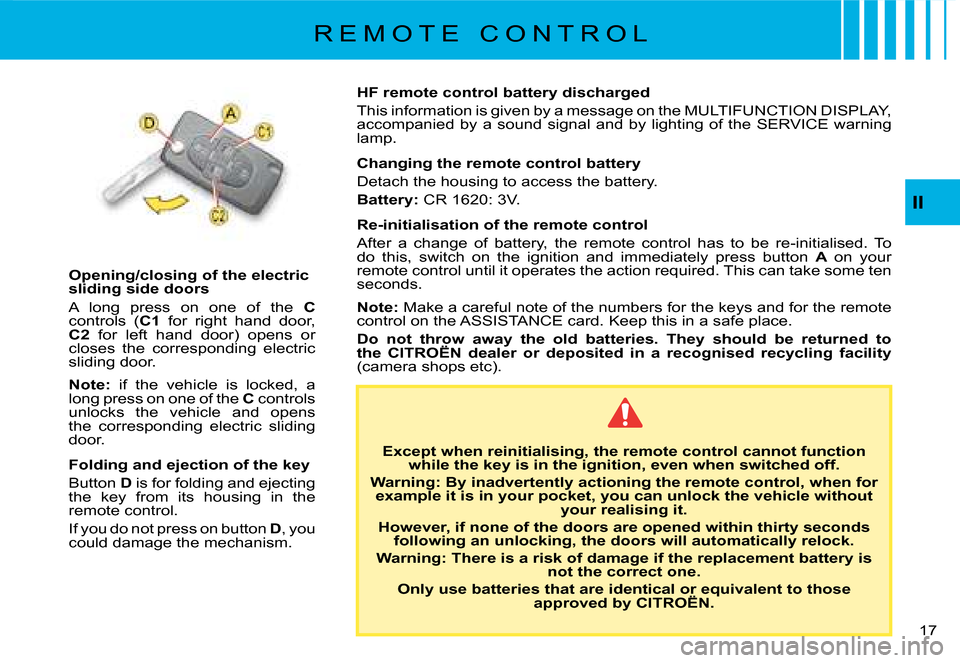

R E M O T E C O N T R O L
Opening/closing of the electric
sliding side doors
A long press on one of the C
controls ( C1 for right hand door,
C2 for left hand door) opens or
closes the corresponding electric
sliding door.
Note: if the vehicle is locked, a
long press on one of the C controls
unlocks the vehicle and opens
the corresponding electric sliding
door.
Folding and ejection of the key
Button D is for folding and ejecting
the key from its housing in the
remote control.
If you do not press on button D, you
could damage the mechanism. Except when reinitialising, the remote control cannot functi
on
while the key is in the ignition, even when switched off.
Warning: By inadvertently actioning the remote control, wh en for
example it is in your pocket, you can unlock the vehic le without
your realising it.
However, if none of the doors are opened within thirty se conds
following an unlocking, the doors will automatically re lock.
Warning: There is a risk of damage if the replacement ba ttery is
not the correct one.
Only use batteries that are identical or equivalent to thos e
approved by CITROËN.
HF remote control battery discharged
This information is given by a message on the MULTIFUNCTION D
ISPLAY,
a c c o m p a n i e d b y a s o u n d s i g n a l a n d b y l i g h t i n g o f t h e S E R V I C E w a r n i n g
lamp.
Changing the remote control battery
Detach the housing to access the battery.
Battery: CR 120: 3V.
Re-initialisation of the remote control
After a change of battery, the remote control has to be re-ini tialised. To
d o t h i s , s w i t c h o n t h e i g n i t i o n a n d i m m e d i a t e l y p r e s s b u t t o n A on your
remote control until it operates the action required. This can take some ten
seconds.
Note: Make a careful note of the numbers for the keys and for the remo te
control on the ASSISTANCE card. Keep this in a safe place.
Do not throw away the old batteries. They should be retur ned to
the CITROËN dealer or deposited in a recognised recycl ing facility
(camera shops etc).
Page 26 of 194
31
II
Imperative stop
warning lamp
W h e n t h e w a r n i n g
lamp comes on, it is
imperative to stop the vehicle and
s w i t c h o f f t h e e n g i n e .
This lamp is accompanied by a
STOP symbol on the display.
Contact a CITROËN dealer.
SERVICE warning lamp
T h i s w a r n i n g l a m p r e m a i n s
on for as long as the fault
a s s o c i a t e d w i t h t h e a l e r t
message is present (this in the
case of a serious fault).
Contact a CITROËN dealer as
soon as possible
The lamp stays on only for a short
time for a minor fault.
Contact a CITROËN dealer.
To recall the corresponding alert
message, see “Log of alerts”.
Battery charge
S h o u l d n o t b e l i t w h e n
the engine is running. If it
lights permanently, contact
a CITROËN dealer. Engine oil pressure and
temperature warning
lamp
I f i t l i g h t s w h i l e y o u a r e
driving, stop the engine, check the
level, (see Chapter IV - “Levels”).
If it remains lit despite the level
being correct, contact a CITROËN
dealer. Driver’s and/or
passenger’s seat belt
not fastened warning
lamp
Comes on if the driver’s and/
or passenger’s seat belt is not
fastened.
T h e l i g h t i n g o f t h e w a r n i n g l a m p
is accompanied by a sound
signal and a message for about
9 0 s e c o n d s w h e n t h e v e h i c l e
exceeds a speed of 25 km/h
(approx. 15 mph).
Warning lamp for
handbrake, brake
l u i d l e v e l a n d b r a k i n g
distribution fault.
When the engine is running, this
w a r n i n g l a m p i n d i c a t e s t h a t t h e
handbrake is applied or incom-
pletely released, that the brake
l u i d l e v e l i s i n s u f i c i e n t , o r t h a t t h e
braking system is malfunctioning.
I f t h e w a r n i n g l a m p r e m a i n s l i t
w h e n t h e h a n d b r a k e i s r e l e a s e d ,
stop immediately and contact a
CITROËN dealer. Airbags warning lamp
I t c o m e s o n f o r a f e w
seconds every time you
s w i t c h o n t h e i g n i t i o n .
Airbags malfunction
Flashing indicates that the airbags
are malfunctioning.
Contact a CITROËN dealer as
soon as possible.
Passenger’s airbag
deactivation
If the passenger’s airbag
i s d e a c t i v a t e d , t h e w a r n i n g
lamp remains on.

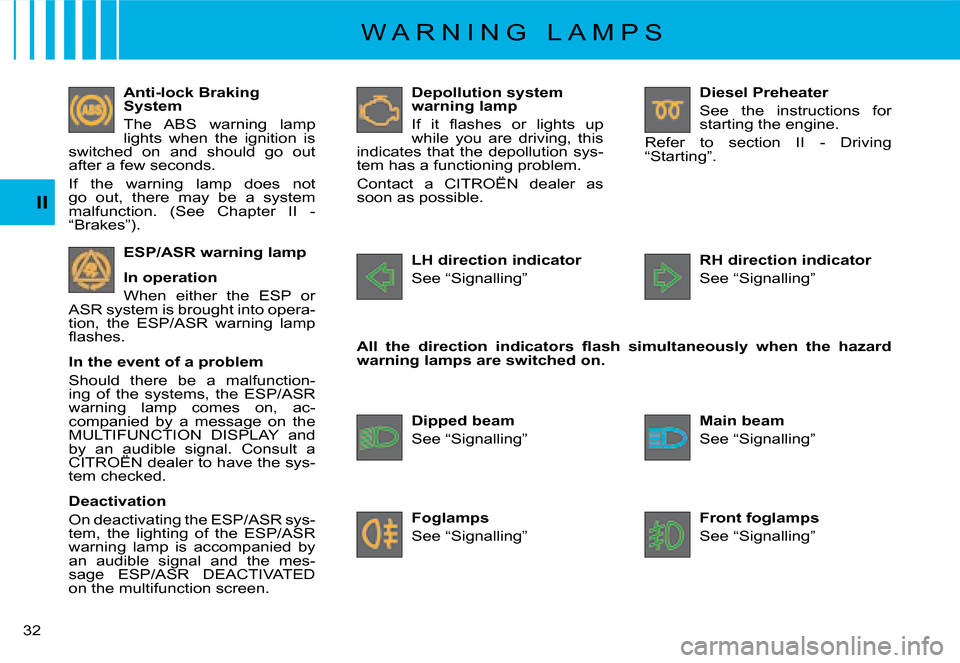

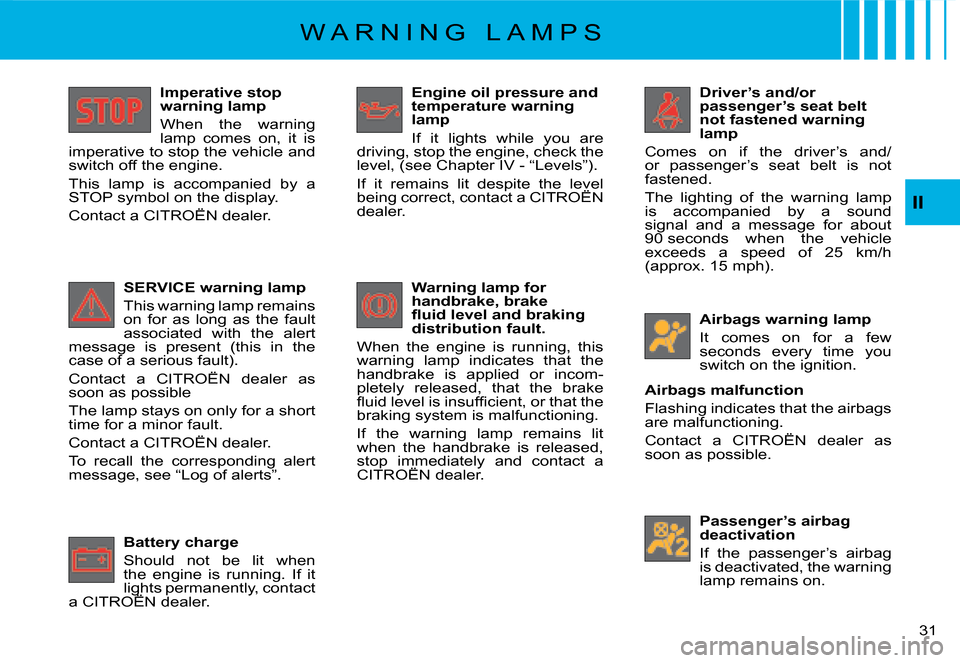

W A R N I N G L A M P S
Page 27 of 194
32 II
ESP/ASR warning lamp
In operation
When either the ESP or
ASR system is brought into opera-
t i o n , t h e E S P / A S R w a r n i n g l a m p
l a s h e s .
In the event of a problem
Should there be a malfunction-
ing of the systems, the ESP/ASR
w a r n i n g l a m p c o m e s o n , a c -
companied by a message on the
MULTIFUNCTION DISPLAY and
by an audible signal. Consult a
CITROËN dealer to have the sys-
tem checked.
Deactivation
On deactivating the ESP/ASR sys-
tem, the lighting of the ESP/ASR
w a r n i n g l a m p i s a c c o m p a n i e d b y
an audible signal and the mes-
sage ESP/ASR DEACTIVATED
on the multifunction screen. Anti-lock Braking
System
T h e A B S w a r n i n g l a m p
l i g h t s w h e n t h e i g n i t i o n i s
s w i t c h e d o n a n d s h o u l d g o o u t
a f t e r a f e w s e c o n d s .
I f t h e w a r n i n g l a m p d o e s n o t
go out, there may be a system
malfunction. (See Chapter II -
“Brakes”). Depollution system
warning lamp
I f i t l a s h e s o r l i g h t s u p
w h i l e y o u a r e d r i v i n g , t h i s
indicates that the depollution sys-
tem has a functioning problem.
Contact a CITROËN dealer as
soon as possible.
LH direction indicator
See “Signalling” Diesel Preheater
See the instructions for
starting the engine.
Refer to section II - Driving
“Starting”.
RH direction indicator
See “Signalling”
A l l t h e d i r e c t i o n i n d i c a t o r s l a s h s i m u l t a n e o u s l y w h e n t h e h a z a r d
warning lamps are switched on.
Dipped beam
See “Signalling” Main beam
See “Signalling”
Foglamps
See “Signalling” Front foglamps
See “Signalling”
W A R N I N G L A M P S
Page 55 of 194
5 II
Operation
When either the ESP or ASR system is brought into operation, the ESP/
ASR w a r n i n g l a m p l a s h e s .
Deactivation
I n e x c e p t i o n a l c o n d i t i o n s ( v e h i c l e s t u c k i n s n o w , s o f t g r o u n d , e t c . ) i t m a y
p r o v e u s e f u l t o d e a c t i v a t e t h e E S P / A S R s y s t e m t o a l l o w t h e w h e e l s t o s p i n
and thus regain traction.
- press control A.
- The ESP/ASR w a r n i n g l a m p l i g h t s u p , a c c o m p a n i e d b y a n a u d i b l e s i g n a l
and the message ESP/ASR DEACTIVATED on the multifunction screen.
Then the ESP/ASR systems are no longer active.
The ESP/ASR systems will redeploy:
- automatically i f t h e i g n i t i o n h a s b e e n s w i t c h e d o f f o r a s s o o n a s t h e
vehicle reaches approx. 50 km/h (approx. 30 mph),
- manually b y a r e n e w e d p r e s s o n t h e c o n t r o l A.
Operational anomaly
I f t h e s y s t e m i s m a l f u n c t i o n i n g , E S P / A S R w a r n i n g l a m p l i g h t s u p a l o n g
w i t h t h e S E R V I C E w a r n i n g l a m p , a b e e p a n d t h e m e s s a g e “ E S P / A S R
FAULT” on the multifunction screen.
Consult a CITROËN dealer to have the system checked.

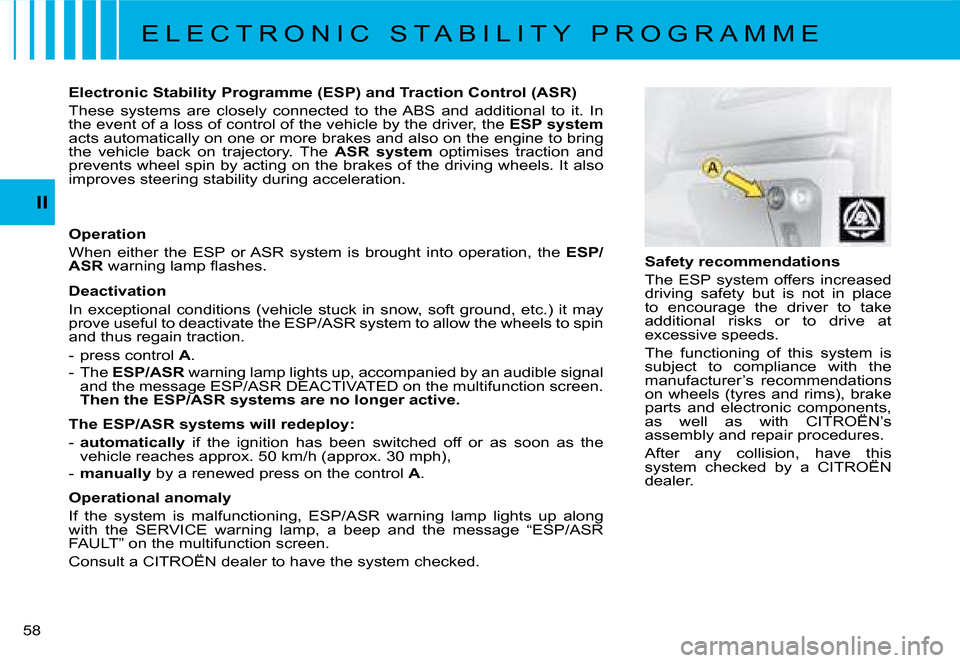

Electronic Stability Programme (ESP) and Traction Control (ASR)
These systems are closely connected to the ABS and additional to i
t. In
the event of a loss of control of the vehicle by the driver, the ESP system
acts automatically on one or more brakes and also on the engine to bring
the vehicle back on trajectory. The ASR system optimises traction and
p r e v e n t s w h e e l s p i n b y a c t i n g o n t h e b r a k e s o f t h e d r i v i n g w h e e l s . I t a l s o
improves steering stability during acceleration. E L E C T R O N I C S T A B I L I T Y P R O G R A M M E
Safety recommendations
The ESP system offers increased
driving safety but is not in place
to encourage the driver to take
additional risks or to drive at
excessive speeds.
The functioning of this system is
s u b j e c t t o c o m p l i a n c e w i t h t h e
manufacturer’s recommendations
o n w h e e l s ( t y r e s a n d r i m s ) , b r a k e
parts and electronic components,
a s w e l l a s w i t h C I T R O Ë N ’ s
assembly and repair procedures.
After any collision, have this
system checked by a CITROËN
dealer.
Page 58 of 194
1
II
T h e s e a c t i o n s d o n o t c a n c e l t h e c r u i s e s p e e d w h i c h
remains displayed on the screen.
Reactivation of cruise control
- By recalling the memorised cruise speed:
After a deactivation, press button 3.
Your vehicle returns automatically to the memorised
c r u i s e s p e e d w h i c h i s d i s p l a y e d o n t h e i n s t r u m e n t
panel screen B.
If the memorised cruise speed is higher than the speed
a t w h i c h y o u a r e c u r r e n t l y t r a v e l l i n g , t h e v e h i c l e w i l l
accelerate strongly to compensate.
- By selection of the current speed:
P r e s s b r i e l y on button 2 or 4 w h e n y o u a r e a t y o u r
desired speed.
The information “OFF” w i l l t h e n d i s a p p e a r f r o m t h e
screen.
To cancel the function
- By moving the control from “CRUISE” position to
position 0.
- By stopping the engine.
The speed previously chosen is no longer
memorised.
In the event of a malfunction , a message is displayed,
accompanied by a sound signal and lighting of the
S E R V I C E w a r n i n g l a m p .
Consult your CITROËN dealer.
Cruise control must only be used where road conditions permit driving at a constant speed.
Do not use it on congested roads or when weather and ro ad conditions are poor.
The driver must still remain attentive and in complete co ntrol of the vehicle.
You are recommended to keep your feet within range of the pedals.
To exceed the cruise speed temporarily
While cruise control is operating, it is still possible to
go above the cruise speed by actioning the accelerator
pedal (for example to overtake another vehicle). The
s p e e d d i s p l a y e d o n t h e s c r e e n l a s h e s . Y o u h a v e
only to release the accelerator pedal to return to the
memorised speed.
Adjusting the cruise speed while cruise control is
in operation
You can adjust the cruise speed,
displayed in zone B,
by pressing:
- Button 4 to increase the speed.
- Button 2 to reduce the speed.
Note: you can use successive presses to modify the
cruise speed in steps of 1 mph and a continuous press
to jump in steps of 5 mph.
Deactivation of cruise control with memorised
speed
- E i t h e r w i t h a p r e s s o n t h e b r a k e p e d a l o r c l u t c h pedal.
- Or if ESP or ASR are activated.
- O r w i t h a p r e s s o n b u t t o n 3.
Note: c r u i s e c o n t r o l i s d i s e n g a g e d w h e n t h e g e a r l e v e r
is in neutral position.
These actions bring up the dis-
play “OFF” in the instrument

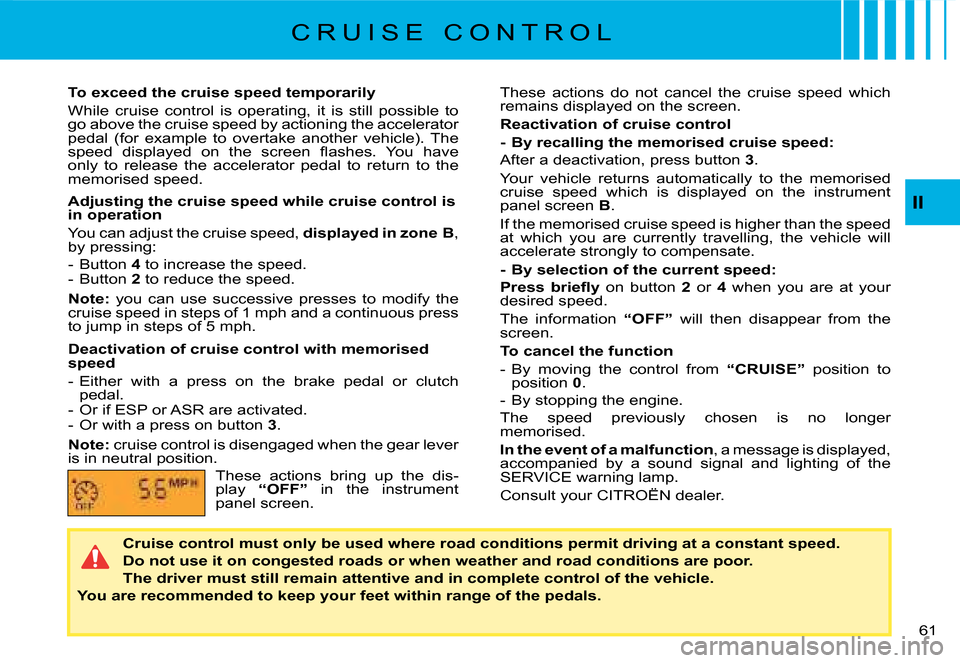

panel screen. C R U I S E C O N T R O L
Page 116 of 194
11 IV
F U S E S
Ref. Rating
Functions
F1 15 A Rear wipe
F3 5 A Airbag
F4 10 A Steering angle sensor - ESP - Photochromic interior rear view mirror - Diag
nostic
s o c k e t - C l u t c h - A i r c o n d i t i o n i n g - S u s p e n s i o n - P a r t i c l e i l t e r
F5 30 A Sun roof - Front window
F6 30 A Rear window
F7 5 A Interior lamps - Vanity mirrors - Glovebox
F8 20 A D i s p l a y s - A l a r m - R a d i o - C D c h a n g e r - D i e s e l f u e l a d d i t i v e s y s t e m
- D e l a t i o n
detection - Sliding side door
F9 30 A Cigar lighter
F10 15 A Trailer relay unit - Controls at the steering wheel
F11 15 A Diagnostic socket - Siren - Automatic gearbox - Ignition
F12 15 A Seat belts warning lamp - Sliding doors - Airbag - Parking assistance
- Driver’s seat
memorisation - Passenger’s electric seat - Hands-free kit.
F13 5 A Trailer relay unit
F14 15 A Rain sensor - Sun roof - Air conditioning - Odometer warning lamp
control unit -
Instrument panel - Telematics
F15 30 A Locking - Deadlocking - Child safety
F17 40 A Heated rear screen
Fuses under the dashboard
Page 118 of 194
121 IV
Ref. Rating
Functions
F1 20 A Engine ECU - Exhaust Gas Recycling electrovalve - Diesel fuel high
pressure
regulation electrovalve - EGR electrovalve
F2 15 A Horn
F3 10 A Windscreen/rear screen wash pump
F4 20 A Headlamp wash pump
F5 15 A Fuel pump - Regulation electrovalve
F6 10 A G e a r b o x - P o w e r s t e e r i n g - A i r l o w m e t e r - P r e h e a t e r u n i t - E n g i n e o i l
l e v e l -
Brakes - Headlamps adjustment
F7 10 A ESP
F8 20 A Starter motor
F9 10 A Engine ECU
F10 30 A Electrovalves - Oxygen sensor - Injectors - Ignition coil - ECU -
Diesel fuel heater
F11 40 A A i r l o w
F12 30 A Windscreen wipe
F13 40 A Built-in Systems Interface (Ignition+)
F14 - Free
Fuses under the bonnet
F U S E S
Page 145 of 194
77
D E S C R I P T I O N O F T H E C O N T R O L S
V O I C E
Yo u c a n o p e r a t e N av i d r i ve u s i n g y o u r voice.NaviDr ive lets you ac c ess c er tain func -tions by pronouncing the c or responding voice label:Using pre-recorded words and expres-sions, for example: “Radio”, “Help”.Using a label recorded by the user. T o a s s o c i a t e a v o i c e l a b e l t o a d i r e c t o r y fi l e , s e l e c t t h i s fi l e . R e c o r d a v o i c e l a b e l f o r t h i s fi l e ( e . g . “ O f fi c e” or “Home”).
Page 180 of 194
424242
IV
BC
A

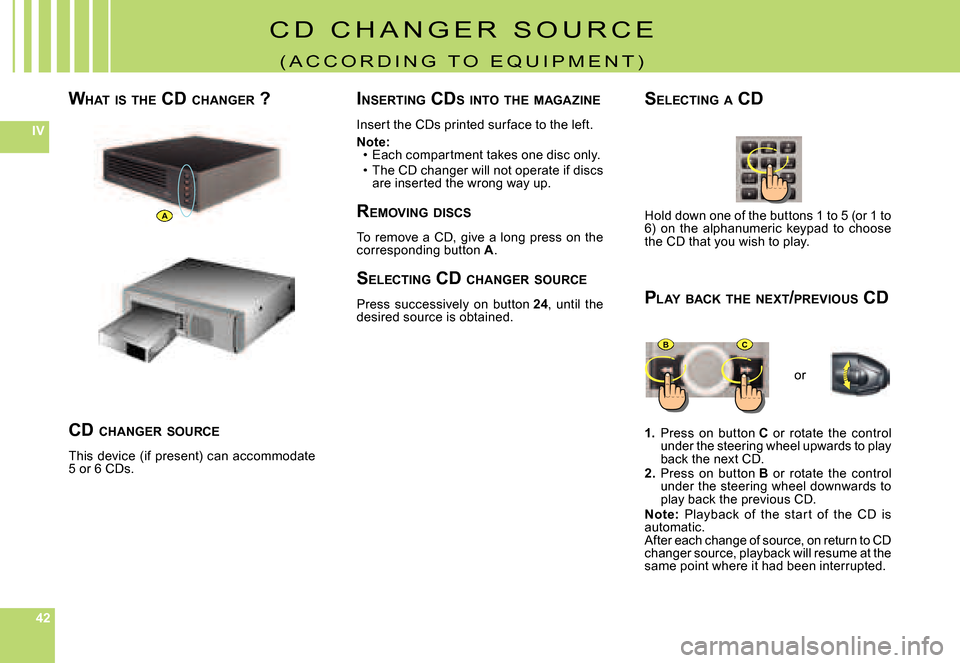

C D C H A N G E R S O U R C E
( A C C O R D I N G T O E Q U I P M E N T )
Hold down one of the buttons 1 to 5 (or 1 to ) on the alphanumeric keypad to choose the CD that you wish to play.
1. Press on button C or rotate the control under the steering wheel upwards to play back the next CD.2. Press on button B or rotate the control under the steering wheel downwards to play back the previous CD.Note: Playback of the star t of the CD is automatic.After each change of source, on return to CD changer source, playback will resume at the same point where it had been interrupted.
WHAT IS THE CD CHANGER ?SELECTING A CD
P LAY BACK THE NEXT /PREVIOUS CD
or
CD CHANGER SOURCE
This device (if present) can accommodate 5 or CDs.
I NSERTING CDS INTO THE MAGAZINE
Insert the CDs printed sur face to the left.
Note:Each compartment takes one disc only.The CD changer will not operate if discs are inserted the wrong way up.
R EMOVING DISCS
To remove a CD, give a long press on the corresponding button A.
S ELECTING CD CHANGER SOURCE
Press successively on button 24, until the desired source is obtained.
