Citroen C8 2010 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2010, Model line: C8, Model: Citroen C8 2010 1.GPages: 236, PDF Size: 11.67 MB
Page 121 of 236
120
Changing a wheel
- Lower the vehicle completely by folding the jack, then remove
the jack.
- Tighten the bolts again using the wheelbrace, tighten them fully
without forcing them. - Place the wheel to be repaired
in the boot well, with the valve
uppermost and the locating tab in
place.
- Raise the winch cable using the wheelbrace and tighten fully.
Check that the wheel is horizontal
a n d fl u s h a g a i n s t t h e r e a r fl o o r t o
ensure that it is retained correctly
while driving.
- R e m e m b e r t o c l o s e t h e fl a p , located in the boot, it permits
securing of the winch.
- Store the trim in the boot. Never go underneath a vehicle
that is supported only by a
jack (use a ramp). Never use a
screwdriver in place of the wheelbrace
to unwind or wind the winch cable.
6. REFITTING THE REPAIRED
WHEEL
T h e w h e e l i s r e fi t t e d a s d e s c r i b e d i n
s t e p 5 , n o t f o r g e t t i n g t o r e fi t t h e w h e e l
trim.
The spare wheel is not designed
to be used over long distances.
Have the tightening of the bolts
and the tyre pressure checked by a
CITROËN dealer as soon as possible.
Also, have the original wheel repaired
a n d r e fi t t e d b y a C I T R O Ë N d e a l e r a s
soon as possible.
Page 122 of 236
121
QUICK HELP
7
Changing a bulb
CHANGING A BULB
Handle the bulbs with a dry cloth.
Make access easier on the right-
hand side by removing the wash-wipe
p i p e a n d t h e f u s e b o x c o v e r .
High pressure washing: when using
this type of washing on stubborn dirt,
do not persist on the headlamps, the
lights and their surrounds to avoid
damaging their coating and their seal. 2 - Main beam headlamps
H 7 - 5 5 W o r x e n o n b u l b .
- Turn the protective cover
corresponding to the faulty bulb
a quarter of a turn to the left and
remove it.
- Disconnect the connector.
- Press the end of the securing clip to free it. Change the bulb.
W h e n fi t t i n g t h e n e w b u l b , e n s u r e t h a t
the direction notches are positioned
c o r r e c t l y a n d t h e s e c u r i n g c l i p i s fi x e d
properly.
- Reconnect the connector.
- R e fi t t h e p r o t e c t i v e c o v e r , t h e n t u r n it a quarter of a turn to the right.
3 - Fog lamps
H1-55 W.
FRONT LIGHTS
1. Dipped headlamps
2. Main beam headlamps
3. Fog lamps
4. Side lights
5. Direction indicators 1 - Dipped beam headlamps
H 7 - 5 5 W o r x e n o n b u l b .
4 - Side lights
W 5 W.
- Turn the bulb holder a quarter of a
turn to the left and remove it.
- Change the bulb.
WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be changed by a
CITROËN dealer.
Page 123 of 236
122
Changing a bulb
Rear lights
1. Direction indicators
PY 21 W (amber).
2. Side lights
5 W.
3. Brake/side lights
P 21 W/5 W.
4. Reversing lights
P 21 W.
5 - Direction indicators
PY 21 W (amber).
- Turn the bulb holder a quarter of a
turn to the left and remove it.
- Change the bulb.
T h e h e a d l a m p s a r e fi t t e d w i t h
polycarbonate glass with a
protective coating. Do not clean
them with a dry or abrasive cloth, nor
with a detergent or solvent product.
Use a sponge and soapy water.
In certain climatic conditions (low
temperature, humidity), condensation
inside the headlamp glass is normal;
it disappears a few minutes after the
lights are switched on. Direction indicator side repeaters
WY 5 W (amber).
- Push the repeater rearwards and
release it from the mirror.
- Hold the connector and turn the bulb holder a quarter of a turn to
the left.
- Turn the bulb a quarter of a turn to the left, remove it and change it.
W h e n r e fi t t i n g , e n g a g e t h e r e p e a t e r
towards the rear and move it towards
the front of the mirror.
Amber coloured bulbs (direction
indicators and side repeaters)
must be changed for bulbs of
i d e n t i c a l s p e c i fi c a t i o n a n d c o l o u r .
5. Fog lamps
P 21 W.
These 5 bulbs are changed from inside
the vehicle:
- open the tailgate,
- r e m o v e t h e a i r e x t r a c t i o n g r i l l e o n the side concerned,
Page 124 of 236
122
Changing a bulb
Rear lights
1. Direction indicators
PY 21 W (amber).
2. Side lights
5 W.
3. Brake/side lights
P 21 W/5 W.
4. Reversing lights
P 21 W.
5 - Direction indicators
PY 21 W (amber).
- Turn the bulb holder a quarter of a
turn to the left and remove it.
- Change the bulb.
T h e h e a d l a m p s a r e fi t t e d w i t h
polycarbonate glass with a
protective coating. Do not clean
them with a dry or abrasive cloth, nor
with a detergent or solvent product.
Use a sponge and soapy water.
In certain climatic conditions (low
temperature, humidity), condensation
inside the headlamp glass is normal;
it disappears a few minutes after the
lights are switched on. Direction indicator side repeaters
WY 5 W (amber).
- Push the repeater rearwards and
release it from the mirror.
- Hold the connector and turn the bulb holder a quarter of a turn to
the left.
- Turn the bulb a quarter of a turn to the left, remove it and change it.
W h e n r e fi t t i n g , e n g a g e t h e r e p e a t e r
towards the rear and move it towards
the front of the mirror.
Amber coloured bulbs (direction
indicators and side repeaters)
must be changed for bulbs of
i d e n t i c a l s p e c i fi c a t i o n a n d c o l o u r .
5. Fog lamps
P 21 W.
These 5 bulbs are changed from inside
the vehicle:
- open the tailgate,
- r e m o v e t h e a i r e x t r a c t i o n g r i l l e o n the side concerned,
Page 125 of 236
123
QUICK HELP
7
Changing a bulb

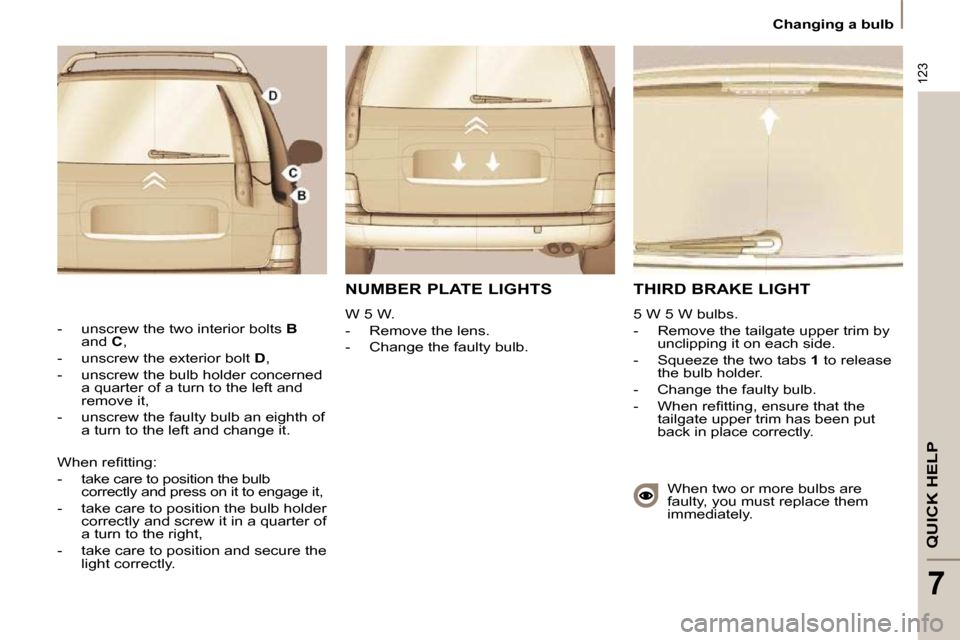

THIRD BRAKE LIGHT
5 W 5 W bulbs.
- Remove the tailgate upper trim by unclipping it on each side.
- Squeeze the two tabs 1 to release
the bulb holder.
- Change the faulty bulb.
- W h e n r e fi t t i n g , e n s u r e t h a t t h e
tailgate upper trim has been put
back in place correctly.
- unscrew the two interior bolts
B
and C ,
- u n s c r e w t h e e x t e r i o r b o l t D ,
- unscrew the bulb holder concerned a quarter of a turn to the left and
remove it,
- unscrew the faulty bulb an eighth of a turn to the left and change it.
When two or more bulbs are
faulty, you must replace them
immediately.
W h e n r e fi t t i n g :
- take care to position the bulb
correctly and press on it to engage it,
- take care to position the bulb holder correctly and screw it in a quarter of
a turn to the right,
- take care to position and secure the light correctly. NUMBER PLATE LIGHTS
W 5 W.
- Remove the lens.
- Change the faulty bulb.
Page 126 of 236
124
Changing a fuse
CHANGING A FUSE
T h e f u s e b o x e s a r e l o c a t e d i n :
- the instrument panel lower glove b o x ( r i g h t - h a n d s i d e ) ,
- the battery compartment ( r i g h t - h a n d s i d e fl o o r ) ,
- the engine compartment.
The spare fuses and special pliers A
a r e fi x e d t o t h e i n s i d e o f t h e l i d o f t h e
i n s t r u m e n t p a n e l f u s e b o x . Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
a r e i n d i c a t e d o n t h e f u s e b o x .
- Use the special pliers
A .
Always change a faulty fuse for one
of the same rating.
Removing and changing a fuse
CITROËN will not accept responsibility
for the cost incurred in repairing
your vehicle or for rectifying the
malfunctions resulting from the
installation of accessories not supplied
and not recommended by CITROËN
and not installed in accordance with
its instructions, in particular when
the combined consumption of all of
the additional equipment connected
e x c e e d s 1 0 m i l l i a m p e r e s .
Page 127 of 236
125
QUICK HELP
7
Changing a fuse
INSTRUMENT PANEL FUSES
- O p e n t h e l o w e r g l o v e b o x o n t h e r i g h t - h a n d s i d e .
- Pull the handle to open the cover and access the fuses.
N°
Rating
(Amps)
Functions
1 15 Rear wiper.
2 - Not used.
3 5 Air bag control unit.
4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manu
al air conditioning, Clutch
s w i t c h , H e a d l a m p b e a m h e i g h t , P a r t i c l e e m i s s i o n fi l t e r p u m p , E l e c t r o c h r o m a t i c i n t e r i o r m i r r o r .
5 30 Electric mirrors, Passenger's electric window motor, Sunroof row 1.
6 30 Front electric windows supply.
7 5 C o u r t e s y l i g h t s , G l o v e b o x l i g h t , C o u r t e s y m i r r o r l i g h t s , E n t e r t a i n m e n t s c r e e n l i g h t s r o w 2 .
8 20 Multifunction display, Anti-theft alarm siren, Audio equipmen
t, Compact disc changer, Audio/
t e l e p h o n e , D i e s e l a d d i t i v e c o n t r o l u n i t , T y r e u n d e r - i n fl a t i o n d e t e c t i o n c o n t r o l u n i t , S l i d i n g d o o r s
module control unit.
9 30 Lighter.
10 15 S t e e r i n g w h e e l s w i t c h i n g , T r a i l e r f u s e b o x .
11 15 D i a g n o s t i c s o c k e t , I g n i t i o n s w i t c h , A u t o m a t i c g e a r b o x ( 4 - s p e e d ) .
12 15 Driver's seat memory unit, Passenger's electric seat, Air bag control un
it, Parking assistance
c o n t r o l u n i t , S l i d i n g s i d e d o o r b u t t o n s , H a n d s - f r e e k i t , A u t o m a t i c g e a r b o x ( 6 - s p e e d ) .
13 5 E n g i n e f u s e b o x , T r a i l e r f u s e b o x .
14 15 Rain sensor, Automatic air conditioning, Instrument panel, Su
nroofs, Odometer warning lights
unit, Audio-telematics control.
15 30 Passenger's lock locking.
16 30 Locking/unlocking of the accesses.
17 40 Heated rear screen.
Page 128 of 236
126
Changing a fuse

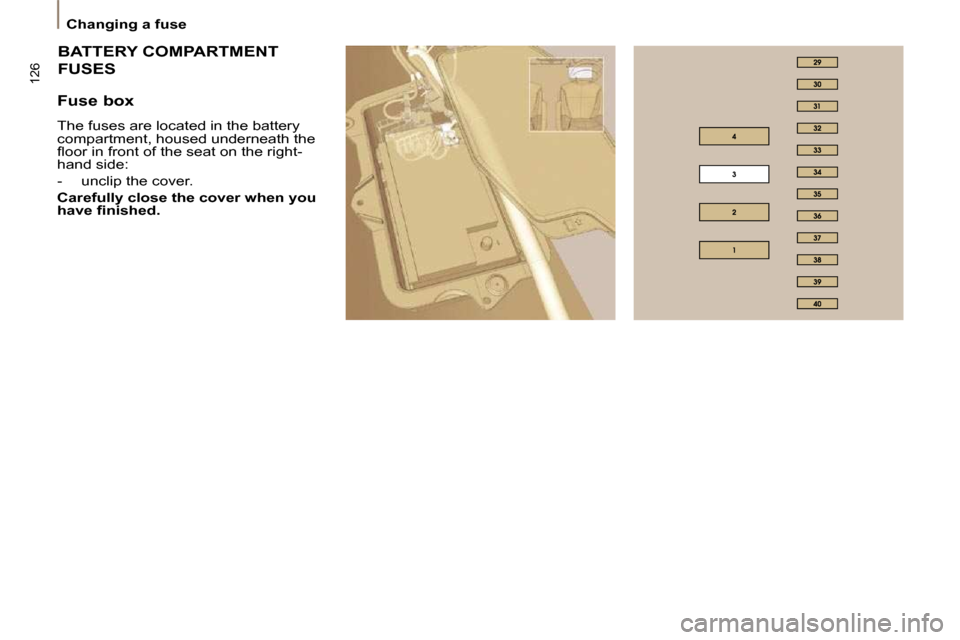

BATTERY COMPARTMENT
FUSES
Fuse box
The fuses are located in the battery
compartment, housed underneath the
fl o o r i n f r o n t o f t h e s e a t o n t h e r i g h t -
hand side:
- unclip the cover.
Carefully close the cover when you
h a v e fi n i s h e d .
Page 129 of 236
127
QUICK HELP
Changing a fuse

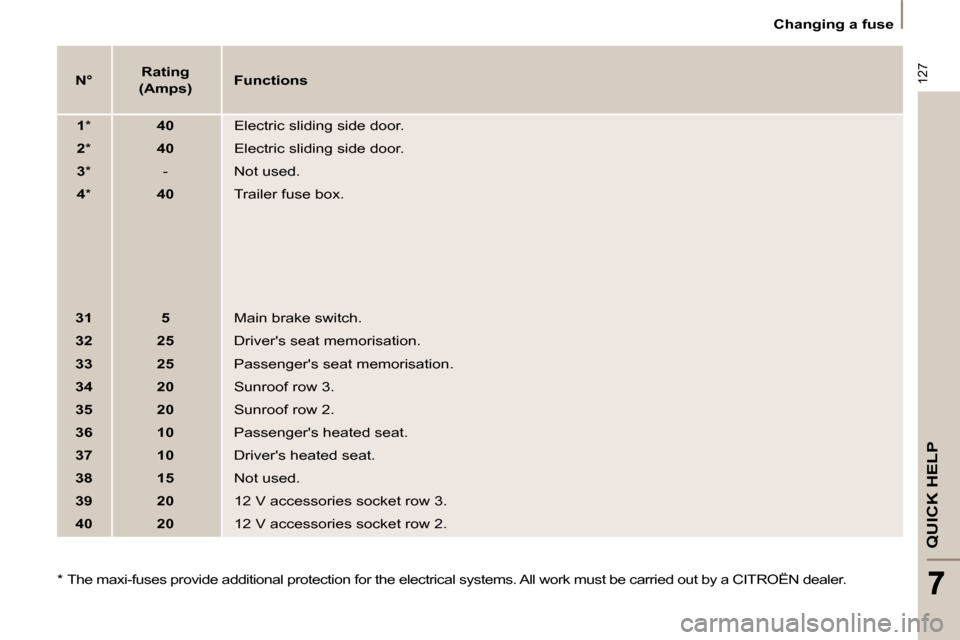

N°
Rating
(Amps)
Functions
1 * 40 Electric sliding side door.
2 * 40 Electric sliding side door.
3 * - Not used.
4 * 40 T r a i l e r f u s e b o x .
31 5 Main brake switch.
32 25 Driver's seat memorisation.
33 25 Passenger's seat memorisation.
34 20 Sunroof row 3.
35 20 Sunroof row 2.
36 10 Passenger's heated seat.
37 10 Driver's heated seat.
38 15 Not used.
39 20 12 V accessories socket row 3.
40 20 12 V accessories socket row 2.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t r i c a l s y s t e m s . A l l w o r k m u s t b e c a r r i e d o u t b y a C I T R O Ë N d e a l e r .
Page 130 of 236
128
Changing a fuse
Fuse box
To access the fuses located in the
engine compartment (to the left of
the coolant reservoir):
- unclip the cover.
ENGINE COMPARTMENT
FUSES
The designations communicated
only relate to the fuses which can
be changed by the user using
the pliers and spare fuses, located in
t h e g l o v e b o x b e h i n d t h e i n s t r u m e n t
p a n e l f u s e b o x , o n t h e r i g h t - h a n d s i d e .
For any other work, visit a CITROËN
dealer.
Carefully close the cover when you
h a v e fi n i s h e d .
The electrical system of your vehicle is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, consult a CITROËN dealer.
CITROËN will not accept responsibility
for the cost incurred in repairing
your vehicle or for rectifying the
malfunctions resulting from the
installation of accessories not supplied
and not recommended by CITROËN
and not installed in accordance with
its instructions, in particular where the
equipment in question consumes more
than 10 milliamperes. Intended for professionals: for full
fuse and relay information, consult the
"Methods" diagram via the CITROËN
network.
