129
QUICK HELP
7
Changing a fuse
N°
Rating
(Amps)
Functions
1 20 Engine control unit, Fuel supply and air supply systems, Fan assembly.
2 15 Horn.
3 10 Front and rear wash-wipe pump.
4 20 Headlamp wash pump.
5 15 Fuel supply system.
6 10 P o w e r s t e e r i n g , S e c o n d a r y b r a k e p e d a l s w i t c h , A u t o m a t i c g e a r b o x c o n t
r o l u n i t , A i r fl o w s e n s o r ,
A u t o m a t i c b e a m c o r r e c t o r w i t h x e n o n b u l b s .
7 10 Braking system (ABS/ESP).
8 20 Starter control.
9 10 Main brake switch.
10 30 Fuel supply and air supply systems, Emission control systems.
11 40 Front air conditioning.
12 30 Windscreen wipers.
13 40 Built-in systems interface.
14 30 Not used.
15 30 Child lock locking/unlocking/deadlocking control.
Page 132 of 236
130

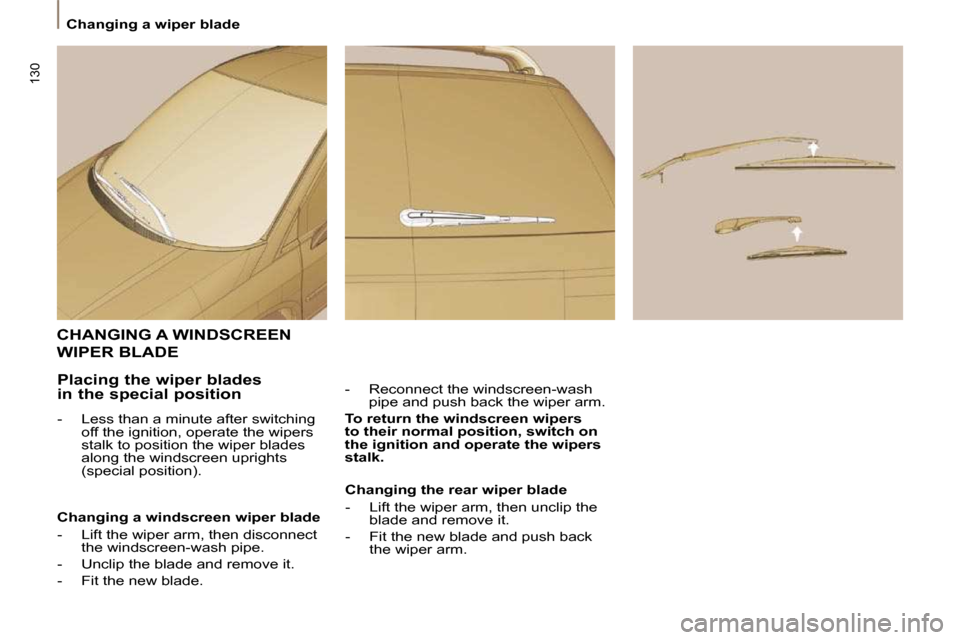

Changing a wiper blade
CHANGING A WINDSCREEN
WIPER BLADE
- Reconnect the windscreen-wash pipe and push back the wiper arm.
To return the windscreen wipers
to their normal position, switch on
the ignition and operate the wipers
stalk.
Placing the wiper blades
in the special position
- Less than a minute after switching
off the ignition, operate the wipers
stalk to position the wiper blades
along the windscreen uprights
(special position).
Changing a windscreen wiper blade
- Lift the wiper arm, then disconnect the windscreen-wash pipe.
- Unclip the blade and remove it.
- Fit the new blade. Changing the rear wiper blade
- Lift the wiper arm, then unclip the
blade and remove it.
- Fit the new blade and push back the wiper arm.
Page 133 of 236
131
QUICK HELP
7
Having your vehicle towed
From the rear
- unclip the top of the cover using a coin,
- screw in the removable towing eye until it locks.
TOWING YOUR VEHICLE
Special features of
the automatic gearbox
When being towed with four wheels on
the road, it is essential to observe the
following rules:
- selector lever in position N ,
- tow the vehicle at a speed below 30 mph (50 km/h) over a distance
l i m i t e d t o 3 0 m i l e s ( 5 0 k m ) m a x i m u m ,
- d o n o t a d d o i l t o t h e g e a r b o x .
When towing with the engine switched
off, there is no braking or steering
assistance.
Without lifting (4 wheels on the road)
You should always use a towbar.
The removable towing eye is inside
the engine compartment.
From the front
- unclip the cover by pressing the
bottom part,
- screw in the removable towing eye until it locks. Lifting (2 wheels on the road only)
It is preferable to raise the vehicle
using professional lifting equipment.
VEHICLES FITTED WITH A MANUAL
GEARBOX (diesel version)
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
m a n u a l g e a r b o x , t h e g e a r l e v e r m u s t
be in the neutral position. Failure to
observe this special condition may
result in damage to certain braking
components and the absence of
b r a k i n g a s s i s t a n c e t h e n e x t t i m e t h e
engine is started.
Put the gear lever in neutral.
Failure to observe this rule may
result in damage to certain
components.
Page 134 of 236
Diesel technical data
132
This table presents the Model Codes
Engine, __xxx__ Diesel 2.0 HDi PEF __RHR__
Number of seats, xx_____
7 seats maximum EA_____
Base model: 5 individual seats
8 seats maximum EB_____
Type of gearbox , _____xx
Manual
(6-speed) _____H
Automatic
(6-speed) _____J
Category and type of towing device A 50 X
Part number, instructions concerning
fi t t i n g R 06-0049
Page 135 of 236
133
Diesel technical data
TECHNICAL DATA
8
DIESEL ENGINE
Model codes
E_RHRH E____H E____J
Engine
2.0 HDi PEF 2.0 HDi PEF
Manual Manual Automatic
(6-speed) (6-speed) (6-speed)
Power (bhp) 140 163
Max. power: EU standard (KW) 100 120
Capacity (cm 3
) 1 997 1 997
Bore x stroke (mm) 85 x 88 85 x 88
Number of valves 16 16
Max. power engine speed (rpm) 4 000 4 000
Max. torque: EU standard (Nm) 320 320
Max. torque engine speed (rpm) 2 000 2 000
Fuel Diesel Diesel
Catalytic converter Yes Yes
P a r t i c l e e m i s s i o n fi l t e r ( P E F ) Yes Yes
Electronic injection Yes Yes
Oil capacities (in litres)
E n g i n e s ( w i t h fi l t e r r e p l a c e m e n t ) 5 5
Page 136 of 236
Diesel technical data
134 DIESEL DIMENSIONS, WEIGHTS AND TOWING LOADS (in mm - in kg)
Model codes EARHRH EBRHRH
EA___H
EA___J
EB___H
EB___J
7 seats 8 seats 7 seats 8 seats
Engine
2.0 HDi PEF 2.0 HDi PEF
Wheelbase(s) (at full load) 2 823 - - on Axle 1 1 570 - -
on Axle 2 1 548 - -
Length 4 727
Width 1 850
Height at kerb weight without roof bars 1 745 to 1 759
w i t h fi x e d r o o f b a r s 1 854 to 1 863
Kerb weight 1 854 to 1 957 1 818 to 1 983 - -
on Axle 1 1 121 to 1 157 1 117 to 1 161 - -
on Axle 2 733 to 800 701 to 822 - -
Page 137 of 236
135
Diesel technical data
TECHNICAL DATA
8
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load ment ioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is above 45 °C, restrict the towed wei ght.
Model codes EARHRH EBRHRH
EA___H
EA___J
EB___H
EB___J
7 seats 8 seats 7 seats 8 seats
Engine
2.0 HDi PEF 2.0 HDi PEF
Gross train weight (GTW) 3 945 - -
Gross vehicle weight (GVW) 2 530 - - on Axle 1 1 256 1 263 - -
on Axle 2 1 274 1 267 - -
Gross weight on Axle 1 1 270 - -
on Axle 2 1 300 - -
Gross towed weight 1 850 - -
Gross weight of unbraked trailer 750 - -
Gross weight on towing attachment 76 - -
Page 138 of 236
136

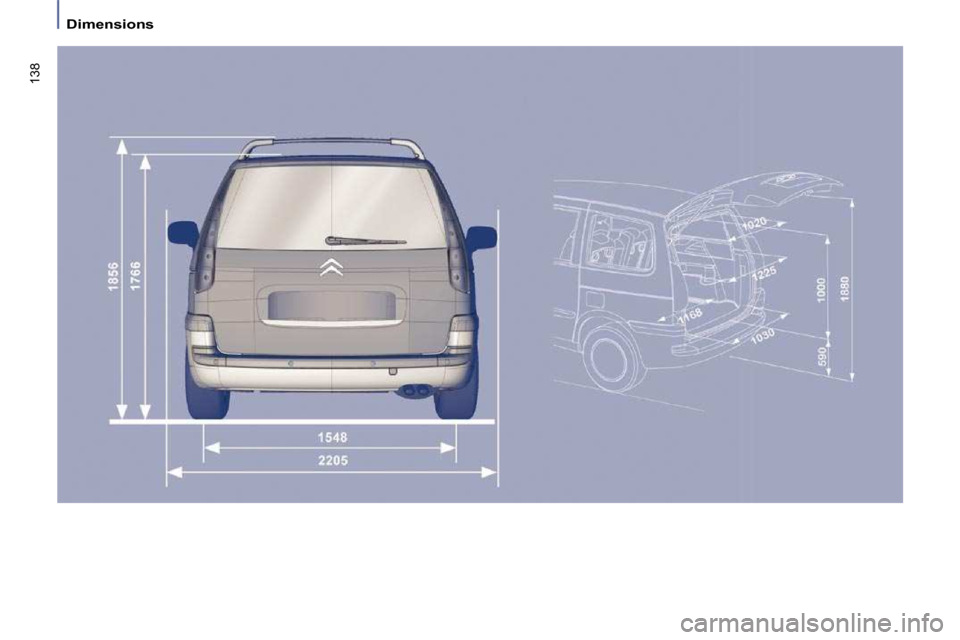

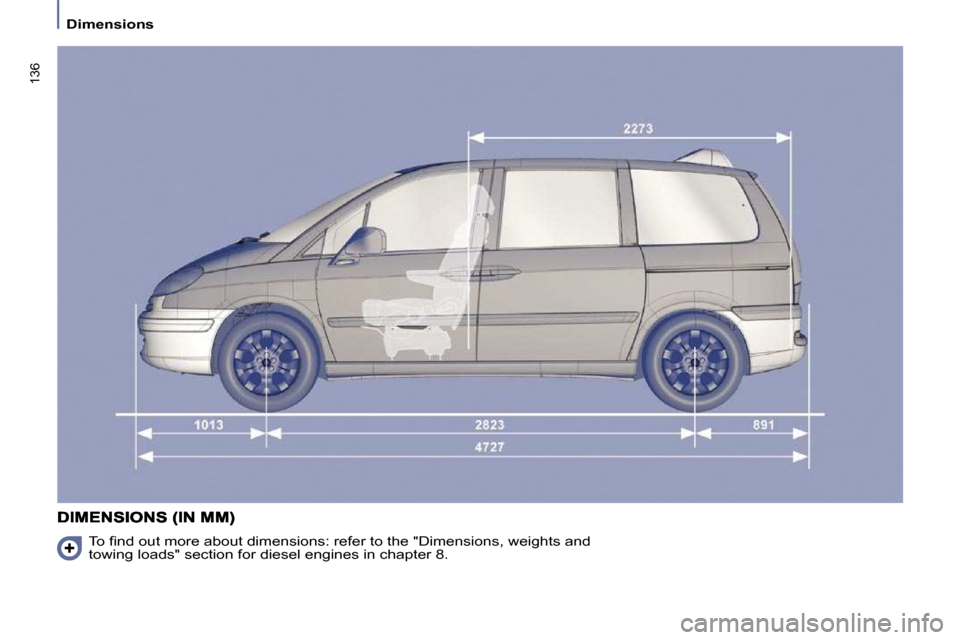

Dimensions
T o fi n d o u t m o r e a b o u t d i m e n s i o n s : r e f e r t o t h e " D i m e n s i o n s , w e i g h t s a n d
t o w i n g l o a d s " s e c t i o n f o r d i e s e l e n g i n e s i n c h a p t e r 8 .
