SAFETY
99
4


Child safety

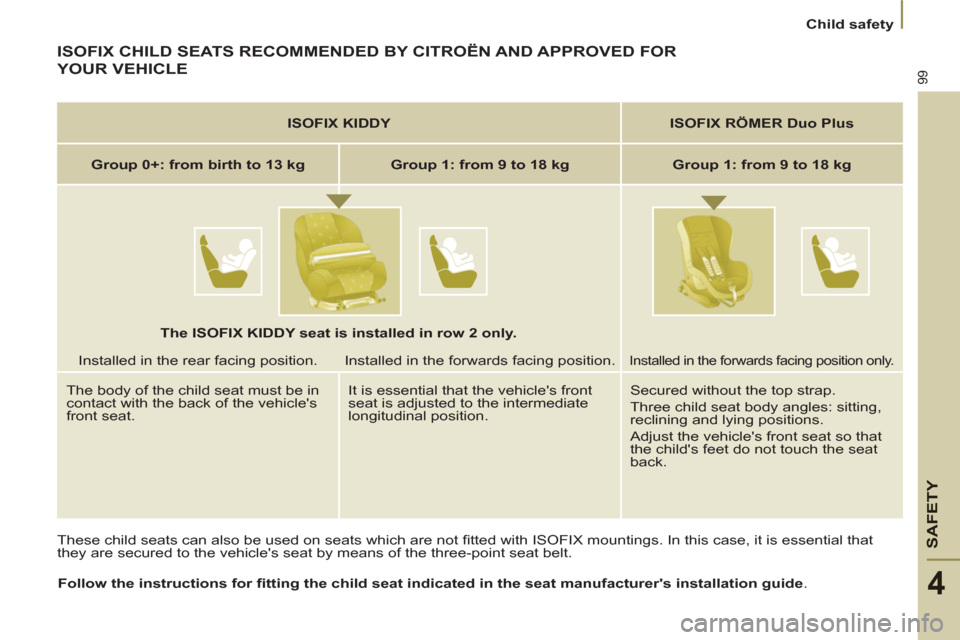

ISOFIX CHILD SEATS RECOMMENDED BY CITROËN AND APPROVED FOR
YOUR VEHICLE
These child seats can also be used on seats which are not fi tted with ISOFIX mountings. In this case, it is essential that
they are secured to the vehicle's seat by means of the three-point seat belt.

Follow the instructions for fi tting the child seat indicated in the seat

manufacturer

's i

nstallation guide
.

ISOFIX KIDDY


ISOFIX RÖMER Duo Plus


Group 0+: from birth to 13 kg

Group 1: from 9 to 18 kg

Group 1: from 9 to 18 kg

Installed in the rear facing position. Installed in the forwards facing position.

Installed in the forwards facing position only.

The body of the child seat must be in
contact with the back of the vehicle's
front seat. It is essential that the vehicle's front
seat is adjusted to the intermediate
longitudinal position. Secured without the top strap.
Three child seat body angles: sitting,
reclining and lying positions.
Adjust the vehicle's front seat so that
the child's feet do not touch the seat
back.
The ISOFIX KIDDY seat is installed in row 2 only.

100


Child safety

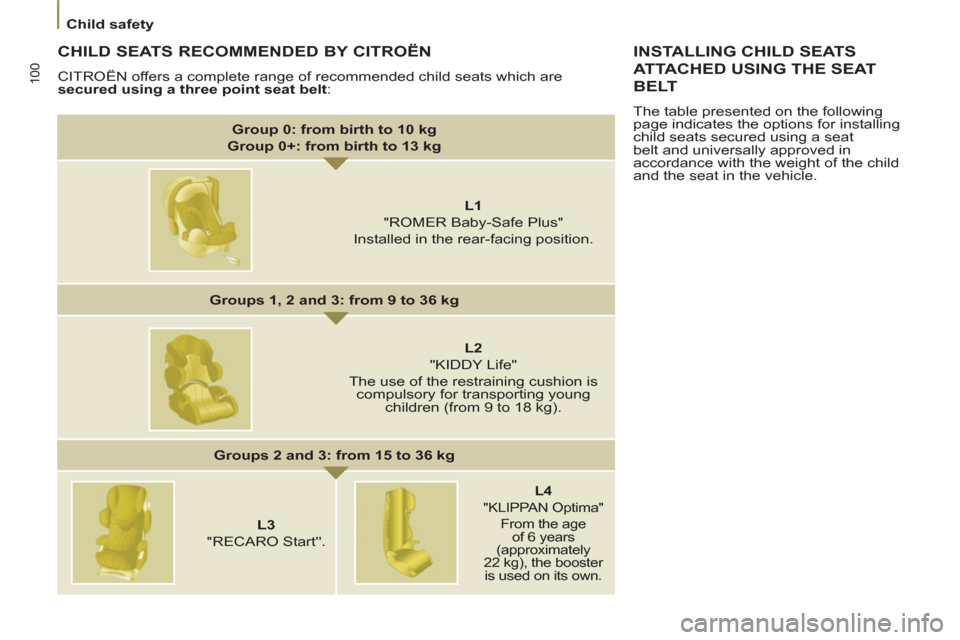

CHILD SEATS RECOMMENDED BY CITROËN

CITROËN offers a complete range of recommended child seats which are
secured using a three point seat belt
:

INSTALLING CHILD SEATS
ATTACHED USING THE SEAT
BELT
The table presented on the following
page indicates the options for installing
child seats secured using a seat
belt and universally approved in
accordance with the weight of the child
and the seat in the vehicle.

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg









L1

"ROMER Baby-Safe Plus"
Installed in the rear-facing position.








Groups 1, 2 and 3: from 9 to 36 kg









L2

"KIDDY Life"
The use of the restraining cushion is
compulsory for transporting young
children (from 9 to 18 kg).


Groups 2 and 3: from 15 to 36 kg








L3

"RECARO Start''.






L4

"KLIPPAN Optima"
From the age
of 6 years
(approximately
22 kg), the booster
is used on its own.

SAFETY
101
4


Child safety




a
: Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.

b
: consult the legislation in force in your country before installing your child on this seat.

U
: seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear facing" and/or
"forward facing".

L-
: only the child seats indicated can be installed on the seat concerned (according to country).

X
: seat not suitable for the installation of a child seat of the weight group indicated.

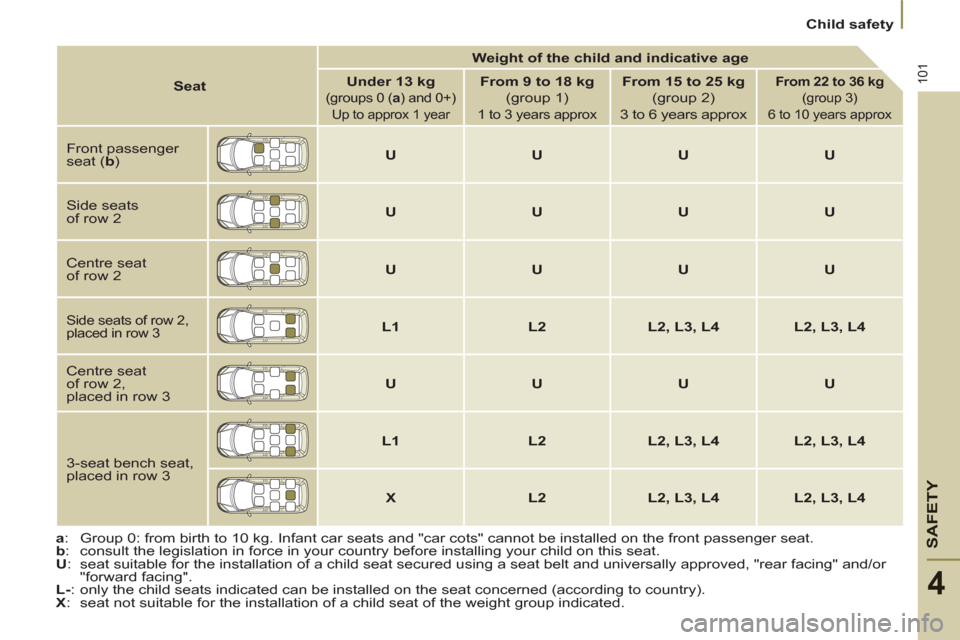

Seat


Weight of the child and indicative age




Under 13 kg


(groups 0 ( a
) and 0+)

Up to approx 1 year



From 9 to 18 kg

(group 1)

1 to 3 years approx

From 15 to 25 kg

(group 2)
3 to 6 years approx

From 22 to 36 kg
(group 3)
6 to 10 years approx

Front passenger
seat ( b
)

U



U



U



U


Side seats
of row 2

U



U



U



U


Centre seat
of row 2

U



U



U



U



Side seats of row 2,
placed in row 3

L1



L2



L2, L3, L4



L2, L3, L4


Centre seat
of row 2,
placed in row 3

U



U



U



U


3-seat bench seat,
placed in row 3

L1



L2



L2, L3, L4



L2, L3, L4




X



L2



L2, L3, L4



L2, L3, L4

102


Child safety

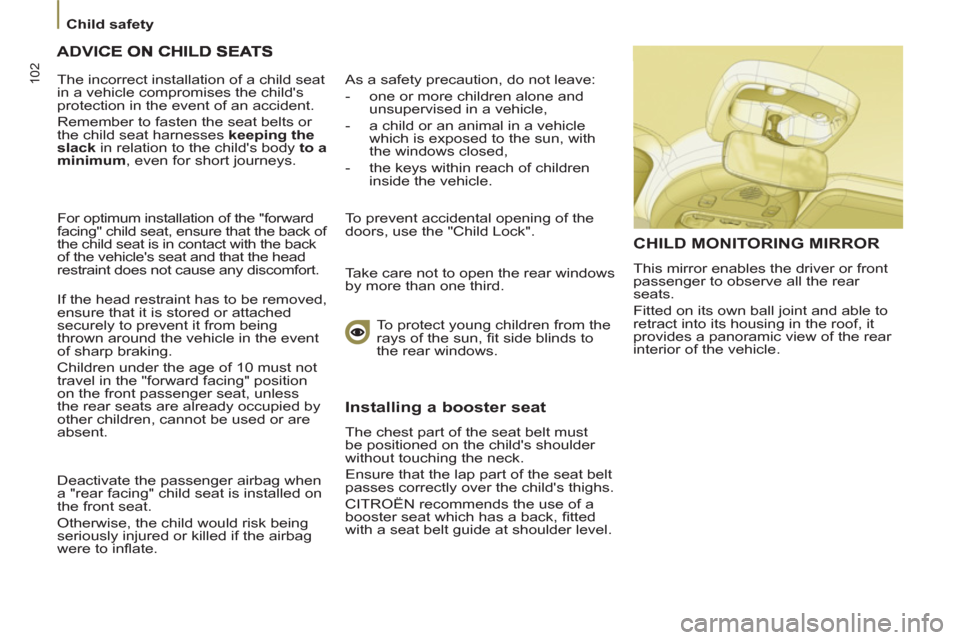

ADVIC

The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack
in relation to the child's body to a
minimum
, even for short journeys.
To protect young children from the
rays of the sun, fi t side blinds to
the rear windows.

CHILD MONITORING MIRROR

This mirror enables the driver or front
passenger to observe all the rear
seats.
Fitted on its own ball joint and able to
retract into its housing in the roof, it
provides a panoramic view of the rear
interior of the vehicle. For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back
of the vehicle's seat and that the head
restraint does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Deactivate the passenger airbag when
a "rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.
As a safety precaution, do not leave:


- one or more children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.

Installing a booster seat

The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a
booster seat which has a back, fi tted
with a seat belt guide at shoulder level.

103


Towing a trailer

ACCESSORIES
5

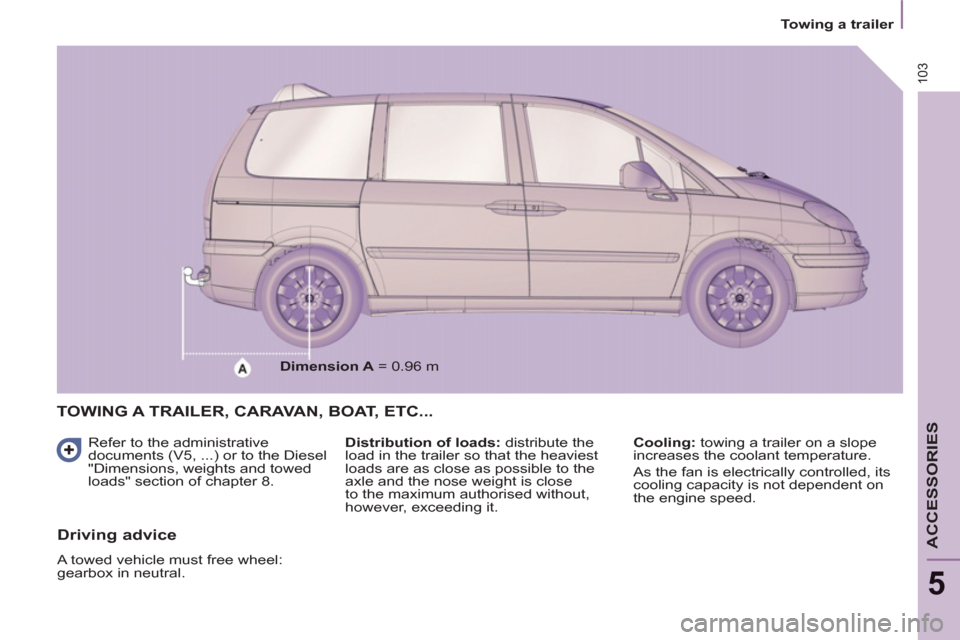

TOWING A TRAILER, CARAVAN, BOAT, ETC...


Refer to the administrative
documents (V5, ...) or to the Diesel
"Dimensions, weights and towed
loads" section of chapter 8.
Distribution of loads:
distribute the
load in the trailer so that the heaviest
loads are as close as possible to the
axle and the nose weight is close
to the maximum authorised without,
however, exceeding it.
Cooling:
towing a trailer on a slope
increases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
Dimension A
= 0.96 m


Driving advice

A towed vehicle must free wheel:
gearbox in neutral.

104


Towing a trailer

On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Brakes:
towing increases the braking
distance. Drive at a moderate speed,
change down early and brake
gradually.


Automatic adjustment
For vehicles with Xenon bulbs, and if
the change in load makes it necessary,
this system automatically corrects the
height of the beam after approximately
2 minutes. The driver is then assured
of having optimum lighting and not
causing a nuisance to other road
users.


In certain cases of particularly
arduous use (towing the
maximum load up a steep slope
in high temperatures), the engine
automatically limits its power. In this
case, cutting off the air conditioning
allows the engine power to be
recovered, and therefore the towing
speed to be signifi cantly increased
(approximately 12 mph [20 km/h]
more). Sequential control of the
gearbox may also become unavailable.

Lighting

Bicycle carrier

Refer to the "Identifi cation
features" section of chapter 8. Refer to the "Steering wheel
controls" section of chapter 3.
When using a trailer connection,
you must add a fuse. Refer to
the "Changing a fuse" section of
chapter 7.




If the coolant temperature warning light
comes on, stop the vehicle and switch
off the engine as soon as possible.

Tyres:
check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pressure.
Side wind:
sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.






Towbar

We recommend the use of original
CITROËN towbars, which have been
tested for endurance from the design
stage of your vehicle.
Towing equipment must be fi tted in
accordance with the manufacturer's
instructions, with particular attention to
the towing capacities of your vehicle,
the load towed, the nose weight and
the electrical connection. As this fi tting
should be carried out by a professional,
we recommend that you entrust the
fi tting of this equipment to a CITROËN
dealer.
In accordance with the general
instructions referred to above, we draw
your attention to the risk connected
with fi tting a towbar or other electrical
accessory which is not recommended
by the CITROËN network. Fitting such
equipment could result in a failure
of your vehicle's electronic system.
Please contact a CITROËN dealer fi rst
for further information.
Manual adjustment
Adjust your headlamps so as not to
dazzle other road users. Check the
electrical signalling of the trailer.
If you fi t a bicycle carrier on
the tailgate, deactivate the
rear wiper from the display's
confi guration menu.

105



Roof bars


ACCESSORIES
5

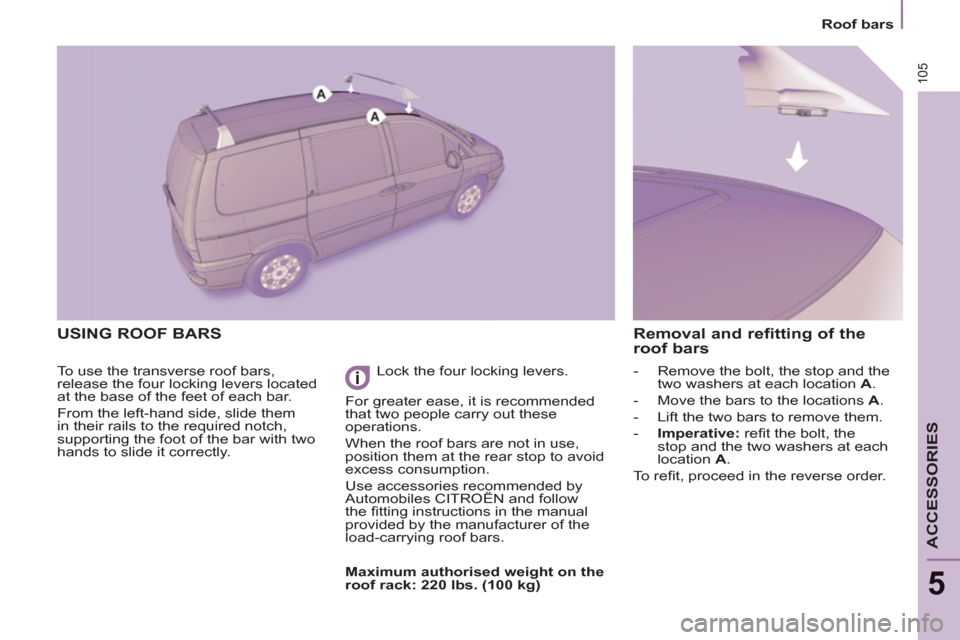

USING ROOF BARS

To use the transverse roof bars,
release the four locking levers located
at the base of the feet of each bar.
From the left-hand side, slide them
in their rails to the required notch,
supporting the foot of the bar with two
hands to slide it correctly. Lock the four locking levers.
For greater ease, it is recommended
that two people carry out these
operations.
When the roof bars are not in use,
position them at the rear stop to avoid
excess consumption.
Use accessories recommended by
Automobiles CITROËN and follow
the fi tting instructions in the manual
provided by the manufacturer of the
load-carrying roof bars.

- Remove the bolt, the stop and the
two washers at each location A
.

- Move the bars to the locations A
.

- Lift the two bars to remove them.

- Imperative:
refi t the bolt, the
stop and the two washers at each
location A
.
To refi t, proceed in the reverse order.


Removal and refitting of the
roof bars

Maximum authorised weight on the
roof rack: 220 lbs. (100 kg)

106



Snow screen

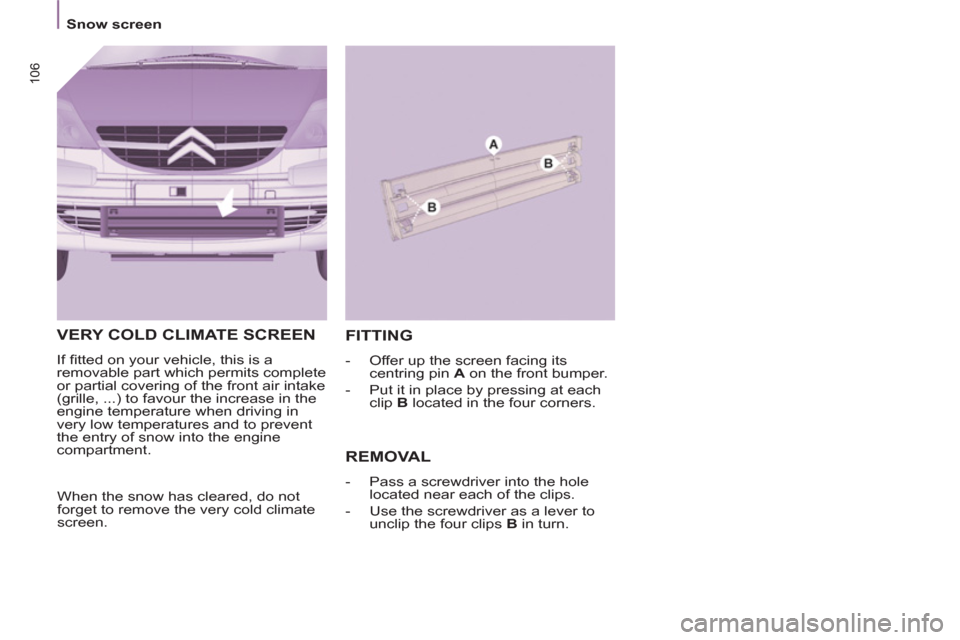

VERY COLD CLIMATE SCREEN

If fi tted on your vehicle, this is a
removable part which permits complete
or partial covering of the front air intake
(grille, ...) to favour the increase in the
engine temperature when driving in
very low temperatures and to prevent
the entry of snow into the engine
compartment.

FITTING



- Offer up the screen facing its
centring pin A
on the front bumper.

- Put it in place by pressing at each
clip B
located in the four corners.



REMOVAL



- Pass a screwdriver into the hole
located near each of the clips.

- Use the screwdriver as a lever to
unclip the four clips B
in turn.

When the snow has cleared, do not
forget to remove the very cold climate
screen.

107


Other accessories

ACCESSORIES
5





OTHER ACCESSORIES

These accessories and parts, after
being tested and approved for
reliability and safety, are all adapted
to your vehicle. A wide choice of
recommended accessories and original
parts is offered by CITROËN. To avoid any jamming under the
pedals:


- ensure that the mat and its fi xings
are positioned correctly,

- never place one mat on top of
another.


Compatible portable equipment
For the hands-free kit audio
equipment, the fi tting of an RCA
auxiliary socket is offered specifi cally
by the Network.
The audio cable for connection to
the auxiliary socket (RCA yellow-red
located in the glove box) is also offered
by the network.
Following connection of the cable and
selection of the AUX mode, via the
source button, your portable equipment
is ready to operate.
Set the portable equipment to half
volume to avoid saturating the audio
system sound. Then use the audio
system volume button.
Audio systems, telephone, hands-free
kit, speakers, CD changer, navigation
system, DVD player, ...
Alloy wheels, trims, aluminium interior
trim kit, mud fl aps, ...

Seat covers compatible with side
airbags, mats, boot tray, sunroof,
luggage net, door defl ectors, cool box
secured on the slides, clip armrest,
load carrying roof bars, roof box, snow
chains, ski carrier, tailgate bicycle
carrier, interior bicycle carrier, booster
seats and child seats, Isofi x seats, side
sun blinds and rear blind, ...
Trailer towbar which must be fi tted by a
CITROËN dealer.
The fi tting of electrical equipment
or accessories which are not
recommended by CITROËN may
result in a failure of your vehicle's
electronic system.
Please note this specifi c warning. You
are advised to contact a representative
of the Marque to be shown the range
of recommended equipment or
accessories.
Screenwash, interior and exterior
maintenance and cleaning products,
replacement bulbs, ...
Depending on the country in which
the vehicle is sold, it is compulsory to
have a safety jacket, warning triangle
and replacement bulbs available in the
vehicle.
A further range is also available,
structured around comfort, leisure and
maintenance:

Anti-theft alarm, window engraving,
fi rst aid kit, high visibility vest, rear
parking sensors, warning triangle, ...
When using a tailgate bicycle
carrier, deactivate the rear
wiper from the display
confi guration menu.
Before installing a radio communication
transmitter with aerial, contact a
CITROËN dealer who will inform you
of the specifi cations of the transmitters
which can be fi tted, in accordance with
the Motor Vehicle Electromagnetic
Compatibility Directive (2004/104/EC).

Partners in performance and
protection of the environment

Innovation at the service of performance
The TOTAL Research and Development
teams develop lubricants for CITROËN
which satisfy the requirements of the
latest technical innovations incorporated in
CITROËN vehicles.
This ensures that you obtain the best
performance and the maximum engine life.

Reduced exhaust emissions
TOTAL lubricants are formulated
to optimise the effi ciency of
engines and the protection of
the emissions post-treatment
systems. It is crucial to observe
the servicing recommendations
made by CITROËN to ensure
correct operation.



RECOMMENDS
