EASE OF USE and COMFORT
3
69


Seats

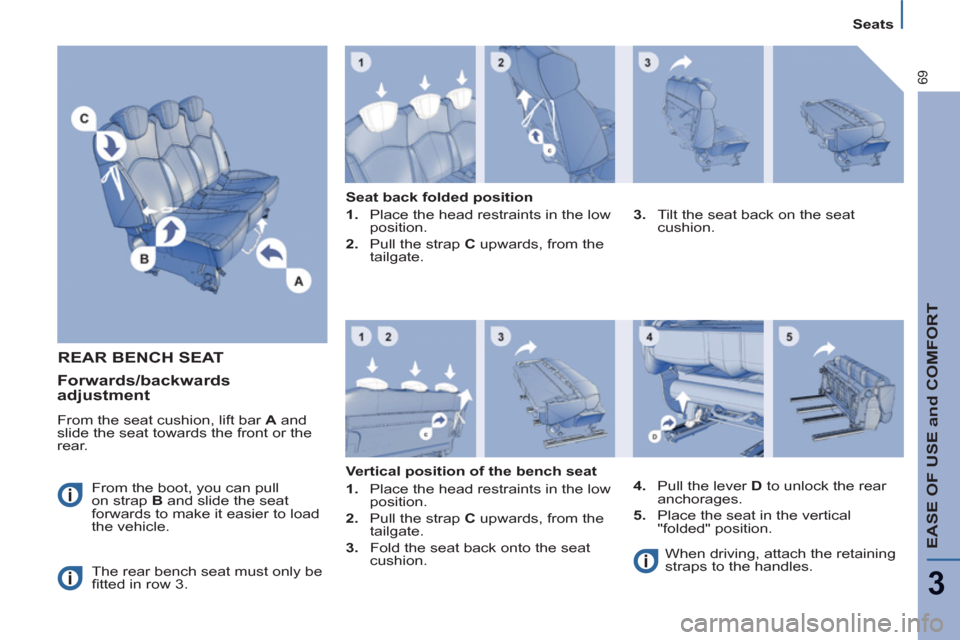

REAR BENCH SEAT

From the boot, you can pull
on strap B
and slide the seat
forwards to make it easier to load
the vehicle.
The rear bench seat must only be
fi tted in row 3.
Seat back folded position


1.
Place the head restraints in the low
position.

2.
Pull the strap C
upwards, from the
tailgate.
3.
Tilt the seat back on the seat
cushion.


Vertical position of the bench seat


1.
Place the head restraints in the low
position.

2.
Pull the strap C
upwards, from the
tailgate.

3.
Fold the seat back onto the seat
cushion.
4.
Pull the lever D
to unlock the rear
anchorages.

5.
Place the seat in the vertical
"folded" position.
When driving, attach the retaining
straps to the handles.


Forwards/backwards
adjustment
From the seat cushion, lift bar A
and
slide the seat towards the front or the
rear.

70


Seats

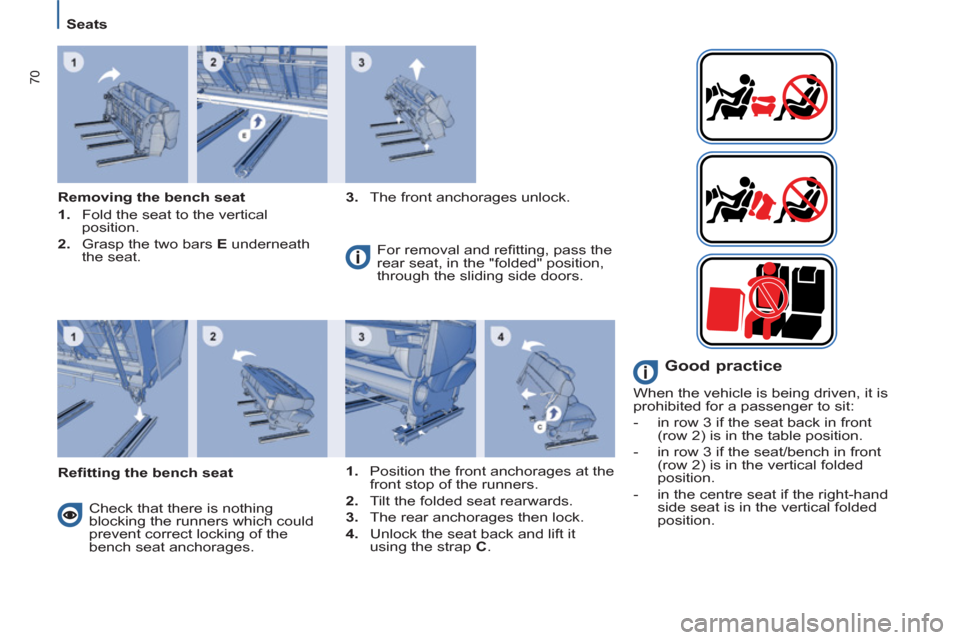

Removing the bench seat


1.
Fold the seat to the vertical
position.

2.
Grasp the two bars E
underneath
the seat.
3.
The front anchorages unlock.

Refi tting the bench seat For removal and refi tting, pass the
rear seat, in the "folded" position,
through the sliding side doors.
Check that there is nothing
blocking the runners which could
prevent correct locking of the
bench seat anchorages.

1.
Position the front anchorages at the
front stop of the runners.

2.
Tilt the folded seat rearwards.

3.
The rear anchorages then lock.

4.
Unlock the seat back and lift it
using the strap C
.


Good practice

When the vehicle is being driven, it is
prohibited for a passenger to sit:


- in row 3 if the seat back in front
(row 2) is in the table position.

- in row 3 if the seat/bench in front
(row 2) is in the vertical folded
position.

- in the centre seat if the right-hand
side seat is in the vertical folded
position.

EASE OF USE and COMFORT
3
71


Seats

The centre seat may be installed
in the central position in row 2 and
in the left side position in row 3.

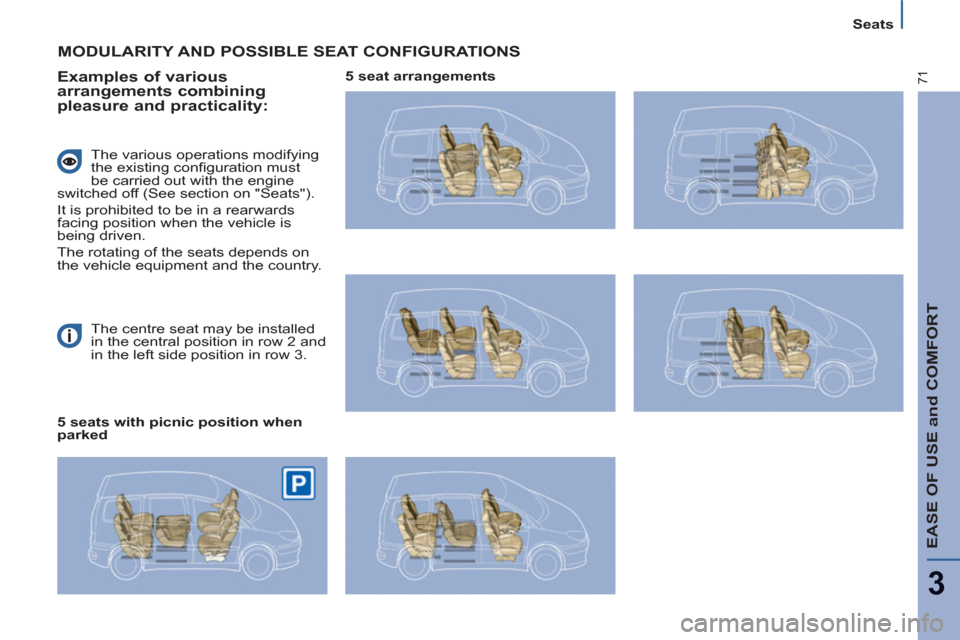

MODULARITY AND POSSIBLE SEAT CONFIGURATIONS

Examples of various
arrangements combining
pleasure and practicality:
The various operations modifying
the existing confi guration must
be carried out with the engine
switched off (See section on "Seats").
It is prohibited to be in a rearwards
facing position when the vehicle is
being driven.
The rotating of the seats depends on
the vehicle equipment and the country.

5 seats with picnic position when
parked
5 seat arrangements

72


Seats

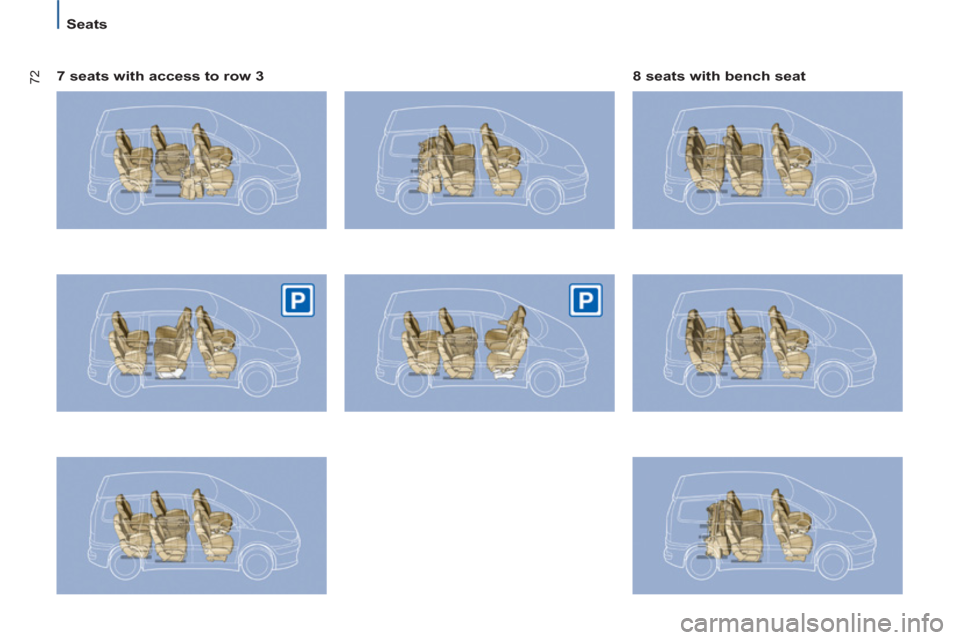

7 seats with access to row 3
8 seats with bench seat

EASE OF USE and COMFORT
3
73


Seats

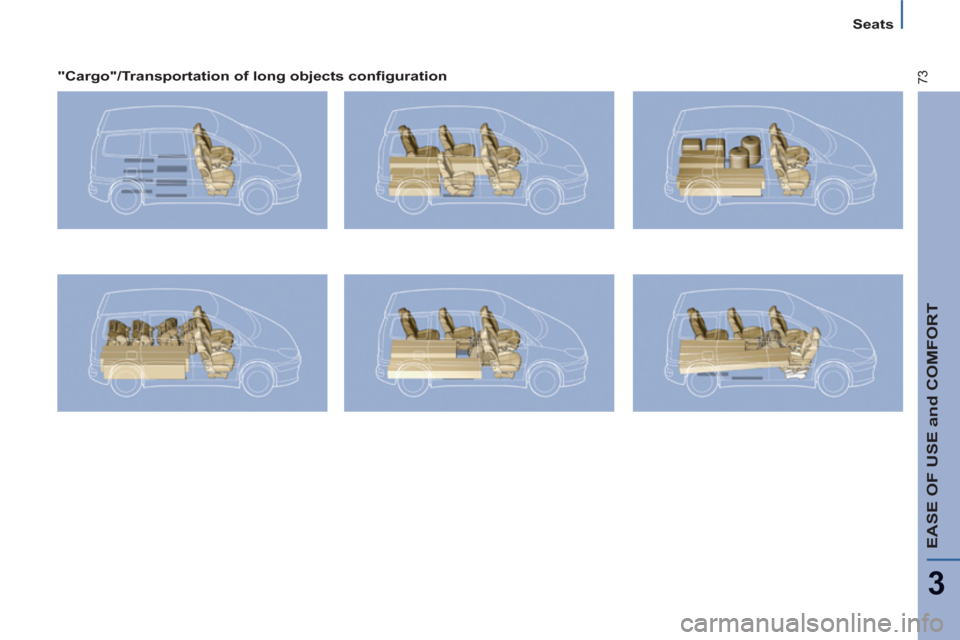

"Cargo"/Transportation of long objects confi guration

EASE OF USE and COMFORT
3
75
Practical information

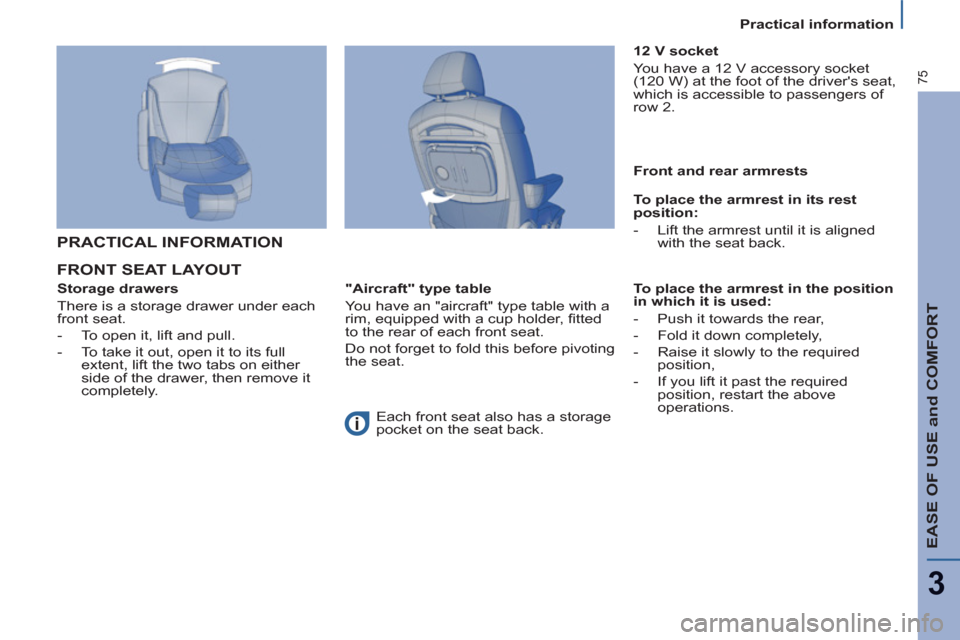

FRONT SEAT LAYOUT

Storage drawers
There is a storage drawer under each
front seat.


- To open it, lift and pull.

- To take it out, open it to its full
extent, lift the two tabs on either
side of the drawer, then remove it
completely.

PRACTICAL INFORMATION


"Aircraft" type table
You have an "aircraft" type table with a
rim, equipped with a cup holder, fi tted
to the rear of each front seat.
Do not forget to fold this before pivoting
the seat.
12 V socket
You have a 12 V accessory socket
(120 W) at the foot of the driver's seat,
which is accessible to passengers of
row 2.

Front and rear armrests

To place the armrest in its rest
position:


- Lift the armrest until it is aligned
with the seat back.





Each front seat also has a storage
pocket on the seat back.
To place the armrest in the position
in which it is used:


- Push it towards the rear,

- Fold it down completely,

- Raise it slowly to the required
position,

- If you lift it past the required
position, restart the above
operations.

76
Practical information

EASE OF USE and COMFORT
3
77
Practical information

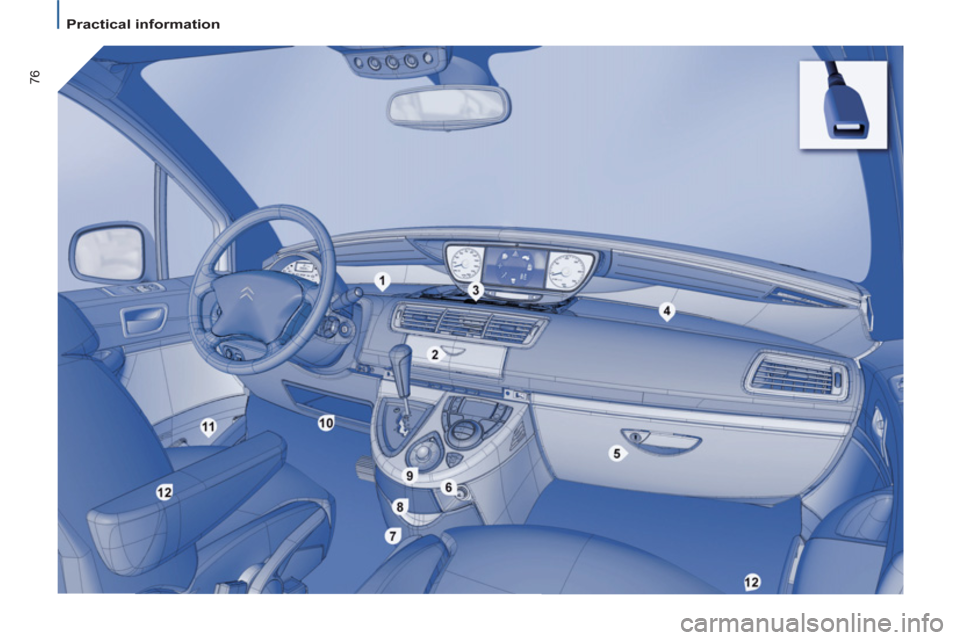

1. Driver's upper glove box

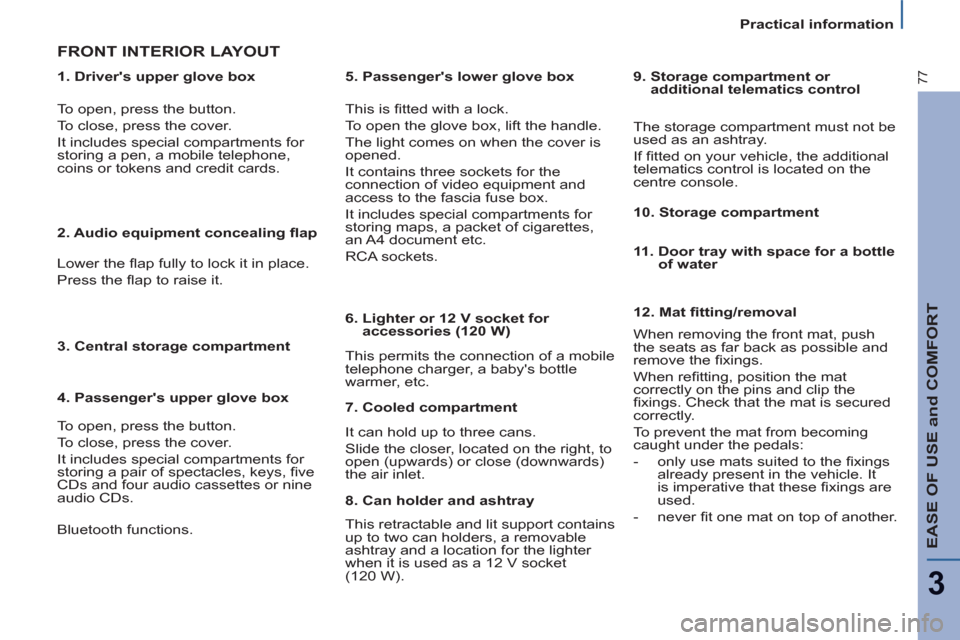

FRONT INTERIOR LAYOUT

This is fi tted with a lock.
To open the glove box, lift the handle.
The light comes on when the cover is
opened.
It contains three sockets for the
connection of video equipment and
access to the fascia fuse box.
It includes special compartments for
storing maps, a packet of cigarettes,
an A4 document etc.
RCA sockets.

This permits the connection of a mobile
telephone charger, a baby's bottle
warmer, etc.
To open, press the button.
To close, press the cover.
It includes special compartments for
storing a pen, a mobile telephone,
coins or tokens and credit cards.




2. Audio equipment concealing fl ap
Lower the fl ap fully to lock it in place.
Press the fl ap to raise it.


3. Central storage compartment



4. Passenger's upper glove box
To open, press the button.
To close, press the cover.
It includes special compartments for
storing a pair of spectacles, keys, fi ve
CDs and four audio cassettes or nine
audio CDs.

5. Passenger's lower glove box

6. Lighter or 12 V socket for
accessories (120 W)

12. Mat fi tting/removal
When removing the front mat, push
the seats as far back as possible and
remove the fi xings.
When refi tting, position the mat
correctly on the pins and clip the
fi xings.
Check that the mat is secured
correctly.
To prevent the mat from becoming
caught under the pedals:


- only use mats suited to the fi xings
already present in the vehicle.
It
is imperative that these fi xings are
used.

- never fi t one mat on top of another.


7. Cooled compartment
It can hold up to three cans.
Slide the closer, located on the right, to
open (upwards) or close (downwards)
the air inlet.


8. Can holder and ashtray
This retractable and lit support contains
up to two can holders, a removable
ashtray and a location for the lighter
when it is used as a 12 V socket
(120 W).

9. Storage compartment or
additional telematics control
The storage compartment must not be
used as an ashtray.
If fi tted on your vehicle, the additional
telematics control is located on the
centre console.


10. Storage compartment



11. Door tray with space for a bottle
of water


Bluetooth functions.
