Citroen C8 DAG 2008 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2008, Model line: C8 DAG, Model: Citroen C8 DAG 2008 1.GPages: 194, PDF Size: 4.97 MB
Page 111 of 194

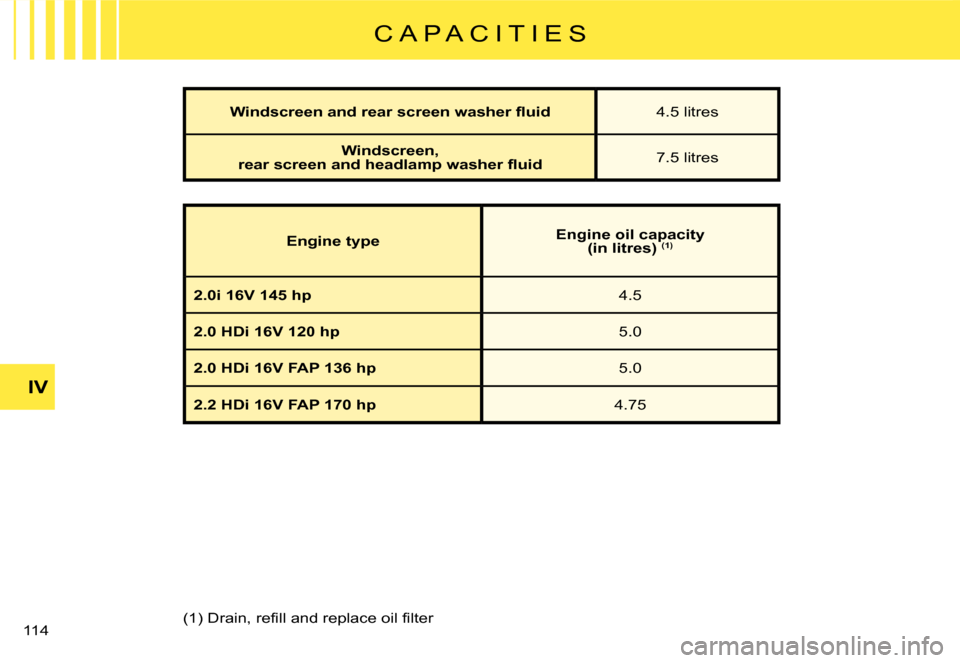

114 IV C A P A C I T I E S
W i n d s c r e e n a n d r e a r s c r e e n w a s h e r l u i d
4.5 litres
Windscreen,
r e a r s c r e e n a n d h e a d l a m p w a s h e r l u i d 7.5 litres
( 1 ) D r a i n , r e i l l a n d r e p l a c e o i l i l t e r
Engine type Engine oil capacity
(in litres) (1)
2.0i 16V 145 hp 4.5
2.0 HDi 16V 120 hp 5.0
2.0 HDi 16V FAP 136 hp 5.0
2.2 HDi 16V FAP 170 hp 4.75
Page 112 of 194
C
A
4 2
1
3
B
115 IV
B A T T E R Y
Access to the battery
T h e b a t t e r y i s l o c a t e d u n d e r t h e l o o r o n t h e f r o n t r i g h t
hand side (see “Battery compartment fuses”).
Emergency starting with a slave battery
A vehicle with a discharged battery can be started
with either a slave battery or the battery of another
vehicle.
A Discharged battery
B Slave battery
C Earth point on broken down vehicle.
It is essential to proceed strictly following the sequence
indicated.
Check that the emergency battery is correctly charged
up (12 volts). If you are using the battery on another
vehicle, stop the engine of the assisting vehicle. The
two vehicles must not come into direct contact with
each other.
Connect the cables in the order indicated in the
diagram. Make sure that the clamps are properly
secured (risk of sparks).
Start the engine of the assisting vehicle. Let the engine
run for about a minute at a slightly accelerated speed.
N e v e r a p p l y a l a m e o r c r e a t e s p a r k s c l o s e
to the battery (explosive gas). The battery contains diluted sulphuric acid which is highly corrosive.
If ever you are handling the battery, protect your eyes a nd face.
In the event of any contact with the skin, rinse
immediately with copious amounts of fresh water.
Advice
Replace it with a battery of the
same type (voltage, amp rating).
Do not touch the cable clamps
during the procedure.
Do not lean over the batteries.
Disconnect the cables in the
reverse order to connection,
ensuring that they do not touch
each other. Start the engine of the assisted vehicle.
Note:
For any repair necessitating a disconnection
of the battery, it is essential to wait three minutes
after switching off the ignition and to avoid any action
that could prevent the vehicle’s electrical circuit from
changing to standby mode (such as opening and
closing doors, using the remote control etc.).
Page 113 of 194
11 IV

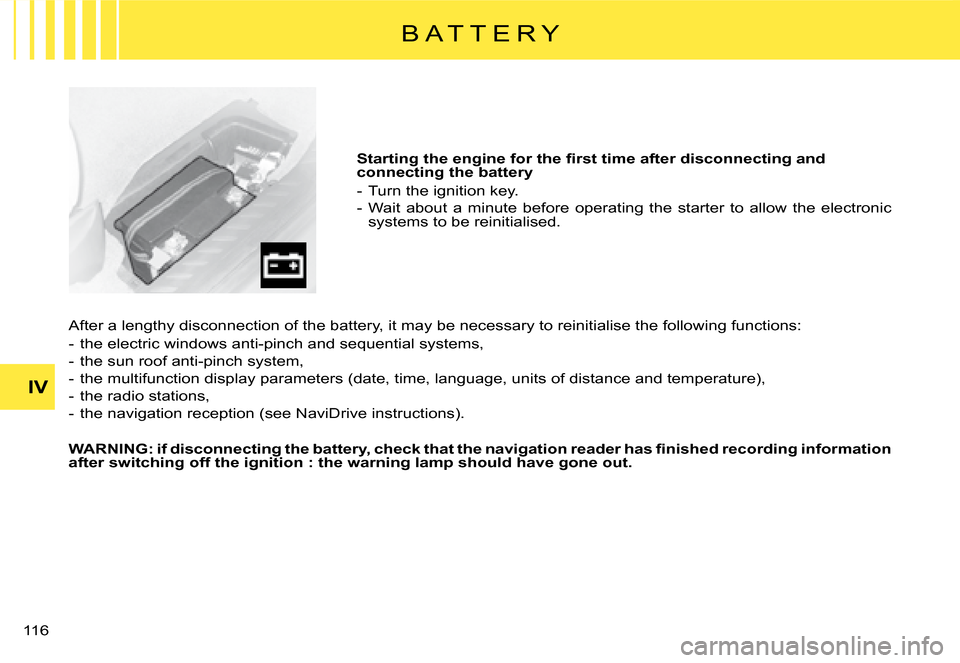

After a lengthy disconnection of the battery, it may be necessa
ry to reinitialise the following functions:
- the electric windows anti-pinch and sequential systems,
- the sun roof anti-pinch system,
- the multifunction display parameters (date, time, language, units of distance and temperature),
- the radio stations,
- the navigation reception (see NaviDrive instructions).
W A R N I N G : i f d i s c o n n e c t i n g t h e b a t t e r y , c h e c k t h a t t h e n a v i g a t i o n r e a d e r h a s i n i s h e d r e c o r d i n g i n f o r m a t i o n
after switching off the ignition : the warning lamp should h ave gone out.
S t a r t i n g t h e e n g i n e f o r t h e i r s t t i m e a f t e r d i s c o n n e c t i n g a n d
connecting the battery
- Turn the ignition key.
- Wait about a minute before operating the starter to allo
w the electronic
systems to be reinitialised. B A T T E R Y
Page 114 of 194
117 IV

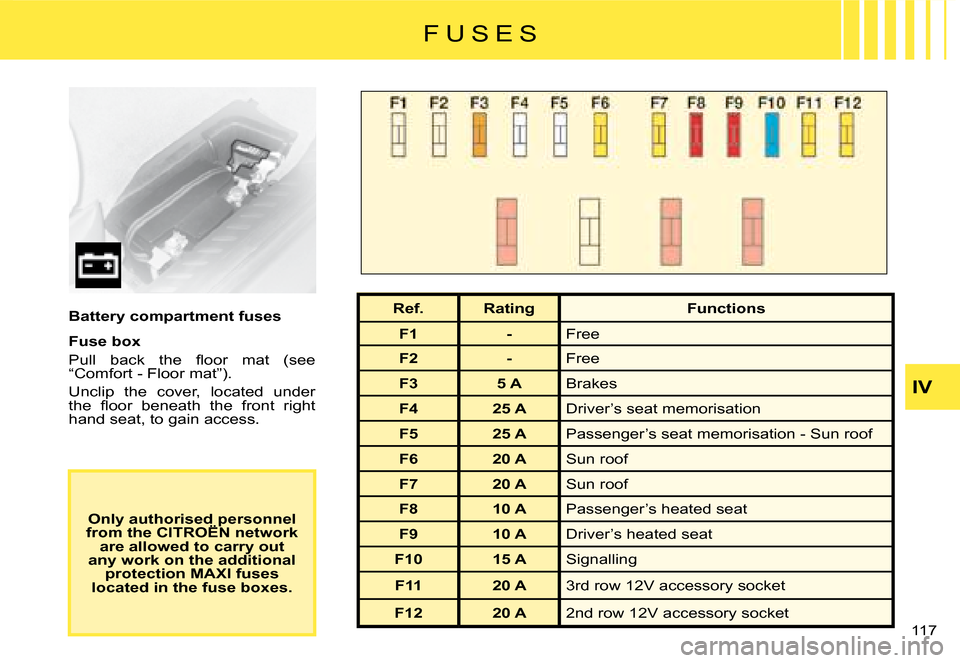

Battery compartment fuses
Fuse box
P u l l b a c k t h e l o o r m a t ( s e e
“Comfort - Floor mat”).
Unclip the cover, located under
t h e l o o r b e n e a t h t h e f r o n t r i g h t
hand seat, to gain access.
Ref. Rating Functions
F1 - Free
F2 - Free
F3 5 A Brakes
F4 25 A Driver’s seat memorisation
F5 25 A Passenger’s seat memorisation - Sun roof
F6 20 A Sun roof
F7 20 A Sun roof
F8 10 A Passenger’s heated seat
F9 10 A Driver’s heated seat
F10 15 A Signalling
F11 20 A 3rd row 12V accessory socket
F12 20 A 2nd row 12V accessory socket
Only authorised personnel
from the CITROËN network are allowed to carry out
any work on the additional protection MAXI fuses
located in the fuse boxes. F U S E S
Page 115 of 194
11 IV F U S E S

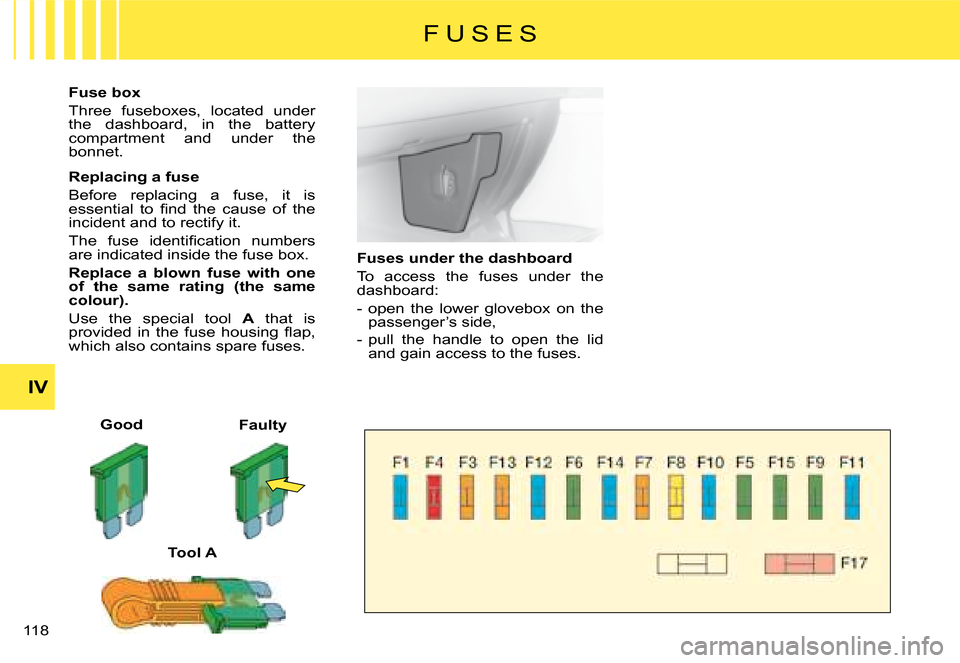

Fuse box
Three fuseboxes, located under
the dashboard, in the battery
compartment and under the
bonnet.
Replacing a fuse
Before replacing a fuse, it is
e s s e n t i a l t o i n d t h e c a u s e o f t h e
incident and to rectify it.
T h e f u s e i d e n t i i c a t i o n n u m b e r s
are indicated inside the fuse box.
Replace a blown fuse with one
of the same rating (the same
colour).
Use the special tool A that is
p r o v i d e d i n t h e f u s e h o u s i n g l a p ,
which also contains spare fuses.
Good Faulty
Tool A Fuses under the dashboard
To access the fuses under the
dashboard:
- open the lower glovebox on the
passenger’s side,
- pull the handle to open the lid and gain access to the fuses.
Page 116 of 194
11 IV
F U S E S
Ref. Rating
Functions
F1 15 A Rear wipe
F3 5 A Airbag
F4 10 A Steering angle sensor - ESP - Photochromic interior rear view mirror - Diag
nostic
s o c k e t - C l u t c h - A i r c o n d i t i o n i n g - S u s p e n s i o n - P a r t i c l e i l t e r
F5 30 A Sun roof - Front window
F6 30 A Rear window
F7 5 A Interior lamps - Vanity mirrors - Glovebox
F8 20 A D i s p l a y s - A l a r m - R a d i o - C D c h a n g e r - D i e s e l f u e l a d d i t i v e s y s t e m
- D e l a t i o n
detection - Sliding side door
F9 30 A Cigar lighter
F10 15 A Trailer relay unit - Controls at the steering wheel
F11 15 A Diagnostic socket - Siren - Automatic gearbox - Ignition
F12 15 A Seat belts warning lamp - Sliding doors - Airbag - Parking assistance
- Driver’s seat
memorisation - Passenger’s electric seat - Hands-free kit.
F13 5 A Trailer relay unit
F14 15 A Rain sensor - Sun roof - Air conditioning - Odometer warning lamp
control unit -
Instrument panel - Telematics
F15 30 A Locking - Deadlocking - Child safety
F17 40 A Heated rear screen
Fuses under the dashboard
Page 117 of 194
120 IV F U S E S

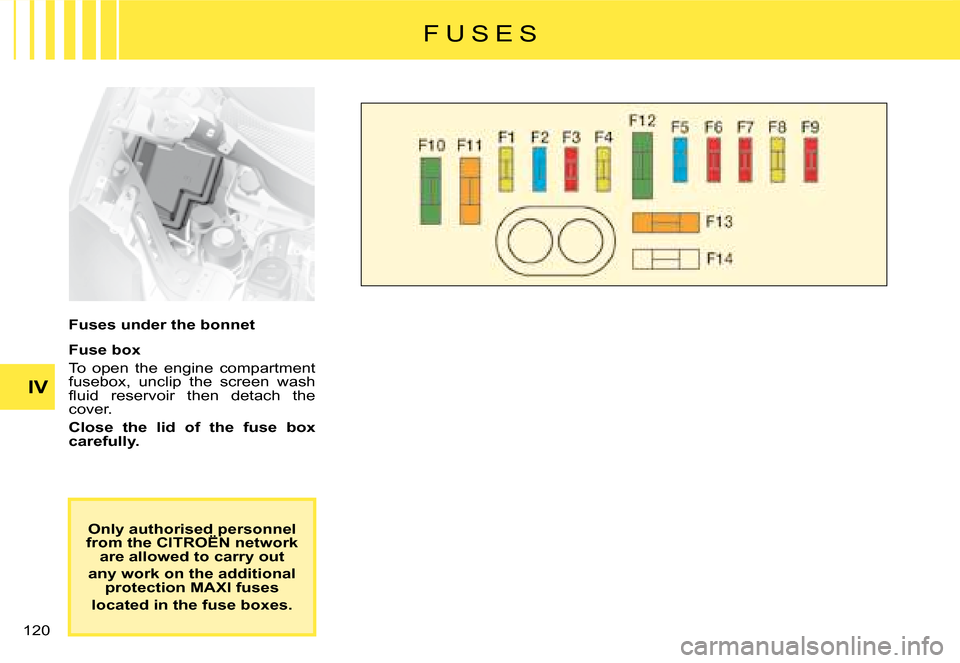

Fuses under the bonnet
Fuse box
To open the engine compartment
fusebox, unclip the screen wash
l u i d r e s e r v o i r t h e n d e t a c h t h e
cover.
Close the lid of the fuse box
carefully. Only authorised personnel
from the CITROËN network are allowed to carry out
any work on the additional protection MAXI fuses
located in the fuse boxes.
Page 118 of 194
121 IV

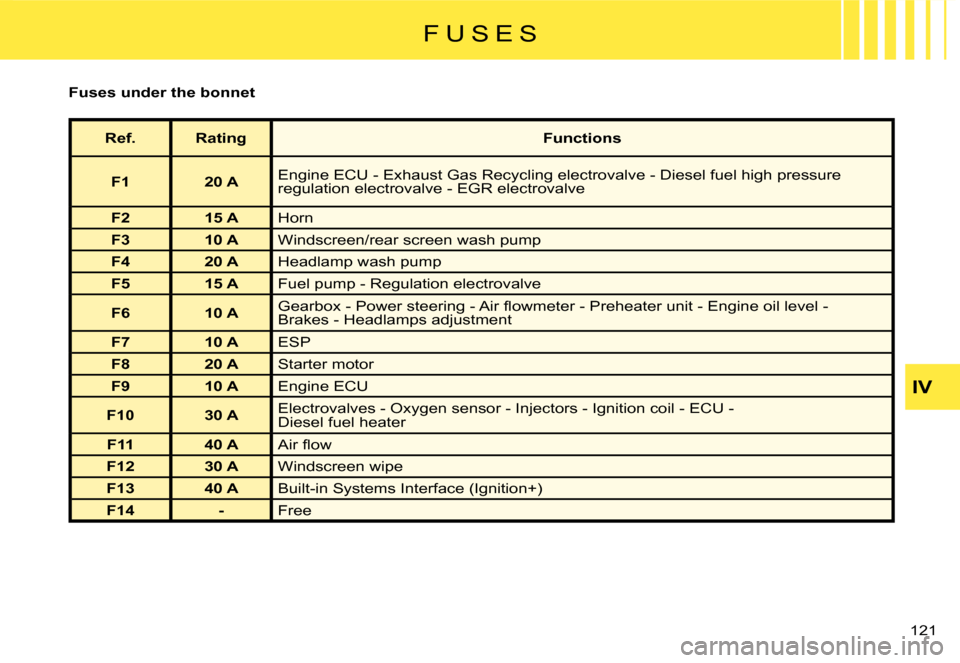

Ref. Rating
Functions
F1 20 A Engine ECU - Exhaust Gas Recycling electrovalve - Diesel fuel high
pressure
regulation electrovalve - EGR electrovalve
F2 15 A Horn
F3 10 A Windscreen/rear screen wash pump
F4 20 A Headlamp wash pump
F5 15 A Fuel pump - Regulation electrovalve
F6 10 A G e a r b o x - P o w e r s t e e r i n g - A i r l o w m e t e r - P r e h e a t e r u n i t - E n g i n e o i l
l e v e l -
Brakes - Headlamps adjustment
F7 10 A ESP
F8 20 A Starter motor
F9 10 A Engine ECU
F10 30 A Electrovalves - Oxygen sensor - Injectors - Ignition coil - ECU -
Diesel fuel heater
F11 40 A A i r l o w
F12 30 A Windscreen wipe
F13 40 A Built-in Systems Interface (Ignition+)
F14 - Free
Fuses under the bonnet
F U S E S
Page 119 of 194

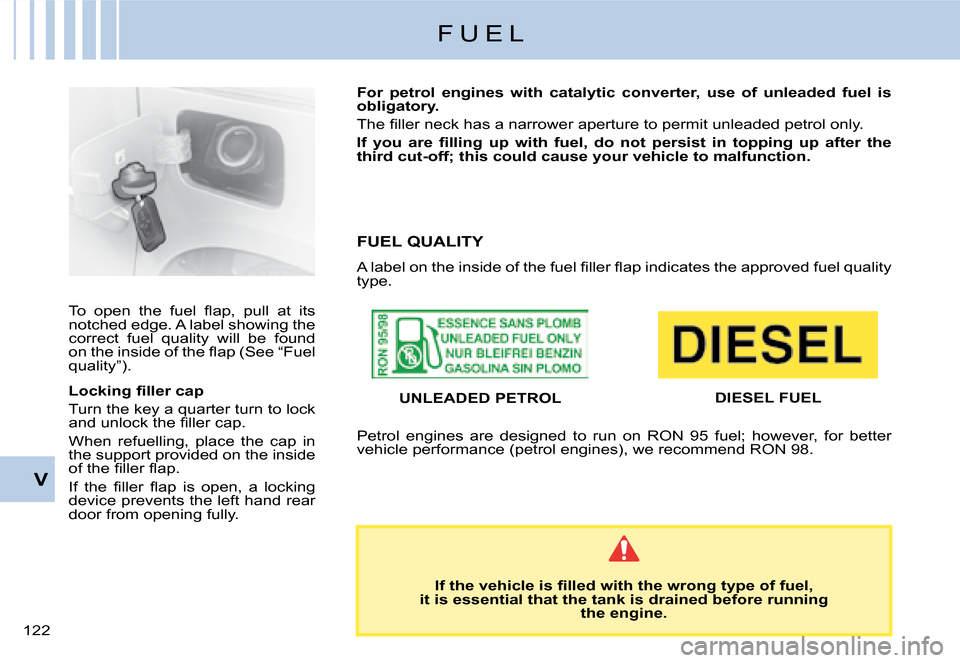

122 V F U E L
T o o p e n t h e f u e l l a p , p u l l a t i t s
n o t c h e d e d g e . A l a b e l s h o w i n g t h e
c o r r e c t f u e l q u a l i t y w i l l b e f o u n d
o n t h e i n s i d e o f t h e l a p ( S e e “ F u e l
q u a l i t y ” ) .
L o c k i n g i l l e r c a p
T u r n t h e k e y a q u a r t e r t u r n t o l o c k
a n d u n l o c k t h e i l l e r c a p .
W h e n r e f u e l l i n g , p l a c e t h e c a p i n
t h e s u p p o r t p r o v i d e d o n t h e i n s i d e
o f t h e i l l e r l a p .
I f t h e i l l e r l a p i s o p e n , a l o c k i n g
d e v i c e p r e v e n t s t h e l e f t h a n d r e a r
d o o r f r o m o p e n i n g f u l l y . I f t h e v e h i c l e i s i l l e d w i t h t h e w r o n g t y p e o f f u e l ,
i t i s e s s e n t i a l t h a t t h e t a n k i s d r a i n e d b e f o r e r u n n i n g
t h e e n g i n e .
F o r p e t r o l e n g i n e s w i t h c a t a l y t i c c o n v e r t e r , u s e o f u n l e a
d e d f u e l i s
o b l i g a t o r y .
T h e i l l e r n e c k h a s a n a r r o w e r a p e r t u r e t o p e r m i t u n l e a d e d p e t r o l o n l y .
I f y o u a r e i l l i n g u p w i t h f u e l , d o n o t p e r s i s t i n t o p p i n g u p a f t e r t h e
t h i r d c u t - o f f ; t h i s c o u l d c a u s e y o u r v e h i c l e t o m a l f u n c t i o n .
UNLEADED PETROL DIESEL FUEL
P e t r o l e n g i n e s a r e d e s i g n e d t o r u n o n R O N 9 5 f u e l ; h o w e v e r , f o r b e t t e r
v e h i c l e p e r f o r m a n c e ( p e t r o l e n g i n e s ) , w e r e c o m m e n d R O N 9 8 .
FUEL QUALITY
A l a b e l o n t h e i n s i d e o f t h e f u e l i l l e r l a p i n d i c a t e s t h e a p p r o v e d f u e l q u a l i t y
t y p e .
Page 120 of 194
123 V

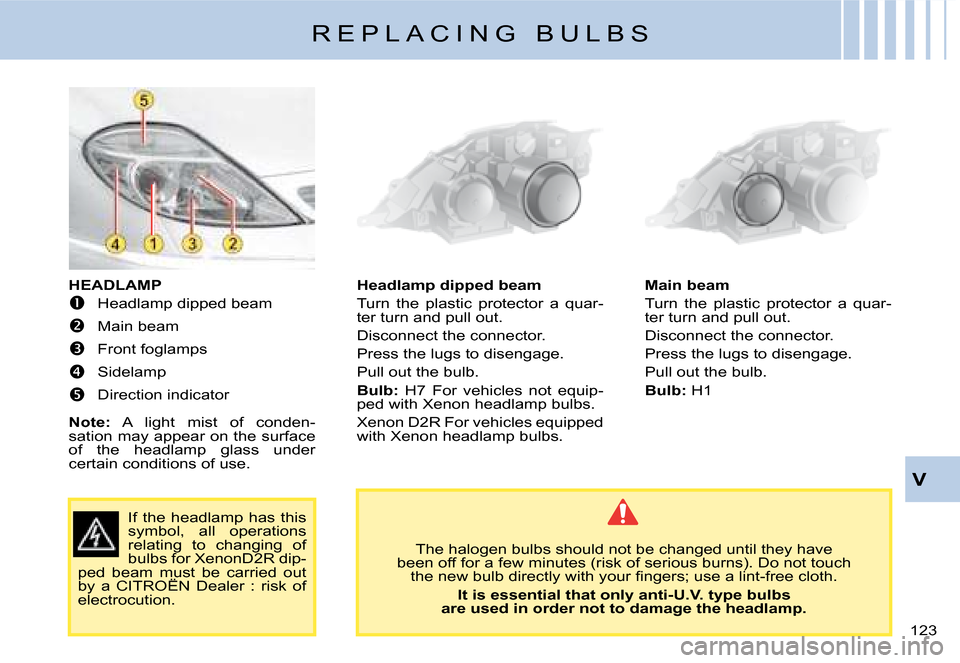

HEADLAMP
H e a d l a m p d i p p e d b e a m
M a i n b e a m
F r o n t f o g l a m p s
S i d e l a m p
D i r e c t i o n i n d i c a t o r
N o t e : A l i g h t m i s t o f c o n d e n -
s a t i o n m a y a p p e a r o n t h e s u r f a c e
o f t h e h e a d l a m p g l a s s u n d e r
c e r t a i n c o n d i t i o n s o f u s e .
T h e h a l o g e n b u l b s s h o u l d n o t b e c h a n g e d u n t i l t h e y h a v e
b e e n o f f f o r a f e w m i n u t e s ( r i s k o f s e r i o u s b u r n s ) . D o n o t t o u c h
t h e n e w b u l b d i r e c t l y w i t h y o u r i n g e r s ; u s e a l i n t - f r e e c l o t h .
I t i s e s s e n t i a l t h a t o n l y a n t i - U . V . t y p e b u l b s
a r e u s e d i n o r d e r n o t t o d a m a g e t h e h e a d l a m p .
R E P L A C I N G B U L B S
H e a d l a m p d i p p e d b e a m
T u r n t h e p l a s t i c p r o t e c t o r a q u a r -
t e r t u r n a n d p u l l o u t .
D i s c o n n e c t t h e c o n n e c t o r .
P r e s s t h e l u g s t o d i s e n g a g e .
P u l l o u t t h e b u l b .
B u l b : H 7 F o r v e h i c l e s n o t e q u i p -
p e d w i t h X e n o n h e a d l a m p b u l b s .
X e n o n D 2 R F o r v e h i c l e s e q u i p p e d
w i t h X e n o n h e a d l a m p b u l b s . M a i n b e a m
T u r n t h e p l a s t i c p r o t e c t o r a q u a r -
t e r t u r n a n d p u l l o u t .
D i s c o n n e c t t h e c o n n e c t o r .
P r e s s t h e l u g s t o d i s e n g a g e .
P u l l o u t t h e b u l b .
B u l b :
H1
I f t h e h e a d l a m p h a s t h i s
s y m b o l , a l l o p e r a t i o n s
r e l a t i n g t o c h a n g i n g o f
b u l b s f o r X e n o n D 2 R d i p -
p e d b e a m m u s t b e c a r r i e d o u t
b y a C I T R O Ë N D e a l e r : r i s k o f
e l e c t r o c u t i o n .
