Citroen C8 DAG 2008 1.G Owners Manual

4 III

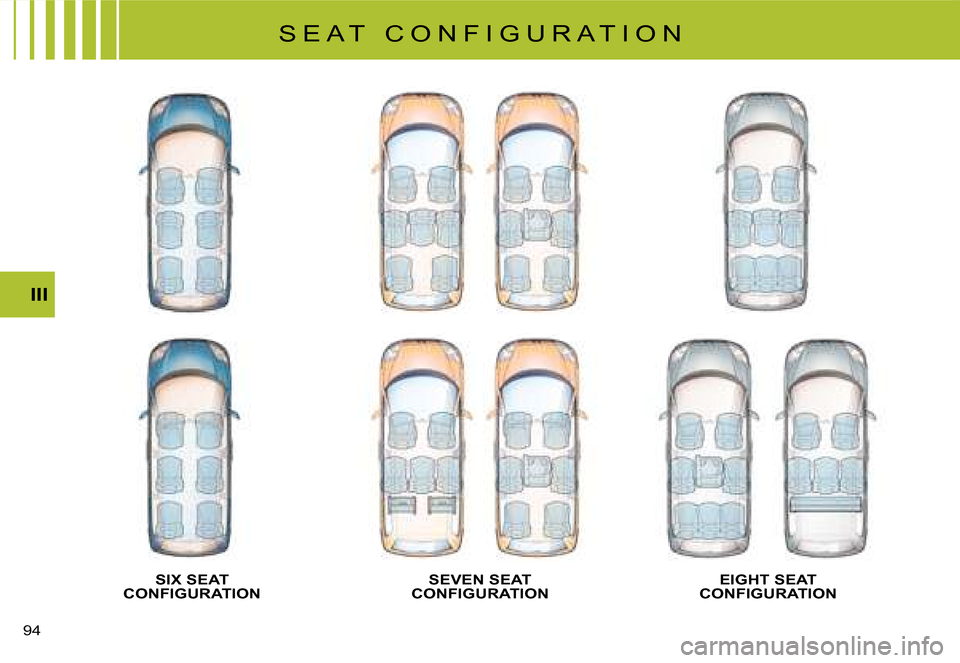

S E A T C O N F I G U R A T I O N
SIX SEAT
CONFIGURATION SEVEN SEAT
CONFIGURATION EIGHT SEAT
CONFIGURATION

A
5
III
S E A T C O N F I G U R A T I O N

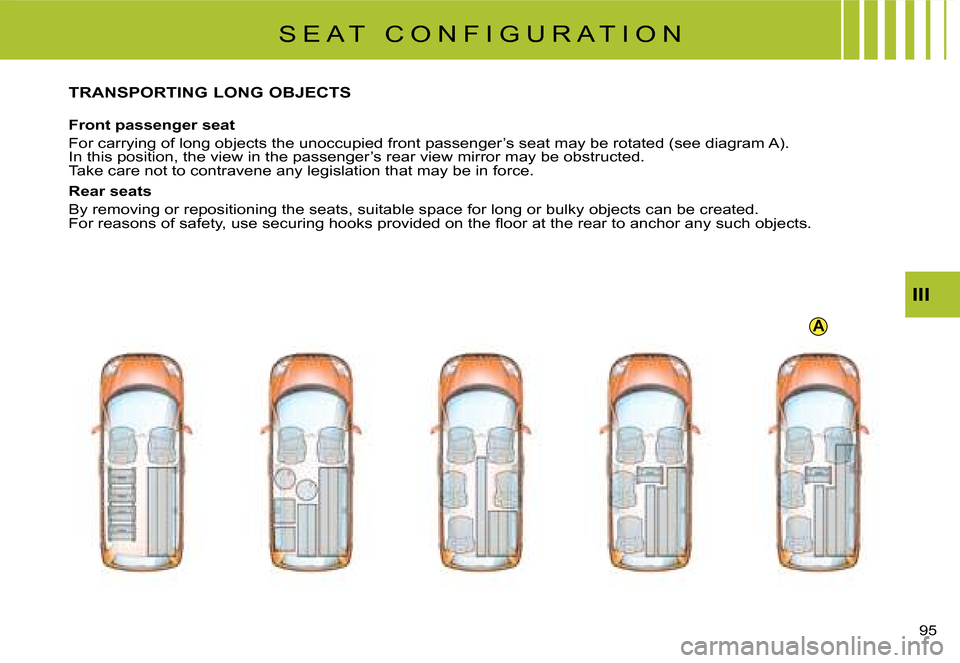

TRANSPORTING LONG OBJECTS
Front passenger seat
For carrying of long objects the unoccupied front passenger’s sea
t may be rotated (see diagram A).
In this position, the view in the passenger’s rear view mirror ma y be obstructed.
Take care not to contravene any legislation that may be in fo rce.
Rear seats
By removing or repositioning the seats, suitable space for long o r bulky objects can be created.
For reasons of safety, use securing hooks provided on the loor at the rear to anchor any such objects.

 III

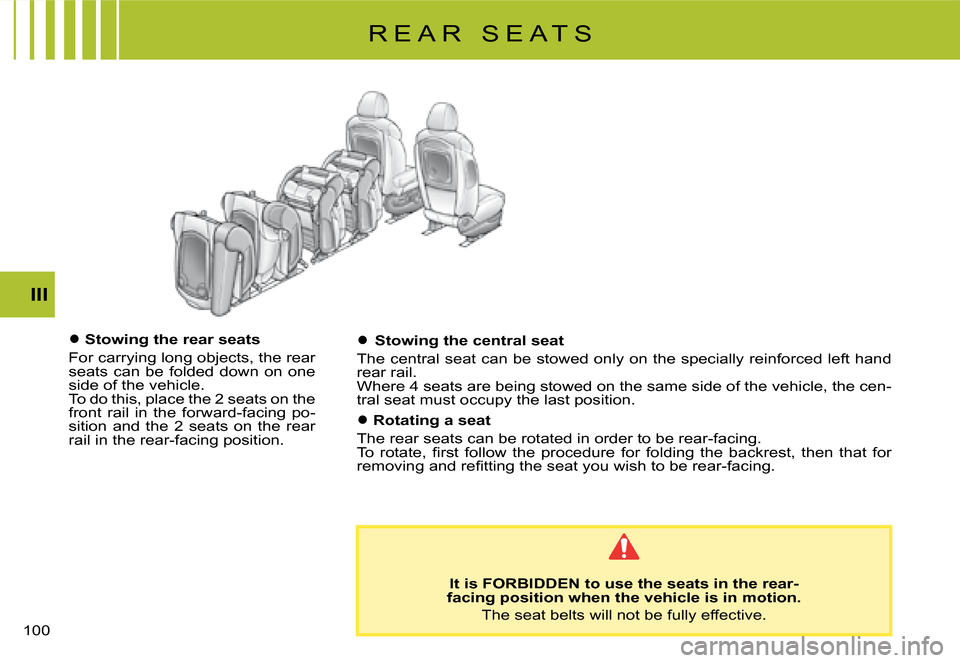

R E A R S E A T S


III

100 III

7
III

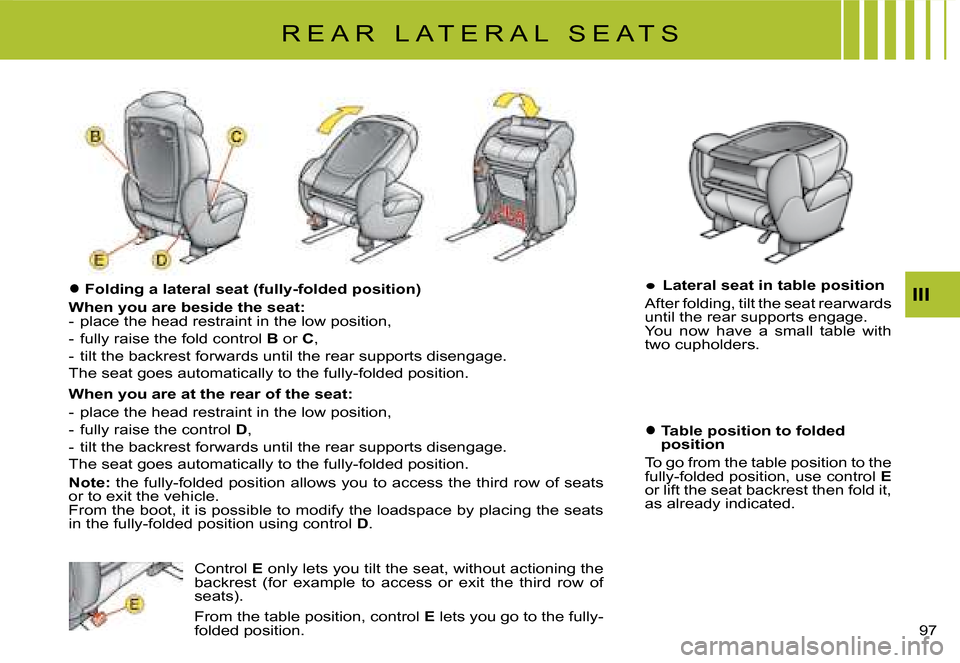

R E A R L A T E R A L S E A T S

 III

E
B
A
C
D
101 III

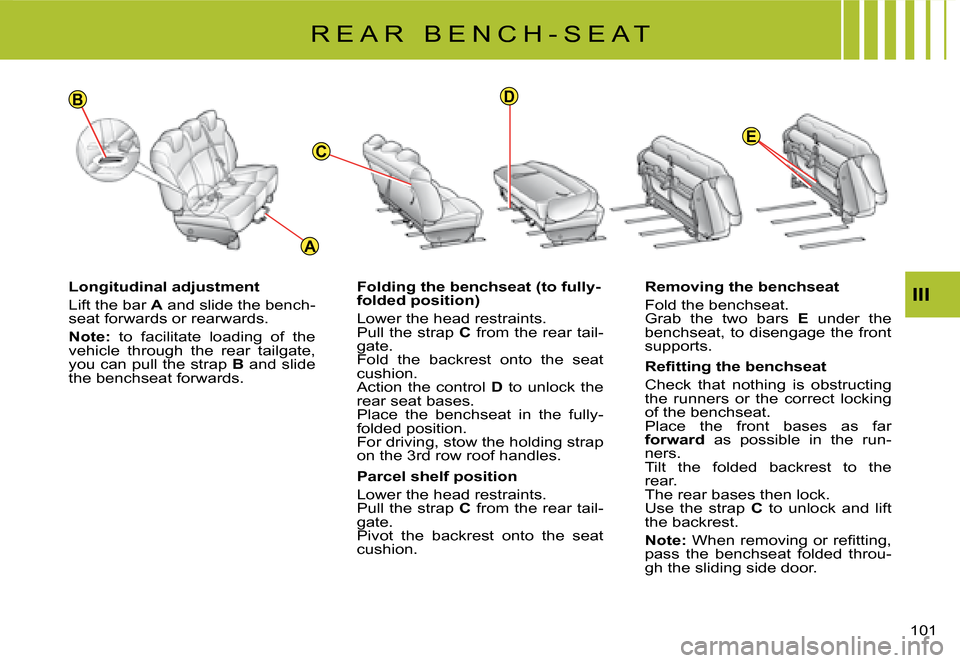

Longitudinal adjustment
Lift the bar
A and slide the bench -
seat forwards or rearwards.
Note: to facilitate loading of the
vehicle through the rear tailgate,
you can pull the strap B and slide
the benchseat forwards. Folding the benchseat (to fully-
folded position)
Lower the head restraints.
Pull the strap
C from the rear tail -
gate.
Fold the backrest onto the seat
cushion.
Action the control D to unlock the
rear seat bases.
Place the benchseat in the fully-
folded position.
For driving, stow the holding strap
on the 3rd row roof handles.
Parcel shelf position
Lower the head restraints.
Pull the strap C from the rear tail -
gate.
Pivot the backrest onto the seat
cushion. Removing the benchseat
Fold the benchseat.
Grab the two bars
E under the
benchseat, to disengage the front
supports.
Reitting the benchseat
Check that nothing is obstructing
the runners or the correct locking
of the benchseat.
Place the front bases as far
forward as possible in the run -
ners.
Tilt the folded backrest to the
rear.
The rear bases then lock.
Use the strap C to unlock and lift
the backrest.
Note: When removing or reitting,
pass the benchseat folded throu -
gh the sliding side door.
R E A R B E N C H - S E A T

102 III
Do not place rigid or heavy objects on the luggage screen or shelf.
They could damage the heating elements of
the rear screen or become dangerous projectiles
under heavy braking or in the event of an accident.

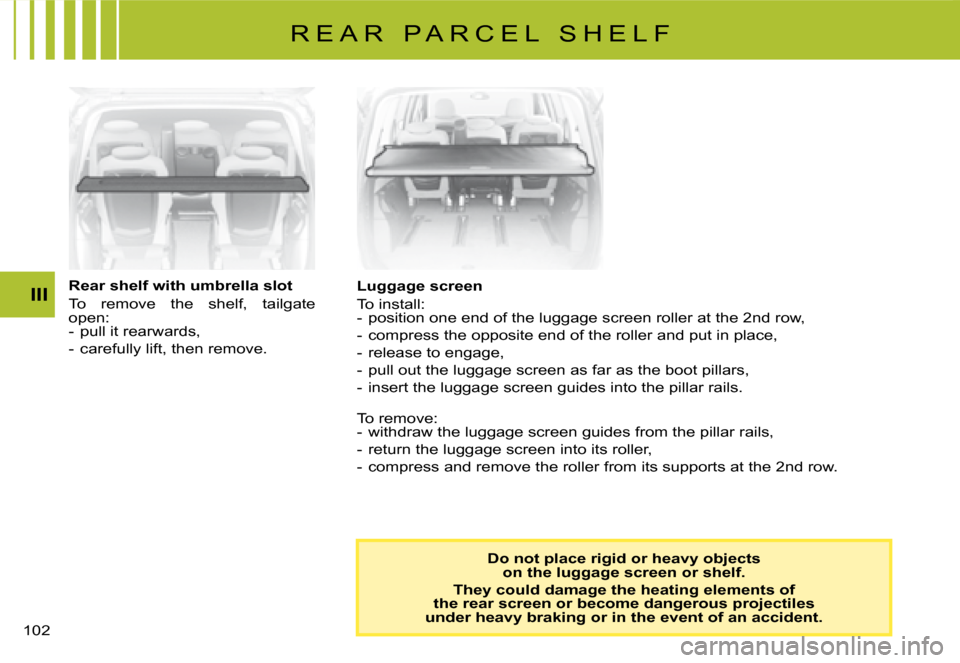

Rear shelf with umbrella slot
To remove the shelf, tailgate
open:
- pull it rearwards,
- carefully lift, then remove.
Luggage screen
To install:
- position one end of the luggage screen roller at the 2nd
row,
- compress the opposite end of the roller and put in place,
- release to engage,
- pull out the luggage screen as far as the boot pillars,
- insert the luggage screen guides into the pillar rails.
To remove:
- withdraw the luggage screen guides from the pillar rails,
- return the luggage screen into its roller,
- compress and remove the roller from its supports at the 2nd row.
R E A R P A R C E L S H E L F

103 III

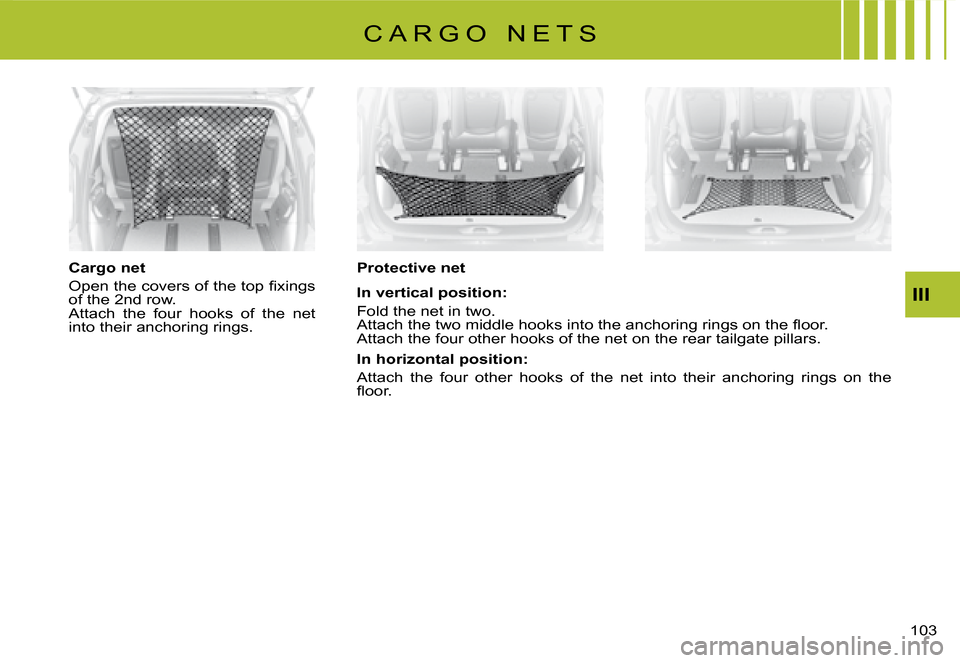

Cargo net
Open the covers of the top ixings
of the 2nd row.
Attach the four hooks of the net
into their anchoring rings. Protective net
In vertical position:
Fold the net in two.
Attach the two middle hooks into the anchoring rings on the
loor.
Attach the four other hooks of the net on the rear tailgate pillars.
In horizontal position:
Attach the four other hooks of the net into their anchoring rings on the
loor. C A R G O N E T S
