CITROEN DISPATCH SPACETOURER 2020 Handbook (in English)

59
Mirrors
Door mirrors
Manual adjustment
Move the lever in any of the four directions to
adjust it.
When the vehicle is parked, the door mirrors
can be folded in manually.
If the mirror unit has come out of its initial
position, with the vehicle stationary, push it
back into place manually or use the control.
There is no risk of breakage, even in frosty
weather.
Electric adjustment
F Move control A to the right or to the left to select the corresponding mirror.
F

M
ove control B in any of the four directions
to adjust.
F

R
eturn control A to the central position.
As a safety measure, the mirrors should
be adjusted to reduce the blind spots.
The objects obser ved are, in reality, closer
than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.
Manual folding
You can manually fold the mirrors (parking
obstruction, narrow garage, etc.)
F
T
urn the mirror towards the vehicle.
Electric folding
If your vehicle is fitted with this function, the
mirrors can be folded electrically from the
inside, with the vehicle parked and the ignition
on:
Electric unfolding
The electric unfolding of the mirrors is via
the remote control or the key when unlocking
the vehicle. Unless folding was selected with
control A , pull the control back again to the
central position. F

P
lace control A in the centre
position.
F
P
ull control A back.
From the outside, lock the vehicle using the
remote control or the key.
The folding / unfolding on locking /
unlocking can be deactivated. Contact a
CITROËN dealer or a qualified workshop.
If necessary, it is possible to fold the
mirrors manually.
3
Ease of use and comfort

60
Heated mirrors
F Press this button.For more information on Rear screen
demisting - defrosting , refer to the
corresponding section.
Rear view mirror
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps from other vehicles, etc.
Manual model
Adjustment
F A djust the mirror so that the glass is
directed correctly in the "day" position. Day/night position
Automatic "electrochrome"
model
This system automatically and progressively
changes between day and night use by means
of a sensor measuring the light coming from the
rear of the vehicle. In order to ensure optimum visibility during
your manoeuvres, the mirror lightens
automatically when reverse gear is
engaged.
F
P
ull the lever to change to the "night" anti-
dazzle position.
F
P
ush the lever to change to the normal
"day" position.
Moduwork
When the flap is removed, it is possible
to load long objects underneath the outer
seat.
The outer seat cushion of the bench seat can
be folded onto the backrest to create a loading
area inside the cab.
A removable flap on the partition can be
removed to allow long objects to be loaded.
Ease of use and comfort

61

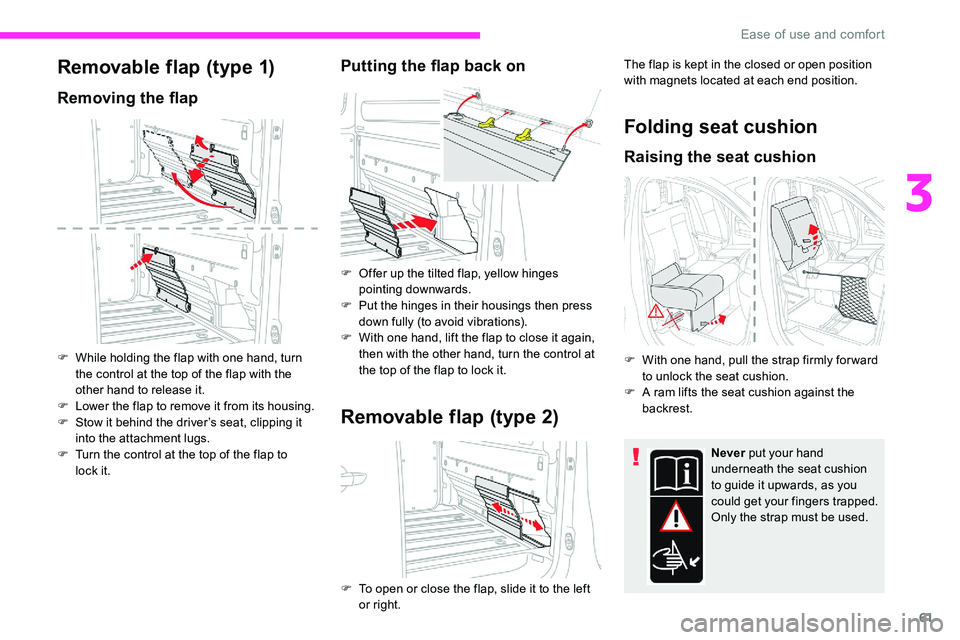

Removable flap (type 1)
Removing the flap
F While holding the flap with one hand, turn the control at the top of the flap with the
other hand to release it.
F

L
ower the flap to remove it from its housing.
F

S
tow it behind the driver’s seat, clipping it
into the attachment lugs.
F

T
urn the control at the top of the flap to
lock


it.
Putting the flap back on
F Offer up the tilted flap, yellow hinges pointing downwards.
F

P
ut the hinges in their housings then press
down fully (to avoid vibrations).
F

W
ith one hand, lift the flap to close it again,
then with the other hand, turn the control at
the top of the flap to lock it.
Removable flap (type 2)
The flap is kept in the closed or open position
with magnets located at each end position.
Folding seat cushion
Raising the seat cushion
F With one hand, pull the strap firmly for ward to unlock the seat cushion.
F

A r
am lifts the seat cushion against the
backrest.
F

T

o open or close the flap, slide it to the left
or right. Never put your hand
underneath the seat cushion
to guide it upwards, as you
could get your fingers trapped.
Only the strap must be used.
3
Ease of use and comfort

62
When the side seat is up
and the flap is removed,
you must install the anti-
slip net.
Refer to the Anti-slip net
section.
Lowering the seat cushion
F Remove the anti-slip net. Ensure that no object or passenger feet
could obstruct the anchorage points
or prevent the correct latching of the
assembly.
Anti-slip net
Installing the net
F Put the first fastener into the upper cut-
out 1, located beneath the folded seat
cushion. Keep the fastener pressed against
the structure, then turn it a quarter turn (in a
clockwise direction) to lock it.
F

P
ut the second fastener into the lower
cut-out 2 , located on the seat base. Keep
the fastener pressed against the structure,
then turn it a quarter turn (in a clockwise
direction) to lock it.
F

S
ecure the first hook to the ring 3 located in
the glove box.
F

S
ecure the second hook to the ring 4
located on the floor.
F

T

o put the seat cushion back in place, press
firmly on the top of the seat with one hand
to lower the seat cushion until it locks into
the seat position.
Ease of use and comfort

63
Removing the net
F Release the hooks from the rings 4 and 3.
F R emove the lower fastener 2 then the upper
fastener 1 , turning them by a quarter turn
backwards to unlock them.
Make sure that the size, shape and
volume of the loads carried are compatible
with the highway code and safety
regulations and do not impair the driver’s
field of vision.
All loads must be appropriately secured
to prevent or minimise displacement and
prevent injury.
Install the anti-slip net (supplied with the
vehicle) every time that the seat is raised
and the partition flap removed.
Never use the net for any other purposes.
Regularly check the condition of the
anti-slip net. As soon as signs of wear or
tear appear, contact a CITROËN dealer
to have it replaced by an anti-slip net
that meets the specifications required by
CITROËN for the vehicle.
Always fit the removable flap back into
place when you are not carrying any long
loads.
"Swivelling writing table"
If the vehicle is so equipped, the central seat
cushion of the bench seat can be tilted to form
a swivelling working table top, thus creating a
mobile desk (with the vehicle stationary).
F

P
ull the handle located at the top of the
backrest cushion.
Central seat cushion
storage
Never use the table while the vehicle is
moving.
Any object on the table will become a
dangerous projectile that could cause
injury in the event of sudden braking or
collision.
Precautions for the seats
and bench seats
Do not remove a head restraint without storing
it and securing it to a support.
Ensure that the passengers can always access
the seat belts and fasten them easily.
A passenger must not take their seat without
adjusting the seat's head restraint correctly and
adjusting and fastening their seat belt.
Ensure that no object or passenger feet
could obstruct the anchorage points
or prevent the correct latching of the
assembly.
3
Ease of use and comfort

64
Loading luggage or objects
behind the row 3 seat and
bench seat
Fixed one-piece bench seat
The different levels of equipment and settings
described hereafter vary according to the
version and the configuration of the vehicle.
The bench seat has a one-piece backrest that
may be fixed or folding (table position).For more information on the Seat belts ,
refer to the corresponding section.
When driving, it is prohibited to have a
passenger:
-

i

n rows 2 and 3, in the outer right-hand
seat, if the bench seat is in the fully folded
position,
-

i

n the centre seat if the outer right-hand seat
is in the fully folded position,
-

i

n row 3 if the backrest in front (row 2) is in
the table position,
-

i

n row 3 if the seat /bench seat in front
(row

2) is in the fully folded position.
If you want to load luggage onto the backrests
in row 3 while in the table position, the
backrests in row 2 must also be in the table
position. If removing and storing seats and bench
seats out of the vehicle, ensure that they
are placed in a clean area, so as to avoid
introducing any foreign bodies into the
mechanisms.
The seats and bench seats are not
designed for any other use than in
the vehicle. They are equipped with
mechanisms and features that may be
damaged if used improperly or if dropped.
Ease of use and comfort

65
Access to row 3
F Using the handle, release the rear feet then tip the seat for ward.
F

T
o return the seat, tip the bench towards the
rear until the feet lock into place..
It is not necessary to fold the backrest
(table position) to tip the bench seat for
access to row 3.
Folding the backrest to the
table position
F Put the head restraints in the low position. F
F
rom the rear, lower the handle to release
the backrest.
F
F
rom the front, raise the handle to release
the backrest.
F
F
old the backrest onto the cushion.
F
T
o return the backrest to its normal position,
raise the handle and pull the backrest up.
Do not leave objects (such as a bag or
toys) on the cushion when folding the
backrest.
Tilting
F If your vehicle has the facility, place the backrest in the table position.
F

U
sing the handle, release the rear feet then
tip the seat for ward.
F

T
o return the seat, tip the bench towards the
rear until the feet lock into place..
Removing
F If the vehicle is so equipped, place the backrest in the table position.
F

T
ip the bench seat.
F

R
elease the front feet using the handles.
F

D
isengage the bench seat from its
anchorages.
F

R
emove the bench seat.
Refitting
F Check that there is no object obstructing the anchorages and preventing the feet locking
into place.
3
Ease of use and comfort

66
F Engage the front feet in the anchorages on the floor (as shown above).
F

L
ock the front feet using the handles.
F

T
ip the bench seat backwards until the rear
feet lock into place.
Be careful of passengers' feet when
tipping. F
I f the vehicle is so equipped, pull the control
and raise the backrest (from the rear, lower
the handle).
Check that the seat has correctly locked
on the floor when returned to the seating
position.
Fixed rear seat and bench
seat
The different levels of equipment and settings
described hereafter vary according to the
version and the configuration of the vehicle.
The seat has a backrest that may be fixed or
folding (table position).
The bench seat has a one-piece backrest that
may be fixed or folding (table position). For more information on the Seat belts
,
refer to the corresponding section.
Access to row 3
(example for an individual seat)
F
U
sing the handle, release the rear feet then
tip the seat for ward.
F

T
o return the seat to the normal position,
tip the seat backwards until the rear feet
engage in their anchorages.
It is not necessary to fold the backrest
(table position) to tip the bench seat and
so access row 3.
Ease of use and comfort

67
Folding the backrest to the
table position
F Put the head restraints in the low position.
F
F
rom the rear, lower the handle to release
the backrest.
F

F
rom the front, raise the handle to release
the backrest.
F

F
old the backrest onto the cushion.
F

T
o return the backrest to the normal
position, raise the handle and pull the
backrest up (from the rear, lower the
handle).
Do not leave objects (such as a bag or
toys) on the cushion when folding the
backrest.
Tilting
(example of an individual seat)
F
I
f your vehicle has the facility, place the
backrest in the table position. F

U
sing the handle, release the rear feet then
tip the seat for ward.
F
T
o return the seat to the normal position,
unfold the seat backwards until the rear feet
engage in their anchorages.
Removing
(example of an individual seat)
F

T
ip the seat. F

D
isengage the seat from its anchorages.
F
R
emove the seat through the side door for
row 2 or from the rear for row 3.
Refitting
(example of an individual seat)
F

C
heck that there is no object obstructing the
anchorages and preventing the feet locking
into place.
F

E
ngage the front feet in the anchorages on
the floor (as shown above).
F

L
ock the front feet using the handles.
F

R

elease the front feet using the handles.
3
Ease of use and comfort

68
F Tip the seat backwards until the rear feet lock into place.
Be careful of passengers' feet when tipping.
F

I
f the vehicle is so equipped, pull the control
and raise the backrest (from the rear, lower
the handle).
Check that the seat is correctly locked
on the floor when returned to the seating
position.Rear seat and bench seat
on rails
Feel , Shine , Business Lounge
The different levels of equipment and settings
described hereafter vary according to the
version and the configuration of the vehicle.
The individual seat is always on the right-hand
side and the bench seat on the left-hand side
(facing forward).
The bench seat has two independent
backrests.
For more information on the Seat belts ,
refer to the corresponding section.
Adjusting the angle of the
backrest
The reclining backrest can be adjusted to
several positions. F

T
o recline the backrest, pull the control
upwards (from the rear, lower the handle).
F
R
elease the control when the desired
position is reached.
Moving forward or
backward
(example for an individual seat)
Two controls are provided for moving the seat
forward and backward:
Ease of use and comfort
