CITROEN DISPATCH SPACETOURER DAG 2017 Handbook (in English)

89
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
F Place the head restraint in the low position, and if fitted to your vehicle, raise the
armrest and fold the table on the back of
the seat.
Table position for the driver's
and/or the front passenger's seat
backrest
Check that there is no object that could
inter fere with the movement of a seat,
both above and below.
On the front passenger's side, this position
allows long objects to be carried.
On the driver's side, this position allows rear
passengers to be helped out of the vehicle
(by the emergency services).
F
P
ull the control fully up and tip the backrest
forward.
To return to the normal position, pull the
control up to release the backrest, then pull the
backrest up to its raised position.
3
Ease of use and comfort

90
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
Electric front seat
Forwards-backwardsBackrest angleHeight
To avoid discharging the battery, carry out
these adjustments with the engine running.
F Push the control for wards or rear wards to
slide the seat. F
T ilt the control for wards or rear wards to
adjust the angle of the seat backrest. F

T
ilt the control upwards or downwards to
obtain the desired height.
Before moving the seat backwards, ensure that there is nothing that might prevent the full
travel of the seat, so as to avoid the risk of jamming the seat caused by the presence of
objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement
immediately. For more information on the Seat belts
,
refer to the corresponding section.
Ease of use and comfort

91
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
With the engine running, the front seats can be
heated separately.
Heated seats control
If fitted to your vehicle.
F T o raise the head restraint, pull it upwards.
F

T
o remove the head restraint, press the
lug
A and pull the head restraint upwards.
F

T
o put the head restraint back in place,
engage the head restraint rods in the
apertures keeping them in line with the
seat backrest.
F

T
o lower the head restraint, press the lug A
and the head restraint at the same time. The head restraint rods have notches
which prevent the head restraint
lowering; this is a safety device in case
of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Head restraint height
adjustment
Additional adjustments
Armrest
The armrest has notched positions.
F
R aise the armrest fully up.
F

L
ower it fully down.
F

R
aise the armrest to the desired position. F

U
se the adjustment wheel to switch on and
select the level of heating required:
0 : Off.
1 : Low.
2 : Medium.
3 : High.
3
Ease of use and comfort

92
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016

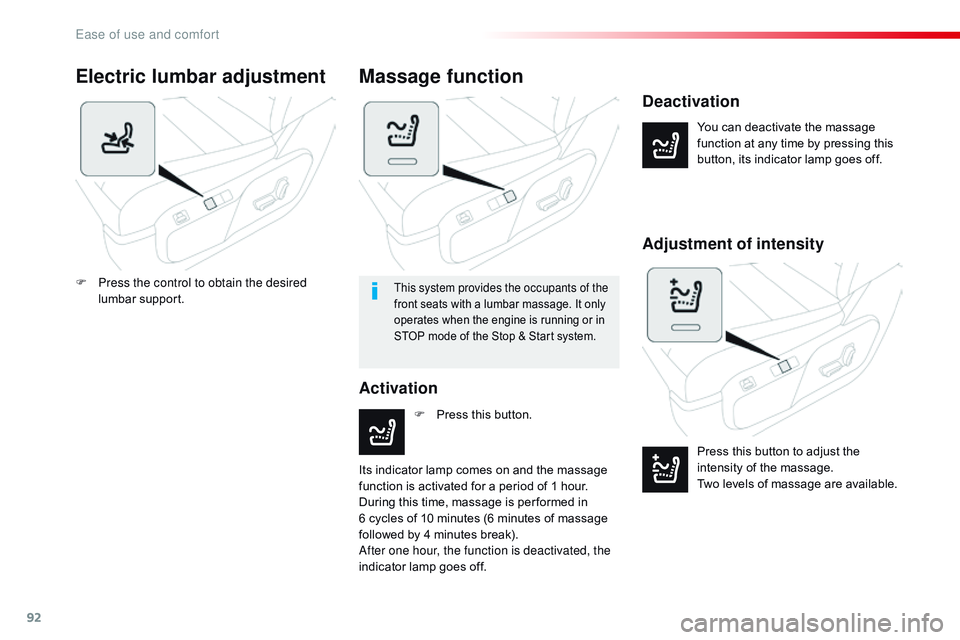

Electric lumbar adjustment
You can deactivate the massage
function at any time by pressing this
button, its indicator lamp goes off.
Deactivation
Activation
Massage function
F Press this button.
Its indicator lamp comes on and the massage
function is activated for a period of 1 hour.
During this time, massage is per formed in
6

cycles of 10 minutes (6 minutes of massage
followed by 4 minutes break).
After one hour, the function is deactivated, the
indicator lamp goes off.
Adjustment of intensity
Press this button to adjust the
intensity of the massage.
Two levels of massage are available.
F

P

ress the control to obtain the desired
lumbar support.
This system provides the occupants of the
front seats with a lumbar massage. It only
operates when the engine is running or in
STOP mode of the Stop & Start system.
Ease of use and comfort

93
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
Head restraint height
adjustment
F To raise the head restraint, pull it upwards.
F T o remove the head restraint, press the
lug
A and pull the head restraint upwards.
F

T
o put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the seat
back.
F

T
o lower the head restraint, press the lug A
and the head restraint at the same time. The head restraint rods have notches
which prevent the head restraint
lowering; this is a safety device in case
of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
2-seat front bench seat
If fitted to your vehicle, this is fixed and has a seat belt on the backrest for the seat alongside the
driver.
For more information on the Seat belts ,
refer to the corresponding section.
3
Ease of use and comfort

94
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
Heated bench seat
0: Off.
1 : Low.
2 : Medium.
3 : High.
F

U
se the adjustment twheel to switch on and
select the level of heating required:
With the engine running, the bench seat
cushions can be heated.
Under-seat storage
If your vehicle is so equipped, a storage space
is provided under the seat.
F

P
ull the strap to tip the seat.
Ease of use and comfort

95
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
Fixed one-piece bench seat
F To raise a head restraint, pull it up until it engages in its notches.
F

T
o remove the head restraint, press the
lug
A and pull the head restraint upward.
F

T
o put it back in place, engage the head
restraint rods in the apertures keeping
them in line with the seat backrest.
F

T
o lower it, press on the lug A and on the
head restraint at the same time. F

Place the head restraints in the low position
The different items of equipment and adjustments
described hereafter vary according to the version
and the configuration of your vehicle.Angled head restraints
Folding the seat backrest to
the table position
For more information on the Seat belts ,
refer to the corresponding section.
The bench seat includes a one-piece backrest
which may be fixed or folding (table position).
F
F
rom the front, raise the handle to release
the seat backrest.
F
F
rom the rear, lower the handle to release
the seat backrest.
F F old the backrest onto the seat cushion.
F

To return the backrest to its normal position,
raise the handle and pull the backrest up.
3
Ease of use and comfort

96
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
F If your vehicle has the facility, place the seat backrest in the table position.

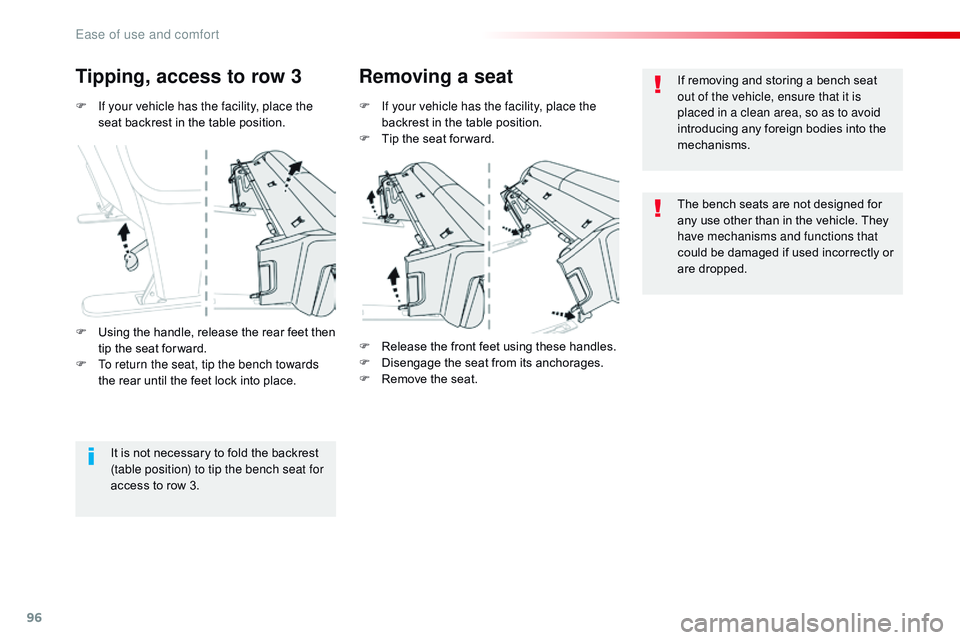

Tipping, access to row 3 Removing a seat
F If your vehicle has the facility, place the backrest in the table position.
F

T
ip the seat for ward.
F

U

sing the handle, release the rear feet then
tip the seat for ward.
F

T

o return the seat, tip the bench towards
the rear until the feet lock into place.
It is not necessary to fold the backrest
(table position) to tip the bench seat for
access to row 3. F

R
elease the front feet using these handles.
F

D
isengage the seat from its anchorages.
F

R
emove the seat. If removing and storing a bench seat
out of the vehicle, ensure that it is
placed in a clean area, so as to avoid
introducing any foreign bodies into the
mechanisms.
The bench seats are not designed for
any use other than in the vehicle. They
have mechanisms and functions that
could be damaged if used incorrectly or
are dropped.
Ease of use and comfort

97
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
Ensure that no object, or the feet of a
passenger seated at the rear, could
obstruct the anchorage points or prevent
the correct latching of the assembly.
F

I

f your vehicle has the facility, pull the
control and raise the backrest (from the
rear, lower the lever).
Check that the seat has correctly
engaged in its anchorages on the floor
when returned to the seating position.

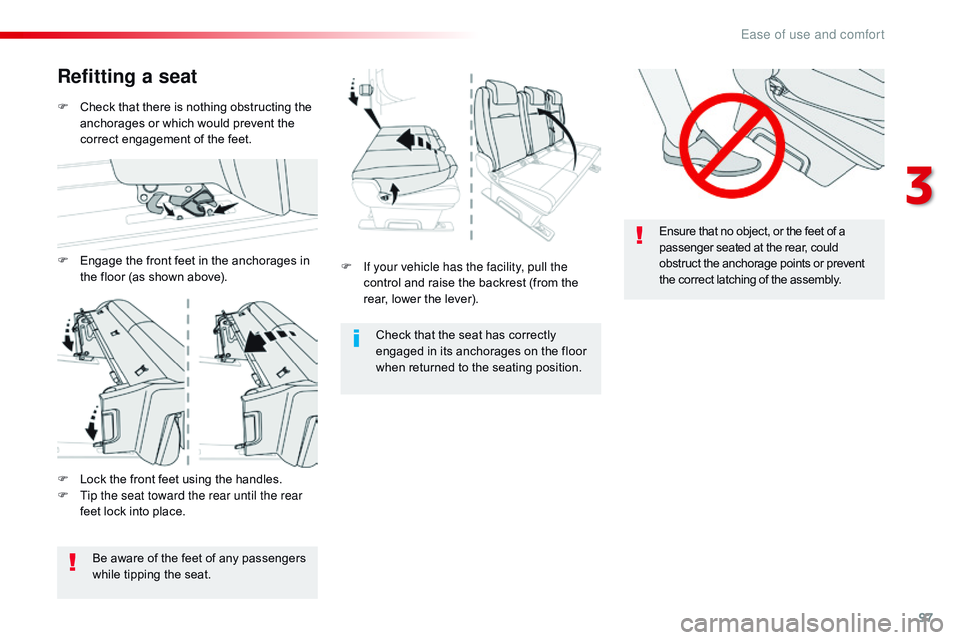

Refitting a seat
F Engage the front feet in the anchorages in the floor (as shown above).
F

C
heck that there is nothing obstructing the
anchorages or which would prevent the
correct engagement of the feet.
F
L
ock the front feet using the handles.
F

T
ip the seat toward the rear until the rear
feet lock into place.
Be aware of the feet of any passengers
while tipping the seat.
3
Ease of use and comfort

98
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
Folding the backrest to the
table position
F Put the head restraints into the low position.
F

T

o raise a head restraint, pull it up until it
engages in its notches.
F

T

o remove the head restraint, press the
lug

A and pull the head restraint upward.
F

T

o put it back in place, engage the head
restraint rods in the apertures keeping
them in line with the seat backrest.
F

T

o lower it, press on the lug A and on the
head restraint at the same time.Angled head restraints
For more information on the Seat belts ,
refer to the corresponding section. F

F
rom the front, raise the handle to release
the backrest.
F
F
rom the rear, lower the lever to release
the backrest.
Fixed rear seat and bench seatThe different levels of equipment and adjustments described hereafter vary according to the
version and the configuration of your vehicle.
The seat has a backrest that may be fixed or
folding (table position).
The bench seat has a one-piece backrest that
may be fixed or foldable (table position).
Ease of use and comfort
