CITROEN DISPATCH SPACETOURER DAG 2017 Handbook (in English)

59
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
If your vehicle is not fitted with an alarm,
deadlocking is confirmed by fixed
illumination of the direction indicators
for about two seconds.
With a tailgate
F To lock the vehicle, with the remote control in the recognition zone A , press the
tailgate locking control.
F

T
o deadlock the vehicle, press the control
again within five seconds .
Locating your vehicle
This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must have been locked for more than
five seconds.
F

P
ress this button
This switches on the courtesy lamps and the
direction indicators flash for about ten seconds.
Remote operation of lighting
If fitted to your vehicle.
A short press on this button switches
on the lighting remotely (sidelamps,
dipped beam headlamps and number
plate lamps).
A second press on this button before
the end of the timed period cancels
the remote lighting.
Anti-theft protection
Electronic engine immobiliser
The remote control contains an electronic chip
which has a special code. When the ignition is
switched on, this code must be recognised in
order for starting to be possible.
This electronic engine immobiliser locks the
engine management system a few moments
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key. In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.
In this case, your vehicle will not start; contact
a CITROËN dealer as soon as possible.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.
2
Access

60
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Back-up control(s)
If the alarm is activated, the audible
signal triggered on opening a door
with the key (integral with the remote
control) will stop when the ignition is
switched on.
Integral keyLocking the driver's door
Unlocking
F Insert the integral key into the door lock, then turn it to the front.
If your vehicle has an alarm, it will not
be deactivated/activated on unlocking/
locking the vehicle.
Opening a door will trigger the alarm,
which can be stopped by switching the
ignition on.
To deadlock the vehicle, turn the key
again within five seconds of locking.
Locking the front passenger door
F Open the door.
Unlocking
F Use the interior door handle.
It is used to lock and unlock the vehicle when
the remote control cannot operate:
-

c

ell battery flat, vehicle battery discharged
or disconnected,

...
-

v

ehicle located in an area with strong
electromagnetic signals.
F

P

ress and hold button 1 to extract the
integral key 2 . F
R
emove the cap on on the edge of the
d o o r.
F
I
nsert the key into the latch aperture
(without forcing) and turn the assembly.
F
R
emove the key and refit the cap.
F
C
lose the door and check from the outside
that the vehicle has locked correctly.
F

I

nsert the integral key into the door lock,
then turn it to the rear.
Access

61
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
For more information on the child lock,
refer to the corresponding section.
Locking a sliding side door
F If fitted to your vehicle, check that the electric child lock is not on.
F

O
pen the door.
Locking the side-hinged doors
F If fitted to your vehicle, check that the electric child lock is not on.
F

O
pen the left-hand side-hinged door.
Unlocking
F Use the interior door handle.
Unlocking
F Use the interior door handle. F
R
emove the cap on the edge of the door.
F
I
nsert the key into the latch aperture
(without forcing) and turn the assembly.
F
R
emove the key and refit the cap.
F
C
lose the door and check from the outside
that the vehicle has locked correctly. F
I
nsert the key (without forcing) into the
latch aperture located on the edge of the
door and slide the assembly upward.
F
R
emove the key.
F
C
lose the door and check from the outside
that the vehicle has locked correctly.
2
Access

62
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Changing the cell battery
Battery ref.: CR2032 / 3 volts.
This replacement battery is available from a
CITROËN dealer or a qualified workshop.
A message appears in the instrument panel screen
when replacement of the battery is needed.
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
F

P

lace the remote control against the
reader.
F

K

eeping it in place, switch on the ignition
by pressing "START/STOP".
The remote control is fully operational again.
Reinitialisation
Remote control problem
Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
F

F
irst, use the integral key in the door lock
to unlock or lock your vehicle.
F

T
hen, reinitialise the remote control.
If the problem persists, contact
a CITROËN dealer or a qualified
workshop as soon as possible.
F

U
nlock the driver's door using the integral
key.
F

P
ress one of the remote control
buttons.
F

P
lace the integral key in the lock to unlock
your vehicle. F

U
nclip the cover using a small screwdriver
at the cutout.
F

L
ift off the cover.
F

R
emove the flat battery from its location.
F

F
it the new battery into its location
observing the original direction of fitment.
F

C
lip the cover onto the casing.
Access

63
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Lost keys, remote control
Visit a CITROËN dealer with the vehicle's
registration certificate, your personal
identification documents and if possible, the
label bearing the key code.
The CITROËN dealer will be able to retrieve
the key code and the transponder code
required to order a new key.
Locking the vehicle
Driving with the doors locked may make
access to the passenger compartment by
the emergency services more difficult in an
emergency.
As a safety precaution (with children on
board), remove the key from the ignition
or take the remote control with you when
leaving the vehicle, even for a short time.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the keys in
your possession are the only ones which can
start the vehicle.
Electrical interference
The Keyless Entry and Starting remote
control may not operate if close to certain
electronic devices: telephone, laptop
computer, strong magnetic fields, ...Accumulations (water, dust, grime,
salt...) on the inner sur face of the door
handle may affect detection.
If cleaning the inner sur face of the door
handle using a cloth does not restore
detection, contact a CITROËN dealer or
a qualified workshop.
A sudden splash of water (stream of
water, high pressure jet washer,
…) may
be identified by the system as the desire
to open the vehicle.
Remote control
The high frequency remote control is a
sensitive system; do not operate it while it is
in your pocket as there is a possibility that
it may unlock the vehicle, without you being
aware of it.
Do not repeatedly press the buttons of your
remote control out of range and out of sight
of your vehicle. You run the risk of stopping
it from working and the remote control would
have to be reinitialised.
The remote control does not operate when
the key is in the ignition, even when the
ignition is switched off.
Anti-theft protection
Do not make any modifications to the
electronic engine immobiliser system; this
could cause malfunctions.
Do not forget to turn the steering to engage
the steering lock.
2
Access

64
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Locking the vehicle
This button is inoperative if the vehicle
has been locked or deadlocked from
outside (using the key, remote control or
Keyless Entry and Starting, according
to equipment) or if one of the doors is
still open.
Automatic
The cabin doors lock automatically while
driving (speed above 6 mph (10 km/h)); the
indicator lamp comes on.When carrying long objects with the
tailgate or rear doors open, you can
press this button to lock just the cabin
doors.
When locking from inside, the door
mirrors do not fold.
The indicator lamp also goes off when
unlocking one or more doors.
Driving with the doors locked may make
access to the passenger compartment
by the emergency services more
difficult in an emergency.
F
T
o activate or deactivate this
function, with the ignition on,
press this button until a message
appears in the screen. F

P
ress this button.
F
P
ress this button.
If the vehicle is deadlocked or locked
with the remote control or the door
handles, the button is not active. In this
case, use the key or the remote control
to unlock.
Manual
The indicator lamp comes on to confirm the
locking. The indicator lamp goes off to confirm the
unlocking.
Unlocking the vehicle
Locking / unlocking from inside
Access

65
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Front doors
Opening
From outside
F Pull the interior control lever on a door to totally unlock the vehicle and open the
d o o r.
F

A

fter unlocking the vehicle (using the
key, remote control or Keyless Entry and
Starting, depending on equipment, pull the
door handle. Vehicle locked.
For more information on the Key,
Remote control or Keyless Entr y and
Starting and in particular unlocking
the vehicle, refer to the corresponding
section. The interior door controls do not
operate when the vehicle is deadlocked.
Closing
F Push or pull the door to close it, then
lock it.
For more information on the Key,
Remote control or Keyless Entr y
and Starting and in particular locking
the vehicle, refer to the corresponding
section. When a door is not fully closed:
-

v
ehicle stationary and engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,
-

v
ehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.
From inside
If the door is unlocked, pull the handle
to open the door.
2
Access

66
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016

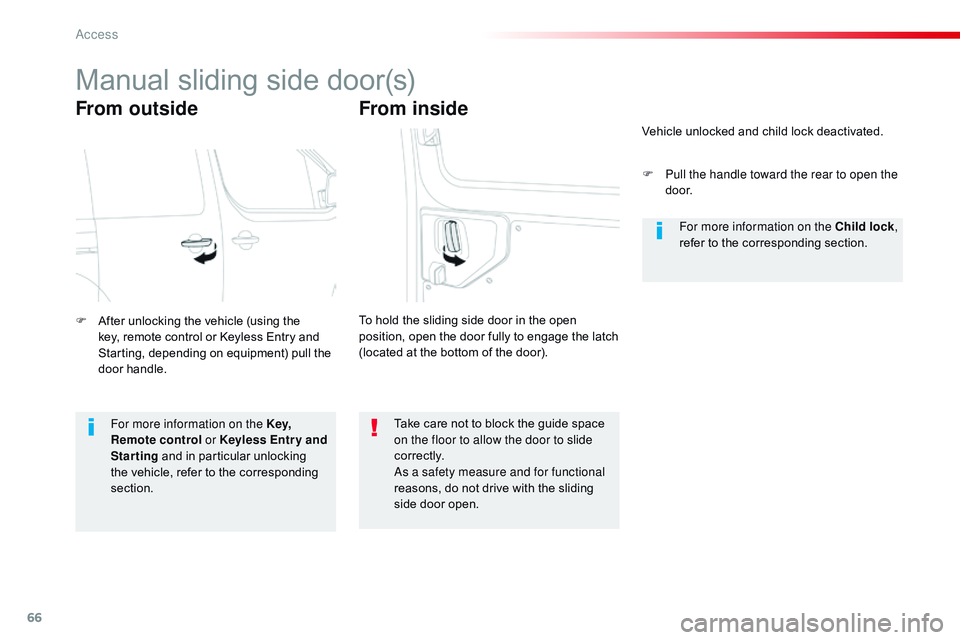

Manual sliding side door(s)
From outside
F After unlocking the vehicle (using the key, remote control or Keyless Entry and
Starting, depending on equipment) pull the
door handle.
Take care not to block the guide space
on the floor to allow the door to slide
c o r r e c t l y.
As a safety measure and for functional
reasons, do not drive with the sliding
side door open.
For more information on the Key,

Remote control or Keyless Entr y and
Starting and in particular unlocking
the vehicle, refer to the corresponding
section. For more information on the Child lock
,
refer to the corresponding section.
F
P
ull the handle toward the rear to open the
d o o r.
Vehicle unlocked and child lock deactivated.
From inside
To hold the sliding side door in the open
position, open the door fully to engage the latch
(located at the bottom of the door).
Access

67
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
If a sliding side door is not fully
closed:
-
v
ehicle stationary and engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,
-

v
ehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.
Closing
From outside
F Pull the handle toward you, then to the front, and if necessary lock the vehicle.
From inside
F Push the handle for ward to close the door, and if necessary lock the vehicle.
For more information on the Key,
Remote control or Keyless Entr y
and Starting and in particular locking
the vehicle, refer to the corresponding
section.
2
Access

68
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Electric sliding side door(s)
The exterior and interior door handles and the interior buttons allow the electrically powered movement of the door to be started.
Opening and closing of the doors is accompanied by an audible signal.The remote controls buttons are not
active with the ignition switched on.
Opening
From outside
Using the remote control
F Press this button again to reverse the movement of the door.
Using the handle
F Pull the handle toward the rear to start the electrically powered opening of the door.
Using the handle
Vehicle unlocked and child lock deactivated.
From inside
F Door unlocked, pull and release the handle to start the electrically powered opening of
the door.
F

P
ull the handle again to reverse the
movement of the door.
F

D

oor unlocked, press and
hold this button until the
corresponding sliding side door
has opened.
Access
