82
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
For more information on the Key,
Remote control or Keyless Entr y and
Starting , and in particular unlocking
the vehicle, refer to the corresponding
section. For more information on the Key,

Remote control or Keyless Entr y and
Starting , and in particular unlocking
the vehicle, refer to the corresponding
section.
The tailgate and tailgate screen cannot
both be open at the same time, to avoid
damaging them.
Tailgate rear screen
The opening rear screen allows you to access
the rear of the vehicle directly, without having to
open the tailgate.
Opening Closing
After unlocking the vehicle using the key,
remote control or Keyless Entry and Starting
(depending on equipment) press this control
and raise the rear screen to open it. Close the rear screen by pressing the centre of
the glass until it is fully closed.
If the tailgate rear screen is not fully
closed:
- v ehicle stationary and the engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,
-

v
ehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.
Access

83
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
System which protects and provides a deterrent
against theft and break-ins.
AlarmExterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open
one of the doors or the bonnet.
Self-protection function
The system checks for the
disconnection of any of its components.
The alarm is triggered if the battery,
the button or the siren wiring is
disconnected or damaged.For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop.
Volumetric
The system monitors the passenger
compartment for any variation in volume.
The alarm is triggered if someone breaks
the windscreen, penetrates the passenger
compartment or moves around inside the
vehicle.
If your vehicle is fitted with the
programmable heating / ventilation,
volumetric monitoring is not compatible
with this system.
For more information on
Programmable Heating / Ventilation ,
refer to the corresponding section. F

L
ock the vehicle using the "Keyless Entry
and Starting" system.
Total protection
Activation
F Lock the vehicle using the remote control.
or
The monitoring system is active: the indicator
lamp in the button flashes once per second
and the direction indicators come on for about
2 seconds.
Following a command to lock the vehicle
using the remote control or the Keyless Entry
and Starting system, the exterior perimeter
monitoring is activated after a delay of
5

seconds, the interior volumetric monitoring
after 45 seconds.
If an opening (door, tailgate or side-hinged
doors, bonnet...) is not closed fully, the vehicle
is not locked but monitoring will be activated
after a delay of 45 seconds. F

Switch off the ignition and get out of the vehicle.
2
Access

84
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Volumetric monitoring
DeactivationF
S
witch off the ignition and within
ten seconds press this button
until its indicator lamp is on fixed.
F

G
et out of the vehicle.
Reactivation
The indicator lamp in the button goes off. F

I
mmediately lock the vehicle
using the remote control or the
"Keyless Entry and Starting"
system.
Only the exterior perimeter protection system is
active: the indicator lamp in the button flashes
once per second.
To be effective, this deactivation must be done
every time the ignition is switched off.
F

D
eactivate the exterior perimeter
monitoring by unlocking the
vehicle using the remote control
or the "Keyless Entry and
Starting" system. F

R
eactivate the full alarm system
by locking the vehicle using the
remote control or the "Keyless
Entry and starting" system.
The indicator lamp in the button flashes once
per second again.
Triggering of the alarm
This is indicated by sounding of the siren and
flashing of the direction indicators for thirty
seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession. When the vehicle is unlocked using
the remote control or the "Keyless
Entry and Starting" system, rapid
flashing of the indicator lamp in the
button informs you that the alarm was
triggered during your absence.
When the ignition is switched on, this
flashing stops immediately.
Deactivation
F Press this unlocking button on the remote control.
or
F

U

nlock the vehicle using the "Keyless Entry
and Starting" system.
If the vehicle locks itself automatically
(this occurs after 30 seconds if one of
the doors is not opened), the monitoring
system is reactivated automatically.
The monitoring system is deactivated: the
indicator lamp in the button is off and the
direction indicators flash for about 2 seconds.
Protection - exterior
perimeter monitoring only
Deactivate the interior volumetric monitoring
to avoid unwanted triggering of the alarm in
certain cases such as:
-

o
ccupant(s) present in the vehicle,
-

l
eaving a window partially open,
-

w
ashing your vehicle,
-

c
hanging a wheel,
-

t
owing your vehicle,
-

t
ransport on a ferry.
Access

85
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Failure of the remote control
To deactivate the monitoring functions:
F U nlock the vehicle using the key (integral
with the remote control with Keyless Entry
and Starting) in the driver's door lock.
F

O
pen the door; the alarm is triggered.
F

S
witch on the ignition; the alarm stops. The
indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key (integral with the remote control with
Keyless Entry and Starting) in the driver's
door lock.
Operating fault
When the ignition is switched on,
fixed illumination of the indicator
lamp in the button indicates a fault in
the system.
Have it checked by a CITROËN
dealer or a qualified workshop.
Automatic activation
This function is either not available, an option
or is standard.
2 minutes after the last opening (door or boot)
is closed, the system is activated automatically.
F

T
o avoid triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the "Keyless Entry and Starting"
system.
2
Access

138
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
F Press and hold this button to stop the heating immediately.
F

P
ress and hold this button to
start the heating immediately.
The indicator lamp in the remote control comes
on in red for about 2 seconds to confirm that
the signal has been received by the vehicle. The indicator lamp in the remote control comes
on in green for about 2 seconds to confirm that
the signal has been received by the vehicle.
Switching off Switching on
Long range remote control
The range of the remote control is about
0.6 miles (1 km), in open country. The indicator lamp in the remote control
flashes for about 2 seconds if the
vehicle has not received the signal.
You should then move to a different
location and repeat the command.
Changing the battery
If the indicator lamp in the remote control becomes
orange, the state of charge of the battery is low.
If the indicator lamp is not on, the battery is
discharged.
F Use a coin to unscrew the cap and replace
the bulb.
During heating
This indicator lamp flashes while the
heating is in operation.
This indicator lamp goes off at the
end of the heating cycle or when the
heating is stopped using the remote
control.
The maximum heating period is about
45

minutes depending on the ambient
conditions.
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
Ease of use and comfort

149
Spacetourer-VP_en_Chap04_eclairage-et-visibilite_ed01-2016
Exterior welcome lighting
The remote switching on of the lighting makes
your approach to the vehicle easier in poor
light. It is activated when the lighting control
is in the "AUTO" position and the level of light
detected by the sunshine sensor is low.
Switching on
F Press the open padlock on the remote control or one of the front
door handles with Keyless Entry
and Starting.
Switching off
The exterior welcome lighting switches off
automatically after a set time, when the ignition
is switched on or on locking the vehicle.
Programming
The activation, deactivation and choice of
welcome lighting duration can be set.
The dipped beam headlamps and sidelamps
come on; your vehicle is also unlocked. In the vehicle settings menu, activate/
deactivate "
Welcome lighting ".
With the touch screen
With the audio system
In the " Personalisation-configuration " menu,
activate/deactivate " Welcome lighting".
4
Lighting and visibility

191
Spacetourer-VP_en_Chap05_securite_ed01-2016

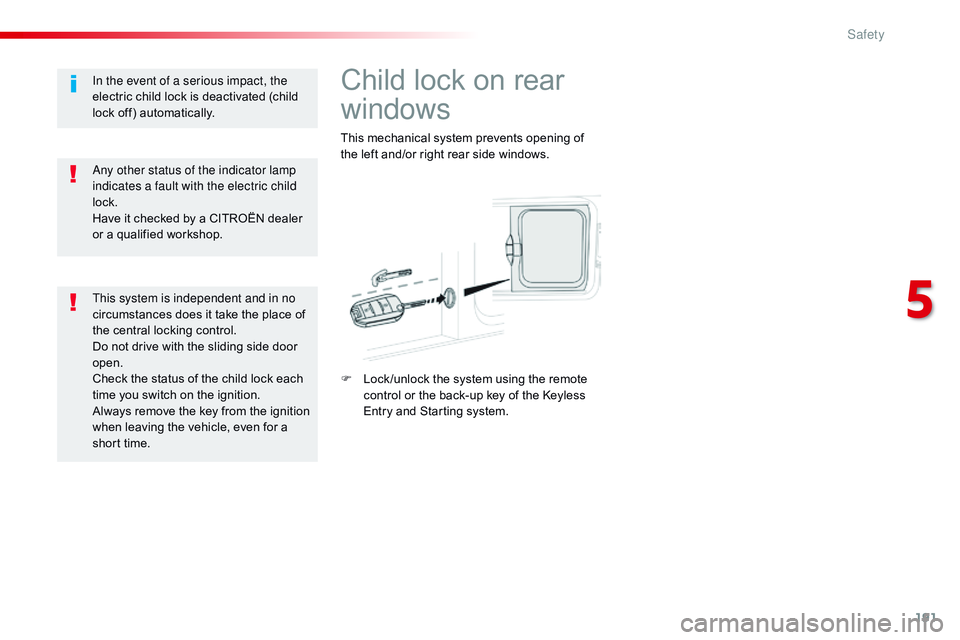

Child lock on rear
windows
This mechanical system prevents opening of
the left and/or right rear side windows.
F
L
ock /unlock the system using the remote
control or the back-up key of the Keyless
Entry and Starting system.
Any other status of the indicator lamp
indicates a fault with the electric child
lock.
Have it checked by a CITROËN dealer
or a qualified workshop. In the event of a serious impact, the
electric child lock is deactivated (child
lock off) automatically.
This system is independent and in no
circumstances does it take the place of
the central locking control.
Do not drive with the sliding side door
open.
Check the status of the child lock each
time you switch on the ignition.
Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
5
Safety

195
Spacetourer-VP_en_Chap06_conduite_ed01-2016
Starting-switching off the engine, manual key, remote control
Ignition switch
1. Stop position.
2. I gnition on position.
3.
S

tarting position.
Starting using the key
The parking brake must be applied.
F
I
nsert the key in the ignition switch.
T

he system recognises the starting code.
F

U
nlock the steering column by
simultaneously turning the steering wheel
and the key.
F

I

f your vehicle has a manual gearbox, place
the gear lever in neutral then fully depress
the clutch pedal.
In certain circumstances, you may
have to turn the steering wheel firmly to
move the road wheels (if the wheels are
against a kerb, for example).
F

I
f your vehicle has an electronic gearbox,
place the selector at position N then press
the brake pedal firmly.
F

I

f your vehicle has an automatic gearbox,
place the selector at position P then press
the brake pedal firmly.
6
Driving

198
Spacetourer-VP_en_Chap06_conduite_ed01-2016

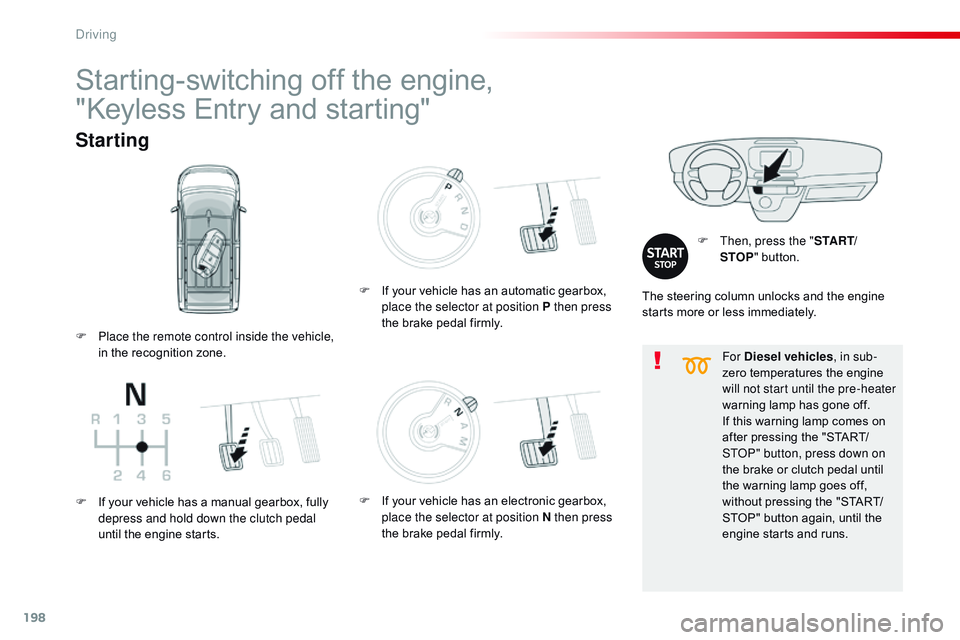

For Diesel vehicles, in sub-
zero temperatures the engine
will not start until the pre-heater
warning lamp has gone off.
If this warning lamp comes on
after pressing the "START/
STOP" button, press down on
the brake or clutch pedal until
the warning lamp goes off,
without pressing the "START/
STOP" button again, until the
engine starts and runs.
Starting
F Then, press the " S TA R T/
STOP " button.
Starting-switching off the engine,
"Keyless Entry and starting"
The steering column unlocks and the engine
starts more or less immediately.
F

P

lace the remote control inside the vehicle,
in the recognition zone.
F

I

f your vehicle has a manual gearbox, fully
depress and hold down the clutch pedal
until the engine starts. F
I
f your vehicle has an automatic gearbox,
place the selector at position P then press
the brake pedal firmly.
F

I

f your vehicle has an electronic gearbox,
place the selector at position N then press
the brake pedal firmly.
Driving

199
Spacetourer-VP_en_Chap06_conduite_ed01-2016
The presence in the recognition zone of
the remote control of the "Keyless Entry
and Starting" system is essential.
Never leave the vehicle with the engine
running and with the remote control on
your person.
If the remote control leaves the
recognition zone, a message is
displayed.
Move the remote control into the zone
to be able to start the engine.If one of the starting conditions is
not met, a message appears in the
instrument panel screen. In some
circumstances, it is necessary to
turn the steering wheel slightly while
pressing the "START/STOP" button
to assist unlocking of the steering;
a message warns you when this is
needed. If the vehicle is not immobilised, the
engine will not stop.Switching off
F Immobilise the vehicle.
F
W
ith the remote control in the
recognition zone, press the
" START/STOP " button.
The engine stops and the steering column is
locked.
Ignition on
(without starting)
With the ignition on, the system
automatically goes into energy
economy mode to maintain an adequate
state of charge in the battery. With the Keyless Entry and Starting
remote control inside the vehicle,
pressing the "START/STOP" button,
with no action on the pedals , allows the
ignition to be switched on.
This also allows the accessories to be used (for
example: audio system, lighting...).
F
P
ress the "START/STOP" button,
the instrument panel comes on
but the engine does not start.
F
P
ress the button again to switch
off the ignition and allow the
vehicle to be locked.
To avoid any risk of jamming of the
pedals:
-

o

nly use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
-

n

ever fit one mat on top of another.
The use of mats not approved by
CITROËN may inter fere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
The mats approved by CITROËN have
two fixings located below the seat.
6
Driving
