are switched on automatically, without any action on the par t of the driver, when a low level of external light is detected or in cer tain cases of activation of the windscreen wipers. As soon as the brightness returns to a sufficient level or after the windscreen wipers are switched off, the lamps are switched off automatically.
Automatic illumination
of headlamps
Activation
Turn ring A to the "AUTO" position. The automatic illumination of headlamps is accompanied by a message on the multifunction screen.
Deactivation
 Turn ring A to a position other than "AUTO" . Deactivation is accompanied by a message on the multifunction screen.
Coupling with the automatic "Guide-me-home" lighting
Association with the automatic illumination of headlamps provides "guide-me-home" lighting with the following additional options: - selection of the lighting duration to
15, 30 or 60 seconds in the vehicle parameters on the multifunction screen configuration menu (except in the case of the monochrome screen A, for which the duration is set: 60 seconds), - automatic activation of "guide-me-home" lighting when automatic illumination of headlamps is in operation.
Operating fault
In the event of a fault with the brightness sensor, the lighting come on, this warning lamp is displayed on the instrument panel and/or a message appears on the multifunction screen, accompanied by an audible signal. Consult a CITROËN dealer.
In fog or snow, the brightness sensor may detect sufficient light. Therefore, the lighting will not come on
automatically. Do not cover the brightness sensor, coupled with the rain sensor and located in the centre of the windscreen behind the rear view mirror; the associated functions would no longer be controlled.

105Visibility
LED lamps
Daytime external lighting using specific front lamp s providing a signature of the vehicle. Comprising two sets of six diodes, they are located in the ver tic al scoops below each headlamp.
On star ting the vehicle, in daylight the LED lamps come on automatically, if the lighting stalk is in position "0" or "AUTO" . If the dipped beam headlamps are switched on manually or automatically, the LED lamps
switch off.
For countries where exterior lighting by day is not a legal requirement, you can activate
or deativate the function via the multifunction screen configuration menu.
Headlamp
adjustment
To avoid causing a nuisance to other road users, the height of the headlamps should be adjusted in relation to the load in the vehicle. 0. Driver only or driver + front passenger. - . Intermediate setting 1. 5 people. - . 5 people + load in the boot. 2. Driver only + maximum authorised load in the boot. This position is sufficient to avoid causing dazzle. Higher settings may limit the spread of light from the headlamps.
The initial setting is position "0" .
Programming
In countries where it is a legal requirement: - this function is activated by default and cannot be deactivated, - in daylight, the sidelamps and number plate lamps also come on, - If the dipped beam headlamps are switched on manually or automatically, the LED lamps switch off.

187Practical information
Changing a bulb
Procedure for replacing a faulty bulb with a new bul b.
The headlamps are fitted with polycarbonate glass with a protective coating:  do not clean them using a dr y or abrasive cloth, nor with a detergent or solvent product, use a sponge and soapy water,  when using a high pressure washer on persistent marks, do not direct at the lamps or their outlines for too long, so as not to damage their protective coating and seals.
 Do not touch the bulb directly with your fingers, use lint-free cloths. Changing a halogen bulb should only be done after the headlamp has been switched off for a few minutes (risk of serious burns). It is imperative to use only anti-ultraviolet (UV) type bulbs in order not to damage the headlamp.

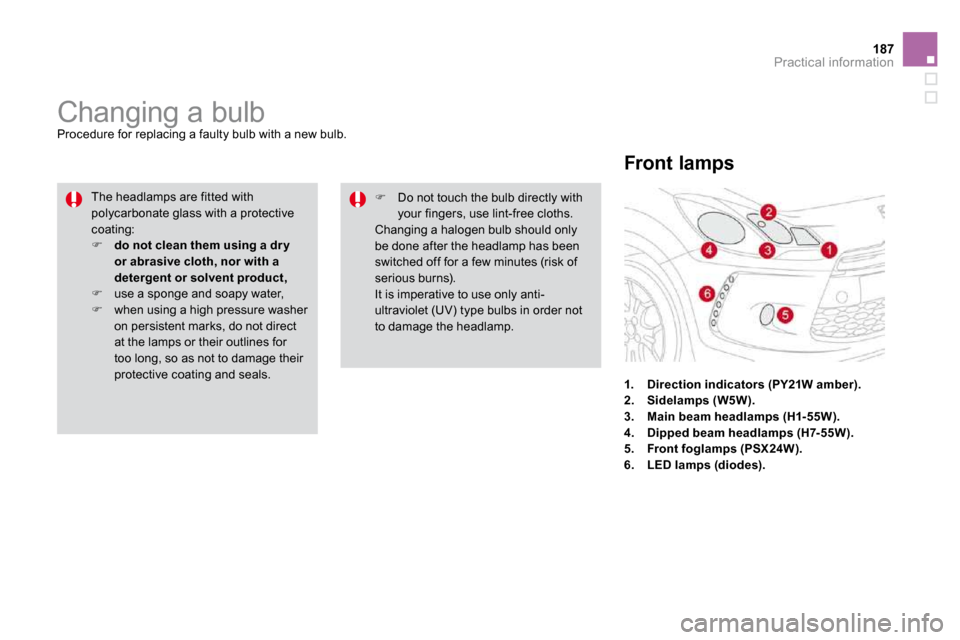

Front lamps
1. Direction indicators (PY21W amber).2. Sidelamps (W5W).3. Main beam headlamps (H1- 55W).
4. Dipped beam headlamps (H7- 55W).5. Front foglamps (PSX24W).6. LED lamps (diodes).

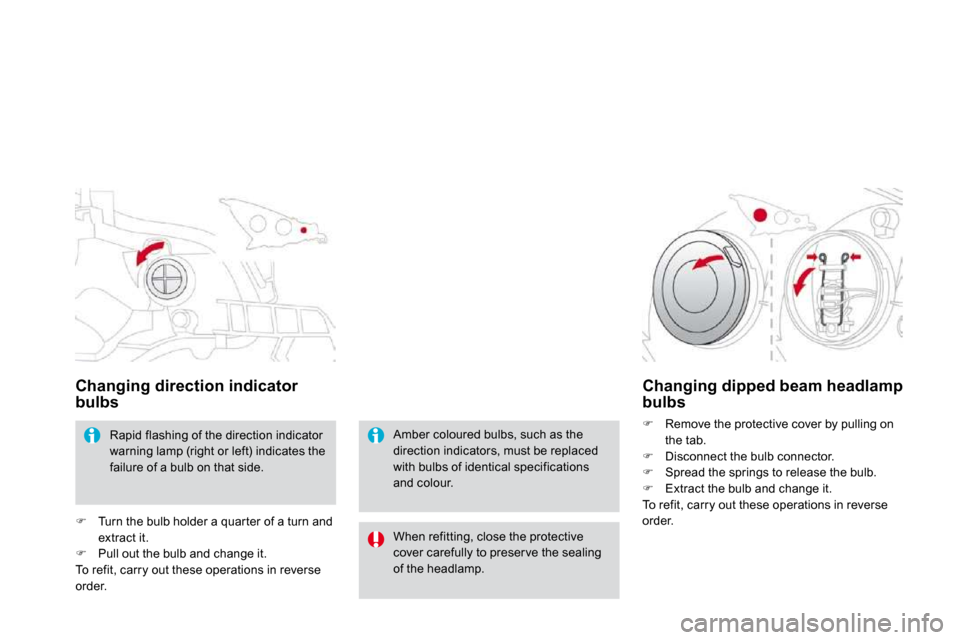

Changing direction indicator bulbs
When refitting, close the protective cover carefully to preser ve the sealing of the headlamp.
Amber coloured bulbs, such as the direction indicators, must be replaced with bulbs of identical specifications
and colour.
Rapid flashing of the direction indicator warning lamp (right or left) indicates the failure of a bulb on that side.
 Turn the bulb holder a quar ter of a turn and extract it.  Pull out the bulb and change it. To refit, carry out these operations in reverse order.
Changing dipped beam headlamp bulbs
 Remove the protective cover by pulling on
the tab.  Disconnect the bulb connector.  Spread the springs to release the bulb.  Extract the bulb and change it. To refit, carry out these operations in reverse order.

189Practical information
Changing main beam headlamp bulbs
 Remove the protective cover by pulling on
the tab.  Disconnect the bulb connector.  Spread the springs to release the bulb.  Remove the bulb and change it. To refit, carry out these operations in reverse order.

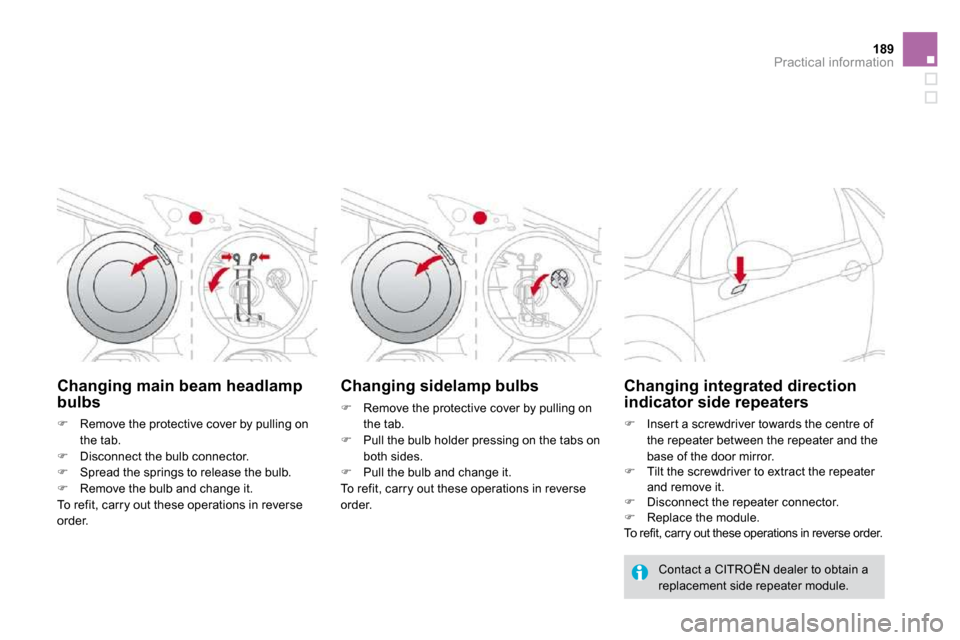

Changing sidelamp bulbs
 Remove the protective cover by pulling on the tab.
 Pull the bulb holder pressing on the tabs on both sides.  Pull the bulb and change it. To refit, carry out these operations in reverse order.
Changing integrated direction indicator side repeaters
 Inser t a screwdriver towards the centre of
the repeater between the repeater and the base of the door mirror.  Tilt the screwdriver to extract the repeater and remove it.  Disconnect the repeater connector.  Replace the module. To refit, carry out these operations in reverse order.
Contact a CITROËN dealer to obtain a
replacement side repeater module.

199Practical information
Fuse N°RatingFunctions
F1230 A Windscreen wipers slow/fast speed.
F1340 A Built-in systems inter face supply (ignition positive).
F1430 A Valvetronic supply (VTi).
F1510 A Right-hand main beam headlamps.
F1610 A Left-hand main beam headlamps.
F1715 A Left-hand dipped beam headlamps.
F1815 A Right-hand dipped beam headlamps.
F1915 A Oxygen sensors and electrovalves (VTi), electrovalve s (Diesel), EGR electrovalve (Diesel).
F2010 A Pumps, electronic thermostat (VTi), timimg electrovalve (THP), water in fuel sensor (Diesel).
F215 A Fan assembly control supply, ABS/ESP, turbo pump (T HP).

203Practical information
Load reduction mode
System which manages the use of cer tain functions according to the level of charge remaining in the battery. When the vehicle is being driven, the load reduction function temporarily deactivates cer tain functions, such as the air conditioning, the heated rear screen... The deactivated functions are reactivated automatically as soon as conditions permit.
Energy economy mode
This period may be greatly reduced if the battery is not fully charged.
A flat battery prevents the engine from star ting (refer to the corresponding paragraph).
If the telephone is being used at the same time on the MyWay audio navigation system, it will be interrupted after 10 minutes.
System which manages the period of use of cer tain functions to conser ve a sufficient level of charge in the battery. After the engine has stopped, you can still use functions such as the audio equipment, windscreen wipers, dipped beam headlamps, cour tesy lamps, etc. for a maximum combined period of thir ty minutes.
Switching to economy mode
Once this period has elapsed, a message appears on the multifunction screen indicating that the vehicle has switched to economy mode and the active functions are put on standby.
Exiting economy mode
These functions are reactivated automatically the next time the vehicle is driven.  In order to resume the use of these functions immediately, star t the engine and let it run for a few minutes. The time available to you will then be double the period for which the engine is left running. However, this period will always be between five and thir ty minutes.
