sensor Citroen DS3 2009.5 1.G User Guide

windscreen wipers
The windscreen wipers operate automatically, without any action on the par t of the driver, if rain is detected (sensor behind the rear view mirror), adapting their speed to the intensity of the rainfall.
Activation

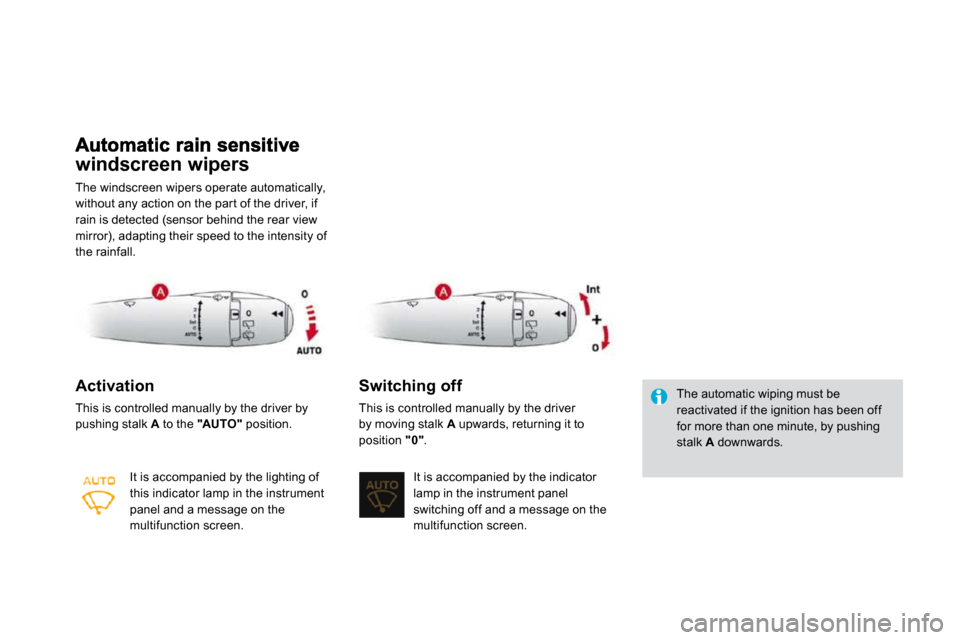

This is controlled manually by the driver by pushing stalk A to the "AUTO" position.
It is accompanied by the lighting of this indicator lamp in the instrument panel and a message on the multifunction screen.
Switching off
This is controlled manually by the driver by moving stalk A upwards, returning it to
position "0" .
It is accompanied by the indicator lamp in the instrument panel switching off and a message on the multifunction screen.
The automatic wiping must be reactivated if the ignition has been off for more than one minute, by pushing stalk A downwards.

109Visibility
Operating fault
If an automatic wiping malfunction occurs, the wipers will operate in intermittent mode. Have it checked by a CITROËN dealer. To retain the effectiveness of the "flat-blade" wiper blades, it is advisable to: - handle them with care, - clean them regularly using soapy water, - not use them to hold a sheet of cardboard against the windscreen, - replace them at the first signs of wear.
Do not cover the rain sensor, linked with the brightness sensor and located in the centre of the windscreen behind the rear view mirror. Switch off the automatic wiping when using an automatic car wash. In winter, it is advisable to wait until the
windscreen is completely clear of ice before activating the automatic wiping.
This position allows the wiper blades to be lifted for winter parking, cleaning or replacement without damaging the bonnet. In the minute following switching off of the ignition, any action on the wiper stalk positions the wipers ver tically. To park the wipers after this has been done,
switch on the ignition and operate the wiper stalk.
Vertical windscreen wiper
position

159Driving
Rear parking sensors
System consisting of four proximity sensors, located in the rear bumper. This detects any obstacle (person, vehicle, tree, gate, etc.) behind the vehicle, except obstacles located just below the bumper.
An object, such as a stake, a roadworks cone or any other similar object may be detected at the beginning of the manoeuvre, but may no longer be detected when the vehicle comes close to it.
The parking sensor system cannot, in any circumstances, take the place of the vigilance and responsibility of the driver.
The system is activated as soon as reverse gear is engaged, accompanied by an audible signal. The proximity information is given by: - an audible signal, which becomes more
rapid as the vehicle approaches the obstacle. - a graphic on the multifunction screen, with
blocks which become increasingly closer to the vehicle.
Activation
When the distance between the rear of the vehicle and the obstacle is less than thirty centimetres, t he audible signal becomes continuous and the "Danger" symbol appears on the multifunction screen. On completion of the manoeuvre, when you exit reverse gear, the system becomes inactive.

Programming Operating faults
If there is an operating fault, when reverse gear is engaged this warning lamp comes on on the instrument panel, accompanied by an audible signal (shor t beep) and a message on the multifunction screen.
You can activate or deactivate the system by means of the multifunction screen configuration menu. The system state is memorised when switching off the ignition. For more information on access to the parking assistance menu, refer to vehicle configuration in the "Multifunction screens" section corresponding to your screen.
The system will be deactivated automatically when towing a trailer or when a bicycle carrier is fitted (vehicle fitted with a towbar or bicycle carrier recommended by CITROËN).
In bad or wintry weather, ensure that the sensors are not covered with mud, frost or snow.

195Practical information
Dashboard fusebox
The fusebox is loacted inside the glove box.
Access to the fuses
 Refer to the paragraph "Access to the tools".
Fuse tables
Fuse N°RatingFunctions
FH365 A Trailer relay unit.
FH37- Not used.
FH3820 A Hi-Fi amplifier.
FH39- Not used.
FH4030 A Trailer relay unit.
RatingFunctions
F115 A Rear wiper.
F2- Not used.
F35 A Airbags and pretensioners control unit.
F410 A
Air conditioning, clutch switch, electrochromatic mirror,
par ticle filter pump (Diesel), diagnostic socket, airflow sensor (Diesel).
F530 A Electric windows panel, passenger’s electric window co ntrol,
front electric window motor.
F630 A Driver’s electric window motor.
F75 A Cour tesy lamp.

Fuse N°RatingFunctions
F820 A Multifunction screen, audio system, navigation radio, alarm control unit, alarm siren.
F930 A 12 V socket, por table navigation suppor t supply.
F1015 A Steering wheel controls.
F1115 A Ignition, diagnostic socket, automatic gearbox contro l unit.
F1215 A Rain/brightness sensor, trailer relay unit.
F135 A Main stop switch, engine relay unit.
F1415 A Parking sensors control unit, airbag control unit, instrument panel, digital air conditioning, USB Box, Hi-Fi ampli fier.
F1530 A Locking.
F16- Not used.
F1740 A Rear screen and door mirrors demisting/defrosting.
SH- PARC shunt.

Fuse table
Fuse N°RatingFunctions
F120 A Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump (Diesel).
F215 A Horn.
F310 A Front /rear wash-wipe.
F420 A LED lamps.
F515 A Diesel heater (Diesel), par ticle filter additive pum p (Diesel), air flow sensor (Diesel), blow-by heater and electroval ves (VTi).
F610 A ABS/ESP control unit, secondary stop switch.
F710 A Electric power steering, automatic gearbox.
F825 A Star ter control.
F910 A Switching and protection unit (Diesel).
F1030 A Fuel heater (Diesel), blow-by heater (Diesel), fuel pump (VTi), injectors and ignition coils (petrol).
F1140 A Heater blower.

199Practical information
Fuse N°RatingFunctions
F1230 A Windscreen wipers slow/fast speed.
F1340 A Built-in systems inter face supply (ignition positive).
F1430 A Valvetronic supply (VTi).
F1510 A Right-hand main beam headlamps.
F1610 A Left-hand main beam headlamps.
F1715 A Left-hand dipped beam headlamps.
F1815 A Right-hand dipped beam headlamps.
F1915 A Oxygen sensors and electrovalves (VTi), electrovalve s (Diesel), EGR electrovalve (Diesel).
F2010 A Pumps, electronic thermostat (VTi), timimg electrovalve (THP), water in fuel sensor (Diesel).
F215 A Fan assembly control supply, ABS/ESP, turbo pump (T HP).

207Practical information
The rear parking sensors will be deactivated automatically if a genuine
CITROËN towbar is used.
Driving advice
Distribution of loads
 Distribute the load in the trailer so that the heaviest items are as close as possible to the axle and the nose weight approaches the maximum permitted without exceeding it. Air density decreases with altitude, thus reducing engine per formance. Above 1 000 metres, the maximum towing load must be reduced by 10 % and so on for every 1 000 metres of altitude. Refer to the "Technical Data" section for details of the weights and towing loads which apply to your vehicle.
Side wind
 Take into account the increased sensitivity to side wind.
Cooling
Towing a trailer on a slope increases the temperature of the coolant. As the fan is electrically controlled, its cooling capacity is not dependent on the engine speed.  To lower the engine speed, reduce your speed. The maximum towing load on a long slope depends on the gradient and the ambient temperature. In all cases, pay attention to the coolant temperature.
Braking
Towing a trailer increases the braking distance.
Tyres
 Check the tyre pressures of the towing vehicle and of the trailer, obser ving the recommended pressures.
Lighting
 Check the electrical lighting and signalling on the trailer.
 If the warning lamp and the STOP warning lamp come on, stop the vehicle and switch off
the engine as soon as possible.

A wide range of accessories and genuine par ts is offered by the CITROËN dealer network. These accessories and par ts have been tested and approved for reliability and safety.
Accessories
Installation of radio communication transmitters
Before instaliing on your vehicle any after-market radio communication transmitter with external aerial, we recommend that you contact a CITROËN dealer. The CITROËN dealer network will give you the specification for transmitters which can be fitted (frequency, maximum power, aerial position, specific installation requirements), in line with the Vehicle Electromagnetic Compatibility Directive (2004/104/EC).
They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.
This product range is structured around 5 categories:
"Protection": anti-theft alarm, wheel anti-theft devices, stolen vehicle tracking system, breathalyser, first aid kit, warning triangle, high visibility safety jacket, snow chains, non-skid
covers, parking sensors, transluscent bumper protection strips...
"Comfor t and leisure": mats * , boot tray, boot carpet, boot net, load fixing kit for boot carpet, mudflaps, sun blinds, door deflectors, isotherm module, fragrance car tridges, transverse roof bars, bicycle carrier, ski carrier, roof boxes, towbars, wiring harnesses, 230 V socket, coat hanger fixed to head restraint, front centre armrest, child seats and booster cushions, moveable mirror...
"Navigation and communication":Bluetooth® hands-free kit, universal mobile ®
phone charger, audio equipment, por table satellite navigation system, semi-integral
por table navigation system carrier, speed camera warning, DVD player, auxiliary cable for connecting a por table MP3 player, USB Box, speakers, subwoofer speakers...
* To avoid any risk of jamming of the pedals: - ensure that the mat is positioned and secured correctly, - never fit one mat on top of another.
