Key Citroen DS3 2009.5 1.G Owner's Guide

A. Cour tesy lampB. Map reading lamps
Courtesy lamp
In this position, the cour tesy lamp comes on gradually:
Courtesy lamp
- when the vehicle is unlocked, - when the key is removed from the ignition, - when a door is opened, - when the remote control locking button is activated, in order to locate your vehicle.
It switches off gradually: - when the vehicle is locked, - when the ignition is switched on, - 30 seconds after the last door is closed.
Permanently off.
Permanent lighting.
With the "permanent lighting" mode, the duration of lighting varies, depending on the circumstances: - with the ignition off, approximately ten minutes, - in energy economy mode, approximately thir ty seconds, - with the engine running, unlimited.
Map reading lamps
 With the ignition on, press the corresponding switch.

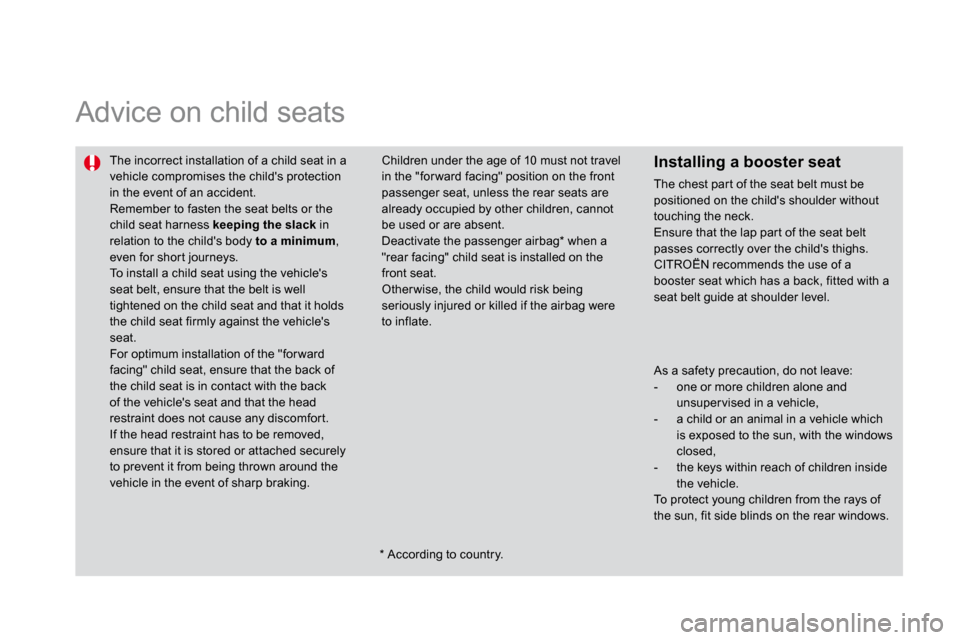

Advice on child seats
The incorrect installation of a child seat in a vehicle compromises the child's protection in the event of an accident. Remember to fasten the seat belts or the child seat harness keeping the slack in relation to the child's body to a minimum , even for shor t journeys. To install a child seat using the vehicle's seat belt, ensure that the belt is well tightened on the child seat and that it holds the child seat firmly against the vehicle's seat. For optimum installation of the "for ward facing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that the head restraint does not cause any discomfor t. If the head restraint has to be removed, ensure that it is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking.
Children under the age of 10 must not travel in the "for ward facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent. Deactivate the passenger airbag * when a "rear facing" child seat is installed on the front seat. Other wise, the child would risk being seriously injured or killed if the airbag were to inflate.
Installing a booster seat
The chest par t of the seat belt must be positioned on the child's shoulder without touching the neck.
Ensure that the lap par t of the seat belt passes correctly over the child's thighs. CITROËN recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level.
* According to country.
As a safety precaution, do not leave: - one or more children alone and unsuper vised in a vehicle, - a child or an animal in a vehicle which is exposed to the sun, with the windows closed, - the keys within reach of children inside the vehicle. To protect young children from the rays of the sun, fit side blinds on the rear windows.

Deactivation
Only the passenger's front airbag can be deactivated:  with the ignition off , inser t the key in the n offpassenger airbag deactivation switch 1 ,  turn it to the "OFF" position,  then, remove the key keeping the switch in the new position.
This warning lamp comes on in the instrument panel when the ignition is on and until the airbag is re-activated.
To assure the safety of your child, the passenger's front airbag must be deactivated when you install a "rear facing" child seat on the front
passenger seat. Other wise, the child would risk being seriously injured or killed if the airbag were triggered.
Reactivation
When you remove the child seat, turn switch 1 to the "ON" position to re-activate the airbag and so assure the safety of your front passenger in the event of an impact.
With the ignition on, this warning
lamp comes on in the instrument panel for approximately one minute, if the passenger's front airbag is activated.
Operating fault
If this warning lamp flashes, contact a CITROËN dealer. The passenger's front airbag may no longer be triggered in the event of a serious impact.
If at least one of the two airbag warning lamps come on continuously, do not install a child seat on the front passenger seat. Have the system checked by a CITROËN dealer.
If this warning lamp comes on on the instrument panel, accompanied by an
audible warning and a message on the multifunction screen, contact a CITROËN dealer to have the system checked. The airbags may no longer be triggered in the event of a serious impact.

Charging the battery using
a battery charger
Batteries contain harmful substances such as sulphuric acid and lead. They must be disposed of in accordance with regulations and must not, in any circumstances, be discarded with household waste. Take used remote control batteries and vehicle batteries to a special collection point.
It is advisable to disconnect the battery if the vehicle is to be left unused for more than one month.
Do not disconnect the terminals while the engine is running. Do not charge the batteries without disconnecting the terminals first.
 Disconnect the battery from the vehicle.  Follow the instructions for use provided by the manufacturer of the charger.  Reconnect star ting with the negative terminal (-).  Check that the terminals and connectors are clean. If they are covered with sulphate (whitish or greenish deposit), remove them and clean them.
Before disconnecting the battery
Wait 2 minutes after switching off the ignition before disconnecting the battery. Close the windows and the doors before disconnecting the battery.
Following reconnection of the battery
Following reconnection of the battery, switch on the ignition and wait 1 minute before star ting to permit initialisation of the electronic systems. However, if minor problems persist following this operation, contact a CITROËN dealer. Referring to the corresponding section, you should yourself reinitialise: - the remote control key, - the GPS satellite navigation system.

03
1
2
3
5
6
4
NAVIGATION - GUIDANCE
SELECTING A DESTINATION
Press the NAV button again or select the Navigation Menu function and press the dial to confi rm.
Select the "Destination input" function and press the dial to confi rm.
Press the NAV button.
Select the letters of the town one by one confi rming each time by pressing the dial.
Once the country has been selected, turn the dial and select the town function. Press the dial to confi rm.
NAVIGATION MENU
DESTINATION INPUT
Insert the SD card in the front panel reader and leave it there to use the Navigation functions. The navigation SD card data must not be modifi ed. Map data updates are available from CITROËN dealer s.
A pre-set list (by entering the fi rst few letters ) of the towns in the A pre-set list (by entering the fi rst few letters) of the towns in the country selected can be accessed via the LIST butto n ontton on the virtual keypad.
Select the "Address input" function and press the dial to confi rm.
ADDRESS INPUT
The list of the last 20 destinations appears under the Navigation The list of the last 20 destinations appears under the Navigation Menu function.
225

03
8
6
7
4
3
5
2
1
NAVIGATION - GUIDANCE

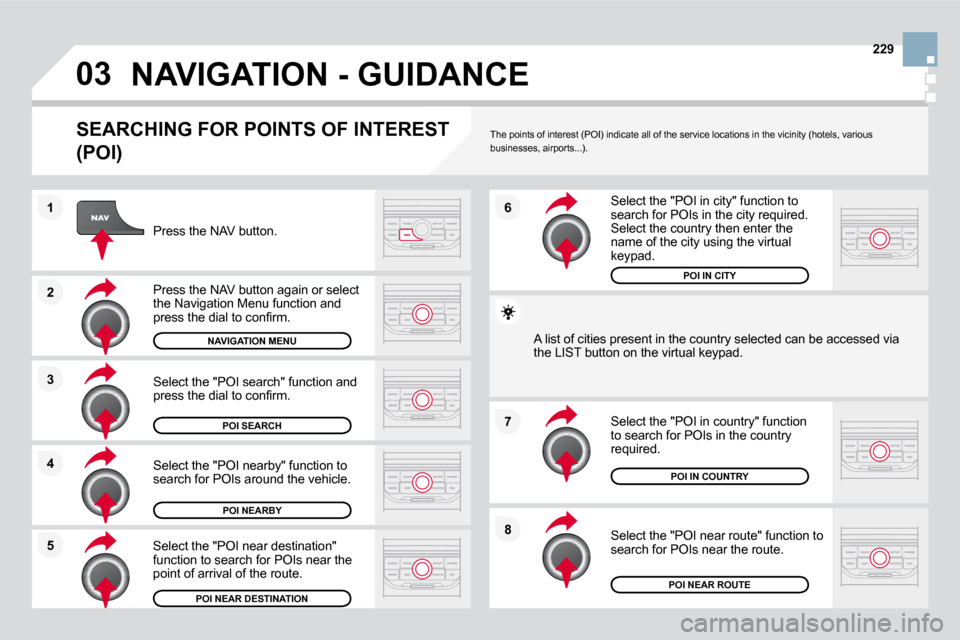

SEARCHING FOR POINTS OF INTEREST
(POI)
Press the NAV button.
Press the NAV button again or select the Navigation Menu function and press the dial to confi rm.
Select the "POI nearby" function to search for POIs around the vehicle.
Select the "POI search" function and press the dial to confi rm.
NAVIGATION MENU
POI SEARCH
POI NEARBY
Select the "POI in city" function to search for POIs in the city required. Select the country then enter the name of the city using the virtual keypad.
Select the "POI near route" function to search for POIs near the route.
Select the "POI in country" function to search for POIs in the country required.
Select the "POI near destination" function to search for POIs near the point of arrival of the route.
POI NEAR DESTINATION POI NEAR ROUTE
POI IN COUNTRY
POI IN CITY
A list of cities present in the country selected
can be accbe accessed via the LIST button on the virtual keypad.
The points of interest (POI) indicate all of the service locations in the vicinity (hotels, various businesses, airports...).
229

05
3
2
1
1
SELECTING A STATION
When the current radio station is displayed on the screen, press the dial.
The radio source short-cuts menu appears and prov
idesovides access to the following short-cuts:
Select the function required and press the dial to confi rm to gain access to the corresponding settings.
TA
RDS, if displayed, allows you to continue listening to the same RDS, if displayed, allows you to continue listening to the same station by automatic retuning to alternative freque ncies. However, in station by automatic retuning to alternative frequencies. However, in certain conditions, coverage of an RDS station may not be assured certain conditions, coverage of an RDS station may not be assured throughout the entire country as radio stations do not cover 100 % of throughout the entire country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during the territory. This explains the loss of reception of the station during a journey.
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS following mode. This ph enomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE
Press the RADIO button to display the list of stations received locally sorted in alphabetical order. Select the station required by turning the dial and press to confi rm.
While listening to the radio, press one of the buttons to select the previous or next station on the list.
Press one of the buttons on the numeric keypad fo r moor more than 2 seconds to store the current station. Press the button on the numeric keypad to recall the stothe stored radio station.
RDS
RADIOTEXT
REGIONAL PROG.
AM
RADIO
A long press of one of the buttons starts the automatic search for a station with a lower or higher frequency.

07
2
1
1
3
2
Press the end of the steering wheel control to acc
ept the call or end the call in progress.
Select the "Yes" tab to accept or "No" to refuse and confi rm by pressing the dial.

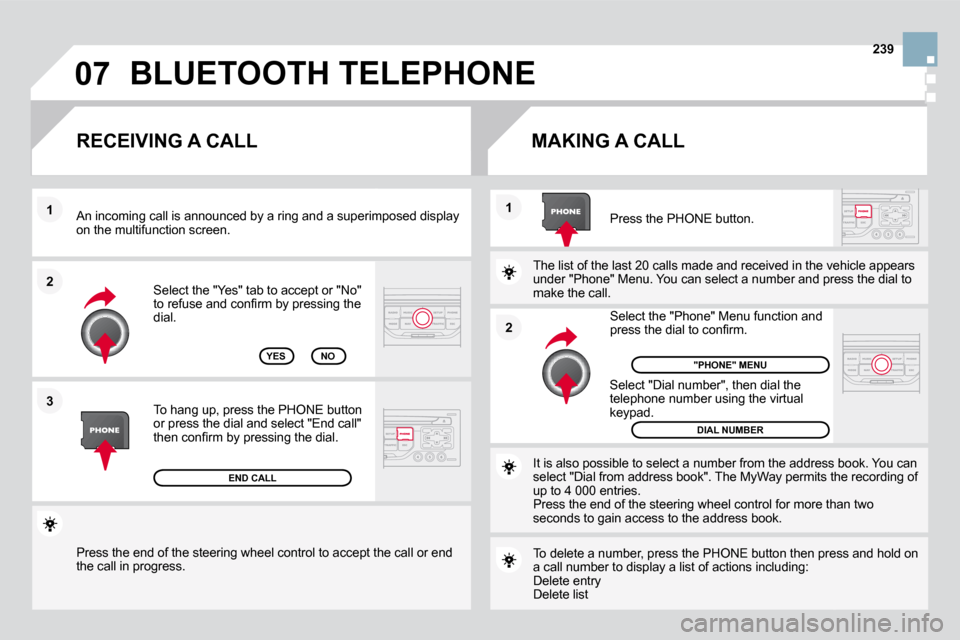

RECEIVING A CALL MAKING A CALL
An incoming call is announced by a ring and a supe rimposed display An incoming call is announced by a ring and a superimposed display on the multifunction screen.
YES
END CALL
To hang up, press the PHONE button or press the dial and select "End call" then confi rm by pressing the dial.
Press the PHONE button.
Select "Dial number", then dial the telephone number using the virtual keypad.
DIAL NUMBER
"PHONE" MENU NO
Select the "Phone" Menu function and press the dial to confi rm.
The list of the last 20 calls made and received in the vehhe vehicle appears under "Phone" Menu. You can select a number and pre sd press the dial to make the call.
It is also possible to select a number from the address bress book. You can select "Dial from address book". The MyWay permits the recording of select "Dial from address book". The MyWay permits the recording of up to 4 000 entries. Press the end of the steering wheel control for more than two Press the end of the steering wheel control for more than two seconds to gain access to the address book.
To delete a number, press the PHONE button then pr ess and hold on To delete a number, press the PHONE button then press and hold on a call number to display a list of actions including: Delete entry Delete list
BLUETOOTH TELEPHONE
239

11
66
22
77
44
99
55
1010
33
88
05
Saisir code authentiication01OKDel23456789_
BLUETOOTH FUNCTIONS
For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free syst em of your audio equipment must be carried out with the vehicle stationary and the ignition on.
Press the MENU button.
A window is displayed with "Searching...".
Activate the telephone's Bluetooth function.
In the menu, select: - Bluetooth telephone function - Audio - Bluetooth confi guration - Perform a Bluetooth search
The services offered depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Consult your telephone’s manual a nd your operator to fi nd out which services are available to you. A list of mobile telephones which offer the best range of services is available from the network. Consult a CITROËN dealer.
BLUETOOTH TELEPHONE
SCREEN C
The TELEPHONE menu permits access to the followin g functions in particular: Directory * , Call list, Pairing management.
The fi rst 4 telephones recognised are displayed i n this window.
A virtual keypad is displayed on thescreen: enter a code with at least 4 digits. Confi rm by pressing OK.
If pairing fails, the number of attempts is not limited.
Select the telephone to be connected from the lis t. Only one telephone can be connected at a time.
A message is displayed on the screen of the telephone chosen: to accept the pairing, enter the same code on the telephone, then confi rm by pressing OK.
"Pairing of Name_telephone successful" appears on the screen. The automatic connection authorised is only active after the telephone has been confi gured. The directory and the call list can be accessed after the synchronisation period.
PAIRING A TELEPHONE
* If your telephone is fully compatible.
The pairing can also be initiated from the telephone.

05
11
22
11
11
22
33
22
RECEIVING A CALL
An incoming call is announced by a ring and a superimposed display on the multifunction screen. Initiate the pairing between the telephone and the vehicle. This pairing can be initiated from the vehicle's telephone function menu or via the telephone's keypad. See steps 1 to 10 on the previous pages. During the pairing phase, the vehicle must be stationary with the key in the ignition.
Select the telephone to be connected from the tele phone function menu. The audio system connects to a newly paired teleph one automatically.
Select the YES tab on the display using the buttons and confi rm by pressing OK.
Press the steering wheel control OK to accept the call.
From the Bluetooth telephone function Audio menu, select Manage the telephone call then Call, Call list or Directory.
Press the end of the steering wheel control for m ore than two seconds to gain access to your directory. Or To dial a number, use your telephone's keypad, wit h the vehicle stationary.
MAKING A CALL
BLUETOOTH AUDIO STREAMING
(AVAILABLE DURING THE YEAR)
Wireless transmission of the telephone's music fi les via the audio equipment. The telephone must be able to manage the appropriate bluetooth profi les (Profi les A2DP/AVRCP).
* In certain cases, playing of the Audio fi les must be initiated from the keypad. ** If the telephone supports the function.
Activate the streaming source by pressing the SOURCE button * . The tracks to be played can be controlled as usual via the buttons on the Radio control panel and the steering wheel controls ** . The contextual information can be displayed on the screen.
BLUETOOTH FUNCTIONS
259
