169Driving
System which prevents the vehicle from
exceeding the speed programmed by the driver.
When the programmed speed limit is reached,
pressing the accelerator pedal in the normal
manner no longer has any effect.
The speed limiter is switched on
manually:
it requires a programmed speed of at least
20 mph (30 km/h).
The speed limiter is switched off
by manual
operation of the control.
The programmed speed can be exceeded
temporarily by pressing the accelerator firmly.
To return to the programmed speed, simply
slow down to a speed below the programmed
speed.
The programmed speed remains in the memory
when the ignition is switched off.





Speed limiter

The speed limiter cannot, in any circumstances,
replace the need to respect speed limits,
nor can it replace the need for vigilance and
responsibility on the part of the driver.
The controls of this system are grouped
together on stalk A
.


1.
Speed limiter mode selection thumb wheel.

2.
Value decrease button.

3.
Value increase button.

4.
Speed limiter on/off button.



Steering mounted controls

The programmed information is grouped
together in the instrument panel screen.

5.
Speed limiter on/off indication.

6.
Speed limiter mode selection indication.

7.
Programmed speed value.


Displays in the instrument panel

)
Turn thumb wheel 1
to the "LIMIT"

position: the speed limiter mode is
selected but is not switched on (PAUSE).
You do not have to switch the speed limiter on
in order to set the speed.


)
Set the speed value by pressing button 2

or 3
(e.g.: 55 mph (90 km/h)).


Programming

You can then change the programmed speed using buttons 2
and 3
:


- by + or - 1 mph (km/h) = shor t press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press.


)
Switch the speed limiter on by pressing button 4
.

)
Switch the speed limiter off by pressing button 4
: the display
confirms that it has been switched off (PAUSE).

)
Switch the speed limiter back on by pressing button 4
again.



Exceeding the programmed speed

Pressing the accelerator pedal to exceed the programmed speed will not have
any effect unless you press the pedal firmly
past the point of resistance
.
The speed limiter is deactivated temporarily and the programmed speed,
which is still displayed, flashes.
Returning to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically cancels the
flashing of the programmed speed. On a steep descent or in the event of sharp
acceleration, the speed limiter will not be
able to prevent the vehicle from exceeding
the programmed speed.
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
correctly,

- do not fit one mat on top of another.



Leaving limiter mode



)
Turn thumb wheel 1
to the "0"
position:
the speed limiter mode is deselected. The
display returns to the distance recorder.



Operating fault

In the event of a speed limiter fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a
qualified workshop.

171Driving





Cruise control

System which automatically maintains the
speed of the vehicle at the value programmed
by the driver, without any action on the
accelerator pedal.
The cruise control is switched on
manually: it
requires a minimum vehicle speed of 25 mph
(40 km/h), as well as the engagement of:


- four th gear on a manual gearbox,

- second gear on a SensoDrive or automatic
gearbox, in sequential mode,

- position A
on a SensoDrive gearbox or
position D
on an automatic gearbox.
The cruise control is switched off
manually
or by pressing the brake or clutch pedal or
on triggering of the ESP system for safety
reasons.
It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal.
To return to the programmed speed, simply
release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value. The controls of this system are grouped
together on stalk A
.


1.
Cruise control mode selection thumb
wheel.

2.
Value decrease button.

3.
Value increase button.

4.
Cruise control off/resume button.


Steering mounted controls

The cruise control cannot, in any circumstances,
replace the need to respect speed limits,
nor can it replace the need for vigilance and
responsibility on the par t of the driver.
The programmed information is grouped
together in the instrument panel screen.

5.
Cruise control off/resume indication.

6.
Cruise control mode selection indication.

7.
Programmed speed value.

Displays in the instrument panel

Programming



)
Turn thumb wheel 1
to the "CRUISE"

position: the cruise control mode is
selected but is not switched on (PAUSE).

)
Set the programmed speed by accelerating
to the required speed, then press button 2
or
3
(e.g.: 70 mph (110 km/h)).
You can then change the programmed speed using buttons 2
and 3
:


- by + or - 1 mph (km/h) = shor t press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press.


)
Switch off the cruise control by pressing button 4
: the screen
confirms that it has been switched off (PAUSE).

)
Switch the cruise control back on by pressing button 4
again.



Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed speed results
in flashing of this speed in the screen.
Return to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the speed.


Leaving cruise control mode



)
Turn thumb wheel 1
to the "0"
position: the cruise control mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a cruise control malfunction,
the speed is cleared resulting in flashing of the
dashes. Have it checked by a CITROËN dealer
or a qualified workshop.
When the cruise control is switched on,
be careful if you maintain the pressure on
one of the programmed speed changing
buttons: this may result in a very rapid
change in the speed of your vehicle.
Do not use the cruise control on
slippery roads or in heavy traffic.
On a steep descent, the cruise control will
not be able to prevent the vehicle from
exceeding the programmed speed.
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
correctly,

- never fit one mat on top of another.

173Driving





Rear parking sensors

System consisting of four proximity sensors,
located in the rear bumper.
This detects any obstacle (person, vehicle,
tree, gate, etc.) behind the vehicle, except
obstacles located just below the bumper.
An object, such as a stake, a roadworks
cone or any other similar object may be
detected at the beginning of the manoeuvre,
but may no longer be detected when the
vehicle comes close to it.

The parking sensor system cannot, in
any circumstances, take the place of
the vigilance and responsibility of the
driver. The system is activated as soon as reverse
gear is engaged, accompanied by an audible
signal. The proximity information is given by:


- an audible signal, which becomes more
rapid as the vehicle approaches the
obstacle.

- a graphic (according to version) in the
multifunction screen, with blocks which
become increasingly closer to the vehicle.


Activation
When the distance between the rear of the vehicle
and the obstacle is less than thirty centimetres, the
audible signal becomes continuous and the "Danger"
symbol appears in the multifunction screen.
On completion of the manoeuvre, when you exit
reverse gear, the system becomes inactive.

Programming
Operating faults

If there is an operating fault, when
reverse gear is engaged this
warning lamp comes on in the instrument panel,
accompanied by an audible signal (shor t beep)
and a message in the multifunction screen. You can activate or deactivate the system by
means of the multifunction screen configuration
menu. The system state is memorised when
switching off the ignition.
For more information on access to the parking
sensors menu, refer to "Configuration/ Vehicle
parameters" in the "Multifunction screens"
section corresponding to your screen.
The system will be deactivated
automatically when towing a trailer or
when a bicycle carrier is fitted (vehicle
fitted with a towbar or bicycle carrier
recommended by CITROËN). In bad or wintry weather, ensure that
the sensors are not covered with mud,
frost or snow.

175Driving

010
Checks


This section describes access to the engine compar tment, the procedure
for bleeding the fuel system on Diesel engines after running out of fuel,
the location of various engine components needed to check the levels
and the main wearing parts.

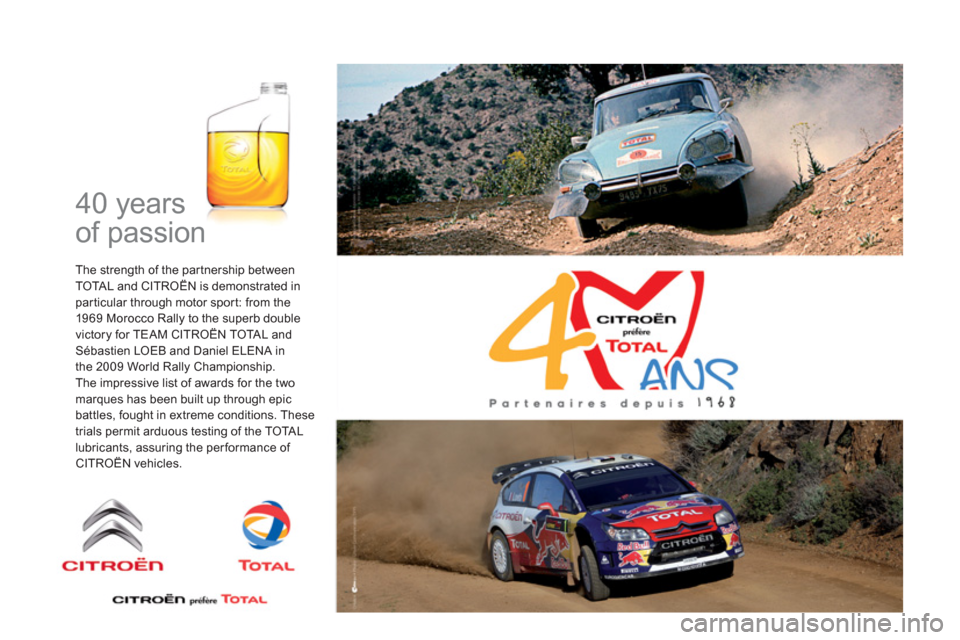

40 years
