Page 6 of 324
SAFETY DRIVING FITTINGS CHILD
SAFETY
15 6 Parking brake
157 Manual gearbox
15 8 Gear shift indicator
15 9 SensoDrive gearbox
162 Automatic gearbox
166 Stop & Start
169 Speed limiter
171 Cruise control
173 Rear parking sensors 14 0 Direction indicators
14 0 Hazard warning lamps
141 Horn
141 Emergency or assistance call
142 Braking assistance systems
14 3 Trajectory control systems
14 5 Front seat belts
14 8 Airbags 128 Child seats
13 4 ISOFIX child seats 120 Interior fi ttings
124 Boot fi ttings
008008009009006006007007
Page 13 of 324
11Familiarisation
Instruments and controls
1.
Cruise control/speed limiter controls.
2.
Headlamp height adjustment.
3.
Steering wheel adjustment.
4.
Lighting and direction indicator stalk
5.
Instrument panel.
6.
Driver's airbag.
Horn.
7.
Gear lever.
8.
12 V accessory socket
USB port /auxiliary socket.
9.
Heated seat control.
10.
Bonnet release lever.
11.
Door mirror controls.
Electric window controls.
12 .
Fusebox.
13.
Stop & Star t button
Electronic stability programme button
(ESP/ASR).
14 .
Front door window demisting/defrosting vent.
15.
Speaker (tweeter).
16.
Windscreen demisting/defrosting vent.
Page 14 of 324
Instruments and controls
1.
Steering lock and ignition.
2.
Audio equipment steering wheel controls.
3.
Wiper/screenwash/trip computer stalk.
4.
Scented air freshener.
5.
Central locking button.
6.
Multifunction screen.
7.
Hazard warning lamp switch.
8.
Central adjustable air vents.
9.
Sunshine sensor
Hi-Fi audio system central speaker.
10.
Passenger's airbag.
11.
Side adjustable air vent.
12 .
Glove box /Passenger's airbag deactivation.
13.
Parking brake.
14 .
Central armrest with storage.
15.
Upper and lower storage.
16.
MyWay or Audio system.
17.
Heating/air conditioning controls.
Page 21 of 324
19Familiarisation

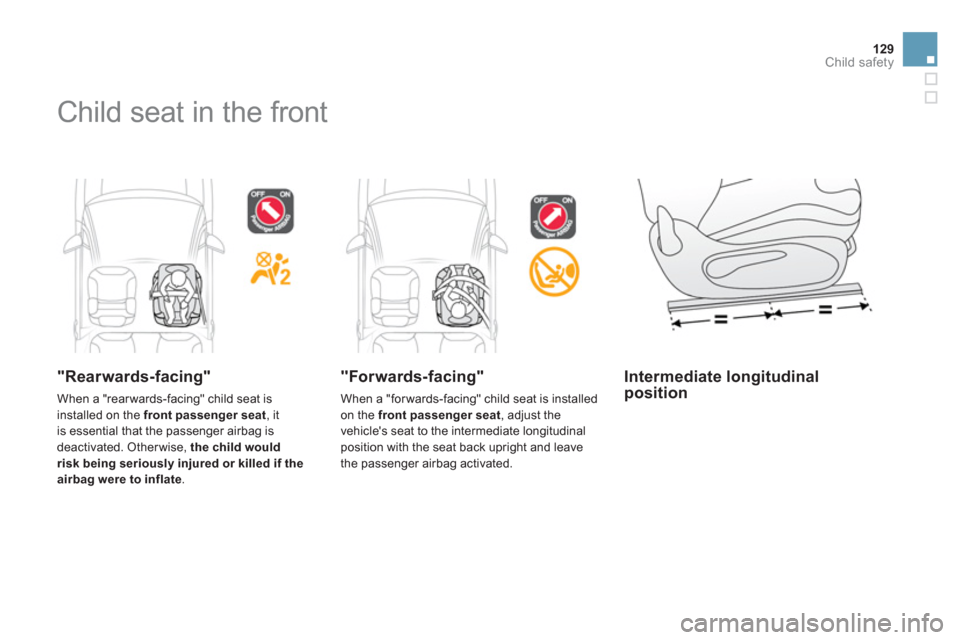

Passenger safety
1.
Open the glove box.
2.
Inser t the key.
3.
Select position:
"ON"
(activation), with front passenger or
"for wards facing" child seat,
"OFF"
(deactivation), with "rear facing" child seat.
4.
Remove the key keeping the switch in the
new osition.
Front passenger's airbag
14 9
A.
Front seat belts not fastened or unfastened
warning lamp.:
Front seat belts and
passenger's front airbag
15 0
Customise your vehicle
These styling stickers are treated to give good
resistance to ageing and tearing.
They have been designed to allow you to
customise your vehicle's bodywork.
Available also as accessories, we recommend
that you have them fitted by a CITROËN dealer
or a qualified workshop.
Using expressive stickers
When using a high pressure jet wash,
keep the end of the lance at least
30 centimetres from the stickers
B.
Front passenger's airbag deactivation
indicator lamp.
C.
Front passenger's airbag activation
indicator lamp. 14 5
Page 32 of 324
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).
Indicator and warning lamps
Associated warnings
The illumination of cer tain warning lamps may
be accompanied by an audible signal and a
message in the multifunction screen.
The warning lamps may come on
continuously (fixed) or flash.
Cer tain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can it
be ascertained whether the situation is
normal or whether a fault has occurred. If they remain on, before moving off,
refer to the information on the warning
lamp concerned.
The passenger's airbag system
operation lamp stays on for about a
minute after switching on the ignition,
even after the engine has star ted.
When the ignition is switched on
Cer tain warning lamps come on for a few
seconds when the vehicle's ignition is
switched on.
When the engine is started, these same
warning lamps should go off.
Page 35 of 324
33Monitoring
Foot on the
brake pedal
fixed. The brake pedal must be pressed. With the SensoDrive gearbox, press the brake pedal
to star t the engine (lever in position N
).
With an automatic gearbox, with the engine running,
press the brake pedal before releasing the parking
brake, to unlock the lever and come out of position P
.
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
flashing. With a SensoDrive gearbox, if you
hold the vehicle on an incline using
the accelerator for too long, the clutch
overheats. Use the brake pedal and/or the parking brake.
Automatic wiping
fixed. The wiper control is pushed
downwards. Automatic front wiping is activated.
Passenger's
airbag system
fixed. The control switch, located in the
glove box, is in the " ON
" position.
The passenger's front airbag is
activated.
In this case, do not install a rear-
facing child seat. Turn the control switch to the " OFF
" position to
deactivate the front passenger's airbag.
In this case you can install a rear-facing child seat.
Warning lamp
is on
Cause
Action/Observations
Page 36 of 324
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.
Warning lamp
is on
Cause
Action/Observations
Passenger's
airbag system
fixed. The control, located in the glove box,
is set to the OFF
position.
The passenger's front airbag is
deactivated.
In this case you can install a "rear
facing" child seat. Set the control to the ON
position to activate the
passenger's front airbag.
In this case, do not fit a child seat in the rear-facing
position.
ESP/ASR
fixed. The button, located at the bottom
left of the dashboard, is pressed. Its
indicator lamp is on.
The ESP/ASR is deactivated.
ESP: electronic stability programme.
ASR: anti-skid regulation. Press the button again to manually reactivate the ESP/
ASR. Its indicator lamp goes off.
From approximately 30 mph (50 km/h), the system is
reactivated automatically (except for the 1.6 litre THP
150 and R ACING engines).
The ESP/ASR system is activated automatically when
the vehicle is star ted.
Page 41 of 324
39Monitoring
Airbags
temporarily. This lamp comes on for a few seconds
when you turn on the ignition, then
goes off. This lamp should go off when the engine is star ted.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.
fixed. One of the airbag or seat belt
pretensioner systems has a fault. Have it checked by a CITROËN dealer or a qualified
workshop.
Warning lamp
is on
Cause
Action/Observations
Seat belt not
fastened/
unfastened
fixed then flashing
accompanied by an
increasing audible
signal. The driver and/or the front passenger
has not fastened or has unfastened
their seat belt. Pull the strap then inser t the tongue in the buckle.
Power steering
fixed. The power steering has a fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or a qualified
workshop.
