Labels are fitted in various areas of your vehicle. They  carry   safety   warnings   as   well   as   vehicle
identification

  information.   Do   not   remove   them:   they
form

  an   integral   part   of   your   vehicle.
Automobiles
  CITROËN   declares,   by   application   of
the

  provisions   of   the   European   regulation

(Directive

  2000/53)   relating   to   End   of   Life   Vehicles,
that

  it   achieves   the   objectives   set   by   this   regulation
and

  that   recycled   materials   are   used   in   the
manufacture

  of   the   products   that   it   sells. Printed in the EUAnglais
For
  any   work   on   your   vehicle,   use   a   qualified
workshop

  that   has   the   technical   information,
competence

  and   equipment   required,   which   a
CITROËN

  dealer   is   able   to   provide.
Reproduction or translation of all or part of this
document  is   prohibited   without   written   authorisation
from


Automobiles
  CITROËN.
We draw your attention to the following
points:
- The  fitting   of   electrical   equipment   or   accessories  not
  listed   by   CITROËN may   cause   faults   and
failures

  with   the   electrical   system   of   your   vehicle.
Contact

  a   CITROËN   dealer   for   information   on   the
range

  of   recommended   accessories.
-

Any
  modification   or   adaptation

not   intended   or
authorised

  by
Automobiles
  CITROËN   or   carried
out

  without   meeting   the   technical   requirements
defined

  by   the   manufacturer   would   lead   to   the
suspension

  of   the   new   vehicle   warranty.

DS3_en_Chap13_couv-fin_ed01-2015
15DS3.0040Anglais

OWNER'S HANDBOOK - SUPPLEMENT

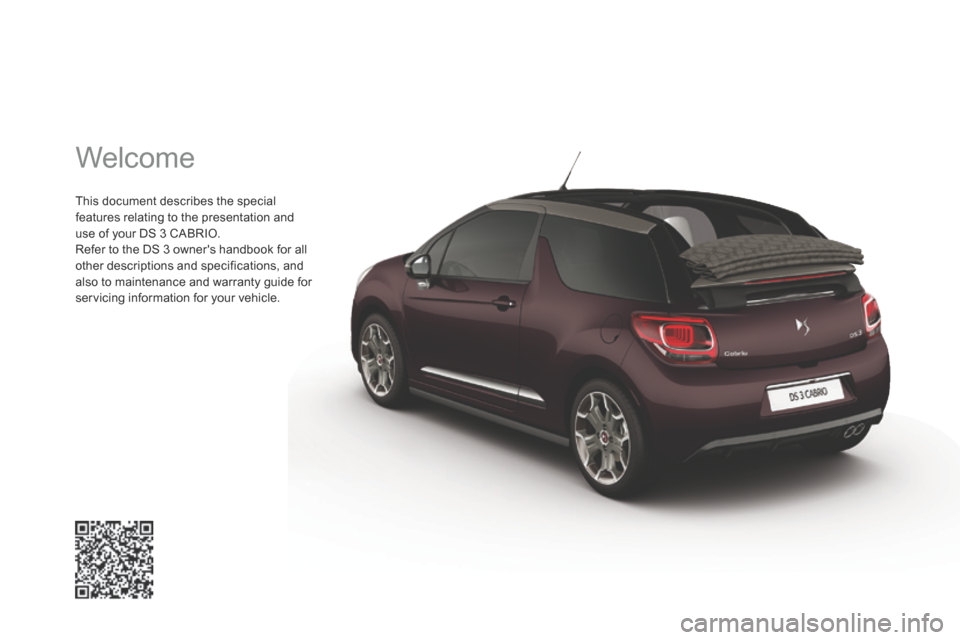

Welcome
This document describes the special features relating to the presentation and use of your DS 3 CABRIO. Refer to the DS 3 owner's handbook for all other descriptions and specifications, and also to maintenance and warranty guide for servicing information for your vehicle.

Contents
ACCESS
2 Soft top
10 Boot
12 Alarm
002 PR ACTICAL
INFORMATION
13 Rear shelf
010
008
TECHNICAL DATA
14 Changing a fuse
15 Recommendations on care
16 Petrol engines
17 Petrol weights
18 Diesel engine
19 Diesel weights
20 Dimensions
Key
safety warning
additional information
COMFORT 003
corresponds to a left hand drive vehicle.
corresponds to a right hand drive vehicle.

2Access
Soft top
Your vehicle is fitted with an electric soft top roof.
The roof is opened and closed by pressing the control at the interior lamp, in the opening direction 1 and in the closing direction 2 .
Electric opening
and closing

3Access
In order to maintain the state of charge of the battery, it is recommended that the roof be operated with the engine running .
Operation of the roof is possible: - engine running, or - ignition on.
During operation of the roof with just the ignition on, starting the engine may cause the roof to stop, depending on the state of charge of the battery. To have the roof continue the operation, operate the control again after the engine has started.
Operating zones
There are two operating zones: Zone A : horizontal operating zone, in manual or automatic mode. Zone B : vertical operating zone, in automatic mode only.
Before operating the roof, ensure that no occupant of the vehicle or person outside the vehicle could be subject to any risk related to the movement of the roof or the rear screen and that no object could inter fere with the operation.
Roof positions
Position 0 : Roof completely closed. Position 1 : Stop position for automatic roof closing. Position 2 : Roof open horizontally. Position 3 : Roof completely open.

4Access
Opening
Manual mode Automatic mode
During automatic operation of the roof in zone A , pressing the control stops the roof. Opening of the roof in zone B can only be done in automatic mode.
 In zone A , press the control beyond the point of resistance to begin opening the roof.
 In zone A , press and hold the control without passing the point of resistance to open the roof.
 The roof stops as soon as you release the control.

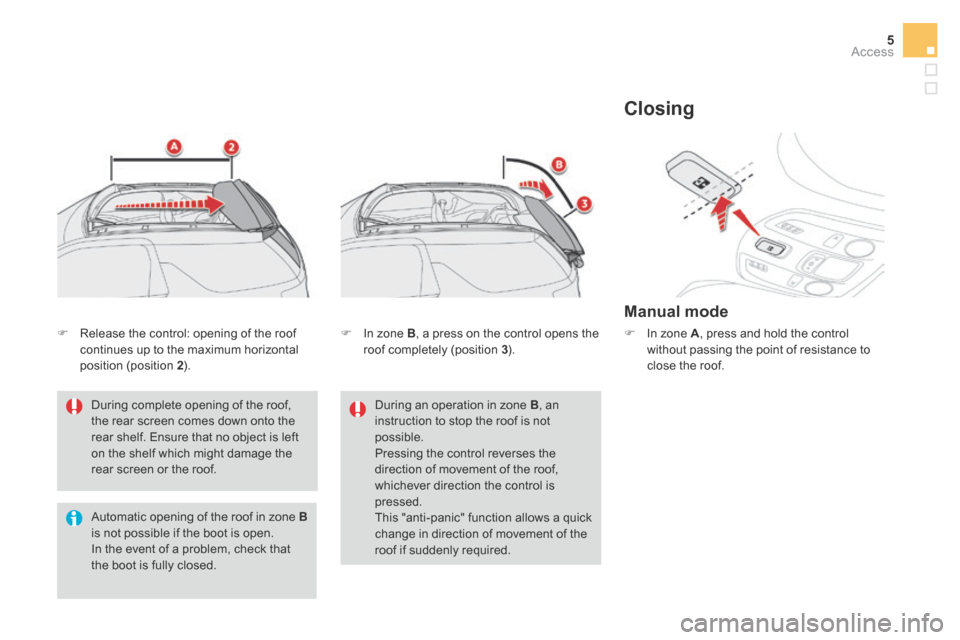

5Access
During complete opening of the roof, the rear screen comes down onto the rear shelf. Ensure that no object is left on the shelf which might damage the rear screen or the roof.
Automatic opening of the roof in zone B
is not possible if the boot is open. In the event of a problem, check that the boot is fully closed .
During an operation in zone B , an instruction to stop the roof is not possible. Pressing the control reverses the direction of movement of the roof, whichever direction the control is pressed. This "anti-panic" function allows a quick change in direction of movement of the roof if suddenly required.
 Release the control: opening of the roof continues up to the maximum horizontal position (position 2 ).
 In zone B , a press on the control opens the roof completely (position 3 ).
Closing
Manual mode
 In zone A , press and hold the control without passing the point of resistance to close the roof.

6Access
Automatic mode
 In position 3 , press the control to begin closing the roof.
When the roof is completely open, the rear screen rests on the rear shelf. Do not place any object on the rear screen.
Closing the roof in zone B can only be done in automatic mode.
Complete closing of the roof in zone Acan only be done in manual mode. Press and hold the control until the roof is heard to lock. If the roof does not lock correctly, operate the control again with the engine running.
If the problem persists, contact a CITROËN dealer or a qualified workshop.
 Release the control: closing of the roof continues up to position 2 .
During an operation in zone B , an instruction to stop the roof is not possible. Pressing the control reverses the direction of movement of the roof, whichever direction the control is pressed. This "anti-panic" function allows a quick change in direction of movement of the roof in the event if suddenly required.
If the roof does not lock correctly, operate the control again with the engine running. If the problem persists, contact a CITROËN dealer or a qualified workshop.
 The roof stops as soon as you release the control.  To close the roof completely, press and hold the control until the the roof is heard to lock.
