139Child safety
Advice on child seats

The incorrect installation of a child seat in avehicle compromises the child's protectionin the event of an accident.
Remember to fasten the seat belts or the child seat harness keeping the slackin relation to the child's body to a minimum , even for shor t journeys.
To install a child seat using the vehicle'sseat belt, ensure that the belt is well tightened on the child seat and that it holdsthe child seat firmly against the vehicle's seat.
For optimum installation of the "forwardfacing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that the head restraint does not cause any discomfort.
If the head restraint has to be removed, ensure that it is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking.
Children under the age of 10 must not travel in the "forward facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag
* when a "rear facing" child seat is installed on thefront seat. Other wise, the child would risk beingseriously injured or killed if the airbag were to inflate.
Installing a booster seat
The chest par t of the seat belt must bepositioned on the child's shoulder without touching the neck.
Ensure that the lap part of the seat belt passes correctly over the child's thighs.CITROËN recommends the use of abooster seat which has a back, fitted with aseat belt guide at shoulder level.
*
According to country.

As a safety precaution, do not leave: - one or more children alone and unsuper vised in a vehicle, - a child or an animal in a vehicle which is exposed to the sun, with the windowsclosed, - the keys within reach of children inside the vehicle.To protect young children from the rays of the sun, fit side blinds on the rear windows.

Your vehicle has been approved in accordance
with the newISOFIX regulation.The seats, represented below, are fitted withregulation ISOFIX mountings:





















"ISOFIX" mountings

There are three rings for each seat:


- two rings A, located between the vehicle seat back and cushion, indicated by a label,

- a rin
g B , behind the seat, referred to as theTOP TETHER
for fixing the upper strap. This I
SOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats
are fitted with
two latches which are secured on the two rings A.
When fitting an ISOFIX child seat to the right hand rear seat, before fixing the seat in place,first move the centre rear seat belt towards themiddle of the vehicle so as to not interfere with
the operation of the seat belt.
Some seats also have an upper strap
which isattached to ring B.
To attach this strap, raise the vehicle seat's
head restraint then pass the hook between its
rods. Then fix the hook on ring Band tighten
the upper strap.
The incorrect installation of a child seat in a vehicle compromises the child'sprotection in the event of an accident.
For in
formation regarding the ISOFIX childseats which can be installed in your vehicle,
refer to the table showing the locations for
installing I
SOFIX child seats.

141Child safety











ISOFIX child seat recommended by CITROËN and approved for
your vehicle
This child seat can also be used on seats which are not fitted with ISOFIX mountings. In this case, it must be attached to the vehicle seat using the three point seat belt.Follow the instructions for fitting the child seat given in the seat manufacturer's installation guide.
RÖMERDuo Plus ISOFIX(size category B1 )

Group 1: from 9 to 18 kg





Installed only in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B , referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.) Adjust the front seat of the vehicle so that the child's feet do not touch the back of the seat.

Installing ISOFIX child seats In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on the vehicle seats fitted with
ISOFIX mountings.
In the case o
f the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a letter between Aand G ,
is indicated on the child seat next to the ISOFIX logo.
IUF:seat suitable for the installation of an I sofix U niversal seat, "F
orward facing" and secured using the "Top Tether" upper strap.IL- SU:
seat suitable for the installation an I sofix S emi-U
niversal seat which is:
- "rear facing" fitted with a "Top Tether" upper strap or a stay,
- "forward facing" fitted with a stay,
For the securing of the "Top Tether" upper strap, refer to the "ISOFIX Mountings" section.X: seat which is not suitable for the installation of an ISOFIX seat of the size category indicated.
*

Infant car seats and "car cots" cannot be installed on the front passenger seat.




Weight of the child
/indicative age
Less than 10 kg(group 0)Up to 6 months approx
Less than 10 kg(group 0)Less than 13 kg (group 0+)Up to 1 year approx
From 9 to 18 kg (group 1)From 1 to 3 years approx
Type of ISOFIX child seatInfant car seat

*"rear facing""rear facing""for ward facing"
ISOFIX size categoryFGCDECDABB1
Universal and semi-universal ISOFIX child seats which can be installed on the outer rear seatsXXIL-SUXIL- SUIUFIL- SU

143Child safety

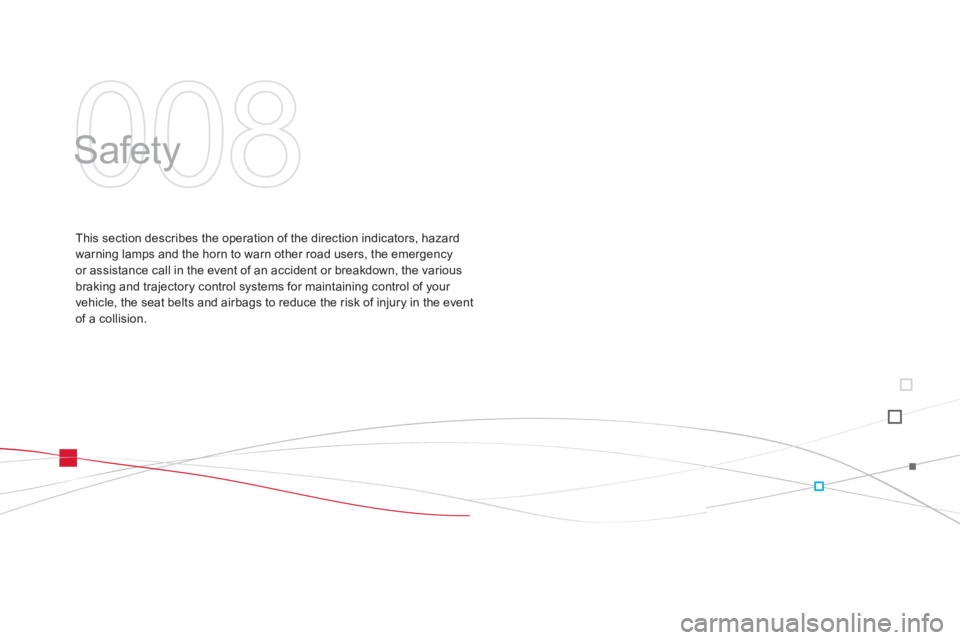

008
Safety
This section describes the operation of the direction indicators, hazard
warning lamps and the horn to warn other road users, the emergencyor assistance call in the event of an accident or breakdown, the various
braking and trajectory control systems for maintaining control of your
vehicle, the seat belts and airbags to reduce the risk of injury in the event of a collision.

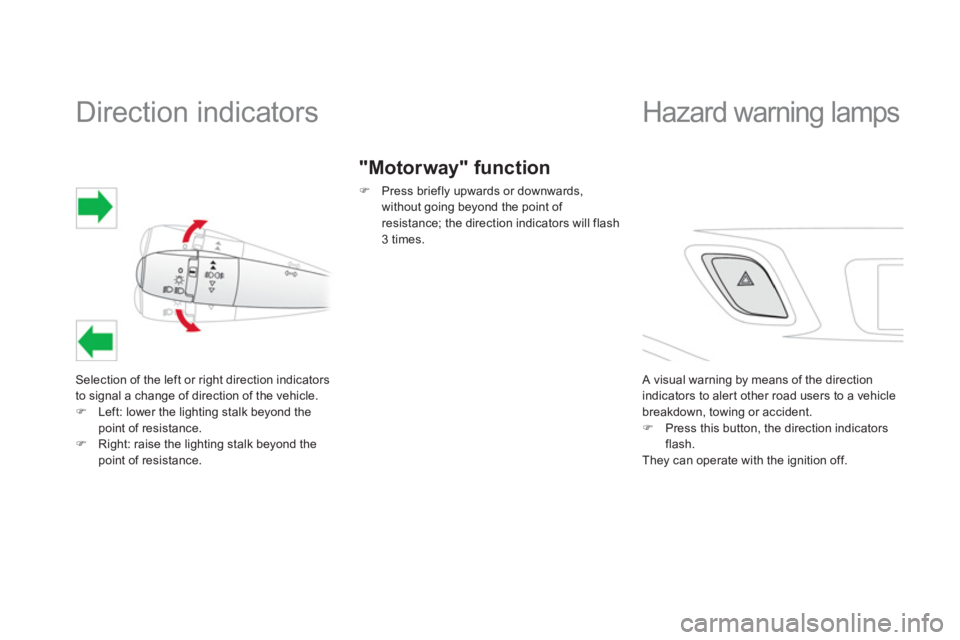

Direction indicators
Selection of the left or right direction indicators
to signal a change of direction of the vehicle. )Left: lower the lighting stalk beyond thepoint of resistance.
)Right: raise the lighting stalk beyond thepoint of resistance.
"Motorway" function
) Press briefly upwards or downwards,
without going beyond the point of
resistance; the direction indicators will flash3 times.








Hazard warning lamps
A visual warning by means of the direction
indicators to alert other road users to a vehicle
breakdown, towing or accident. )Press this button, the direction indicators
fl
ash.
They can operate with the ignition off.

147Safety

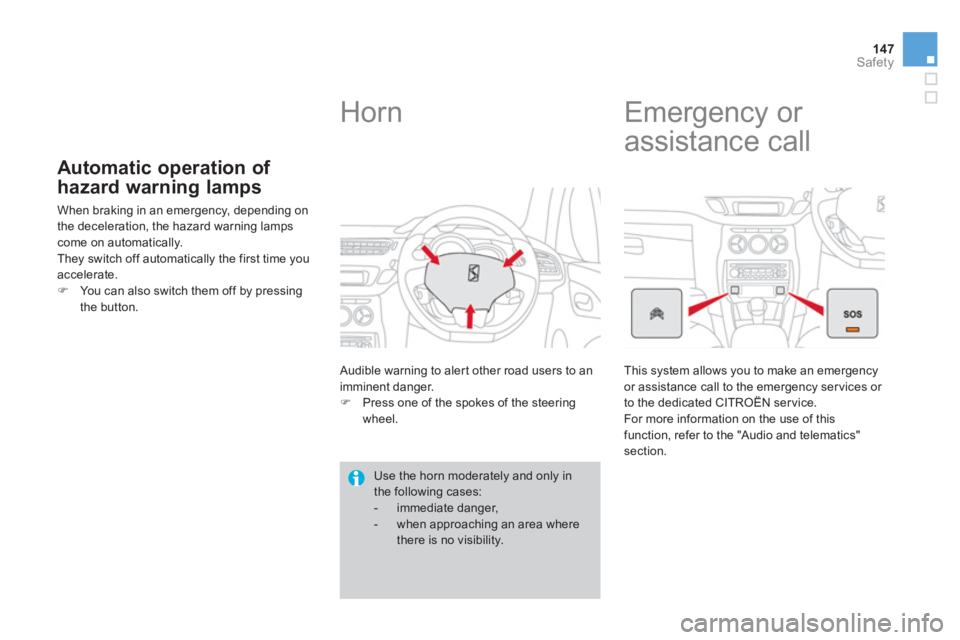

Automatic operation of
hazard warnin
g lamps
When braking in an emergency, depending on
the deceleration, the hazard warning lamps come on automatically.
They switch off automatically the first time you accelerate.)You can also switch them off by pressingthe button.









Horn

Audible warning to aler t other road users to an
imminent danger. )Press one of the spokes of the steeringwheel.

Use the horn moderately and only inthe following cases:


- immediate danger,

- when approaching an area where
there is no visibility.










Emergency or
assistance call
This system allows you to make an emergency or assistance call to the emergency ser vices or
to the dedicated CITROËN ser vice.
F
or more information on the use of this function, refer to the "Audio and telematics" section.

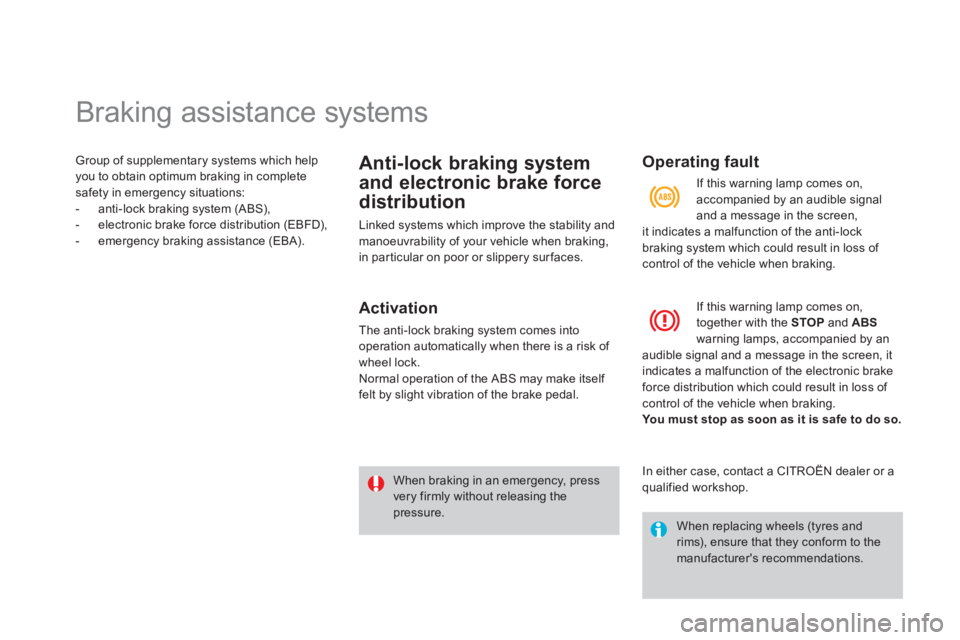

Braking assistance systems
Group of supplementary systems which helpyou to obtain optimum braking in complete safety in emergency situations:
- anti-lock braking system (ABS),
- electronic brake force distribution (EBFD),
- emergency braking assistance (EBA).

Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the stability and
manoeuvrability of your vehicle when braking,
in par ticular on poor or slippery surfaces.
Activation
The anti-lock braking system comes into
operation automatically when there is a risk of
wheel lock.
Normal operation of the ABS may make itself
felt by slight vibration of the brake pedal.
When braking in an emergency, pressvery firmly without releasing thepressure.


Operating fault
If this warning lamp comes on,
together with the STOPand ABSwarning lamps, accompanied by an
audible signal and a message in the screen, it
indicates a malfunction of the electronic brake force distribution which could result in loss of control of the vehicle when braking.You must stop as soon as it is safe to do so.

When replacing wheels (tyres andrims), ensure that they conform to themanufacturer's recommendations.
If this warnin
g lamp comes on,
accompanied by an audible signaland a message in the screen,
it indicates a malfunction of the anti-lock
braking system which could result in loss of control of the vehicle when braking.
In either case, contact a CITROËN dealer or a
qualified workshop.
