Page 329 of 384
327
06BLUETOOTH FUNCTIONS
For safety reasons and because they require prolonged attentionon the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free system of your
audio equipment must be carried out with the vehicle stationary
and the ignition on.
Pr
ess the MENU button.
A window is displayed with a message that a search is in progress.
Activate the telephone's Bluetooth
function
and ensure that it is "visible to all" (telephone confi guration.
In the menu, select:
- Bluetooth telephone
function -
Audio
- Bluetooth confi
guration
- P
erform a Bluetooth search
The services o
ffered depend on the network, the SIM card and thecompatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out which
services are available to you.
Bluetooth telephone Screen C
The TELEPH
ONE menu permits access to the following functions
in particular: Directory * , Call list, Pairing management.
The
fi rst 4 telephones recognised are displayed in this window.
A virtual ke
ypad is displayed in the screen: enter a code with at least 4 digits.
Confi rm by pressing OK.
A messa
ge that the pairing has been successful appears in thescreen.
Select the telephone to be connected from the list.
Only one
telephone can be connected at a time.
A messa
ge is displayed in the screen of the
telephone chosen. To accept the pairing, enter the same code on the telephone, then confi rm with OK.
The automatic connection authorised is onl
y active after the
telephone has been confi gured.
The directory and the call list can be accessed a
fter thesynchronisation period.
(Available according to model and version)
*
If your telephone is fully compatible.
I
f pairing fails, the number of attempts is not limited. Go to www.citroen.co.uk for more information
(compatibility, more help, ...).
Pairing a telephone
/ First connection
Page 337 of 384
335
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
There is a difference in sound quality betweenthe different audiosources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources,which may result in audible differences when changing source (radio,CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted tothe sources listened to. It is advisable to setthe AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
- Check that the CD is inserted in the player the right way up.
- Check the condition of the CD: the CD cannot be played if it is too damaged.
- Check the content in the case of a recordedCD: consult the advice in the "Audio" section.
- The audio equipment's CD player does notplay DVDs.
- Due to their quality level, certain writeableCDs will not be played by the audio system.
The message "USB peripheral error" isdisplayed on the screen.
The Bluetooth connectionis cut.
The battery of the peripheral may not be suffi ciently charged.
Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.
Reformat the memory stick.

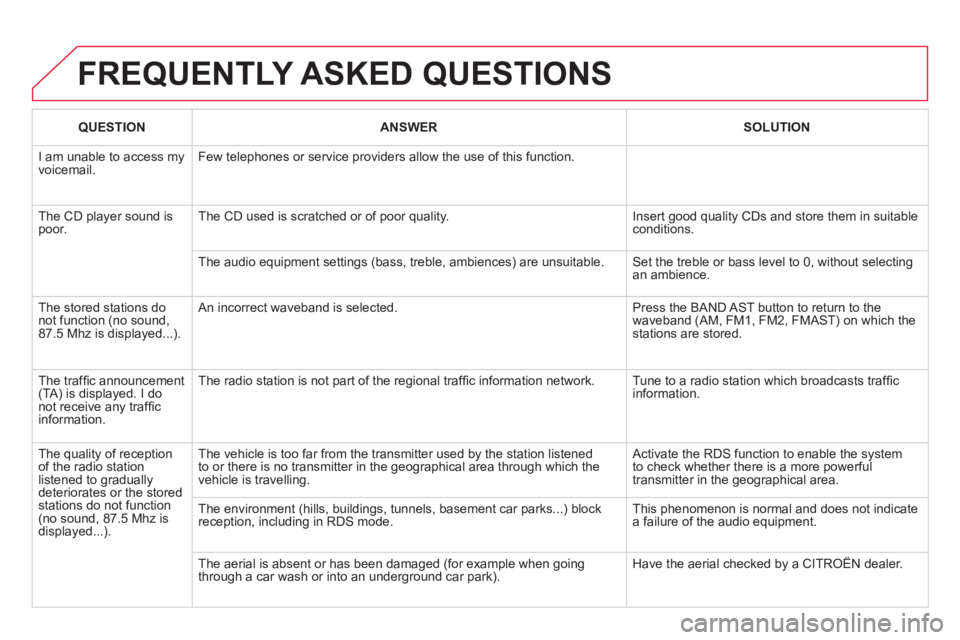

Page 338 of 384
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
I am unable to access my voicemail.
Few telephones or service providers allow the use of this function.
The CD player sound is poor.
The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitableconditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.
The stored stations do not function (no sound, 87.5 Mhz is displayed...).
An incorrect waveband is selected.
Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which thestations are stored.
The traffi c announcement(TA) is displayed. I donot receive any traffi c information.
The radio station is not part of the regional traffi c information network.
Tune to a radio station which broadcasts traffi cinformation.
The quality of receptionof the radio station listened to gradually deteriorates or the stored stations do not function(no sound, 87.5 Mhz isdisplayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area through which thevehicle is travelling.
Activate the RDS function to enable the systemto check whether there is a more powerfultransmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) blockreception, including in RDS mode.
This phenomenon is normal and does not indicatea failure of the audio equipment.
The aerial is absent or has been damaged (for example when going through a car wash or into an underground car park).
Have the aerial checked by a CITROÀN dealer.

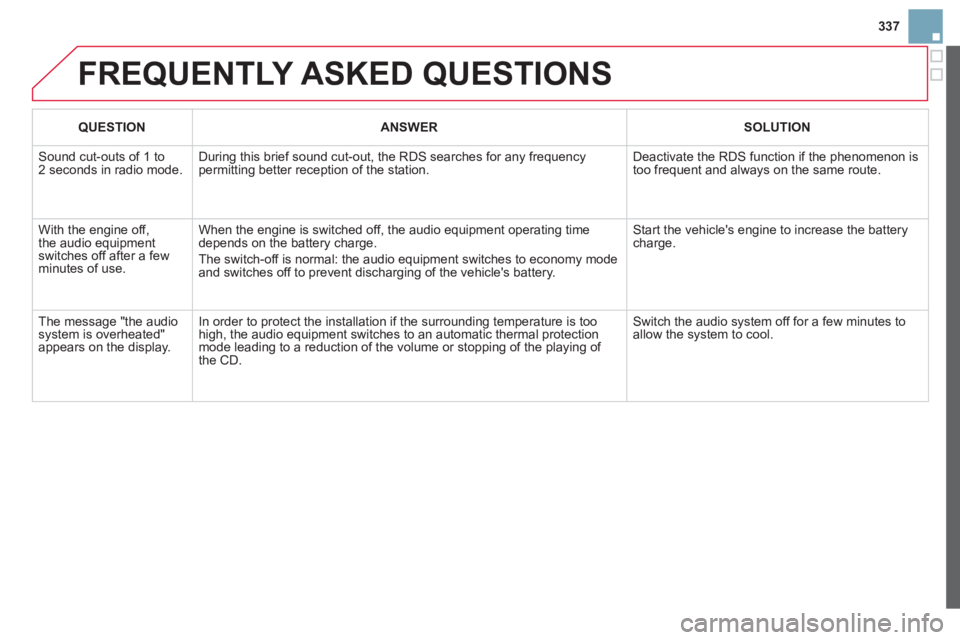

Page 339 of 384
337
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating timedepends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is toohigh, the audio equipment switches to an automatic thermal protectionmode leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes toallow the system to cool.
Page 345 of 384
343Visual search
Technical data - Maintenance
Running out of Diesel 192
Checking levels 195 -197
- oil
- brake fluid
- coolant
- screenwash fluid
- additive (Diesel with particleemissions filter)
Changing bulbs 217-224
- front
- rear
- interior
Petrol en
gines 246 -249
LPG engine 250 -251
Diesel engine 252-253
Dimensions 254-255
Identification markings 256
Bonnet
191-192
Under-bonnet layout, petrol 193
Under-bonnet layout, Diesel 194Batter
y 232-234
Energy economy mode 235
Checking components 198 -19 9
- battery- air filter / passenger compartment filter
- oil filter
- particle emissions filter (Diesel)
- brake pads/discs
En
ginecompartment fuses 225, 228 -231
Page 347 of 384
345
Alphabetical index
EBA(Emergency braking assistance)........152,153Eco-driving.....................................................24Eco-driving (advice)........................................24Economical driving .........................................24Economy mode .............................................235Electric window controls ...............................100Electronic brake force distribution (EBFD) ......152Electronic engine immobiliser...................r92,95Emergency boot release...............................105Emergency braking system..........................153Emergency call.............................151, 261, 262Emergency warning lamps...................150,151
eMyWay..................................................61, 263Energy economy mode.................................235Engine, Diesel...............................107,194,252Engine, petrol ................................107,193, 246Engine compartment.............................193, 194Engine compar tment fusebox .......................225Engine oil level indicator.........................r45,195Engines........................................246, 250,252Environment..............................................24, 95ESP/ASR.......................................................153
D
G.P.S.............................................................272Gearbox, automatic......................173, 199, 234Gearbox, electronic...............168,178, 199, 234Gearbox, manual..........................167, 178,199Gear efficiency indicator...............................r177Gear lever........................................................24Gear lever, automatic gearbox.....................173Gear lever,electronic gearbox system .................168,199Gear lever, manual gearbox.........................167Glove box......................................................127GPL...............................................................250Grab handles.............................................81, 82Guidance...............................................270,277
EF
Date (setting).......................................54,57, 61Deactivating the passenger airbag...............159Deadlocking ....................................................91Defrosting ..................................................70, 76Demisting..................................................70, 73Dials and gauges ......................................28,30Diesel additive level ...................................... 197Dimensions...................................................254Dipped beam.........................................112,218Dipstick....................................................45, 195Direction indicators.......................150, 221, 222Doors.............................................................102Doors emergency control .............................104
Door trays......................................................126
Filling with fuel......................................106-108Fitting a wheel...............................................212Fittings, boot.................................................130Flashing indicators ........................................150Foglamps, rear..............................................r114Fragrance car tridge........................................77Front foglamps ......................................114, 220Front seats................................................79, 82Fuel..........................................................24,107Fuel consumption............................................24Fuel filler flap.........................................106,108Fuel gauge....................................................106Fuel tank................................................106,108Fusebox, dashboard .....................................225Fuses .............................................................225
G
H
Halogen headlamps......................................217Hands-free kit........................................286,327Hazard warning lamps..........................150,151Head restraints, front......................................80Head restraints, rear.......................................r84Heating ......................................................24, 70Height and reach adjustment,steering wheel ..............................................85Hill start assist...............................................181Horn...............................................................151
Page 361 of 384
3Access
In order to maintain the state of charge of
the battery, it is recommended that the roof
be operated with the engine running
.
Operation of the roof is possible:
- engine running, or
- ignition on.
During operation of the roof with just
the ignition on, starting the engine may
cause the roof to stop, depending on
the state of charge of the battery. To
have the roof continue the operation,
operate the control again after the
engine has started.
Operating zones
There are two operating zones:
Zone A
: horizontal operating zone, in manual
or automatic mode.
Zone B
: vertical operating zone, in automatic
mode only.
Before operating the roof, ensure that no occupant of the vehicle or person outside the
vehicle could be subject to any risk related to the movement of the roof or the rear screen
and that no object could inter fere with the operation.
Roof positions
Position 0
: Roof completely closed.
Position 1
: Stop position for automatic roof
closing.
Position 2
: Roof open horizontally.
Position 3
: Roof completely open.
Page 368 of 384
10Access
If the roof stops in zone B
, a message in the
screen will ask you to stop the operation of the
roof immediately.
)
Press and hold the control:
- in the opening direction to reach
position 3
,
- in the closing direction to reach
position 2
.
Reinitialisation
Do not release the control during the
reinitialisation procedure.
Downgraded operation
Operating fault
In the event of an electrical fault,
contact a CITROËN dealer or a
qualified workshop.
If the automatic roof operation mode is lost, the
system must be reinitialised.
)
With the engine running
, press and hold
the control for closing the roof.
)
After about 5 seconds, the roof closes
completely to position 0
, then reverses by a
few millimetres.
The roof is the reinitialised.
You must not drive when the roof is
stopped in zone B
.
Page 377 of 384
19Te c h n i c a l d a t a
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
VTi 82
VTi 120
THP 155
THP 150 *
Gearboxes
Manual
Manual
Auto
matic
Manual
Model codes:
SB...
HMZ0
5FS0
5FS9
5FV8
5FN8 *
- Unladen weight
1 032
1 088
1 133
1 156
- Kerb weight
1 107
1 163
1 208
1 231
- Gross vehicle weight (GV W)
1 532
1 575
1 610
1 619
- Gross train weight (GTW)
on a 12 % gradient
2 332
2 475
2 510
2 519
- Braked trailer (within the GTW limit)
on a 12 % gradient
800
900
900
900
- Braked trailer ** (with load transfer within the
GTW limit)
1 100
1 150
1 150
1 150
- Unbraked trailer
520
570
570
570
- Recommended nose weight
46
46
46
46
* For Belgium.
**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Page 379 of 384
21Te c h n i c a l d a t a
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
e- HDi 90 PEF
Gearbox
Manual
(5 - speed)
Electronic gearbox system
(6- speed)
Model codes:
SB...
9HP0/S
9HP8/PS
- Unladen weight
1 085
1 090
- Kerb weight
1 160
1 165
- Gross vehicle weight (GV W)
1 625
1 639
- Gross train weight (GTW)
on a 12 % gradient
2 525
2 539
- Braked trailer (within GTW limit)
on 12 % gradient
900
900
- Braked trailer * (with load transfer
with the GTW limit)
1 150
1 150
- Unbraked trailer
570
570
- Recommended nose weight
46
46
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
*
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
