ECO mode CITROEN DS3 CABRIO 2014 Handbook (in English)

Display confi guration
Once this menu has been selected, you can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of units.
Once the fuel consumption units havebeen changed to mpg, the information in the screen relating to speed and distance also changes to mph andmiles respectively.
For safety reasons, configuration by thedriver of the multifunction screen must only be done when stationary.



Choice of language
Once this menu has been selected, you canchange the language used by the display(Deutsch, English, Espanol, Français, Italiano,Nederlands, Portugues, Portugues-Brasil,Türkçe * ).

*
Accordin
g to country of destination. With Audio s
ystem on, once this menu is selected you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (list of calls, ser vices...)and manage your calls (call, hang up, secondcall, secret mode...).
For more information on the "Telephone"
function, refer to the "Audio s
ystem" section.


"Telephone" Menu
Setting the date and time)Select the " Set date and time
" function using the "
" or " " button. )Press "OK"
to confirm the selection.)Adjust the settings one by one using the" " or "
" button then confirm with "OK".)Then select the "OK"
box in the screenand confirm.

73Comfort

















Digital air conditioning
The air conditioning operates when the engine is running, as well as in STOP mode with Stop & Start.


Automatic operation


1. Automatic "comfort" programme
Press the "AUTO"button.The "AUTO"
symbol is displayed. We recommend that you use
this mode. It provides optimisedautomatic control of all of the following functions: passenger compar tment
temperature, air flow, air distribution and air
intake, in accordance with the comfort value
that
you have chosen.
This system is designed to operate effectivelyin all seasons, with the windows closed.
For your comfor t, when the engine isswitched off, the settings are retained until the engine is switched on again. To prevent too great a distribution of cold air when the engine is cold, the air flow will only reach its optimum level gradually.
2. Temperature adjustment
The value indicated on the display corresponds
to a level of comfor t and not to a temperature in
de
grees Celsius or Fahrenheit.
On entering the vehicle, if the interior is very cold or hot, there is no need tochange the value displayed in order to reach the required level of comfort. The system corrects the temperature difference automatically and as quickly as possible.
Pr
ess the ""
and ""
buttons tochange this value. A setting around
the value 21enables optimum comfor t to be obtained. However,
depending on your requirements, asetting between 18 and 24 is usual.

3. Automatic "visibility" programme
The automatic comfor t programmemay not be sufficient for rapid
demisting or defrosting of the
windscreen and side windows(humidity, several passengers, ice, etc.).
In this case, select the automatic visibility
programme. The button 3indicator lamp comes on.
The system automatically controls the air conditioning and the flow of air and provides optimum air distribution to the windscreen andside windows. It deactivates air recirculation 5.
To exit this programme, press button 3again or "AUTO"
, the indicator lamp on the button goes off and "AUTO"
is displayed.
With Stop & Start, when demisting has been activated, the STOP mode is notavailable.

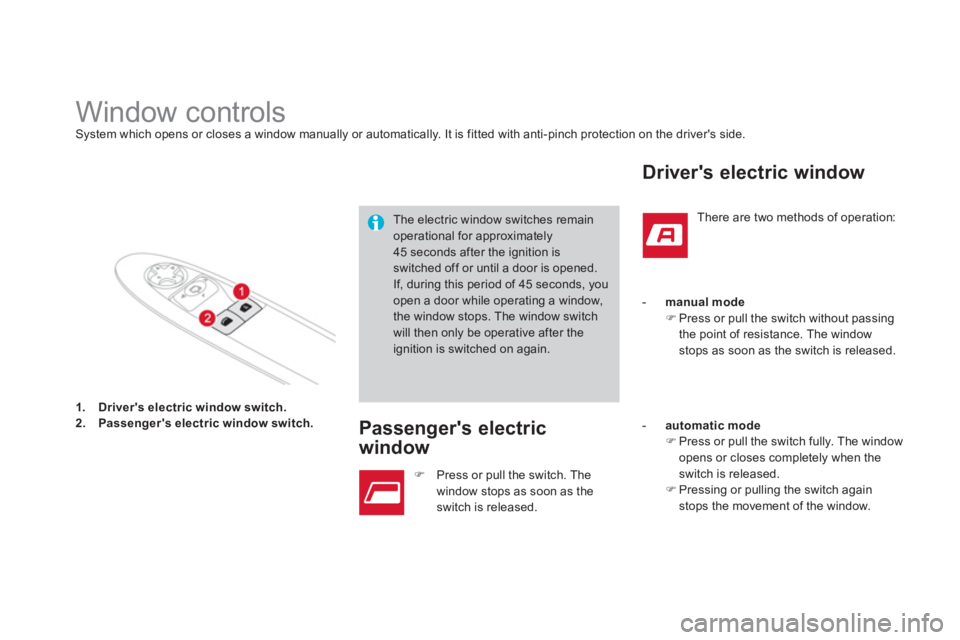

1.Driver's electric window switch.2.Passenger's electric window switch.














Window controls System which opens or closes a window manually or automatically. It is fitted with anti-pinch protection on the driver's side.
The electric window switches remainoperational for approximately45 seconds after the ignition isswitched off or until a door is opened.If, during this period of 45 seconds, youopen a door while operating a window, the window stops. The window switch will then only be operative after the ignition is switched on again.
)Press or pull the switch. The
window stops as soon as the
switch is released.



Passenger's electric
window
There are two methods of operation:

Driver's electric window
-manual mode)Press or pull the switch without passing
the point of resistance. The window
stops as soon as the switch is released.

-
automatic mode
)Press or pull the switch fully. The window
opens or closes completely when theswitch is released. )Pressing or pulling the switch again
stops the movement of the window.

C. Foglamp selection ring.
The fo
glamps operate with the dipped and mainbeam headlamps.
Rotate and release the rin
g C:)
forwards a first time to switch on the front foglamps,)
forwards a second time to switch on the
rear foglamp,) rearwards a first time to switch off the rear foglamp,)
rearwards a second time to switch of thefront fog lamps.
Model with front foglamps and a rear foglamp

Lighting on audible warning

When the ignition is switched off, allof the lamps switch off automatically, unless guide-me-home lighting isactivated.
If the lighting is switched on manuallyafter switching off the ignition, thereis an audible signal when a front door is opened to warn the driver that they have forgotten to switch off thevehicle's lighting, with the ignition off.


In good or rainy weather, by both day and night, the front foglamps and the rear foglamp are prohibited. In thesesituations, the power of their beams may dazzle other drivers.
Do not forget to switch off the front foglamps and the rear foglamp whenthey are no longer necessary. Front and rear
foglamps
When the li
ghting is switched off automatically (with AUTO model) or when the dipped
headlamps are switched off manually, the
foglamps and sidelamps will remain on.) Turn the ring rear wards to switch off thefoglamps, the sidelamps will then switch off.

A.Courtesy lampB.Map reading lamps











Courtesy lamp
In this position, the cour tesy lamp comes on gradually:


Courtesy lamp



- when the vehicle is unlocked,

- when the key is removed from the ignition,

- when a door is opened,

- when the remote control locking button is
activated, in order to locate your vehicle.
It switches off
gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is closed.
Permanentl
y off.
Permanent li
ghting.
With the "permanent lighting" mode, the duration of lighting varies, depending on the circumstances:- with the ignition off, approximately
ten minutes,- in energy economy mode, approximatelythirty seconds, - with the engine running, unlimited.


Map reading lamps
)With the ignition on, press thecorresponding switch.

123Visibility








Interior mood lighting The dimmed passenger compar tment lighting improves visibility in the vehicle when the lightis poor.


Switching on
At night, the illumination of footwells and thecentral dashboard storage compar tment comes
on automatically when the sidelamps areswitched on.
Switching off
The interior mood lighting switches off automatically when the sidelamps areswitched off.
It can be switched off manually using the instrument panel lighting rheostat button. ) With the lighting on, press several times on
the left hand button of the instrument panel
to progressively reduce the dashboard lighting level. ) Press again to reduce the lighting level
to the minimum and switch off the interior
mood lighting.

This comes on automatically when the boot is opened and goes off automatically when the boot is closed.




Boot lamp
The lighting time varies according to the circumstances:


- when the ignition is off, approximately ten minutes,

- in energy economy mode, approximatelythirty seconds,

- when the engine is running, no limit.

Manual operation
D disappears and the gears engaged appear in succession in the
instrument panel.
Invalid value during manual operation
)Select position M
for sequentialchanging
of the four gears.)Push the lever towards the + sign tochange up a gear. )Pull the lever towards the -
sign to changedown a gear.
It is only possible to change from one gear to another if the vehicle speed and engine speedpermit; otherwise, the gearbox will operate
temporarily in automatic mode.This s
ymbol is displayed if a gear
is not engaged correctly (selector
between two positions).



Stopping the vehicle

Before switching off the engine, you can engage
position Por N to place the gearbox in neutral.
In both cases, apply the parking brake to
immobilise the vehicle. When the i
gnition is on, the lighting
of this warnin
g lamp, accompanied
by an audible signal and a message in the multifunction screen, indicates a gearbox fault.
In this case, the gearbox switches to back-up mode and is locked in 3rd gear. You may feel
a substantial knock when changing from Pto Rand from N to R
. This will not cause any
damage to the gearbox.
Do not exceed 60 mph (10 0 km/h), local speed
restrictions permitting.
Contact a CITROËN dealer or a qualified
wor
kshop as soon as possible.

Operating fault
If the lever is not in position P
, P
when the driver's door is opened or approximately 45 seconds after theignition is switched off, a warning message appears in the screen.)Return the lever to position P; the message disappears.




There is a risk of damage to thegearbox:


- if you press the accelerator and brake pedals at the same time,

- if you force the movement of the gear lever from the Pposition toanother position when the battery is flat.

To r e d u c e fuel consumption when at a prolonged standstill with the enginerunning (traffic jam...), put the gear lever in the Nposition and apply the parking brake. I
f the engine speed is too low or too high, the gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to chan
ge from position D(automatic) to position M (manual) at any time.
When the vehicle is stationary or movingvery slowly, the gearbox selects gear M1automatically. The spor t and snow programmes do not
operate in manual mode.

177Driving

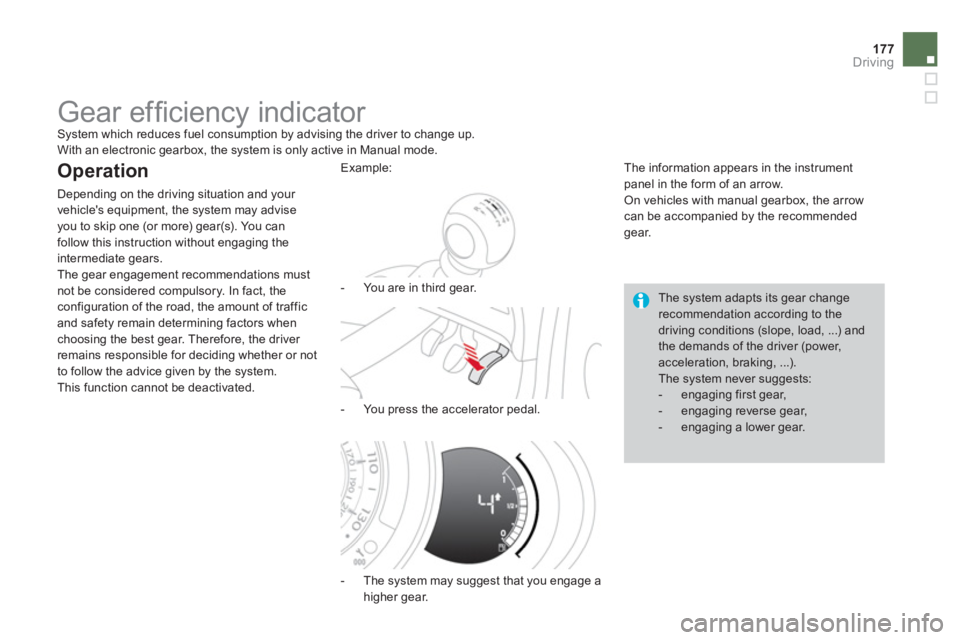

Gear effi ciency indicator System which reduces fuel consumption by advising the driver to change up.
With an electronic gearbox, the system is only active in Manual mode.

Operation
Depending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one
(or more) gear(s). You can follow this instruction without engaging the
intermediate gears.
The gear engagement recommendations mustnot be considered compulsory. In fact, the configuration of the road, the amount of traffic
and safety remain determining factors whenchoosing the best gear. Therefore, the driver
remains responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated.
- The s
ystem may suggest that you engage a
higher gear.
The in
formation appears in the instrument panel in the form of an arrow.
On vehicles with manual gearbox, the arrow can be accompanied by the recommendedgear.


The system adapts its gear change recommendation according to thedriving conditions (slope, load, ...) and the demands of the driver (power,acceleration, braking, ...). The system never suggests:


- engaging first gear,

- engaging reverse gear,

- engaging a lower gear.
Example:
- You are in third
gear.
- You press the accelerator pedal.

Stop & Start The Stop & Start system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...). The engine restar ts automatically - START mode - as soon as you want to move off. The restar t takes place instantly, quickly and silently.
Per
fect for urban use, the Stop & Start system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
Operation
Going into engine STOP mode
For your comfor t, during parkingmanoeuvres, STOP mode is not available for a few seconds after coming out of reverse gear.STOP mode does not affect the functionality of the vehicle, such as for example, braking, power steering...
Never refuel with the engine in STOPmode; you must switch off the ignition with the key. Th
e "ECO"warning lamp comes
on in the instrument panel and the engine goes into standby:
- with a manual gearbox
, at speeds below
12 mph (20 km/h), when you put the gear lever into neutral, and you release theclutch pedal. -with a 5 or 6-speed electronic gearbox ,
at speeds below 5 mph (8 km/h), when you press the brake pedal or put the gear lever in position N.
A time counter calculates the sum
of the periods in STOP mode
during a journey. It rests itself
to zero every time the ignition is switched on with the key.
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded 6 mph(10 km/h) since the last engine star t using
the key,

- the engine is needed to maintain acomfortable temperature in the passenger compartment,

- demisting is active,

- some special conditions (battery charge, engine temperature, braking assistance,ambient temperature...) where the engine isneeded to assure control of a system.


Special cases: STOP mode not available

The "ECO"warning lamp flashes for
a few seconds then goes off.
This operation is per fectly normal.

179Driving

Going into engine START mode
The "ECO"warning lamp goes off and the engine star ts:


-
with a manual gearbox
, when you
depress the clutch pedal,
-
with a 5-speed or 6-speed electronic gearbox:
●
gear lever in position Aor M
, when yourelease the brake pedal,
●
or gear lever in position Nand the brake pedal released, when you move the gear lever to position A
or M,
●
or when you engage reverse gear.


Special cases: START invoked automatically


If the system has been deactivatedin STOP mode, the engine restar ts immediately.

At any time, press the "ECO OFF"
switch todeactivate the system.
This is confirmed by the switch warning lamp coming on accompanied by a message in the screen.


Deactivation
For reasons of safety and for your comfort,START mode is invoked automatically when:
- you open the driver's door,
- you unfasten the driver's seat belt,
- the speed of the vehicle exceeds 7 mph
(11 k m/h) with the electronic gearbox system,
- some special conditions (battery charge,engine temperature, braking assistance,
ambient temperature...) where the engine is
needed for control of a system.
Th
e "ECO"
warning lamp flashes for
a few seconds, then goes off.
This operation is per fectly normal.
With a manual gearbox in STOP mode,if you engage a gear without fully depressing the clutch pedal, a message is displayed asking you to fully depressthe clutch pedal so that the engine can restart.
