Page 182 of 384
The system is reactivated automaticallyat every new star t using the key.
Reactivation
This system requires a battery with a specialspecification and technology (reference numbers available from a CITROËN dealer or a qualified workshop).
Fitting a battery not listed by CITROËN introduces the risk of malfunction of
the system. In the event of a fault with the system, the
"ECO OFF"
switch warning lamp flashes thencomes on continuously.
Have it checked by a CITROËN dealer or aqualified workshop.
In the event of a fault in STOP mode, the
vehicle may stall. All of the instrument panel
warning lamps come on. It is then necessaryto switch off the ignition and star t the engine
again using the key.
Operating fault
Maintenance
Before doing anything under the bonnet, deactivate the Stop & Start system to avoid any risk of injury resulting from automatic operation of STA R T mode.
The Stop & Start system makes use of advanced technology. All work
on this type of battery must be doneby a CITROËN dealer or a qualifiedworkshop. Pr
ess the "ECO OFF"switch again.
The system is active again; this is confirmed
by the switch warning lamp going off,accompanied by a message in the screen.
Page 183 of 384
181Driving
Hill start assist
System which holds your vehicle temporarily (approximately 2 seconds) when star ting on a slope, the time it takes to move your foot from
the brake pedal to the accelerator pedal.
This function is onl
y active when:
- the vehicle is completel
y stationary, with your foot on the brake pedal,
- certain conditions on a slope are met,
- with the driver’s door closed.
The hill start assist function cannot bedeactivated.
On an ascending slope, with the vehicle
stationar
y, the vehicle is held momentarilywhen you release the brake pedal:- provided you are in automated mode(position A) or in manual mode (position AM )
on an electronic gearbox.
Do not leave the vehicle while it is being held in the hill star t assist phase.
If you need to leave the vehicle withthe engine running, manually apply the parking brake then ensure that the parking brake warning lamp is on (notflashing) in the instrument panel.
Operation
On a descending slope, with the vehicle
stationary and reverse gear engaged, thevehicle is held momentarily when you
release the brake pedal.
Operating fault
If a malfunction of the system occurs, these
warning lamps come on. Contact a CITROËN
dealer or a qualified workshop to have the
system checked.
Page 185 of 384
183Driving
)Turn thumb wheel 1to the "LIMIT"position: the speed limiter mode is
selected but is not switched on (PAUSE).You do not have to switch the speed limiter on
in order to set the speed. )Set the speed value by pressing button 2 or 3 (e.g.: 55 mph (90 km/h)).
Programming
You can then change the programmed speed using buttons 2and 3:
- by + or - 1 mph (km/h) = shor t press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press. )Switch the speed limiter on by pressing button 4
. )Switch the speed limiter off by pressing button 4
: the display confirms that it has been switched off (PAUS E). )Switch the speed limiter back on by pressing button 4again.
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have
any effect unless you press the pedal firmlypast the ypoint of resistance. The speed limiter is deactivated temporarily and the programmed speed,
which is still displayed, flashes.
Returning to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the programmed speed.
On a steep descent or in the event of sharp acceleration, the speed limiter will not be able to prevent the vehicle fromexceeding the programmed speed.
To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned correctly,
- do not fit one mat on top of another.
Leaving limiter mode
)
Turn thumb wheel 1
to the "0"
position:
the speed limiter mode is deselected. The
display returns to the distance recorder.
Operating fault
In the event of a speed limiter fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a qualified workshop.
Page 186 of 384

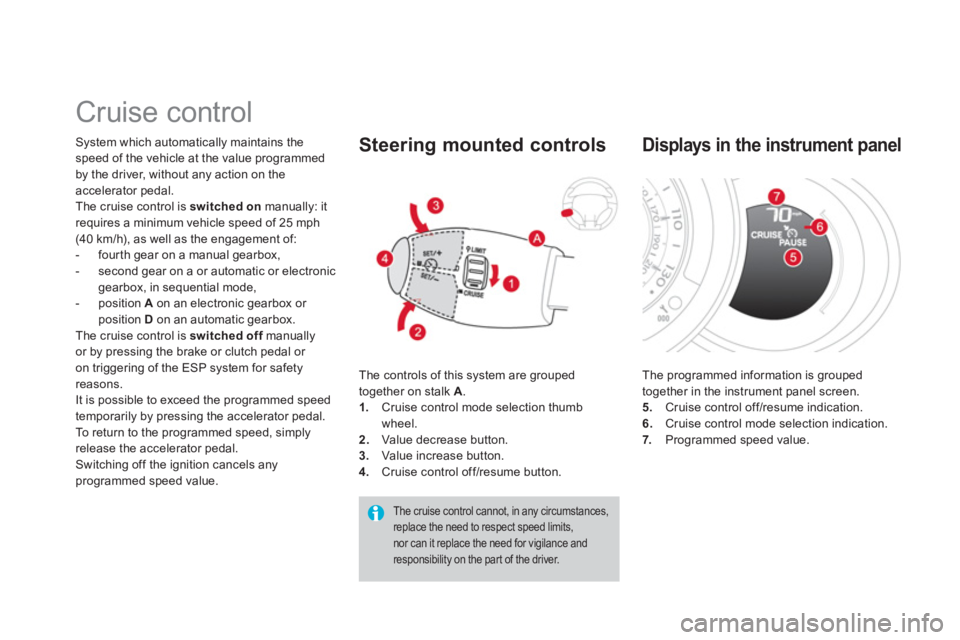

Cruise control
System which automatically maintains the
speed of the vehicle at the value programmed
by the driver, without any action on the accelerator pedal.
The cruise control is switched on
manually: itrequires a minimum vehicle speed of 25 mph
(40 km/h), as well as the engagement of:
- fourth gear on a manual gearbox,
- second gear on a or automatic or electronic
gearbox, in sequential mode,
-
position A
on an electronic gearbox or position D
on an automatic gearbox.
The cruise control is switched offmanuallyfor by pressing the brake or clutch pedal or
on triggering of the ESP system for safety reasons. It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal.
To return to the programmed speed, simply
release the accelerator pedal.
Switching off the ignition cancels any programmed speed value. The controls o
f this system are grouped
together on stalk A
.
1.Cruise control mode selection thumb
wheel.
2. Value decrease button. 3.
Value increase button. 4.Cruise control off/resume button.
Steering mounted controls
The cruise control cannot, in any circumstances, replace the need to respect speed limits, nor can it replace the need for vigilance and responsibility on the par t of the driver.
The programmed information is grouped
together in the instrument panel screen.
5. Cruise control off/resume indication.
6. Cruise control mode selection indication.
7. Programmed speed value.
Displays in the instrument panel
Page 187 of 384
185
Driving

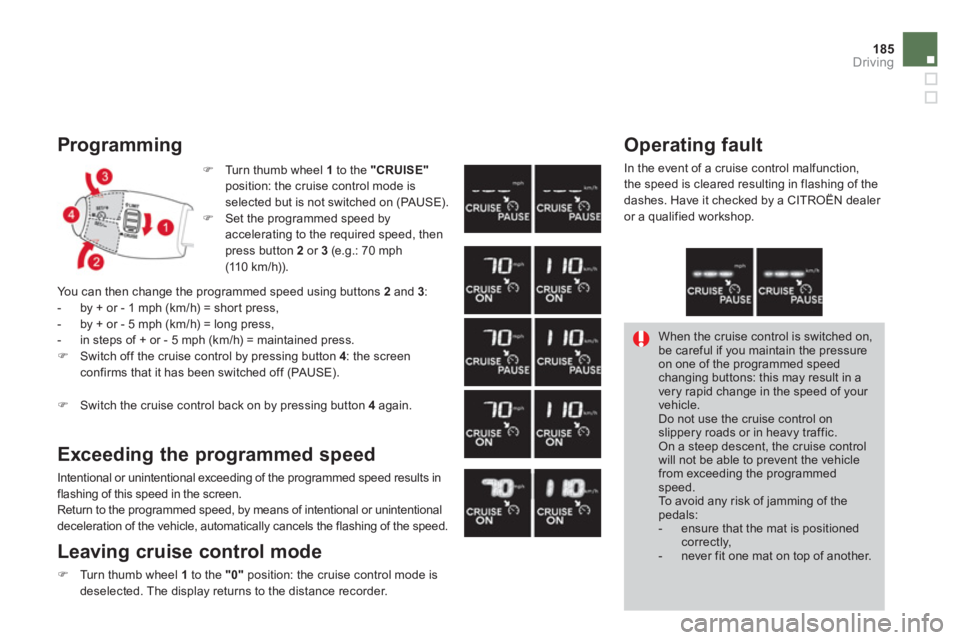

Programming
)Turn thumb wheel 1to the "CRUISE"position: the cruise control mode isselected but is not switched on (PAUSE). )Set the programmed speed byaccelerating to the required speed, thenpress button 2 or 3 (e.g.: 70 mph(11 0 k m / h)).
You can then change the programmed speed using buttons 2and 3:
- by + or - 1 mph (km/h) = shor t press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press. )Switch off the cruise control by pressing button 4: the screenconfirms that it has been switched off (PAUS E).
)Switch the cruise control back on by pressing button 4
again.
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed speed results in flashing of this speed in the screen.
Return to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the speed.
Leaving cruise control mode
)Turn thumb wheel 1to the "0"position: the cruise control mode is
deselected. The display returns to the distance recorder.
Operating fault
In the event of a cruise control malfunction,
the speed is cleared resulting in flashing of the
dashes. Have it checked by a CITROËN dealer or a qualified workshop.
When the cruise control is switched on,be careful if you maintain the pressure on one of the programmed speedchanging buttons: this may result in avery rapid change in the speed of your vehicle. Do not use the cruise control on slippery roads or in heavy traffic. On a steep descent, the cruise control will not be able to prevent the vehicle from exceeding the programmedspeed.
To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned correctly,
- never fit one mat on top of another.
Page 237 of 384
235
Practical information
Energy economy mode System which manages the period of use of cer tain functions to conser ve a sufficient level of charge in the battery.
After the engine has stopped, you can still use functions such as the audio equipment, windscreen wipers, dipped beam headlamps, cour tesy lamps,etc. for a maximum combined period of thir ty minutes.
This period may be greatly reduced if the battery is not fully charged.
A flat battery prevents the engine from starting (refer to the correspondingparagraph).
If the telephone is being used at thesame time on the eMyWay audionavigation system, it will be interrupted after 10 minutes.
Switching to economy mode
Once this period has elapsed, a message appears on the multifunction screen indicating
that the vehicle has switched to economy mode and the active functions are put on standby.
Exiting economy mode
These functions are reactivated automatically
the next time the vehicle is driven. ) In order to resume the use of thesefunctions immediately, star t the engine and
let it run for a few minutes.
The time available to you will then be double
the period for which the engine is left running. However, this period will always be between five and thir ty minutes.
Page 249 of 384
247Technical data
ENGINE AND GEARBOX- RACING
MODELS:Model codes: SA...5FF85FD8
PETROL ENGINE
Cubic capacit
y (cc) 1 598
Bore x stroke
(mm) 77 x 85.8
Max power: EU standard (kW) *
149 152
Max power en
gine speed (rpm) 6 000
Max torque: EU standard
(Nm)
275
Max torque en
gine speed (rpm)
2 000
F
uel
Unleaded **
Catalytic converter Yes
GEARBO
XManual (6-speed)
OIL CAPACITY (in litres)
En
gine (with filter replacement) 4.25
**
CITROËN strongly recommends the use of 98 RON unleaded petrol to ensure optimum operation of the engine (refer to the label inside the fuel filler flap).
*
The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Page 250 of 384
*For Belgium and Russia. **
For Brazil.***
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
.../S: e-VTi model fitted with Stop & Start.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

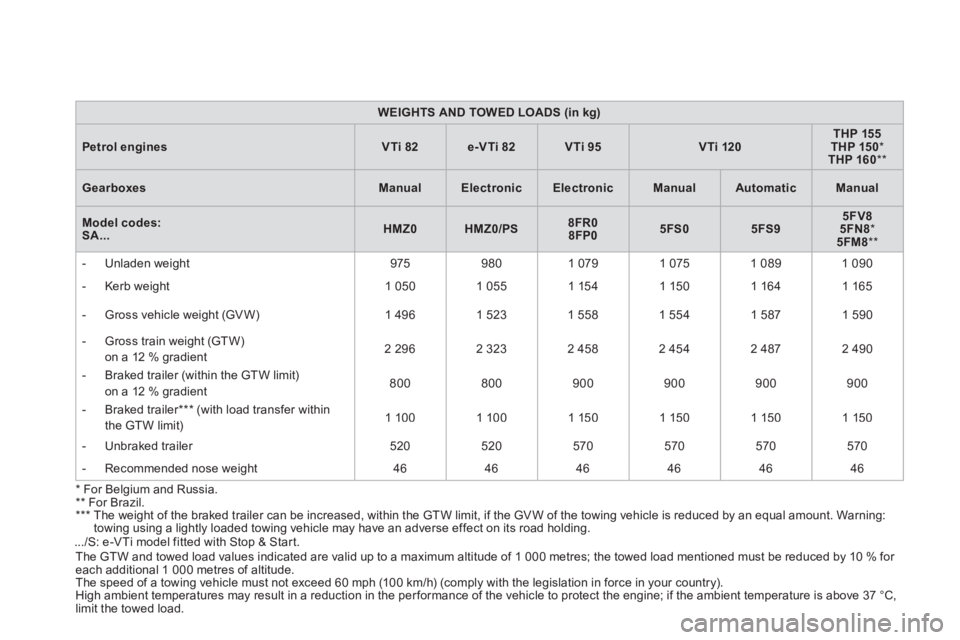

WEIGHTS AND TOWED LOADS (in kg)
Petrol enginesVTi 82e-VTi 82VTi 95VTi 120THP 155THP 150*THP 160
**
GearboxesManualElectronicElectronicManualAutomaticManual
Model codes: SA...HMZ0HMZ0/PS8FR08FP05FS05FS95FV85FN8*5FM8**
- Unladen weight
975
980 1 079 1 075
1 089 1 090
-
Kerb weight
1 050
1 0551 1541 150
1 164
1 165
- Gross vehicle wei
ght (GV W)
1 4961 523
1 558
1 554 1 587 1 590
-
Gross train weight (GTW) on a 12 % gradient
2 296
2 323
2 458
2 454
2 487 2 490
- Braked trailer
(within the GTW limit) on a 12 % gradient 800
800
900
900
900900
- Braked trailer *** (with load transfer within
the GTW limit)1 100
1 1001 1501 150
1 150
1 150
-
Unbraked trailer
520
520
570
570
570570
-
Recommended nose weight
46
46
46
46
46
46
Page 251 of 384
249Technical data
WEIGHTS (in kg)- RACING
Petrol engine
GearboxManualManual
Model codes: SA...5FF85FD8
- Unladen weight 1 165
- Kerb weight 1 240
-
Gross vehicle weight (GVW)
1 597
-
Gross train weight (GTW)
on a 12% gradient 1 597
- Braked trailer
(within the GTW limit)
on a 12% slop0
- Braked trailer (with transfer of load within
the GTW limit)0
- Unbraked trailer 0
- Recommended nose wei
ght *0
*
See the "Towing a trailer" section.
Page 253 of 384
251Technical data
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
LPG enginesVTi 95
GearboxManual
Model codes:SA...8FR0/GPL
-
Unladen weight 1 152
- Kerb wei
ght 1227
- Gross vehicle weight (GV W)
1 552
-
Gross train weight (GTW)
on a 12 % slope
2 452
- Braked trailer
(within GTW limit) on a 12 % slope 900
- Braked trailer *
(with load transfer within the
GTW limit) 1 15 0
- Unbraked trailer
570
-
Recommended nose weight 46
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
