Model without AUTO lighting
Model with AUTO lighting
Manual controls
The lighting is controlled directly by the driver by   means   of   the   ring   A   and   the   stalk   B.
Automatic
  illumination   of   headlamps.
B.
 S

talk   for   switching   the   headlamp   beam:
p

ull   the   stalk   to   switch   between   dipped   and
m

ain   beam   headlamps.
In
  the   lamps   off   and   sidelamps   modes,
t

he   driver   can   switch   on   the   main   beam
h

eadlamps   temporarily   ("headlamp   flash")   by
m

aintaining   a   pull   on   the   stalk.
A.
 M

ain   lighting   mode   selection   ring:   turn   it
t

o   position   the   symbol   required   facing   the
ma

rk.Lighting
  off   /   daytime   running   lamps.
Sidelamps
 o

nly.
Dipped headlamps or main beam headlamps.
displays
Lighting of the corresponding indicator lamp on the   instrument   panel   confirms   the   switching   on
o

f   the   lighting   selected.
The
  instrument   panel   has   permanent   back-
lighting.
  Illumination   of   the   instrument   panel   is
t

herefore   not   linked   to   the   exterior   lighting.
Visibility

DS3_en_Chap07_visibilite_ed01-2014
The sidelamps and dipped beam headlamps are   switched   on   automatically,   without   any
a

ction on the part of the driver, when a low level
of
  external   light   is   detected   or   in   certain   cases
o

f   activation   of   the   windscreen   wipers.
As
  soon   as   the   brightness   returns   to   a
s

ufficient level or after the windscreen wipers
are
  switched   off,   the   lamps   are   switched   off
au

tomatically.
Automatic illumination of headlamps
Activation
F Turn   ring   to   the   "AUTO"  position.   The  a
utomatic   illumination   of   headlamps   is
a

ccompanied   by   a   message   in   the   screen.
deactivation
F Turn  ring   to   a   position   other   than   "AUTO".  D
eactivation   is   accompanied   by   a   message
i

n   the   screen.
Association with the automatic
"Guide-me-home" lighting
Association with the automatic illumination of headlamps   provides   "guide-me-home"   lighting
w

ith   the   following   additional   options:
-

s
election   of   the   lighting   duration   to   15,
30 or 60 seconds in the functions that can
be
  set   in   the   vehicle   configuration   menu
(

except   in   the   case   of   the   monochrome
s

creen   A,   for   which   the   duration   is   set:
60 seconds),
-

a
utomatic   activation   of   "guide-me-home"
l

ighting   when   automatic   illumination   of
h

eadlamps   is   in   operation.
Operating fault
In the event of a fault with the
sunshine  sensor,   the   lighting
c

ome

on,

this   warning   lamp   is   displayed   in   the
i

nstrument

panel   and/or   a   message   appears   in
t

he

screen,
  accompanied   by   an   audible   signal.
Contact a CITR
oË

N dealer or a qualified
workshop.
In

fog   or   snow,   the   sunshine   sensor
m

ay

detect   sufficient   light.   Therefore,
t

he

lighting   will   not   come   on
au

tomatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind
  the   rear   view   mirror;   the
a

ssociated   functions   would   no   longer
be c

ontrolled.

151
DS3_en_Chap08_securite_ed01-2014
The alert is maintained until the system is r einitialised.
The loss of pressure detected does not
always

cause

visible

bulging

of

the

tyre.

D

o

not

satisfy

yourself

with

just

a

visual

c

heck. Before
  reinitialising   the   system,   ensure
t

hat the pressures of the four tyres are
correct for the use of the vehicle and in
line
  with   the   recommendations   on   the
t

yre   pressure   label.
The
  under-inflation   detection   system
d

oes   not   give   a   warning   if   a   pressure   is
i

ncorrect   at   the   time   of   reinitialisation.

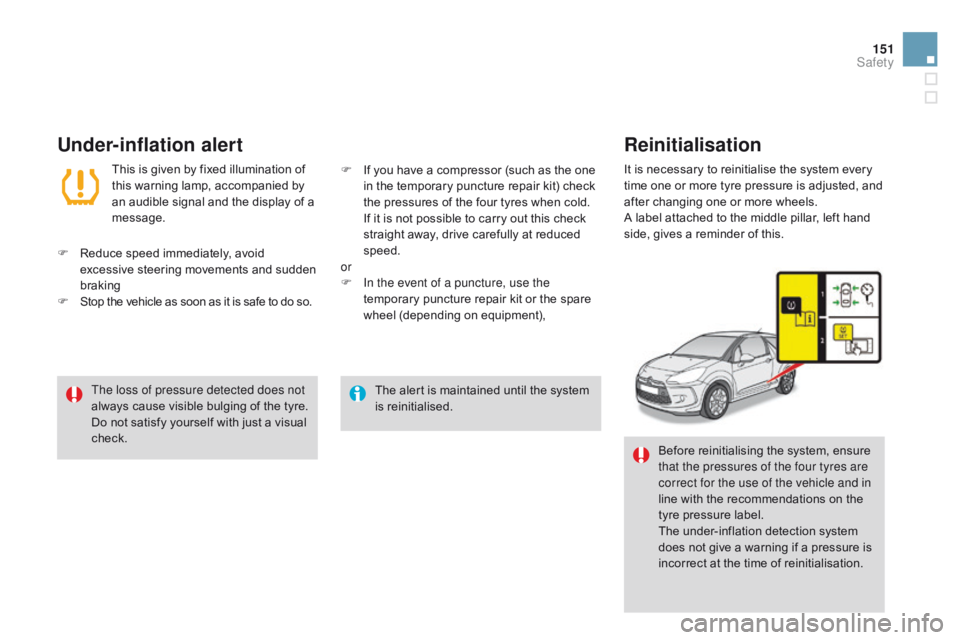

Under-inflation alert
This is given by fixed illumination of this   warning   lamp,   accompanied   by
a

n   audible   signal   and   the   display   of   a
m

essage.
F

R

educe   speed   immediately,   avoid
e

xcessive   steering   movements   and   sudden
b

raking
F

S

top

the   vehicle   as   soon   as   it   is   safe   to   do   so.F
 I f   you   have   a   compressor   (such   as   the   one
i

n   the   temporary   puncture   repair   kit)   check
t

he   pressures   of   the   four   tyres   when   cold.
I

f   it   is   not   possible   to   carry   out   this   check
s

traight   away,   drive   carefully   at   reduced
s

peed.
or
F

I
n the event of a puncture, use the
temporary
  puncture   repair   kit   or   the   spare
w

heel   (depending   on   equipment),
Reinitialisation
It is necessary to reinitialise the system every time   one   or   more   tyre   pressure   is   adjusted,   and
a

fter   changing   one   or   more   wheels.
A
  label   attached   to   the   middle   pillar,   left   hand
s

ide,   gives   a   reminder   of   this.
Safety

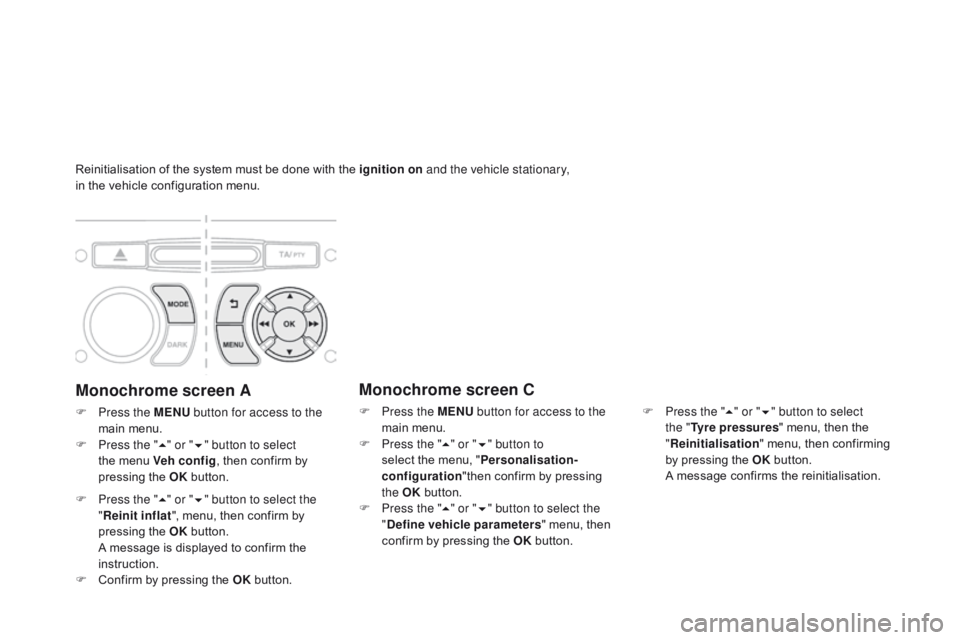

Reinitialisation of the system must be done with the ignition on a nd the vehicle stationary,
in the vehicle   configuration   menu.
Monochrome screen A
F Press the MENU button for access to the
main   menu.
F

P
ress the " 5" or " 6" button to select
the
  menu   Veh conf ig,
  then   confirm   by
p

ressing   the   OK

button.
F

P
ress the " 5" or " 6" button to select the
" Reinit inflat ",
  menu,   then   confirm   by
p

ressing   the   OK

button.
 A

  message   is   displayed   to   confirm   the
in

struction.
F

C
onfirm   by   pressing   the   OK

button.
Monochrome screen c
F Press the MENU button for access to the
main   menu.
F

P
ress the " 5" or " 6" button to
select
  the   menu,   "Personalisation-
configuration "then
  confirm   by   pressing
t

he OK

button.
F

P
ress the " 5" or " 6" button to select the
"
def

ine vehicle parameters "
  menu,   then
c

onfirm   by   pressing   the   OK

button.F
P ress the "
5" or " 6" button to select
the " Tyre pressures "
  menu,   then   the
"R

einitialisation"
  menu,   then   confirming
b

y   pressing   the   OK

button.
 A

  message   confirms   the   reinitialisation.

153
DS3_en_Chap08_securite_ed01-2014

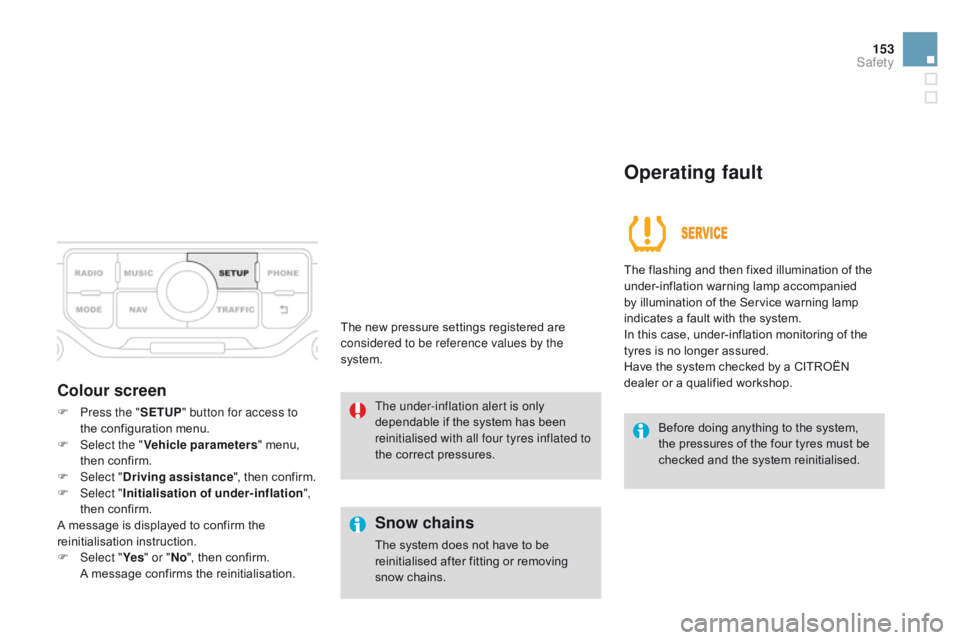

colour screen
F Press the "SETUP" button for access to
the   configuration   menu.
F

Sel
ect the " Vehicle parameters "
  menu,
t

hen   confirm.
F

Sel
ect "
dr
iving assistance ",
  then   confirm.
F

Sel
ect "Initialisation of under-inflation ",
then
  confirm.
A
  message   is   displayed   to   confirm   the
r

einitialisation
 i
nstruction.
F

Sel
ect "Ye s" or " No",
  then   confirm.
 A

  message   confirms   the   reinitialisation.The
  new   pressure   settings   registered   are
c

onsidered to be reference values by the
system.
Snow chains
The system does not have to be r einitialised   after   fitting   or   removing
sn

ow
 c
hains. Before
  doing   anything   to   the   system,
t

he   pressures   of   the   four   tyres   must   be
c

hecked   and   the   system   reinitialised.
The under-inflation alert is only
dependable   if   the   system   has   been
r

einitialised with all four tyres inflated to
the   correct   pressures.
Operating fault
The flashing and then fixed illumination of the u
nder-inflation w arning lam p a ccompanied b

y   illumination   of   the   Service   warning   lamp
i

ndicates   a   fault   with   the   system.
In
  this   case,   under-inflation   monitoring   of   the
t

yres   is   no   longer   assured.
Have
  the   system   checked   by   a   CITROËN
d

ealer   or   a   qualified   workshop.
Safety

Operation

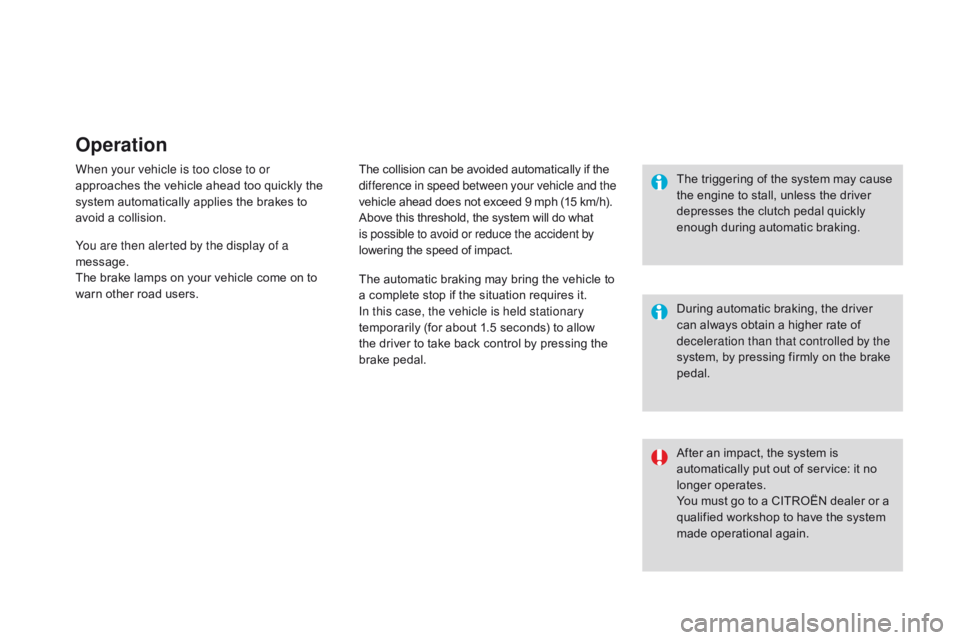

When your vehicle is too close to or
approaches  the   vehicle   ahead   too   quickly   the
s

ystem   automatically   applies   the   brakes   to
a

void   a   collision. The
  collision   can   be   avoided   automatically   if   the d
ifference in speed between your vehicle and the
vehicle
  ahead   does   not   exceed   9   mph   (15   km/h).
Above
  this   threshold,   the   system   will   do   what
 i

s possible to avoid or reduce the accident by
lowering
  the   speed   of   impact.
The
  automatic   braking   may   bring   the   vehicle   to
a

  complete   stop   if   the   situation   requires   it.
In this case, the vehicle is held stationary
temporarily
  (for   about   1.5   seconds)   to   allow
t

he   driver   to   take   back   control   by   pressing   the
b

rake
 ped
al.
You are then alerted by the display of a
message.
The
  brake   lamps   on   your   vehicle   come   on   to
w

arn   other   road   users.
After
  an   impact,   the   system   is
a

utomatically   put   out   of   service:   it   no
lon

ger
 ope
rates.
You
  must   go   to   a   CITROËN   dealer   or   a
q

ualified   workshop   to   have   the   system
m

ade   operational   again.
During
  automatic   braking,   the   driver
c

an   always   obtain   a   higher   rate   of
d

eceleration than that controlled by the
system,
  by   pressing   firmly   on   the   brake
ped

al.
The
  triggering   of   the   system   may   cause
t

he   engine   to   stall,   unless   the   driver
d

epresses   the   clutch   pedal   quickly
e

nough   during   automatic   braking.

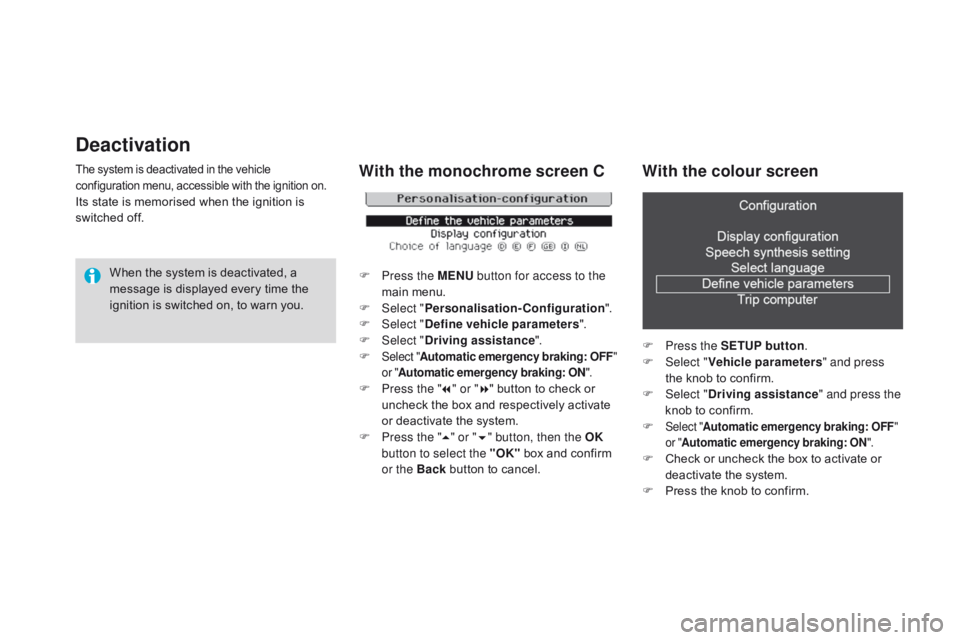

deactivation
The system is deactivated in the vehicle configuration   menu,   accessible   with   the   ignition   on.
Its state is memorised when the ignition is switched   off.
When
  the   system   is   deactivated,   a
m

essage   is   displayed   every   time   the
i

gnition   is   switched   on,   to   warn   you.
With the monochrome screen c
F Press the MENU button for access to the
main   menu.
F

Sel
ect "Personalisation-
co

nfiguration".
F

Sel
ect "
def
ine vehicle parameters ".
F

Sel
ect "
dr
iving assistance ".
F

Select " Automatic emergency braking: OFF "
or " Automatic emergency braking : ON".
F Press the " 7" or " 8"   button   to   check   or  u
ncheck   the   box   and   respectively   activate
o

r   deactivate   the   system.
F

P
ress the " 5" or " 6" button, then the OK
button to select the "OK"


box   and   confirm
o

r the Back

button   to   cancel.
With the colour screen
F Press the SETUP button .
F Sel ect "Vehicle parameters " and press
the
  knob   to   confirm.
F

Sel
ect "
dr
iving assistance " and press the
knob
  to   confirm.
F

Select " Automatic emergency braking: OFF "
or " Automatic emergency braking: ON ".
F Check  or   uncheck   the   box   to   activate   or  d
eactivate   the   system.
F

P
ress   the   knob   to   confirm.

161
DS3_en_Chap08_securite_ed01-2014
Operating faults
In the event of an impact to the windscreen at the sensor, deactivate
the
  system   and   contact   a   CITROËN
d

ealer   or   a   qualified   workshop to   have
y

our   windscreen   replaced.
Never
  try   to   remove,   adjust   or   test
t

he sensor.
on

ly a CITR
oË
N dealer or a qualified
workshop
  is   able   to   work   on   the   system.
When
  towing   a   trailer   or   when   the
v

ehicle   is   being   towed,   the   system   must
b

e   deactivated.
Do not stick or other wise fix any object on the   windscreen   in   front   of   the   sensor.
Sensor fault
The operation of the laser sensor may suffer inter ference   from   accumulations   of   dirt   or
m

isting   of   the   windscreen.   In   this   case   you   are
w

arned   by   the   display   of   a   message.
Use
  the   windscreen   demisting   and   regularly
c

lean the area of the windscreen in front of the
sensor.
System fault
In the event of a malfunction of the system, you a re   warned   by   an   audible   signal   and   the   display
o

f   the   message   "Automatic braking system
fault" .
Have
  the   system   checked   by   a   CITROËN
d

ealer   or   a   qualified   workshop.
Safety

195
DS3_en_Chap10_info-pratiques_ed01-2014

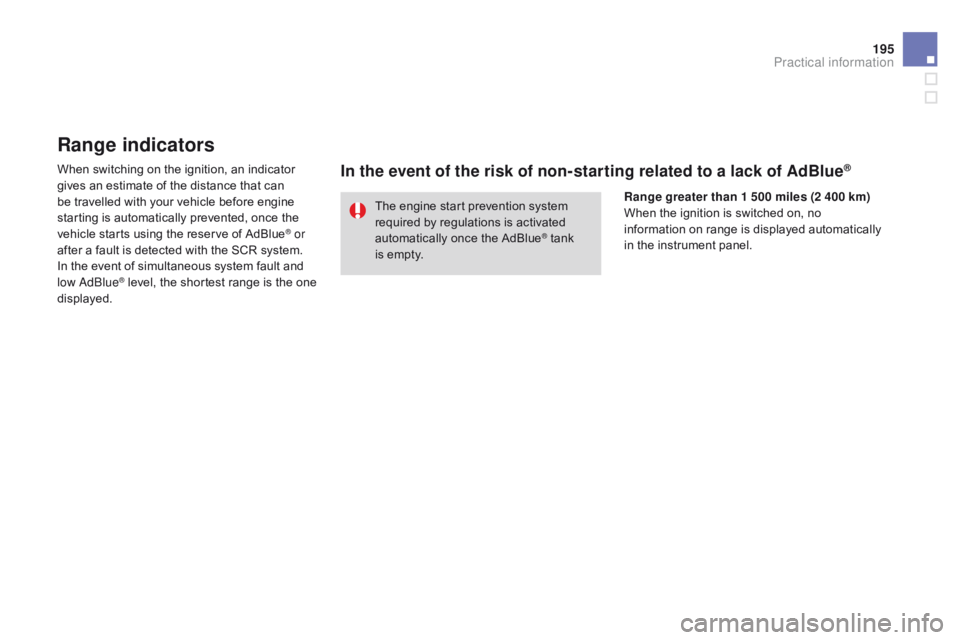

Range indicators
When switching on the ignition, an indicator gives   an   estimate   of   the   distance   that   can
b

e   travelled   with   your   vehicle   before   engine
s

tarting   is   automatically   prevented,   once   the
v

ehicle   starts   using   the   reserve   of   AdBlue
® or
after

a

fault

is

detected

with

the

SCR

system.
In

the

event

of

simultaneous

system

fault

and
l

ow
a
d
blu

e
® level, the shortest range is the one d
isplayed. The
  engine   start   prevention   system
r

equired   by   regulations   is   activated
a

utomatically   once   the   AdBlue
® tank i
s

empty.
In the event of the risk of non-starting related to a lack of AdBlue®
Range greater than 1 500 miles (2 400 km)
When   the   ignition   is   switched   on,   no
i

nformation   on   range   is   displayed   automatically
i

n   the   instrument   panel.
Practical information

DS3_en_Chap10_info-pratiques_ed01-2014

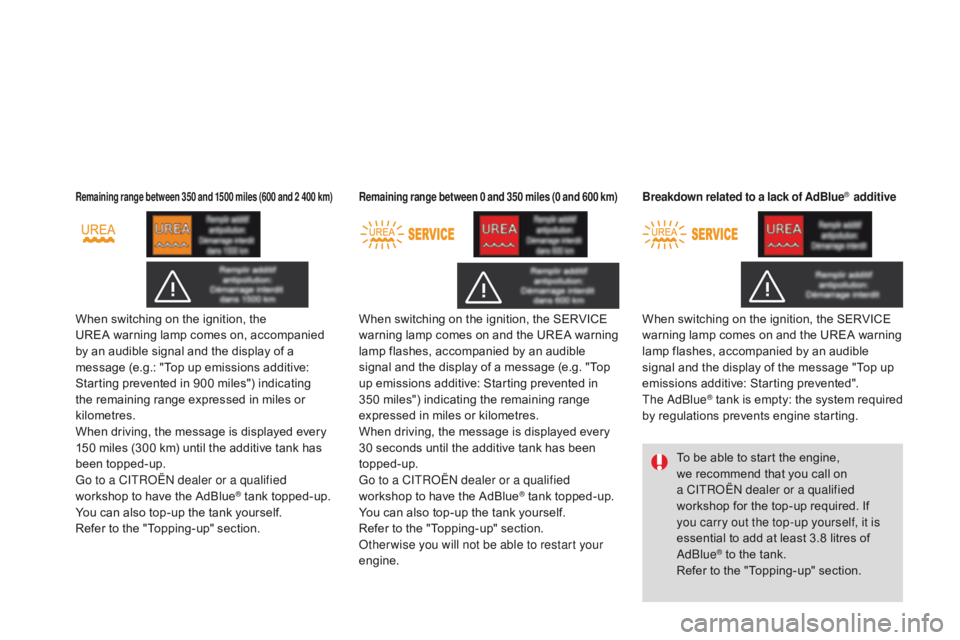

Remaining range between 350 and 1500 miles (600 and 2 400 km)
When switching on the ignition, the UREA warning   lamp   comes   on,   accompanied
b

y   an   audible   signal   and   the   display   of   a
m

essage   (e.g.:   "Top   up   emissions   additive:
S

tarting   prevented   in   900   miles")   indicating
t

he   remaining   range   expressed   in   miles   or
k

ilometres.
When
  driving,   the   message   is   displayed   every
1

50   miles   (300   km)   until   the   additive   tank   has
be

en
 t
opped-up.
Go to a CITR
oË

N dealer or a qualified
workshop
  to   have   the   AdBlue
® tank topped-up.
Y
ou

can

also

top-up

the

tank

yourself.
Refer

to

the

"Topping-up"

section. When
  switching   on   the   ignition,   the   SERVICE
w

arning   lamp   comes   on   and   the   UREA   warning
l

amp   flashes,   accompanied   by   an   audible
s

ignal   and   the   display   of   a   message   (e.g.   "Top
u

p   emissions   additive:   Starting   prevented   in
3

50   miles")   indicating   the   remaining   range
e

xpressed   in   miles   or   kilometres.
When   driving,   the   message   is   displayed   every
3

0   seconds   until   the   additive   tank   has   been
t

opped-up.
Go to a CITR
oË
N dealer or a qualified
workshop   to   have   the   AdBlue® tank topped-up.
Y
ou

can

also

top-up

the

tank

yourself.
Refer

to

the

"Topping-up"

section.
ot

her wise you will not be able to restart your
engine.
Remaining range between 0 and 350 miles (0 and 600 km)
When switching on the ignition, the SERVICE w arning   lamp   comes   on   and   the   UREA   warning
l

amp   flashes,   accompanied   by   an   audible
s

ignal   and   the   display   of   the   message   "Top   up
e

missions   additive:   Starting   prevented".
The
a d
blu
e
® tank is  empty:  t he  s ystem  r equired  b
y

regulations   prevents   engine   starting.
Breakdown related to a lack of AdBlue® additive
To be able to start the engine, w
e   recommend   that   you   call   on
a C

ITR
oË
N dealer or a qualified
workshop
  for   the   top-up   required.   If
y

ou carry out the top-up yourself, it is
essential
  to   add   at   least   3.8   litres   of
a
d
blu
e
® to the tank.
R
efer

to
  the   "Topping-up"   section.
