Rear parking sensors
System consisting of four proximity sensors, located in the rear bumper. This detects any obstacle (person, vehicle, tree, gate, etc.) behind the vehicle, except obstacles located just below the bumper.
An object, such as a stake, a roadworks cone or any other similar object may be detected at the beginning of the manoeuvre, but may no longer be detected when the vehicle comes close to it.
The parking sensor system cannot, in any circumstances, take the place of the vigilance and responsibility of the driver.
The system is activated as soon as reverse gear is engaged, accompanied by an audible signal. The proximity information is given by: - an audible signal, which becomes more
rapid as the vehicle approaches the obstacle. - a graphic on the multifunction screen, with
blocks which become increasingly closer to the vehicle.
Activation
When the distance between the rear of the vehicle and the obstacle is less than thir ty centimetres, the audible signal becomes continuous and the "Danger" symbol appears on the multifunction screen. On completion of the manoeuvre, when you exit reverse gear, the system becomes inactive.

161Driving
Programming Operating faults
If there is an operating fault, when reverse gear is engaged this warning lamp comes on on the instrument panel, accompanied by an audible signal (shor t beep) and a message on the multifunction screen.
You can activate or deactivate the system by means of the multifunction screen configuration menu. The system state is memorised when switching off the ignition. For more information on access to the parking sensors menu, refer to "Configuration/ Vehicle parameters" in the "Multifunction screens" section corresponding to your screen.
The system will be deactivated automatically when towing a trailer or when a bicycle carrier is fitted (vehicle fitted with a towbar or bicycle carrier recommended by CITROËN).
In bad or wintry weather, ensure that the sensors are not covered with mud, frost or snow.

Dashboard fusebox
The fusebox is located in the lower dashboard (left-hand side).
Access to the fuses
 Refer to the paragraph "Access to the tools".
Fuse tables
Fuse N°RatingFunctions
FH365 A Trailer relay unit.
FH37- Not used.
FH3820 A Hi-Fi amplifier.
FH3920 A Heated seats.
FH4030 A Trailer relay unit.
RatingFunctions
F115 A Rear wiper.
F2- Not used.
F35 A Airbags and pretensioners control unit.
F410 A
Air conditioning, clutch switch, electrochromatic mirror,
par ticle filter pump (Diesel), diagnostic socket, airflow sensor (Diesel).
F530 A Electric windows panel, passenger's electric window co ntrol,
front electric window motor.
F630 A Driver's electric window motor.
F75 A Cour tesy lamp, glove box lighting.

197Practical information
Fuse N°RatingFunctions
F820 A Multifunction screen, audio system, navigation radio, alarm control unit, alarm siren.
F930 A 12 V socket, por table navigation suppor t supply.
F1015 A Steering mounted controls.
F1115 A Ignition, diagnostic socket, automatic gearbox contro l unit.
F1215 A Rain/sunshine sensor, trailer relay unit.
F135 A Main stop switch, engine relay unit.
F1415 A Parking sensors control unit, airbag control unit, instrument panel, digital air conditioning, USB Box, Hi-Fi ampli fier.
F1530 A Locking.
F16- Not used.
F1740 A Rear screen and door mirrors demisting/defrosting.
SH- PARC shunt.

199Practical information

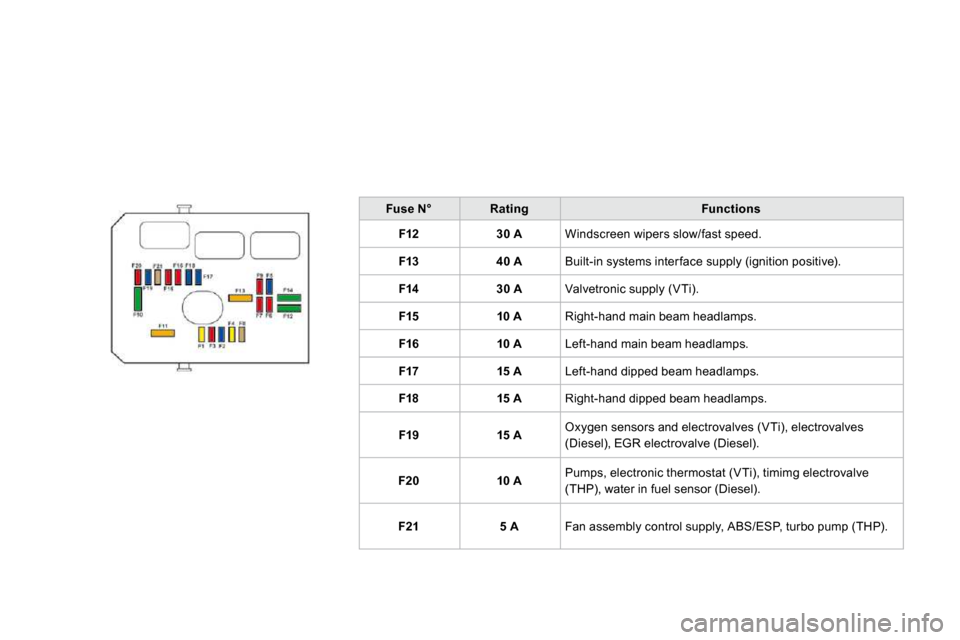

Fuse table
Fuse N°RatingFunctions
F120 A Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump (Diesel).
F215 A Horn.
F310 A Front /rear screenwash.
F420 A LED lamps.
F515 A Diesel heater (Diesel), par ticle filter additive pum p (Diesel), air flow sensor (Diesel), blow-by heater an d electrovalves (VTi).
F610 A ABS/ESP control unit, secondary stop switch.
F710 A Electric power steering, automatic gearbox.
F825 A Star ter control.
F910 A Switching and protection unit (Diesel).
F1030 A Fuel heater (Diesel), blow-by heater (Diesel), fuel pump (VTi), injectors and ignition coils (petrol).
F1140 A Heater blower.

Fuse N°RatingFunctions
F1230 A Windscreen wipers slow/fast speed.
F1340 A Built-in systems inter face supply (ignition positive).
F1430 A Valvetronic supply (VTi).
F1510 A Right-hand main beam headlamps.
F1610 A Left-hand main beam headlamps.
F1715 A Left-hand dipped beam headlamps.
F1815 A Right-hand dipped beam headlamps.
F1915 A Oxygen sensors and electrovalves (VTi), electrovalve s
(Diesel), EGR electrovalve (Diesel).
F2010 A Pumps, electronic thermostat (VTi), timimg electrovalve
(THP), water in fuel sensor (Diesel).
F215 A Fan assembly control supply, ABS/ESP, turbo pump (T HP).

209Practical information
The rear parking sensors will be deactivated automatically if a genuine
CITROËN towbar is used.
Driving advice
Distribution of loads
 Distribute the load in the trailer so that the heaviest items are as close as possible to the axle and the nose weight approaches the maximum permitted without exceeding it. Air density decreases with altitude, thus reducing engine per formance. Above 1 000 metres, the maximum towing load must be reduced by 10 % and so on for every 1 000 metres of altitude. Refer to the "Technical Data" section for details of the weights and towing loads which apply to your vehicle.
Side wind
 Take into account the increased sensitivity to side wind.
Cooling
Towing a trailer on a slope increases the temperature of the coolant. As the fan is electrically controlled, its cooling capacity is not dependent on the engine speed.  To lower the engine speed, reduce your speed. The maximum towing load on a long slope depends on the gradient and the ambient temperature. In all cases, pay attention to the coolant temperature.
Braking
Towing a trailer increases the braking distance.
Tyres
 Check the tyre pressures of the towing vehicle and of the trailer, obser ving the recommended pressures.
Lighting
 Check the electrical lighting and signalling on the trailer.
 If the warning lamp and the STOP warning lamp come on, stop the vehicle and switch off
the engine as soon as possible.

A wide range of accessories and genuine par ts is offered by the CITROËN dealer network. These accessories and par ts have been tested and approved for reliability and safety.
Accessories
They are all adapted to your vehicle and benefit from CITROËN’s recommendation and warranty.
"Comfort":
sun blinds, air deflectors, isotherm module, ashtray, fragrance car tridges, coat hanger fixed to head restraint, front centre armrest, movable mirror, reading lamp, front and rear parking sensors...
"Transport solutions":
boot liner, boot spacers, boot carpet, boot net, transverse roof bars, bicycle carrier, ski carrier, roof boxes, towbars, towbar wiring harnesses... The towbar and wiring harness must be fitted by a CITROËN dealer.
"Styling":
full grain leather steering wheel, coloured and leather gear lever knobs, aluminium footrest, spoiler, alloy wheels, coloured wheel trims, coloured wheel caps, exterior expressive stickers, exterior chrome kit...
* To avoid any risk of jamming of the pedals: - ensure that the mat is positioned and secured correctly, - never fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, wheel security devices, vehicle tracking system, breathalyser, first aid kit, warning triangle, high visibility safety jacket, child seats, snow chains, non-skid covers, fire
extinguisher...
"Protection":
mats * , mudflaps, seat covers, vehicle covers, bumper protectors...
