Citroen DS3 DAG 2010 1.G Workshop Manual
Manufacturer: CITROEN, Model Year: 2010, Model line: DS3 DAG, Model: Citroen DS3 DAG 2010 1.GPages: 253, PDF Size: 7.45 MB
Page 51 of 253
75Comfort
A c c e s s t o t h e r e a r s e a t s
Pull the control upwards to fold the seat back and move the seat for ward. When put back in place, the seat returns to its initial position.
No person or object should prevent the seat slide from returning to its initial position; the return to this position is necessary for longitudinal locking. Check that the seat belt has reeled in correctly so as to not impede access to the rear seats for passengers.
Heated seats control
With the engine running, the front seats can be heated separately. Use the adjustment dial, placed on the side of each front seat, to switch on and select the level of heating required: 0: Off. 1 : Low. 2 : Medium. 3 : High.
G r a b h a n d l e
This easy to use handle, located at the top of the side trim: - provides a means of suppor t for the outer rear passengers when moving, - provides a hand hold to ease access to the rear seats, - facilitates exit from the rear seats.
Page 52 of 253
Rear seats
Move the corresponding front seat for ward if necessary. Check that the seat belt is positioned correctly on the side of the seat back.
Place the head restraints in the low position.
F o l d i n g t h e b a c k r e s t
Pull control 1 for wards to release the seat back 2 . Fold the seat back 2 on to the cushion.
When repositioning the rear seat backrest: Straighten the seat back 2 and secure it.
Check that the red indicator, located next to the control 1 , is no longer visible.
R e p o s i t i o n i n g t h e s e a t b a c k r e s t
When repositioning the seat backrest, take care not to trap the seat belts.
Page 53 of 253
77Comfort
These have one position for use (up) and a stowed position (down). They can also be removed. To remove a head restraint: release the backrest using control 1 , tilt the backrest 2 slightly for wards,
pull the head restraint upwards to the stop, then, press the lug A .
R e a r h e a d r e s t r a i n t s
Never drive with the head restraints removed; they must be in place and correctly adjusted.
Steering wheel adjustment
W h e n s t a t i o n a r y , pull the control lever to W h e n s t a t i o n a r y W h e n s t a t i o n a r yrelease the steering wheel. Adjust the height and reach to suit your driving position. Push the control lever to lock the steering wheel.
As a safety precaution, these operations should only be carried out while the vehicle is stationary.
Page 54 of 253
77Comfort
These have one position for use (up) and a stowed position (down). They can also be removed. To remove a head restraint: release the backrest using control 1 , tilt the backrest 2 slightly for wards,
pull the head restraint upwards to the stop, then, press the lug A .
R e a r h e a d r e s t r a i n t s
Never drive with the head restraints removed; they must be in place and correctly adjusted.
Steering wheel adjustment
W h e n s t a t i o n a r y , pull the control lever to W h e n s t a t i o n a r y W h e n s t a t i o n a r yrelease the steering wheel. Adjust the height and reach to suit your driving position. Push the control lever to lock the steering wheel.
As a safety precaution, these operations should only be carried out while the vehicle is stationary.
Page 55 of 253
Mirrors
Each fitted with an adjustable mirror glass permitting the lateral rear ward vision necessary for over taking or parking. They can also be folded for parking in confined spaces.
D e m i s t i n g - D e f r o s t i n g
If your vehicle is fitted with heated mirrors, the demisting-defrosting operates with the engine running, by switching on the heated rear screen (refer to the "Rear screen demist-defrost" page).
Adjustment
Move control A to the right or to the left to select the corresponding mirror. Move control B in all four directions to adjust. Return control A to the central position.
Door mirrors
The objects obser ved are, in reality, closer than they appear. Take this into account in order to correctly judge the distance of vehicles approaching from behind.
Folding
From outside: lock the vehicle using the remote control or the key. From inside: with the ignition on, pull control A rear wards.
Unfolding
From outside: unlock the vehicle using the remote control or the key. From inside: with the ignition on, pull control A rear wards.
If the mirrors are folded using control A , they will not unfold when the vehicle is unlocked. Pull again on control A .
The folding and unfolding of the door mirrors using the remote control can be deactivated by a CITROËN dealer. Never fold or unfold the electric folding mirrors manually.
Page 56 of 253
79Comfort
R e a r v i e w m i r r o r
Adjustable mirror providing a central rear ward view. Equipped with an anti-dazzle system, useful in poor light.
M a n u a l d a y / n i g h t m o d e l
Adjustment
Adjust the mirror so that the glass is directed correctly in the "day" position.
D a y / n i g h t p o s i t i o n
Pull the lever to change to the "night" anti-dazzle position.
Push the lever to change to the normal "day" position.
By means of a sensor, which measures the light from the rear of the vehicle, this system automatically and progressively changes between the day and night uses.
A u t o m a t i c d a y / n i g h t m o d e l
In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.
As a safety precaution, the mirrors must be adjusted to reduce the "blind spot".
It has an anti-dazzle system which darkens the
mirror glass: this reduces any driver discomfor t caused by the light beams of following vehicles, the sun...
Page 57 of 253
Remote control key System which permits central unlocking or locking of the vehicle using the lock or from a distance. It is also used to locate and star t the vehicle, as well as providing protection against theft.
Unlocking the vehicle
Unfolding the key
First press this button to unfold the key.
Unlocking using the remote
control
Unlocking using the key
Press the open padlock to unlock the vehicle.
Turn the key to the left in the driver's door lock to unlock the vehicle.
Unlocking is confirmed by rapid flashing of the direction indicators for approximately two seconds.
According to version, the door mirrors unfold at the same time.
Page 58 of 253
83Access
Locking the vehicle
Locking using the remote control Locking using the key
Turn the key to the right in the driver's door lock to lock the vehicle completely. Locking is confirmed by fixed lighting of the direction indicators for approximately two seconds. According to version, the door mirrors fold at the same time.
Press the closed padlock to lock the vehicle.
If one of the doors or the boot is still open, the central locking does not take place. When the vehicle is locked, if it is unlocked inadver tently, it will relock automatically after thir ty seconds unless a door or the boot is open.
The folding and unfolding of the door mirrors using the remote control can be deactivated by a CITROËN dealer.
Folding the key
First press this button to fold the key.
Page 59 of 253
lamps and flashing of the direction indicators for a few seconds.
Locating your vehicle
Press the closed padlock to
locate your locked vehicle in a car park.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has a special code. When the ignition is switched on, this code must be recognised in order for star ting to be possible. This electronic engine immobiliser locks the engine management system a few minutes after the ignition is switched off and prevents star ting of the engine by anyone who does not have the key.
In the event of a malfunction, you are informed by lighting of this warning lamp, an audible signal and a message on the multifunction screen. In this case, your vehicle does not star t; contact a CITROËN dealer as soon as possible.
- Position 1: Stop - Position 2: Ignition - Position 3: Star ting
Ignition switch
Page 60 of 253
87Access

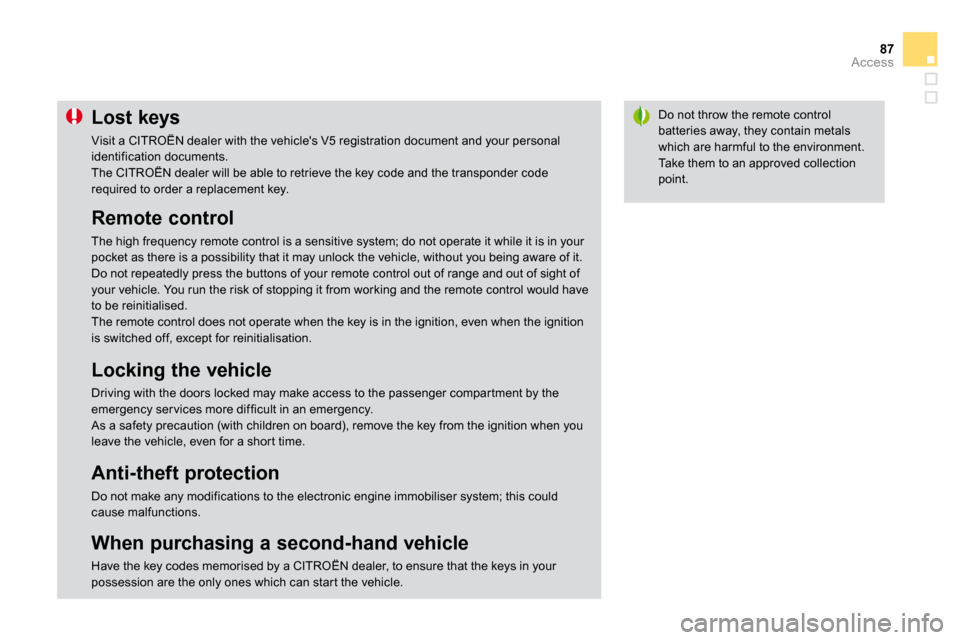

Do not throw the remote control batteries away, they contain metals which are harmful to the environment. Take them to an approved collection point.
Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration document and your personal identification documents. The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a replacement key.
Remote control
The high frequency remote control is a sensitive syst em; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it. Do not repeatedly press the buttons of your remote con trol out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised. The remote control does not operate when the key is i n the ignition, even when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the emergency ser vices more difficult in an emergency. As a safety precaution (with children on board), remove the key from the ignition when you leave the vehicle, even for a shor t time.
Anti-theft protection
Do not make any modifications to the electronic engin e immobiliser system; this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your possession are the only ones which can star t the vehicle.
