39Monitoring
Warning lampis onCauseAction / Observations
Engineautodiagnosis system
flashing. The engine management system has a fault.Risk of destruction of the catalytic conver ter.
Have it checked by a CITROËN dealer or a qualified workshop.
fixed. The emission control system has a fault.The warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or qualified workshop without delay.
Low fuel levelfixed. When it first comes on there remains approximately 5 litres offuelin thetank. You must refuel as soon as possible to avoid runnin
gout of fuel.
This warning lamp will come on every time the ignition is
switched on, until a sufficient addition of fuel is made.
Fuel tank capacity: approximately 50 litres (petrol),
46 litres (Diesel) or 33 litres (LPG); depending on
version: approximately 30 litres (petrol or Diesel).
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
Maximum coolanttemperaturefixed red. The temperature of the cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before toppingup the level, if necessary.
If the problem persists, contact a CITROËN dealer or qualified workshop.

Warning lampis onCauseAction / Observations
Engine oil pressure
fixed. There is a fault with the enginelubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Battery charge fixed. The battery charging circuit has a fault(dirty or loose terminals, slack or cut
alternator belt, ...). The warnin
g lamp should go off when the engine isstarted.
If it does not go off, contact a CITROËN dealer or aqualified workshop.
Door(s) open
fixed if the speed isbelow 6 mph (10 km/h).

A door or the boot is still open. Close the door or boot.
fixed and accompanied by an audible signal if
the speed is above6 mph (10 km/h).

41Monitoring
Airbagstemporarily. This lamp comes on for a few seconds
when you turn on the ignition, then goes off. This lamp should
go off when the engine is started.
If it does not go off, contact a CITROËN dealer or aqualified workshop.
fixed. One of the airbag or seat belt
pretensioner systems has a fault. Have it checked by a CITROËN dealer or a qualified workshop.
Warning lampis onCauseAction / Observations
Seat belt notfastened / unfastenedfixed then flashin
gaccompanied by anincreasing audible
signal. The driver and/or the front passen
ger
has not fastened or has unfastened
their seat belt.Pull the strap then inser t the ton
gue in the buckle.
Power steeringfixed. The power steering has a fault. Drive carefully at reduced speed.
Have it checked b
y a CITROËN dealer or a qualified workshop.

With the engine running, when the needle is:
- in zone A
, the temperature is correct,
- in zone B, the temperature is too high;
the central STOPwarning lamp and
the maximum temperature warninglamp 1come on in red, accompanied by an audible signal and a message in the multifunction screen. You must stop as soon as it is safe to do so.Wait a few minutes before switching off
the engine.
Contact a CITROËN dealer or a qualified
workshop.
Coolant temperature indicator
After driving for a few minutes, the temperature
and pressure in the cooling system increase.
To top up the level:
)
wait for the engine to cool down, )
unscrew the cap by two turns to allow the
pressure to drop,
) when the pressure has dropped, remove
the cap,) top up the level to the "MAX" mark.

43Monitoring

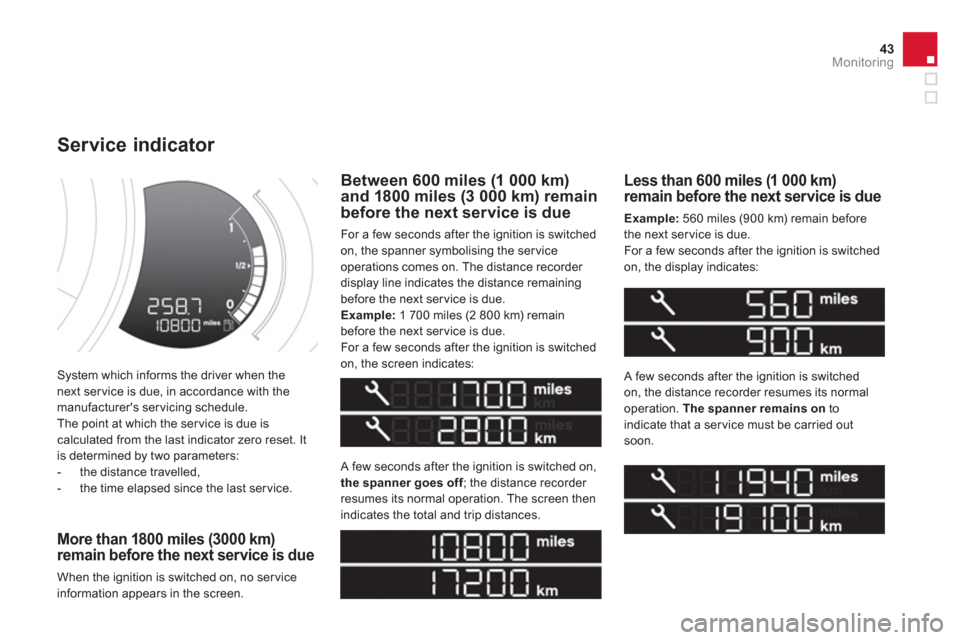

System which informs the driver when the next ser vice is due, in accordance with themanufacturer's servicing schedule.
The point at which the ser vice is due is
calculated from the last indicator zero reset. It
is determined by two parameters:


- the distance travelled,

- the time elapsed since the last service.
Service indicator
Between 600 miles (1 000 km)and 1800 miles (3 000 km) remainbefore the next service is due
For a few seconds after the ignition is switched
on, the spanner symbolising the ser vice
operations comes on. The distance recorder
displa
y line indicates the distance remainingbefore the next service is due.Example:
1 700 miles (2 800 km) remain before the next service is due.
For a few seconds after the ignition is switched
on, the screen indicates:

Less than 600 miles (1 000 km)remain before the next service is due
Example:560 miles (900 km) remain before
the next service is due.
For a few seconds after the ignition is switched on, the display indicates:

A few seconds after the ignition is switched on, the distance recorder resumes its normaloperation. The spanner remains on
toindicate that a service must be carried out soon.
A
few seconds after the ignition is switched on, the spanner goes off; the distance recorder fresumes its normal operation. The screen thenindicates the total and trip distances.


More than 1800 miles (3000 km)remain before the next service is due

When the ignition is switched on, no ser vice
information appears in the screen.

A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation.
The spanner remains on.
The distance remaining may be weighted by the time factor, depending on the driver's driving habits.
Therefore, the spanner may also comeon if you have exceeded the period since the last ser vice, indicated in the maintenance and warranty guide.

Service indicator zero reset

After each ser vice, the ser vice indicator mustbe reset to zero.
The procedure for resetting to zero is as
follows: ) switch off the ignition,)
press and hold the trip distance recorder
zero reset button,) switch on the ignition; the distance recorder
display begins a countdown,
) when the display indicates "=0", release
the button; the spanner disappears.
Following this operation, if you wish todisconnect the battery, lock the vehicleand wait at least five minutes for thezero reset to be taken into account.


Retrieving the serviceinformation

You can access the ser vice information at anytime. )Press the trip distance recorder zero reset button.
The ser vice information is displayed for afew seconds, then disappears.
Service overdue
For a few seconds after the ignition is switchedon, the spanner flashes
to indicate that the
service must be carried out as soon as possible.Example:
the ser vice is overdue by 180 miles(300 km).
For a few seconds after the ignition is switched
on, the display indicates:

45
Monitoring
This information is displayed for a few seconds
when the ignition is switched on, after theservice information.
Engine oil level indicator
The level shown will only be correct if the vehicle is on level ground and the engine has been off for more than30 minutes.
Oil level correct
Oil level low
This is indicated by the flashing of "OIL", linked with the ser vice warning lamp, accompaniedby an audible signal and a message in themultifunction screen.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to prevent damage to the engine.


Oil level indicator fault

This is indicated by the flashing of "OIL--"
. Contact a CITROËN dealer or a qualified
workshop.
Dipstick

Refer to the "Checks" section to locate the
dipstick and the oil filler cap on your engine.
Th
ere are 2 marks on thedipstick:-A= max; never exceed this
level (risk of damage to the engine), - B= min; top up the level via
the oil filler cap, using thegrade of oil suited to your engine.

System which measures the total distance
travelled by the vehicle during its life.
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
v
ehicle is locked or unlocked.
Total distance recorder
System which measures a distance travelled
during a day or other period since it was reset
to zero b
y the driver. ) With the ignition on, press the button until
zeros appear.



Tr ip distance recorder
System for manual adjustment of the brightness of the instruments and controls in relation to theexterior brightness.
Lighting dimmer


Activation

When the lighting is on:)press the button to change the brightness
of the instruments and controls,
)when the level of brightness required isreached, release the button.
Deactivation

When the lighting is off, or in day mode on
vehicles fitted with daytime running lamps,pressing the button does not have any effect.



To c o nform to legislation in the country you are crossing, change the units of distance (miles or km) via theconfiguration menu.

47Monitoring
Black panel
System allowing cer tain displays to be switched
off for night driving.
The instrument panel remains illuminated with
onl
y the vehicle speed and cruise control or speed limiter information, if in use.
If there is an aler t or a change in a function
or to a setting, the black panel mode isinterrupted.
Activation
) With the lighting on, press the left handbutton of the instrument panel several
times to progressively reduce the
dashboard lighting level.) Press the button again to reduce the lighting to the minimum level and switch off
the interior mood lighting.) Press the button again to activate the black
panel.

Tr i p c o m p u t e r
Monochrome screen A
Information displays
)Press the button, located at the end of the
wiper stalk, to display the various items of
trip computer information in succession.
The trip computer provides the following
information:


-
range,

- current
fuel consumption,

-
Stop & Start time counter,

-
distance travelled,

- avera
ge fuel consumption,
- avera
ge speed.
)The next press then returns you to the normal display.
S
ystem that gives you information on the journey in progress (range, fuel consumption…).

Zero reset
)Press the control for more than twoseconds to reset to zero the distancetravelled, the average fuel consumption and the average speed.
