change wheel Citroen DS3 RHD 2015 1.G Owner's Manual

15
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the bottom   of   the   boot,   as   close   as   possible   to   the   rear   seats.
Limit
  the   loads   carried   in   the   vehicle   and   reduce   wind   resistance   (roof
b

ars,   roof   rack,   bicycle   carrier,   trailer...).   Use   a   roof   box   in   preference.
Remove
  roof   bars   and   roof   racks   after   use.
At
  the   end   of   winter,   remove   snow   tyres   and   refit   your   summer   tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in the   door   aperture,   driver's   side.
Carry
  out   this   check   in   particular:
-

b
efore   a   long   journey,
-

a
t   each   change   of   season,
-

a
fter   a   long   period   out   of   use.
Don't
  forget   the   spare   wheel   and   the   tyres   on   any   trailer   or   caravan.
Have
  your   vehicle   serviced   regularly   (engine   oil,   oil   filter,   air   filter,
p

assenger   compartment   filter...)   and   observe   the   schedule   of
o

perations   recommended   in   the   manufacturer's   service   schedule.
With
  a   BlueHDi   Diesel   engine,   if   the   SCR   system   is   faulty   your   vehicle
b

ecomes   polluting;   go   to   a   CITROËN   dealer   or   a   qualified   workshop
w

ithout   delay   to   have   the   emissions   of   nitrous   oxides   brought   back   to
t

he   legal   level.
When
  refuelling,   do   not   continue   after   the   third   cut-off   of   the   nozzle   to
a

void   any   over flow.
At
  the   wheel   of   your   new   vehicle,   it   is   only   after   the   first   1   800   miles
(

3 000   kilometres)   that   you   will   see   the   fuel   consumption   settle   down   to
a

  consistent   average.
Eco-driving

Electronic gearbox (ETG)
R. Reverse
F  W ith   your   foot   on   the   brake,   move   the
s

elector   for wards   to   select   this   position.
n.


N
eutral.
F

W
ith   your   foot   on   the   brake,   select   this
p

osition   to   start   the   engine.
A.
 A

utomated   mode.
F

M
ove   the   selector   backwards   to   select   this
m

ode.
M + / -.

M
anual   mode   with   sequential   gear
c

hanging.
F

M
ove   the   selector   backwards,   then   to   the
l

eft   to   select   this   mode,   then:
-

p
ush   for wards   to   change   up   a   gear,
-

o
r   push   backwards   to   change   down   a   gear.
gear selector positions
+. Paddle  to   the   right   of   the   steering   wheel   for  c
hanging u p.
F

P
ress   the   back   of   the   steering
m

ounted "+"  paddle
  to   change   up   a   gear.
-.

P
addle   to   the   left   of   the   steering   wheel   for
c

hanging
 d
own.
F

P
ress   the   back   of   the   steering

m

ounted "-"  paddle
  to   change   down   a   gear.
Steering mounted controls
The steering mounted paddles do not allow   neutral   to   be   selected,   reverse
g

ear   to   be   engaged   or   disengaged,   or
t

he   driving   mode   to   be   changed.
Five

or

six-speed

electronically

controlled

g

earbox

which

offers

a

choice

between

the

c

omfort

of

automated

operation

or

the

pleasure

o

f
 m

anual
 g

ear
 c

hanging.
Two

driving

modes

are

offered:
-

a

utomated


mode

for

automatic

control

o

f

the

gears

by

the

gearbox,

without

any

a

ction

by

the

driver,
-

m

anual


mode

for

the

sequential

changing

o

f

the

gears

by

the

driver,

using

the

gear

s

elector

or

the

steering

mounted

control

p

addles.
In

automated

mode,

you

can

temporarily

take

c

ontrol

of

gear

changes

at

any

time,

using

the

s

teering

mounted

control

paddles.

125

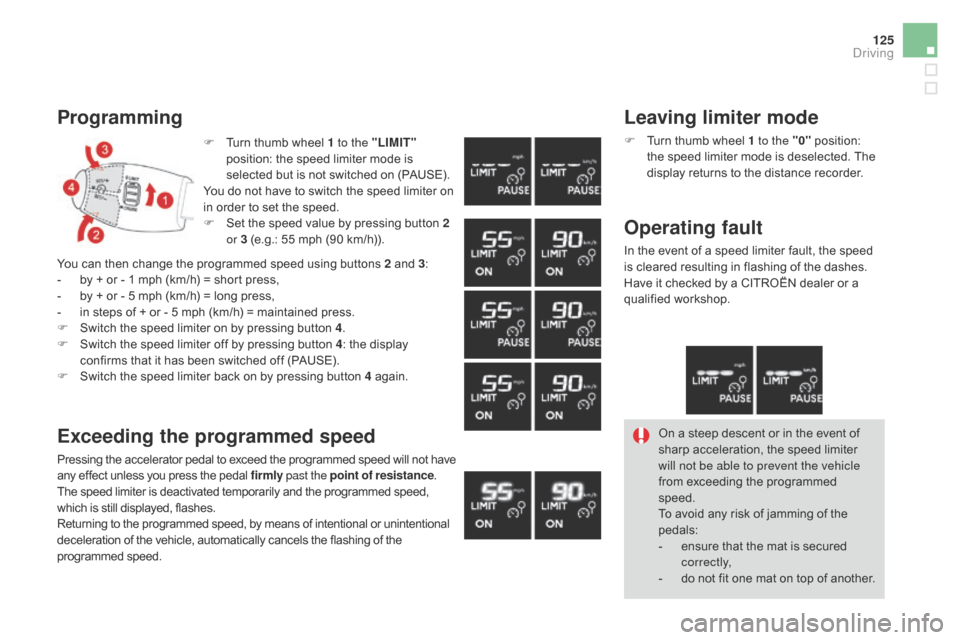

F Turn  thumb   wheel   1 to the "LIMIT"
position:   the   speed   limiter   mode   is
s

elected   but   is   not   switched   on   (PAUSE).
You
  do   not   have   to   switch   the   speed   limiter   on
i

n   order   to   set   the   speed.
F

S
et   the   speed   value   by   pressing   button   2
or 3
  (e.g.:   55   mph   (90   km/h)).
Programming
You can then change the programmed speed using buttons 2 and 3:
-  b y   +   or   -   1   mph   (km/h)   =   short   press,
-

b
y   +   or   -   5   mph   (km/h)   =   long   press,
-

i
n   steps   of   +   or   -   5   mph   (km/h)   =   maintained   press.
F

S
witch   the   speed   limiter   on   by   pressing   button   4.
F

S
witch   the   speed   limiter   off   by   pressing   button   4:
  the   display
c

onfirms   that   it   has   been   switched   off   (PAUSE).
F

S
witch   the   speed   limiter   back   on   by   pressing   button   4
ag
ain.
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have any   effect   unless   you   press   the   pedal   firmly past the point of resistance .
The
  speed   limiter   is   deactivated   temporarily   and   the   programmed   speed,
 w

hich   is   still   displayed,   flashes.
Returning
  to   the   programmed   speed,   by   means   of   intentional   or   unintentional
 d

eceleration   of   the   vehicle,   automatically   cancels   the   flashing   of   the
 pro

grammed
 s
peed. On
  a   steep   descent   or   in   the   event   of  s
harp   acceleration,   the   speed   limiter  w
ill not be able to prevent the vehicle
from
  exceeding   the   programmed
s

peed.
To
  avoid   any   risk   of   jamming   of   the
ped

als:
-

e
nsure   that   the   mat   is   secured
c

o r r e c t l y,
-

d
o   not   fit   one   mat   on   top   of   another.
Leaving limiter mode
F Turn  thumb   wheel   1 to the "0"  position:  t
he   speed   limiter   mode   is   deselected.   The
d

isplay   returns   to   the   distance   recorder.
Operating fault
In the event of a speed limiter fault, the speed is   cleared   resulting   in   flashing   of   the   dashes.
Have
  it   checked   by   a   CITROËN   dealer   or   a
q

ualified
 w
orkshop.
driving

127

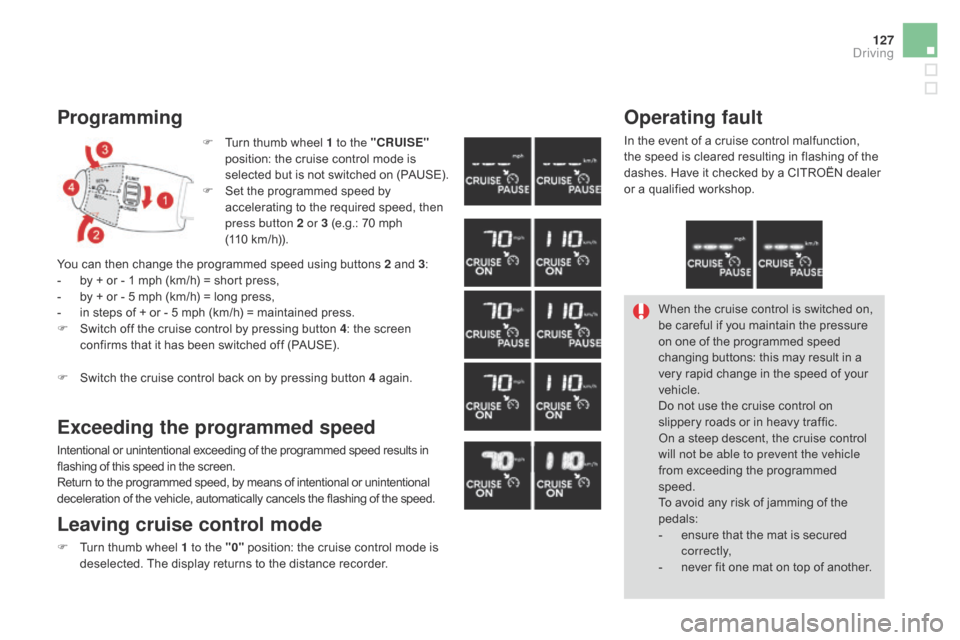

Programming
F Turn  thumb   wheel   1 to the "CRUISE"
position:   the   cruise   control   mode   is
s

elected   but   is   not   switched   on   (PAUSE).
F

S
et   the   programmed   speed   by
a

ccelerating   to   the   required   speed,   then
p

ress button 2 or 3   (e.g.:   70   mph
(110
  km/h)).
You

can

then

change

the

programmed   speed   using   buttons   2   and   3:
-

b

y

+

or

-

1

mph

(km/h)
  =   short   press,
-

b

y

+

or

-

5

mph

(km/h)
  =   long   press,
-

i

n

steps

of

+

or

-

5

mph   (km/h)   =   maintained   press.
F

S

witch

off

the

cruise

control   by   pressing   button   4:
  the   screen
c

onfirms

that

it

has

been   switched   off   (PAUSE).
F

S

witch

the

cruise

control   back   on   by   pressing   button   4
ag
ain.
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed speed results in flashing   of   this   speed   in   the   screen.
Return
  to   the   programmed   speed,   by   means   of   intentional   or   unintentional
 d

eceleration   of   the   vehicle,   automatically   cancels   the   flashing   of   the   speed.
Leaving cruise control mode
F Turn  thumb   wheel   1 to the "0"  position:   the   cruise   control   mode   is  d
eselected.   The   display   returns   to   the   distance   recorder.
Operating fault
In the event of a cruise control malfunction, the   speed   is   cleared   resulting   in   flashing   of   the
d

ashes.   Have   it   checked   by   a   CITROËN   dealer
o

r   a   qualified   workshop.
When
  the   cruise   control   is   switched   on,
b

e   careful   if   you   maintain   the   pressure
o

n   one   of   the   programmed   speed
c

hanging   buttons:   this   may   result   in   a
v

ery   rapid   change   in   the   speed   of   your
v

ehicle.
Do
  not   use   the   cruise   control   on
s

lippery   roads   or   in   heavy   traffic.
On
  a   steep   descent,   the   cruise   control
w

ill not be able to prevent the vehicle
from
  exceeding   the   programmed
s

peed.
To
  avoid   any   risk   of   jamming   of   the
ped

als:
-

e
nsure   that   the   mat   is   secured
c

o r r e c t l y,
-

n
ever   fit   one   mat   on   top   of   another.
driving

Under-inflation detection
System which automatically checks the pressures of the tyres while driving.
T he   under-inflation   detection   system
d

oes   not   replace   the   need   for   vigilance
o

n   the   part   of   the   driver.
This
  system   does   not   avoid   the   need   to
c

heck   the   tyre   pressures   (including   the
s

pare   wheel)   every   month   as   well   as
b

efore   a   long   journey.
Driving
  with   under-inflated   tyres
i

mpairs   road   holding,   extends   braking
d

istances   and   causes   premature
t

yre   wear,   particularly   under   arduous
c

ondition   (high   loading,   high   speed,
lon

g
 jo
urney).The
  inflation   pressures   defined   for
y

our   vehicle   can   be   found   on   the   tyre
p

ressure   label.
See
  the   "Identification   markings"
s

ection.
Tyre
  pressures   should   be   checked
w

hen   the   tyres   are   "cold"   (vehicle
s

topped   for   1   hour   or   after   a   journey   of
l

ess   than   6   miles   (10   km)   at   moderate
s

peeds).
Other wise
  (when   hot),   add   0.3   bar   to
t

he   pressures   shown   on   the   label.
Driving
  with   under-inflated   tyres
i

ncreases   fuel   consumption.
The
  system   monitors   the   pressures   in   the   four
t

yres,   once   the   vehicle   is   moving.
It
  compares   the   information   given   by   the   four
w

heel   speed   sensors   with   reference values,
which must be reinitialised ever y time the
tyre pressures are adjusted or a wheel
changed .
The
  system   triggers   an   alert   as   soon   as   it
d

etects   a   drop   in   the   inflation   pressure   of   one
o

r   more   tyres.

F Position  the   foot   of   the   jack   2   on   the   ground  a
nd   ensure   that   it   is   directly   below   the
f

ront A or rear B   jacking   point   provided   on
t

he   underbody,   whichever   is   closest   to   the
w

heel   to   be   changed.
 O

n   vehicles   fitted   with   sill   finishers,   the
j

acking   location   is   indicated   by   a   marking
o

n   the   finisher.   The   jack   must   be   placed
c

entrally   in   line   with   this   marking,   at   the
j

acking   point   located   behind   the   finisher
a

nd   not   on   the   plastic   finisher   itself. F
 R emove   the   bolts   and   store   them   in   a   clean  p
lace.
F

R
emove   the   wheel.
F
 E xtend   the   jack   2   until   its   head   comes   into  c
ontact   with   the   jacking   point   A or B   used.
T

he contact area A or B on the vehicle
must
  be   engaged   with   the   central   part   of
t

he   head   of   the   jack.
F

Ra
ise the vehicle until there is sufficient
space
  between   the   wheel   and   the   ground
s

o   that   the   spare   (not   punctured)   wheel   can
t

hen   be   fitted   without   difficulty.
