59
Touch screen tablet
Display of information
Permanent display:Temporary display in a new window:
F

P
ress the end of the wiper control stalk for
access to the information and display the
different tabs.
The current instantaneous fuel consumption tab with:- the range,
- t he current fuel consumption,
-

t
he Stop & Start time counter.
The trip "1" tab with:
-

t
he distance travelled.
-

t
he average fuel consumption,
-

t
he average speed,
f

or the first trip.
The trip "2" tab with:
-

t
he distance travelled.
-

t
he average fuel consumption,
-

t
he average speed,
f

or the second trip.
Trip reset
F Select the " Driving" menu.
The trip computer information is displayed in
the primary page of the menu.
F

P

ress one of the buttons to display the
desired tab. F

W
hen the desired trip is
displayed, press the reset button
or press and hold the end of the
wiper control stalk.
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
1.


"
Instantaneous ".
2.
" T

r i p 1
".
3.


"
Tr i p 2 ".
4.
" 0

0.0 / Reset
".
01
Instruments

60
A few definitions…
This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or a
qualified workshop.This function is only displayed from
20
mph (30 km/h).
Range
(miles or km)
When the range falls below 20 miles (30 km),
dashes are displayed.
After filling with at least 5 litres of fuel, the
range is recalculated and is displayed if it
exceeds 60 miles (100 km).
Current fuel consumption
(mpg or l/100 km or km/l)
Average fuel consumption
(mpg or l/100 km or km/l)
Average speed
(mph or km/h)
Stop & Star t time counter
(minutes / seconds or hours /
minutes)
Calculated since the last trip computer reset.
Calculated over the last few seconds.
The distance which can still be travelled with
the fuel remaining in the tank (at the average
fuel consumption seen over the last few miles
(kilometres) travelled).
Calculated since the last trip computer reset.
Distance travelled
(miles or km)
Calculated since the last trip computer reset.
A time counter calculates the time spent in
STOP mode during a journey.
It resets to zero every time the ignition is
switched on.
01
Instruments

61
01
Instruments

ACCESS

02

64
Remote control keySystem which permits central unlocking or locking of the vehicle using the door lock or from a distance. It is also used to locate and start the vehicle,
as well as providing protection against theft.
Unlocking the vehicle
F Press this button to unfold the key.
Complete unlocking using
the remote control
Selective unlocking using
the remote control
F Press the open padlock to unlock the vehicle completely.
F

P
ress the open padlock once to
unlock the driver's door only.
F

P
ress the open padlock again to
unlock the other doors and the
boot.
Unlocking using the key
F Turn the key for wards in the driver's door lock to unlock the vehicle completely.
Opening the windows using
the remote control
F Maintain the press on the open padlock until the desired position
is obtained. The windows stop as
soon as you release the button.
The direction indicators flash for a
few
seconds.
The spotlamps in the door mirrors
come on.
Depending on version, the door mirrors
unfold, the welcome lighting comes on,
the alarm is deactivated.
The complete or selective door
unlocking parameter is set via the
vehicle configuration menu.
Unfolding the key
02
Access

65
Selective unlocking of the boot
F Press the central button on the remote control to unlock the
boot. The doors remain locked.
If selective unlocking of the boot is deactivated,
pressing this button also unlocks the doors.
Don't forget to lock the boot again by
pressing the closed padlock button.
The complete or selective boot
unlocking parameter is set via the
vehicle configuration menu.
Selective unlocking of the boot is
activated by default.
Locking the vehicle
Normal locking using the remote
control
Normal locking using the key
F Turn the key towards the rear in the driver's door lock to lock the vehicle. F

P
ress the closed padlock to lock
the vehicle. If one of the doors or the boot is still
open, the central locking does not take
place.
However, the alarm (if present) will
be completely activated after about
45 seconds.
If the vehicle is unlocked inadvertently
and with no action on the doors or
boot, the vehicle will lock itself again
automatically after about 30 seconds.
If the alarm had previously been
activated, it will not be reactivated
automatically.
The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.
The direction indicators flash for a
few
seconds.
Depending on version, the door mirrors fold,
the alarm is activated.
02
Access

66
F Press the closed padlock to lock the vehicle completely.

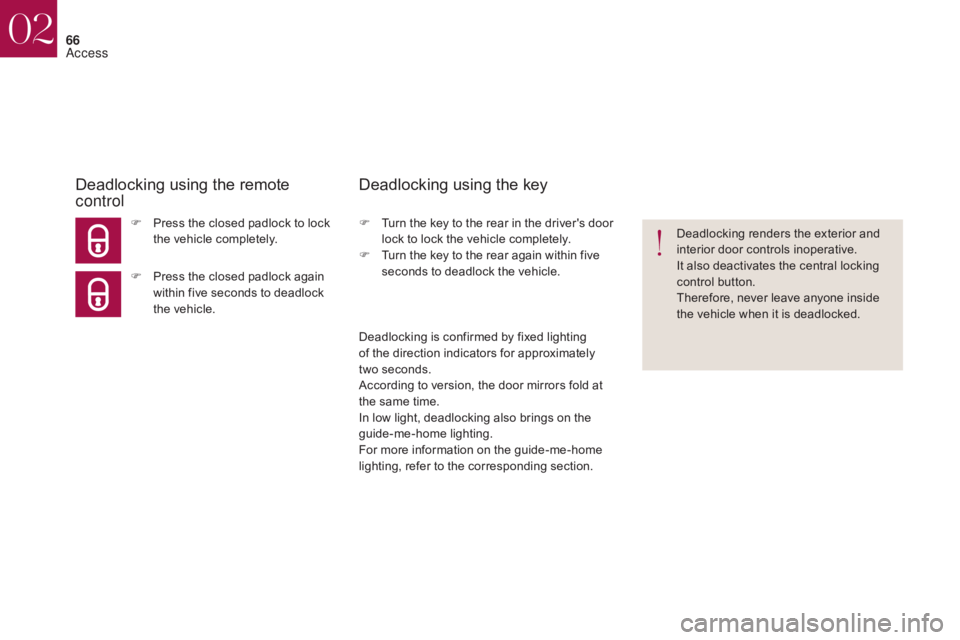

Deadlocking using the remote
control
F Press the closed padlock again within five seconds to deadlock
the vehicle. F

T
urn the key to the rear in the driver's door
lock to lock the vehicle completely.
F
T
urn the key to the rear again within five
seconds to deadlock the vehicle.
Deadlocking using the key
Deadlocking is confirmed by fixed lighting
of the direction indicators for approximately
two
seconds.
According to version, the door mirrors fold at
the same time.
In low light, deadlocking also brings on the
guide-me-home lighting.
For more information on the guide-me-home
lighting, refer to the corresponding section. Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the central locking
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
02
Access

67
F Press this button.
Locating your vehicle
This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must be locked.
Folding the key
Closing the windows using
the remote control
F Press and hold the closed padlock button until the desired
position is obtained. The
windows stop when you release
the button.
When closing the windows using the
remote control you must ensure that
nothing prevents them from closing
c o r r e c t l y.
If you want to leave the windows
partly open, you must deactivate the
volumetric alarm monitoring. If you do not press the button, there is a
risk of damaging the remote control.
F

P
ress this button before folding the key.This will switch on the courtesy lamps and
the direction indicators will flash for around
ten
se

conds.
02
Access

68
System allowing the doors to be locked and
unlocked manually in the event of a malfunction
of the central locking system or battery failure.
Back-up control
Locking the driver's door
F Insert the key in the door lock, then turn it to the rear.
You can also apply the procedure described for
the passenger doors.
Unlocking the driver's door
F Insert the key in the door lock, then turn it to the front. F

O
pen the doors.
F
O
n the rear doors, check that the child lock
is not on.
For more information on the Child lock , refer
to the corresponding section.
Unlocking the passenger doors
F Pull the interior door opening control.
Locking the passenger doors
F Remove the black cap, located on the edge of the door, using the key.
F

I
nsert the key in the socket without forcing
it, then without turning it, move the latch
sideways towards the inside of the door.
F

R
emove the key and refit the cap.
F

C
lose the doors and check that the vehicle
has locked correctly from the outside.
02
Access
