Page 31 of 396
29Familiarisation
Driving safely
This 6 -speed gearbox offers a choice between
the comfor t of fully automatic operation or the
pleasure of manual gear changing.
6-speed electronic gearbox system
1.
Gear lever.
2.
Steering mounted "-"
control paddle.
3.
Steering mounted "+"
control paddle.
Display in the instrument panel
The gear engaged or the driving mode selected
appears in the instrument panel screen.
N:
Neutral.
R:
Reverse.
1 to 6:
Gears engaged.
AUTO:
Automated mode.
Moving off
)
Select position N
and press the brake
pedal firmly while star ting the engine.
)
Engage first gear by pulling the gear lever 1
towards position A
or M
,
or
Engage reverse by pushing the gear lever 1
towards position R
.
)
Release the parking brake.
)
Take your foot off the brake pedal then
accelerate.
203
Page 32 of 396
Driving safely
Automatic gearbox
This six-speed gearbox offers the choice of the
ease of automatic operation or the pleasure of
manual gear changing.
1.
Gear lever.
2.
"S" (spor t)
button.
3.
" 7
" (snow)
button.
Display in the instrument panel
the driving mode selected and/or the gear
engaged appear in the left hand screen in the
instrument panel.
P.
Park.
R.
Reverse.
N.
Neutral.
D.
Drive (Automatic).
S.
Spor t programme.
7
.
Snow programme.
1 to 6.
Gears engaged.
-.
Invalid value in manual operation.
Moving off
)
Foot on the brake, select position P
or N
.
)
Star t the engine.
)
Then select position R
, D
or M
.
)
Take your foot off the brake pedal, then
press the accelerator medal to move off.
207
Page 33 of 396
31Familiarisation
Stop & Start
Engine going into STOP mode
212
The "ECO"
warning lamp comes on in
the instrument panel and the engine is
put into standby automatically:
- with a manual gearbox;
at speeds below
12 mph (20 km/h), when you put the gear
lever into neutral and release the clutch
pedal,
- with the 6-speed electronic gearbox
system;
at speeds below 5 mph (8 km/h),
when you press the brake pedal or put the
gear lever in position N
.
Engine going into START mode
Deactivation/Reactivation
You can deactivate the system at any time by
pressing the "ECO OFF"
button; the button's
warning lamp comes on.
213
213
The system is reactivated automatically
every time you start the engine with
the key.
Before refuelling or doing anything
under the bonnet, you must switch off
the ignition with the key. The "ECO"
warning lamp goes off
and the engine restar ts automatically:
- with a manual gearbox;
when you fully
depress the clutch pedal,
- with the 6-speed electronic gearbox
system;
●
with the gear lever in position A
or M
,
when you release the brake pedal,
●
or gear lever in position N
and brake
pedal released, when you change to
position A
or M
,
●
or when you engage reverse.
In certain circumstances the STOP mode may
not be available; the "ECO"
warning lamp
flashes for a few seconds then goes off. In certain condition, START mode may engage
automatically; the "ECO"
warning lamp flashes
then goes off.
Driving safely
Page 34 of 396
Driving safely
)
Activate the function by pressing control
switch A
; the warning lamp comes on in the
switch.
Blind spot sensors
216
The warning lamp located in the door mirror
comes on to warn you that a vehicle has arrived
in the blind spot detection zone.
)
Select the function by pressing control
switch B
; the corresponding warning lamp
comes on in the instrument panel.
)
Operate the direction indicators on the side
with the space to be measured; a message
appears to confirm measurement is in
progress.
)
Drive at a speed below 12 mph (20 km/h)
during measurement.
Parking space sensors
One of these messages appears to indicate the
level of difficulty of the manouevre:
- Parking possible.
224
- Parking difficult.
- Parking not advised.
Page 35 of 396
33Familiarisation
Driving safely
1.
Limiter mode On/Off.
2.
Decrease the programmed value.
3.
Increase the programmed value.
4.
Speed limiter On/Off.
5.
Display the list of memorised speeds.
Speed limiter "LIMIT"
219
1.
Cruise control mode On/Off.
2.
Programme a speed/Decrease the
programmed value.
3.
Programme a speed/Increase the
programmed value.
4.
Cruise control Off/Resume.
5.
Display the list of memorised speeds.
Cruise control "CRUISE"
219
The cruise control or speed limiter mode
appears in the instrument panel when it is
selected.
Display in the instrument panel
The values must be set with the engine running.
220
222
In order to be programmed or activated, the
vehicle speed must be higher than 25 mph
(40 km/h), with at least four th gear engaged on
a manual gearbox (second gear for the
6 -speed electronic gearbox system or
automatic gearbox).
Speed limiter
Cruise control
Page 36 of 396
Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle has
the system, the gear shift indicator invites you
to change up; it is displayed in the instrument
panel, follow its instructions.
With an automatic or electronic gearbox,
stay in Drive "D"
or Auto "A"
, according to
the type of gearbox, without pressing the
accelerator pedal heavily or suddenly.
Drive smoothly
Maintain a safe distance between vehicles, use
engine braking rather than the brake pedal,
and press the accelerator progressively. These
practices contribute towards a reduction in fuel
consumption and CO
2 emissions and also helps
reduce the background traffic noise.
If your vehicle has cruise control, make use of
the system at speeds above 25 mph (40 km/h)
when the traffic is flowing well.
Control the use of your
electrical equipment
Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 30 mph (50 km/h), close the windows
and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in the
passenger compar tment down (sun roof and
window blinds...).
Switch off the air conditioning, unless it has
automatic digital regulation, as soon as the
desired temperature is attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
Page 37 of 396
35
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place the
heaviest items in the bottom of the boot, as
close as possible to the rear seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof rack,
bicycle carrier, trailer...). Use a roof box in
preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and
refit your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly, when
cold, referring to the label in the door
aperture, driver's side.
Carry out this check in par ticular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on
any trailer or caravan.
Have your vehicle ser viced regularly (engine
oil, oil filter, air filter...) and obser ve the
schedule of operations recommended by the
manufacturer.
When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid any
over flow.
At the wheel of your new vehicle, it is only
after the first 1 800 miles (3 000 kilometres)
that you will see the fuel consumption settle
down to a consistent average.
Switch off the headlamps and front foglamps
when the level of light does not require their
use.
Avoid running the engine before moving off,
particularly in winter; your vehicle will warm
up much faster while driving.
As a passenger, if you avoid connecting
your multimedia devices (film, music, video
game...), you will contribute towards limiting
the consumption of electrical energy, and so
of fuel.
Disconnect your portable devices before
leaving the vehicle.
Familiarisation
Page 38 of 396
001
Instruments and controls

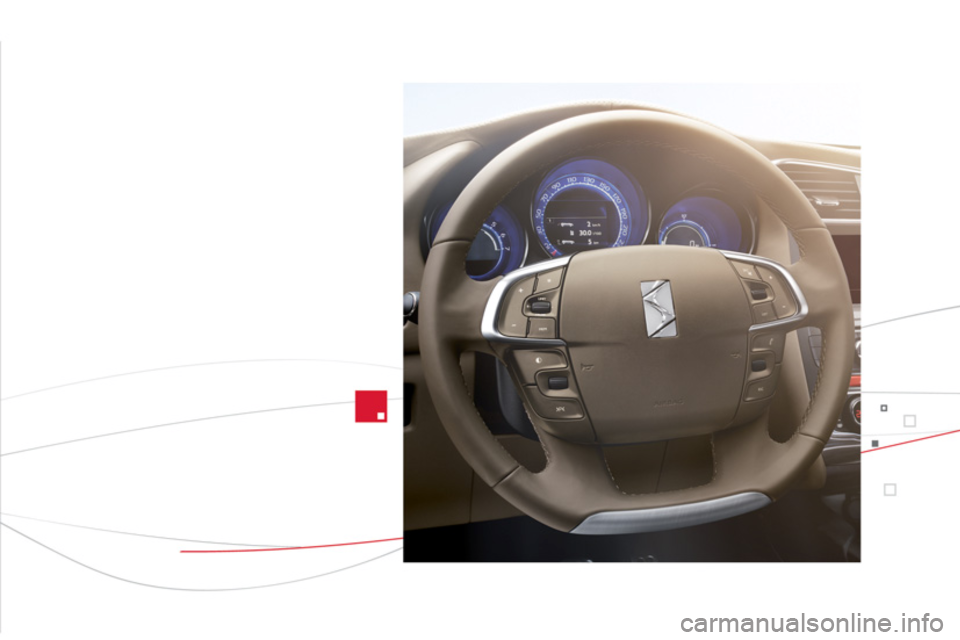

Page 39 of 396
Page 40 of 396
Customisable colour instrument panel with audio system
1.
Rev counter (x 1 000 rpm or tr/min).
2.
Gear shift indicator with manual gearbox
or gear lever position and gear for the
electronic gearbox system.
3.
Analogue speedometer (mph or km/h).
4.
Cruise control or speed limiter setting.
5.
Digital speedometer (mph or km/h).
6.
Engine oil level indicator.
Dials and screens
Control buttons
7.
Ser vice indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the ignition.
Lighting dimmer setting (when making an
adjustment).
8.
Trip mileage recorder (miles or km).
9.
Fuel gauge and associated low fuel
warning lamp.
10.
Range (miles or km).
A.
Dial COLOUR: customisation of the
background colour of the dials.
B.
Screen COLOUR: customisation of the
background colour of the screens.
C.
Lighting dimmer (available in night mode).
D.
Reminder of the servicing information
Reset the service indicator or the trip
mileage recorder.
