display Citroen DS4 2011 1.G Manual PDF

300
04
1
2
3
4
5
7
9
10
8
6

Press NAV
to display the
" Navigation - guidance
" menu.
TOWARDS A NEW DESTINATION

NAVIGATION - GUIDANCE













SELECTING A DESTINATION


Select " Select destination
" and
confi rm, then select " Enter an address
"
and confi rm.

Select the " Country
" function then
confi rm.

Select " To w n
" function then confi rm to
enter the destination town.

Select the letters in the name of the
town one at a time, confi rming each one
with the dial.
Selection the town from the list offered, then confi rm.
A pre-set list (by entering the fi rst few letters) of the towns in
the country selected can be accessed directly by selecting and
confi rming List on the screen.

Turn the dial and select " OK
" then
confi rm.

If possible, enter the " Road
" and " N°/X
"
information in the same way.

Select " Archive
" to save the address entered in a contact fi le.
The system allows up to 400 contact fi les to be recorded.

Confi rm " OK
" to start guidance.

Select the guidance criteria: " Fastest
route
", " Shortest route
" or optimised
" Distance/Time
", then select the
desired restriction criteria: " With tolls
",
" With Ferry
", or " Traffi
c info
" then
confi rm " OK
".

301
1
2
04
1
2
3

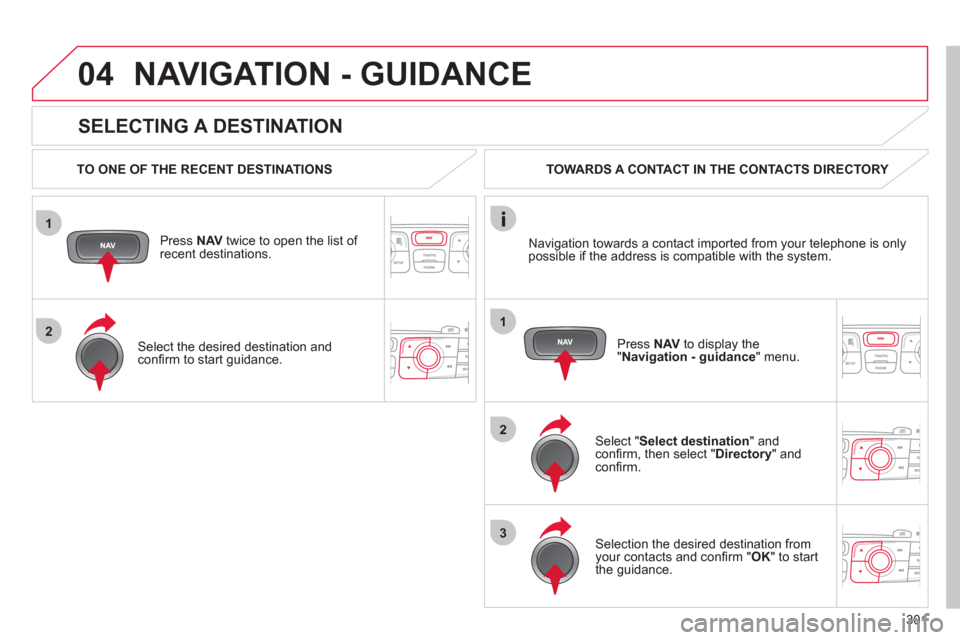

SELECTING A DESTINATION

NAVIGATION - GUIDANCE


TO ONE OF THE RECENT DESTINATIONS

Press NAV
twice to open the list of
recent destinations.

Select the desired destination and
confi rm to start guidance.


TOWARDS A CONTACT IN THE CONTACTS DIRECTORY

Select " Select destination
" and
confi rm, then select " Directory
" and
confi rm.

Selection the desired destination from
your contacts and confi rm " OK
" to start
the guidance.

Press NAV
to display the
" Navigation - guidance
" menu. Navigation towards a contact imported from your telephone is only
possible if the address is compatible with the system.

302
1
04
2
1
2
33
4

Select " Select destination
" and confi rm,
then select " GPS coordinates
" and
confi rm.

Enter the GPS coordinates and confi rm
" OK
" to start the guidance.

Press NAV
to display the
" Navigation - guidance
" menu.

NAVIGATION - GUIDANCE








TOWARDS GPS COORDINATES

TOWARDS A POINT ON THE MAP

With the map displayed, press OK
to
display the contextual menu. Select
" Move the map
" and confi rm.

Press OK
to display the contextual
menu for " Move the map
" mode.

Select " Select as destination
" or
" Select as stage
" and confi rm.

Move the cursor using the screen
navigation buttons
,
,
,
to
identify the desired destination.

303
04
1
3
4
5
2

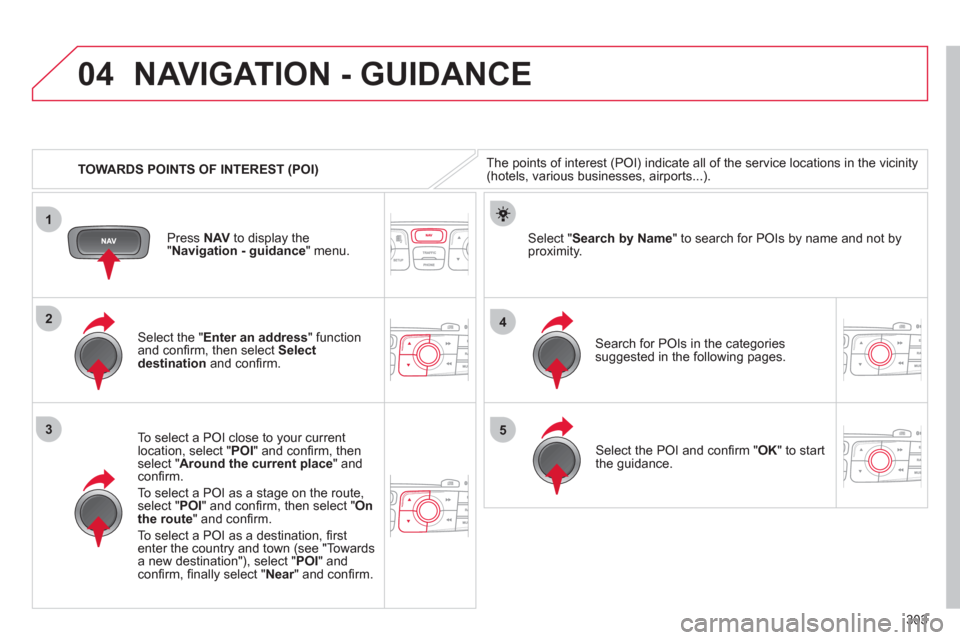

TOWARDS POINTS OF INTEREST (POI)

NAVIGATION - GUIDANCE

The points of interest (POI) indicate all of the service locations in the vicinity
(hotels, various businesses, airports...).

Select the " Enter an address
" function
and confi rm, then select Select
destination
and confi rm.

To select a POI close to your current
location, select " POI
" and confi rm, then
select " Around the current place
" and
confi rm.
To select a POI as a stage on the route,
select " POI
" and confi rm, then select " On
the route
" and confi rm.
To select a POI as a destination, fi rst
enter the country and town (see "Towards
a new destination"), select " POI
" and
confi rm, fi nally select " Near
" and confi rm.
Search for POIs in the categories
suggested in the following pages.
Select " Search by Name
" to search for POIs by name and not by
proximity.
Press NAV
to display the
" Navigation - guidance
" menu.

Select the POI and confi rm " OK
" to start
the guidance.

305
04
1
2
3
NAVIGATION - GUIDANCE

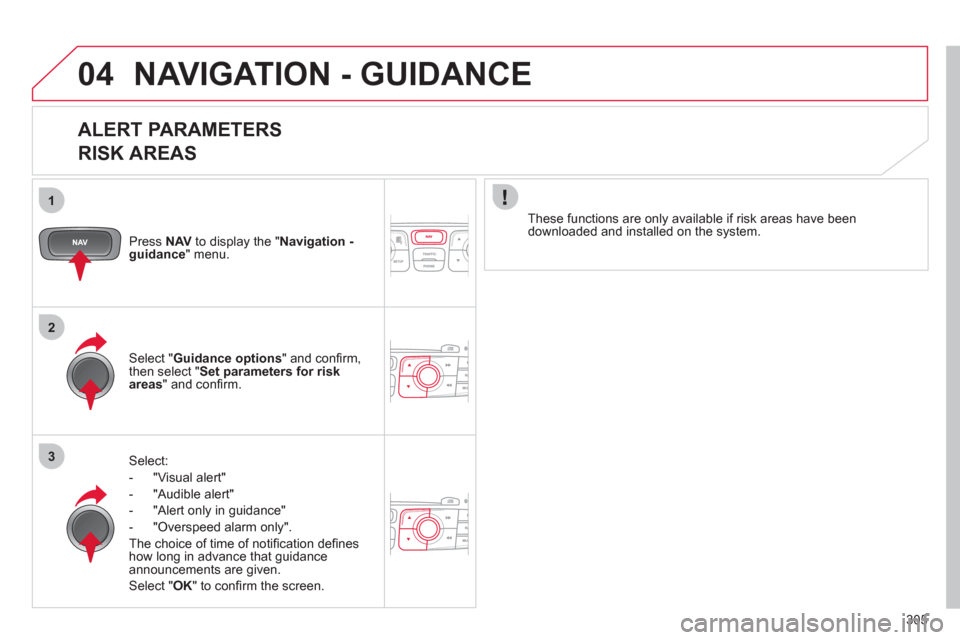

ALERT PARAMETERS
RISK AREAS

Press NAV
to display the " Navigation -
guidance
" menu.

Select:


- "Visual alert"

- "Audible alert"

- "Alert only in guidance"

- "Overspeed alarm only".
The choice of time of notifi cation defi nes
how long in advance that guidance
announcements are given.
Select " OK
" to confi rm the screen.
Select " Guidance options
" and confi rm,
then select " Set parameters for risk
areas
" and confi rm.
These functions are only available if risk areas have been
downloaded and installed on the system.

306
04
1
4
3
1
3
22
NAVIGATION - GUIDANCE


ADDING A STAGE


Press NAV
to display the
" Navigation - guidance
" menu.

Select " Journey leg and route
" then
confi rm.

Select " Close to
" a route passing
close to the stage or " Strict
" for a route
passing through the stage.
Confi rm " OK
" to start the guidance, and
give a general indication of the guidance
route.

Select " Add a stage
" then confi rm .
The address of the stage is entered as
a destination, by " Enter an address
",
a contact in " Directory
", or " Previous
destinations
".


ORGANISING STAGES


To organise stages, carry out
operations 1 to 2 again, then select
" Order/delete journey legs
" and
confi rm.

Select and confi rm to save the
modifi cations.
Select the stage that you want to move
in the order, using the
and
buttons
until the desired position is reached.

Select " Delete
" to delete the stage.

307
04
3
4
1
2
NAVIGATION - GUIDANCE

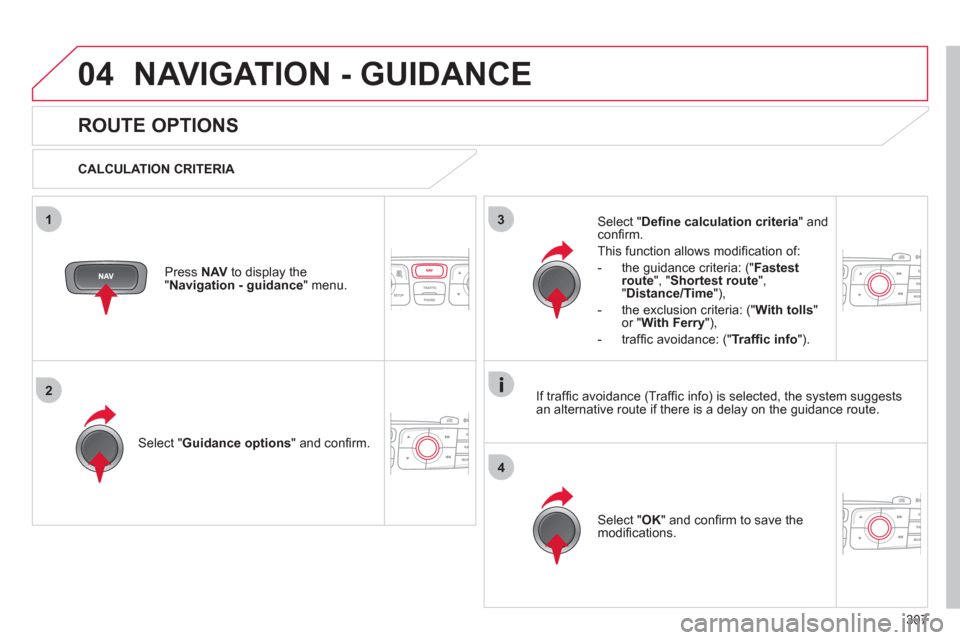

ROUTE OPTIONS


CALCULATION CRITERIA

Select " Guidance options
" and confi rm.

Select " OK
" and confi rm to save the
modifi cations.

Select " Defi ne calculation criteria
" and
confi rm.
This function allows modifi cation of:


- the guidance criteria: (" Fastest
route
", " Shortest route
",
" Distance/Time
"),

- the exclusion criteria: (" With tolls
"
or " With Ferry
"),

- traffi c avoidance: (" Traffi c info
").

Press NAV
to display the
" Navigation - guidance
" menu.
If traffi c avoidance (Traffi c info) is selected, the system suggests
an alternative route if there is a delay on the guidance route.

308
04
35
1
2
4
NAVIGATION - GUIDANCE


Press NAV
to display the
" Navigation - guidance
" menu.

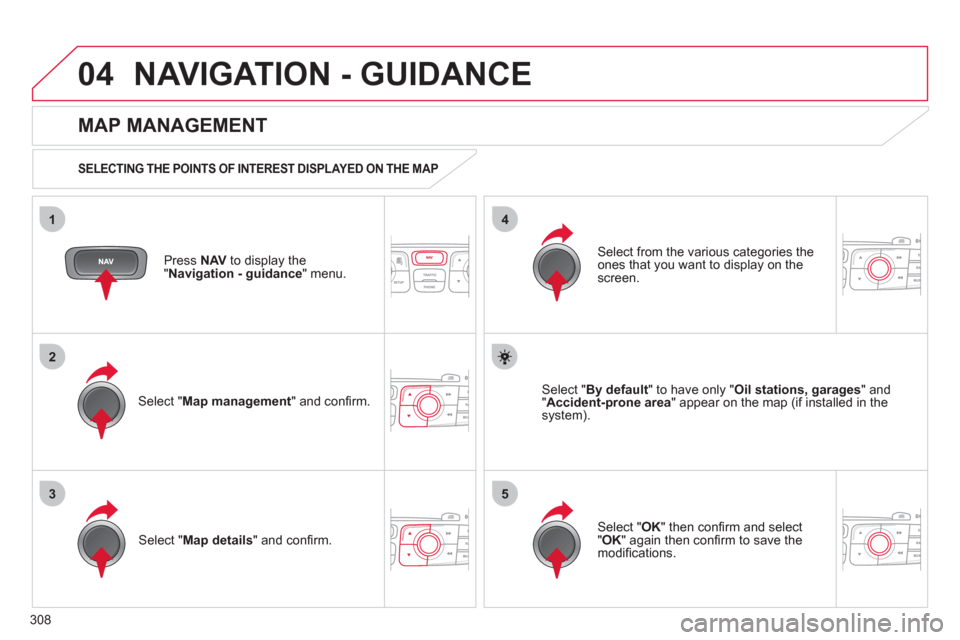

MAP MANAGEMENT


SELECTING THE POINTS OF INTEREST DISPLAYED ON THE MAP


Select " Map management
" and confi rm.
Select from the various categories the
ones that you want to display on the
screen.

Select " Map details
" and confi rm.
Select " By default
" to have only " Oil stations, garages
" and
" Accident-prone area
" appear on the map (if installed in the
system).

Select " OK
" then confi rm and select
" OK
" again then confi rm to save the
modifi cations.

309
04
3
1
2
4
NAVIGATION - GUIDANCE


Select " Map management
" and confi rm.
Select:


- " Vehicle direction
" to have the map
follow the direction of travel,

- " North direction
" to keep the map
always North up,

- " Perspective view
" to display a
perspective view.


Select " Map orientation
" and confi rm.
The colour of the map, different from the day and night mode,
is confi gured in the " SETUP
" menu.

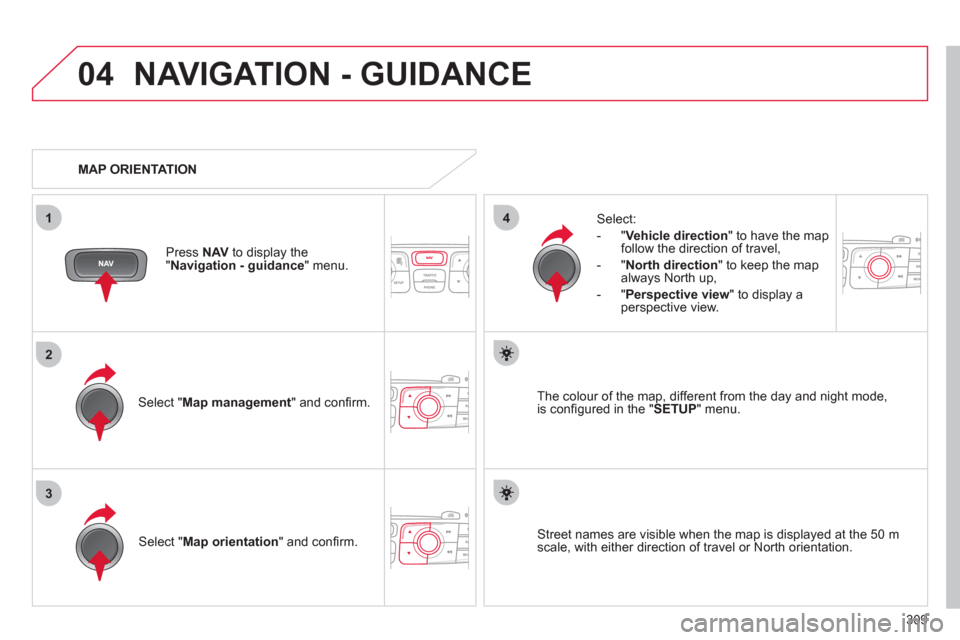

MAP ORIENTATION

Press NAV
to display the
" Navigation - guidance
" menu.

Street names are visible when the map is displayed at the 50 m
scale, with either direction of travel or North orientation.

310
04
1
2
36
4
5
NAVIGATION - GUIDANCE


Press NAV
to display the
" Navigation - guidance
" menu.

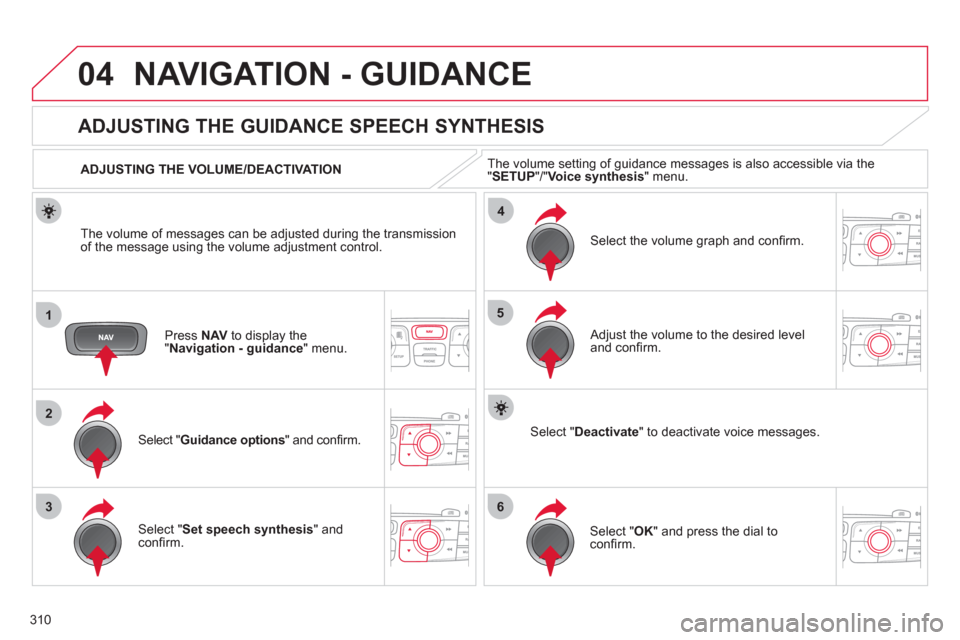

ADJUSTING THE GUIDANCE SPEECH SYNTHESIS


Select " Guidance options
" and confi rm.
ADJUSTING THE VOLUME/DEACTIVATION

Select " Set speech synthesis
" and
confi rm.
Select the volume graph and confi rm.

Select " Deactivate
" to deactivate voice messages.

Select " OK
" and press the dial to
confi rm.

Adjust the volume to the desired level
and confi rm.
The volume of messages can be adjusted during the transmission
of the message using the volume adjustment control.
The volume setting of guidance messages is also accessible via the
" SETUP
"/" Voice synthesis
" menu.
