199Driving
Situations
Consequences
To apply the electric parking brake:
)
immobilise the vehicle and switch off the ignition.
)
pull the control for at least 5 seconds or until application is complete.
)
switch on the ignition and check the switching on of the electric parking brake
warning lamps.
The application is slower than during normal operation.
To release the electric parking brake:
)
switch on the ignition.
)
pull the control and hold it for approximately 3 seconds then release it.
If the braking warning lamp is flashing or if the warning lamps do not come on with
the ignition on, these procedures will not work. Place the vehicle on level ground
and have it checked by a CITROËN dealer or a qualified workshop. and possibly
flashing
Display of the message " Parking brake fault
" and of the
following warning lamps:
- Only the automatic application on switching off the engine and automatic
release on acceleration functions are available.
- The manual application/release of the electric parking brake and the
emergency braking are not available.
and possibly
flashing
Battery fault
- If the battery warning lamp comes on you must stop immediately as soon as
the traffic allows. Stop and immobilise your vehicle (if necessary, place the
two chocks under the wheels).
- Apply the electric parking brake before switching off the engine.
Page 206 of 396
Gear lever positions
N.
Neutral
R.
Reverse
1, 2, 3, 4, 5, 6.
Gears in manual mode.
AUTO.
This comes on when the automatic
mode is selected. It switches off on
changing to manual mode.
Displays in the instrument panel
)
Place your foot on the brake
when this warning lamp flashes
(e.g.: when starting the engine).
Moving off
N
flashes in the instrument panel,
accompanied by an audible signal and
a message in the multifunction screen,
if the gear lever is not in position N
on
starting.
Foot on brake
flashes on the
instrument panel, accompanied by an
audible signal and a message in the
multifunction screen, if the brake pedal
is not pressed on star ting.
)
Select position N
.
)
Press the brake pedal down fully.
)
Star t the engine.
Engagement of reverse gear is
accompanied by an audible signal.
N
appears in the instrument panel
screen.
)
Select first gear (position M
or A
) or
reverse (position R
).
)
Release the parking brake unless it is
programmed to automatic mode.
)
Take your foot off the brake pedal, then
accelerate.
AUTO
and 1
or R
appear in the
instrument panel screen.
Page 207 of 396
205Driving
For optimum acceleration, for example
when over taking another vehicle, press
the accelerator pedal firmly past the
point of resistance.
Manual gear changing
This selective gear change mode enables you
to over take, for example, while still remaining in
automatic mode.
)
Operate the +
or -
steering mounted control
paddle.
The gearbox engages the gear requested if the
engine speed permits. AUTO
is still displayed
in the instrument panel.
After a few moments without any action on
the controls, the gearbox resumes automatic
control of the gears.
Manual mode
)
After star ting the vehicle, select position A
for enter automatic mode.
Automatic mode
AUTO
and the gear engaged
appear in the instrument panel
screen.
The gearbox is then operating in auto-active
mode, without any action on the par t of the
driver. It continuously selects the most suitable
gear, depending on the:
- style of driving,
- profile of the road.
)
When the vehicle has moved off, select
position M
to change to manual mode.
AUTO
disappears and the gears
engaged appear in succession in
the instrument panel screen. The gear change requests are only carried out
if the engine speed permits.
It is not necessary to release the accelerator
during gear changes.
When braking or slowing down, the gearbox
changes down automatically to allow the
vehicle to accelerate in the correct gear.
At very low speed, if reverse gear is
requested, this will only be taken into
account when the vehicle is immobilised.
The Foot on brake
warning lamp may
flash in the instrument panel to prompt
you to brake.
On sharp acceleration, the gearbox will
not change up unless the driver acts on
the gear lever or the steering mounted
paddles.
Never select neutral N
while the vehicle
is moving.
Only engage reverse gear R
when the
vehicle is immobilised with the brake
pedal pressed.
Page 209 of 396
207Driving

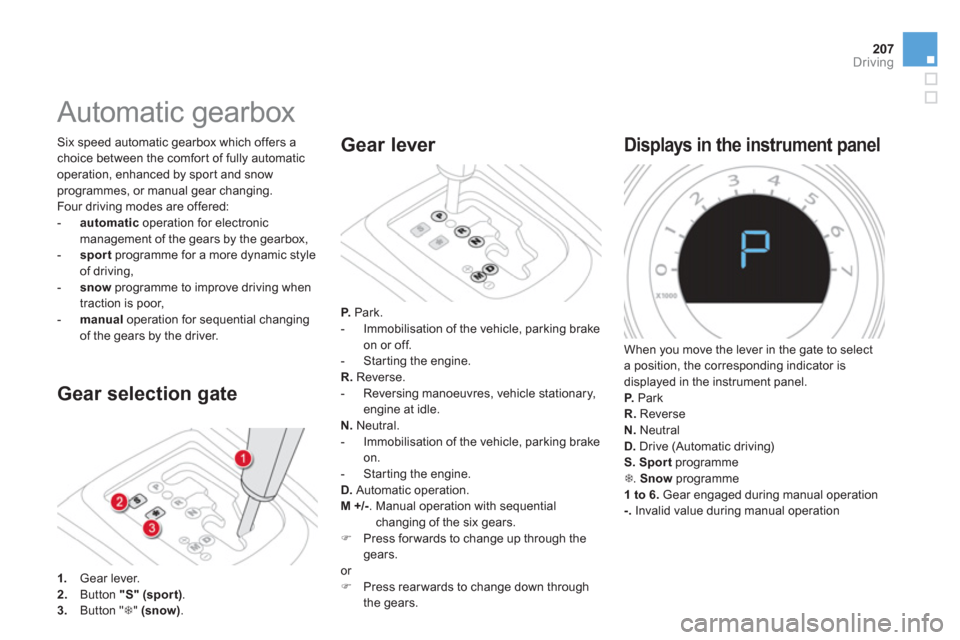

Automatic gearbox
Gear selection gate
Six speed automatic gearbox which offers a
choice between the comfor t of fully automatic
operation, enhanced by spor t and snow
programmes, or manual gear changing.
Four driving modes are offered:
- automatic
operation for electronic
management of the gears by the gearbox,
- sport
programme for a more dynamic style
of driving,
- snow
programme to improve driving when
traction is poor,
- manual
operation for sequential changing
of the gears by the driver.
1.
Gear lever.
2.
Button "S"
(spor t)
.
3.
Button " 7
" (snow)
.
Gear lever
P.
Park.
- Immobilisation of the vehicle, parking brake
on or off.
- Star ting the engine.
R.
Reverse.
- Reversing manoeuvres, vehicle stationary,
engine at idle.
N.
Neutral.
- Immobilisation of the vehicle, parking brake
on.
- Star ting the engine.
D.
Automatic operation.
M +/-
. Manual operation with sequential
changing of the six gears.
)
Press for wards to change up through the
gears.
or
)
Press rear wards to change down through
the gears.
Displays in the instrument panel
When you move the lever in the gate to select
a position, the corresponding indicator is
displayed in the instrument panel.
P.
Park
R.
Reverse
N.
Neutral
D.
Drive (Automatic driving)
S.
Sport
programme
7
. Snow
programme
1 to 6.
Gear engaged during manual operation
-.
Invalid value during manual operation
Page 211 of 396
209Driving
Manual operation
)
Select position M
for sequential
changing
of the six gears.
)
Push the lever towards the +
sign to
change up a gear.
)
Pull the lever towards the -
sign to change
down a gear.
It is only possible to change from one gear to
another if the vehicle speed and engine speed
permit; other wise, the gearbox will operate
temporarily in automatic mode.
D
disappears and the gears
engaged appear in succession in the
instrument panel.
If the engine speed is too low or too high, the
gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D
(automatic) to position M
(manual) at any time.
When the vehicle is stationary or moving
very slowly, the gearbox selects gear M1
automatically.
The spor t and snow programmes do not
operate in manual mode.
Sport and snow programmes
Sport programme "S"
)
Press button "S"
, after star ting the engine.
The gearbox automatically favours a dynamic
style of driving.
S
appears on the instrument panel.
Snow programme " 7
"
)
Press button " 7
", after star ting the engine.
The gearbox adapts to driving on slippery
roads.
This programme improves star ting and drive
when traction is poor.
7
appears on the instrument panel.
Return to automatic
operation
)
At any time, press the button selected
again to quit the programme engaged and
return to auto-adaptive mode.
These two special programmes supplement the
automatic operation in very specific conditions
of use.
Page 212 of 396
Invalid value during manual
operation
This symbol is displayed if a gear
is not engaged correctly (selector
between two positions).
Stopping the vehicle
Before switching off the engine, you can
engage position P
or N
to place the gearbox in
neutral.
In both cases, apply the parking brake to
immobilise the vehicle, unless it is programmed
to automatic mode.
If the lever is not in position P
, when the
driver's door is opened or approximately
45 seconds after the ignition is switched
off, there is an audible signal and a
message appears.
)
Return the lever to position P
;
the audible signal stops and the
message disappears.
Operating fault
When the ignition is on, the lighting of this
warning lamp, accompanied by an audible
signal and a message in the multifunction
screen, indicates a gearbox malfunction.
In this case, the gearbox switches to back-up
mode and is locked in 3rd gear. You may feel
a substantial knock when changing from P
to R
and from N
to R
. This will not cause any
damage to the gearbox.
Do not exceed 60 mph (100 km/h), local speed
restrictions permitting.
Have it checked by a CITROËN dealer or a
qualified workshop.
This warning lamp may also come on if a door
is opened.
You risk damaging the gearbox:
- if you press the accelerator and
brake pedals at the same time,
- if you force the lever from position P
to another position when the battery
is flat.
To reduce fuel consumption when
stationary for long periods with the
engine running (traffic jam...), position
the gear lever at N
and apply the
parking brake, unless it is programmed
in automatic mode.
Page 215 of 396
213Driving
Going into engine START mode
The "ECO"
warning lamp goes off
and the engine star ts:
- with a manual gearbox
, when you fully
depress the clutch pedal,
- with the 6-speed electronic gearbox
system
:
●
gear lever in position A
or M
, when you
release the brake pedal,
●
or gear lever in position N
and the brake
pedal released, when you move the gear
lever to position A
or M
,
●
or when you engage reverse gear.
Special cases: START invoked
automatically
If the system has been deactivated
in STOP mode, the engine restarts
immediately. With a manual gearbox in STOP
mode, if a gear is engaged without
fully depressing the clutch pedal, a
warning lamp comes on or a message
is displayed asking you to depress the
clutch pedal to restar t the engine.
At any time, press the "ECO OFF"
switch to
deactivate the system.
This is confirmed by the switch warning lamp
coming on accompanied by a message on the
screen.
Deactivation
In this case the "ECO"
warning lamp
flashes for few seconds, then goes
off.
This operation is per fectly normal.
For safety reasons or to ensure smooth
operation, START mode is invoked
automatically when:
- you open the driver's door,
- you unfasten the driver's seat belt,
- the speed of the vehicle exceeds 15 mph
(25 km/h) with a manual gearbox or
7 mph (11 km/h) with the 6 -speed
electronic gearbox system,
- the electric parking brake is being applied,
- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.
Page 221 of 396
219Driving
Memorising speeds
This memorisation of speeds applies to both the speed limiter and the cruise control.
You can memorise up to 5 speeds in the system. By default, a few speeds are already memorised.
With your Audio system
)
Go to the main menu by pressing the
"MENU"
button.
)
Select the "Personalisation-configuration"
menu and confirm.
)
Select "Vehicle parameters" menu and
confirm.
)
Select the "Driving assistance" line and
conform.
)
Select "Speeds memorised" line and
confirm.
)
Modify the speed.
)
Select " OK
" and confirm to save the
modifications.
With the eMyWay satellite
navigation system
)
Press the "MEM"
button to display the list
of speeds memorised.
Access
For safety reasons, the driver must
only carry out these operations when
stationary.
)
Go to the main menu by pressing the left
hand thumb wheel at the bottom of the
steering wheel.
)
Select the "Vehicle parameters" menu and
confirm.
)
Select the "Driving assistance" line and confirm.
)
Select the "Speeds memorised" line and
confirm.
)
Modify the speed.
)
Select " OK
" and confirm to save the
modifications.
These operations are only possible
when stationary with this system.
Selection
To select a memorised speed:
)
press and hold the " +
" or " -
" button; the
system stops at the nearest memorised
speed,
)
press and hold again the " +
" or " -
" button to
select another memorised speed.
A reminder of the speed and the state of the
system (on/off) is displayed in the instrument
panel.
Page 222 of 396
System which prevents the vehicle from
exceeding the speed programmed by the driver.
When the programmed speed limit is reached,
pressing the accelerator pedal no longer has
any effect.
Speed limiter
The speed limiter cannot, in any
circumstances, replace the need to
respect speed limits, nor can it replace
the need for vigilance and responsibility
on the par t of the driver. The functions of this system are grouped
together on the steering mounted controls.
1.
Speed limiter mode selection dial.
2.
Programmed value decrease button.
3.
Programmed value increase button.
4.
Speed limiter on/off button.
5.
List of memorised speeds display button.
(see "Memorising speeds")
Steering mounted controls
The programmed information is grouped
together in the instrument panel screen.
6.
Speed limiter on/off indication.
7.
Speed limiter mode selection indication.
8.
Programmed speed value.
9.
Selection of a memorised speed.
(see "Memorising speeds")
Displays in the instrument panel
Operation
The speed limiter is switched on
manually:
it requires a programmed speed of at least
20 mph (30 km/h).
The speed limiter is switched off
by manual
operation of the control.
The programmed speed can be exceeded
temporarily by pressing the accelerator firmly
beyond the point of resistance.
To return to the programmed speed, simply
release the accelerator pedal.
The programmed speed remains in the memory
when the ignition is switched off.
Page 223 of 396
221Driving
)
Tu r n d i a l 1
to the "LIMIT"
position: the
speed limiter mode is selected but is not
switched on (Pause).
You do not have to switch the speed limiter on
in order to set the speed.
)
Set the speed value by pressing
button 2
or 3
(e.g.: 55 mph (90 km/h)).
Programming
You can then change the programmed speed using buttons 2
and 3
:
- by + or - 1 mph (km/h) = shor t press,
- in steps of + or - 5 mph (km/h) = maintained press.
If speed memorisation is available and activated on your vehicle, the
programmed speed will stop at the closest memorised speed; refer the
the corresponding paragraph.
)
Switch the speed limiter on by pressing button 4
.
)
Switch the speed limiter off by pressing button 4
: the display
confirms that it has been switched off (Pause).
)
Switch the speed limiter back on by pressing button 4
again.
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have
any effect unless you press the pedal firmly
past the point of resistance
.
The speed limiter is deactivated temporarily and the programmed speed,
which is still displayed, flashes.
Returning to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically cancels the
flashing of the programmed speed. On a steep descent or in the event of
sharp acceleration, the speed limiter will
not be able to prevent the vehicle from
exceeding the programmed speed.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned
correctly,
- do not fit one mat on top of another.
Exiting the speed limiter mode
)
Tu r n d i a l 1
to the "0"
position: the speed
limiter mode is deselected. It disappears
from the screen.
Operating fault
In the event of a fault with the speed limiter,
the speed is cleared resulting in flashing of the
dashes.
Have it checked by a CITROËN dealer or a
qualified workshop.
