29Familiarisation
Driving safely
This 6 -speed gearbox offers a choice between
the comfor t of fully automatic operation or the
pleasure of manual gear changing.
6-speed electronic gearbox system
1.
Gear lever.
2.
Steering mounted "-"
control paddle.
3.
Steering mounted "+"
control paddle.
Display in the instrument panel
The gear engaged or the driving mode selected
appears in the instrument panel screen.
N:
Neutral.
R:
Reverse.
1 to 6:
Gears engaged.
AUTO:
Automated mode.
Moving off
)
Select position N
and press the brake
pedal firmly while star ting the engine.
)
Engage first gear by pulling the gear lever 1
towards position A
or M
,
or
Engage reverse by pushing the gear lever 1
towards position R
.
)
Release the parking brake.
)
Take your foot off the brake pedal then
accelerate.
203
Page 32 of 396
Driving safely
Automatic gearbox
This six-speed gearbox offers the choice of the
ease of automatic operation or the pleasure of
manual gear changing.
1.
Gear lever.
2.
"S" (spor t)
button.
3.
" 7
" (snow)
button.
Display in the instrument panel
the driving mode selected and/or the gear
engaged appear in the left hand screen in the
instrument panel.
P.
Park.
R.
Reverse.
N.
Neutral.
D.
Drive (Automatic).
S.
Spor t programme.
7
.
Snow programme.
1 to 6.
Gears engaged.
-.
Invalid value in manual operation.
Moving off
)
Foot on the brake, select position P
or N
.
)
Star t the engine.
)
Then select position R
, D
or M
.
)
Take your foot off the brake pedal, then
press the accelerator medal to move off.
207
Page 35 of 396
33Familiarisation
Driving safely
1.
Limiter mode On/Off.
2.
Decrease the programmed value.
3.
Increase the programmed value.
4.
Speed limiter On/Off.
5.
Display the list of memorised speeds.
Speed limiter "LIMIT"
219
1.
Cruise control mode On/Off.
2.
Programme a speed/Decrease the
programmed value.
3.
Programme a speed/Increase the
programmed value.
4.
Cruise control Off/Resume.
5.
Display the list of memorised speeds.
Cruise control "CRUISE"
219
The cruise control or speed limiter mode
appears in the instrument panel when it is
selected.
Display in the instrument panel
The values must be set with the engine running.
220
222
In order to be programmed or activated, the
vehicle speed must be higher than 25 mph
(40 km/h), with at least four th gear engaged on
a manual gearbox (second gear for the
6 -speed electronic gearbox system or
automatic gearbox).
Speed limiter
Cruise control
Page 36 of 396

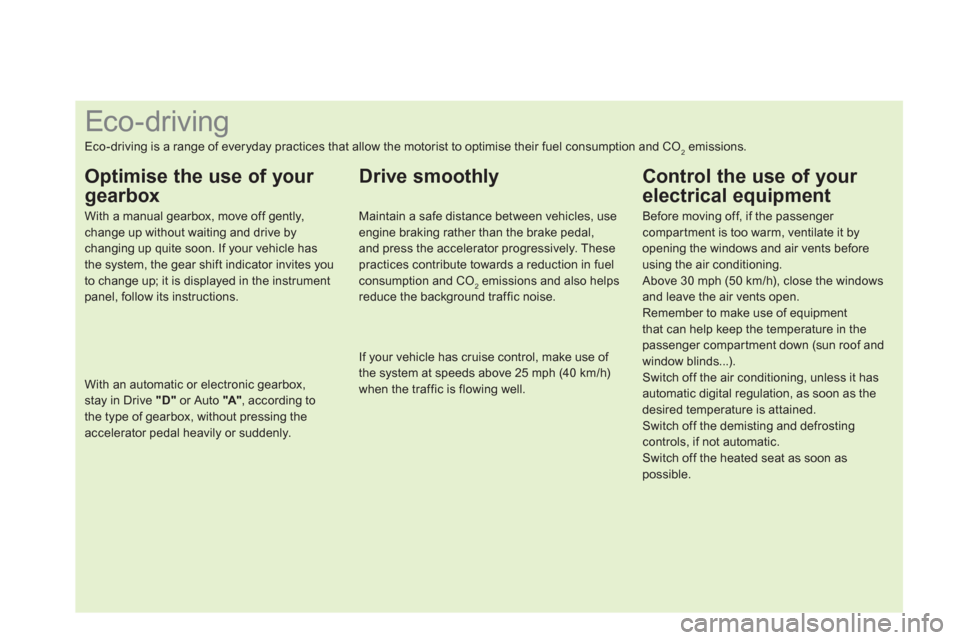

Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle has
the system, the gear shift indicator invites you
to change up; it is displayed in the instrument
panel, follow its instructions.
With an automatic or electronic gearbox,
stay in Drive "D"
or Auto "A"
, according to
the type of gearbox, without pressing the
accelerator pedal heavily or suddenly.
Drive smoothly
Maintain a safe distance between vehicles, use
engine braking rather than the brake pedal,
and press the accelerator progressively. These
practices contribute towards a reduction in fuel
consumption and CO
2 emissions and also helps
reduce the background traffic noise.
If your vehicle has cruise control, make use of
the system at speeds above 25 mph (40 km/h)
when the traffic is flowing well.
Control the use of your
electrical equipment
Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 30 mph (50 km/h), close the windows
and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in the
passenger compar tment down (sun roof and
window blinds...).
Switch off the air conditioning, unless it has
automatic digital regulation, as soon as the
desired temperature is attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
Page 40 of 396
Customisable colour instrument panel with audio system
1.
Rev counter (x 1 000 rpm or tr/min).
2.
Gear shift indicator with manual gearbox
or gear lever position and gear for the
electronic gearbox system.
3.
Analogue speedometer (mph or km/h).
4.
Cruise control or speed limiter setting.
5.
Digital speedometer (mph or km/h).
6.
Engine oil level indicator.
Dials and screens
Control buttons
7.
Ser vice indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the ignition.
Lighting dimmer setting (when making an
adjustment).
8.
Trip mileage recorder (miles or km).
9.
Fuel gauge and associated low fuel
warning lamp.
10.
Range (miles or km).
A.
Dial COLOUR: customisation of the
background colour of the dials.
B.
Screen COLOUR: customisation of the
background colour of the screens.
C.
Lighting dimmer (available in night mode).
D.
Reminder of the servicing information
Reset the service indicator or the trip
mileage recorder.
Page 41 of 396
39Monitoring
1.
Rev counter (x 1 000 rpm or tr/min).
2.
Gear shift indicator with manual gearbox
or gear lever position and gear for the
electronic gearbox system or automatic
gearbox.
3.
Speedometer (mph or km/h).
4.
Central colour screen associated with the
satellite navigation system.
Dials and screens
5.
Fuel gauge and associated low fuel level
warning lamp.
6.
Trip mileage recorder (miles or km).
7.
Ser vice spanner (if a ser vice is due or
missed),
total mileage recorder.
(miles or km)
Control buttons
Customisable colour instrument panel associated with
the satellite navigation system
A.
Dial COLOUR: customisation of
the background colour of the dials.
B.
Screen COLOUR: customisation of
the background colour of the screens.
C.
Lighting dimmer (in night mode).
D.
Star t a manual test (procedure for checking
the status of systems and display of vehicle
alerts).
Reset service indicator or trip mileage
recorder.
Page 42 of 396
1.
Cruise control or speed limiter settings.
2.
Engine oil level indicator.
Reminder of servicing information.
These functions are displayed successively
on switching on the ignition, after the
welcome sequence and before display of
the available active functions.
Central colour screen associated with the satellite
navigation system
Rotation of the thumb wheel, located on the left
of the steering wheel, allows the permanent
display to be selected from the available
active functions (trip computer, navigation-
guidance...). Approaching the maximum engine speed, the
bars are displayed in red and flash, to indicate
to you the need to change up a gear.
Rev counter
Aler t or information messages may appear
temporarily.
Page 44 of 396
Warning lamps
When the engine is running or the vehicle is
being driven, the illumination of one of the
following warning lamps indicates a malfunction
which requires action on the par t of the driver.
The warning comes on in the instrument
panel or appears in the central colour screen
associated with the satellite navigation system. If your vehicle has a screen, a warning lamp coming on is always accompanied by the
display of an additional message, to assist you in identifying the problem.
If you encounter any problems, do not hesitate to contact a CITROËN dealer or a qualified
workshop.
Warning lamp
is on
Cause
Action/Observations
STOP
fixed, alone or
associated with
another warning lamp,
accompanied by an
audible signal and a
message in the screen. Illumination of this warning lamp is
associated with a serious braking
system, power steering, engine
lubrication or cooling system
malfunction or a punctured tyre. Stop as soon as it is safe to do so as there is a risk that
the engine will cut out while driving.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Maximum
coolant
temperature
fixed red. The temperature of the cooling system
is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping
up the level, if necessary.
If the problem persists, contact a CITROËN dealer or
qualified workshop.
Engine oil
pressure
fixed. There is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Page 47 of 396
45Monitoring
Service
temporarily,
accompanied by a
message. A minor malfunction has occurred
for which there is no specific warning
lamp. Identify the malfunction by reading the message
displayed in the screen, such as, for example:
- the opening of the doors, boot or bonnet,
- the engine oil level,
- the remote control battery,
- the tyre pressures,
- saturation of the par ticle emission filter on
Diesel vehicles (see "Checks - § Checks/Particle
emissions filter").
For any other malfunctions, contact a CITROËN dealer
or a qualified workshop.
fixed, accompanied
by a message and an
audible signal. A major malfunction has occurred
for which there is no specific warning
lamp. Identify the malfunction by reading the message
displayed in the screen and contact a CITROËN dealer
or a qualified workshop.
Warning lamp
is on
Cause
Action/Observations
Particle
emissions filter
(Diesel)
fixed, accompanied
by an audible signal
message on the risk of
blockage of the particle
emissions filter. This indicates that the par ticle
emissions filter is star ting to become
saturated. As soon as driving conditions allow, regenerate the
filter by driving at a speed of at least 35 mph (60 km/h)
until the warning lamp goes off.
fixed, accompanied by
an audible signal and
and a message that the
particle emissions filter
additive level is too low.
This indicates the low level of the
additive reservoir. Have the reser voir topped up as soon as possible by a
CITROËN dealer or a qualified workshop.
Page 52 of 396
Lighting dimmer
fixed. The lighting dimmer is making an
adjustment. You can adjust the level of illumination of the
instruments between 1 and 16.
Passenger's
airbag system
fixed in the seat belt
and passenger's front
airbag warning lamps
display.
The control switch, located in the glove
box, has been placed in the "ON"
position.
The passenger's front airbag is activated.
In this case, do not install a "rear facing"
child seat. Move the control switch to the "OFF"
position
to deactivate the passenger's front airbag.
In this case, you can install a "rear facing" child seat.
Automatic wiping
fixed. The wiper control is pushed
downwards. Automatic front wiping is activated.
To deactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.
Warning lamp
is on
Cause
Action/Observations
Stop & Start
fixed. When the vehicle stops (red lights,
traffic jams, ...) the Stop & Star t
system has put the engine into STOP
mode. The warning lamp goes off and the engine restar ts
automatically in START mode, as soon as you want
to move off.
flashes for a few
seconds, then goes
off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. Refer to "Driving - § Stop & Start" for special cases
with STOP mode and START mode.
Parking space
sensors
fixed. The parking space sensors function
is selected. To star t measurement, operate the direction indicator
on the side of the space to be measured, and do not
exceed 12 mph (20 km/h). A message is displayed
once the measurement has been completed.
