Page 53 of 396
51Monitoring
Passenger's
airbag system
fixed in the instrument
panel and/or seat belt
and front passenger's
airbag warning lamps
display. The control switch, located in the
glove box, is set to the OFF
position.
The passenger's front airbag is
deactivated. Set the control to the "ON"
position to activate
the passenger's front airbag.
In this case, do not fit a child seat in the rear-facing
position.
Warning lamp
is on
Cause
Action/Observations
ESP/ASR
fixed. The button, located at the bottom
left of the dashboard, is pressed. Its
indicator lamp is on.
The ESP/ASR is deactivated.
ESP: electronic stability programme.
ASR: anti-slip regulation. Press the button to activate the ESP/ASR. Its indicator
lamp goes off.
The ESP/ASR system is activated automatically when
the vehicle is star ted.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.
Page 54 of 396
This information is displayed for a few seconds
when the ignition is switched on, at the same
time as the ser vice information.
Engine oil level indicator
The vehicle must be on level ground
and the engine must have been off
for more than 30 minutes for this level
check to be accurate.
Oil level correct
Oil level incorrect
This is indicated by the flashing of "OIL"
or the display of a specific message in
the instrument panel, coupled with the service
warning lamp and accompanied by an audible
signal.
If the low oil level is confirmed by a check
using the dipstick, the level must be topped up
to avoid damage to the engine.
Oil level indicator error
This is indicated by the flashing of "OIL--"
or the display of a specific message in the
instrument panel. Contact a CITROËN or a
qualified workshop.
There are 2 marks on the
dipstick:
- A
= max; never exceed
this level (risk of damage to
the engine),
- B
= min; top up the level via
the oil filler cap, using the
correct grade of oil for your
engine.
Dipstick
Refer to the "Checks" section to locate the
dipstick and the oil filler cap on your engine.
Page 55 of 396
53Monitoring
This information is displayed for a few seconds
after switching on the ignition. It informs
the driver when the next ser vice is due, in
accordance with the manufacturer's ser vicing
schedule.
The point at which the ser vice is due is
calculated from the last service indicator zero
reset. It is determined by two parameters:
- the distance travelled,
- the time elapsed since the last ser vice.
Service indicator
Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For a few seconds after the ignition is switched
on, the spanner symbolising the ser vice
operations comes on. The distance recorder
display line or a specific message in the
instrument panel central screen indicates the
distance remaining before the next ser vice is due.
For example:
1 700 miles (2 800 km) remain
before the next ser vice is due.
For a few seconds after the ignition is switched
on, the screen indicates:
Less than 600 miles (1 000 km) remain
before the next service is due
Example:
560 miles (900 km) remain before
the next ser vice is due.
For a few seconds after the ignition is switched
on, the screen indicates:
A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on
to
indicate that a ser vice must be carried out
soon.
A few seconds after the ignition is switched on,
the spanner goes off
; the distance recorder
resumes its normal operation. The screen then
indicates the total and trip distances.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no ser vice information
appears in the instrument panel central screen.
Page 56 of 396
A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on
.
The distance remaining may be
weighted by the time factor, depending
on the type of driving.
Therefore, the spanner may also come
on if you have exceeded the two year
ser vice inter val.
Service indicator zero reset
After each ser vice, the ser vice indicator must
be reset to zero.
The procedure for resetting to zero is as
follows:
)
switch off the ignition,
)
press and hold the ".../000"
trip distance
recorder zero reset button,
)
switch on the ignition; the distance recorder
display begins a countdown,
)
when the screen indicates "=/0"
and the
spanner disappears, release the button. This operation cannot be carried
out while a reminder of the ser vicing
information is being displayed.
Following this operation, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the
zero reset to be registered.
Recalling the service information
You can recall the ser vice information at any
time.
)
Briefly press the ".../000"
trip distance
recorder zero reset button.
The ser vice information is displayed for a
few seconds, in the total distance recorder
line or in the instrument panel central
colour screen, according to version.
Service overdue
For a few seconds after the ignition is switched on,
the spanner flashes
to indicate that the ser vice
must be carried out as soon as possible.
Example:
the ser vice is overdue by 180 miles
(300 km).
For a few seconds after the ignition is switched on,
the screen indicates:
Page 57 of 396
55Monitoring
Manual test in the central colour screen associated with the satellite navigation system
This function allows you to check the status of the vehicle systems (reminder of the "activated"/"deactivated" status of the configurable functions) and
to display the alerts log.
)
With the engine running, to star t a manual
test, briefly press the ".../000"
button on
the instrument panel. The following information appears successively
in the instrument panel central colour screen:
- engine oil level indicator
(see corresponding section),
- ser vice indicator (see corresponding
section),
- under-inflation detection (if your vehicle
is fitted with this system; see the "Safety"
section),
- current warnings and aler t messages, if
any (see corresponding section for the
warning lamp or system concerned),
- status of configurable functions
(see "Multifunction screens"). This information also appears every
time the ignition is switched on
(automatic test).

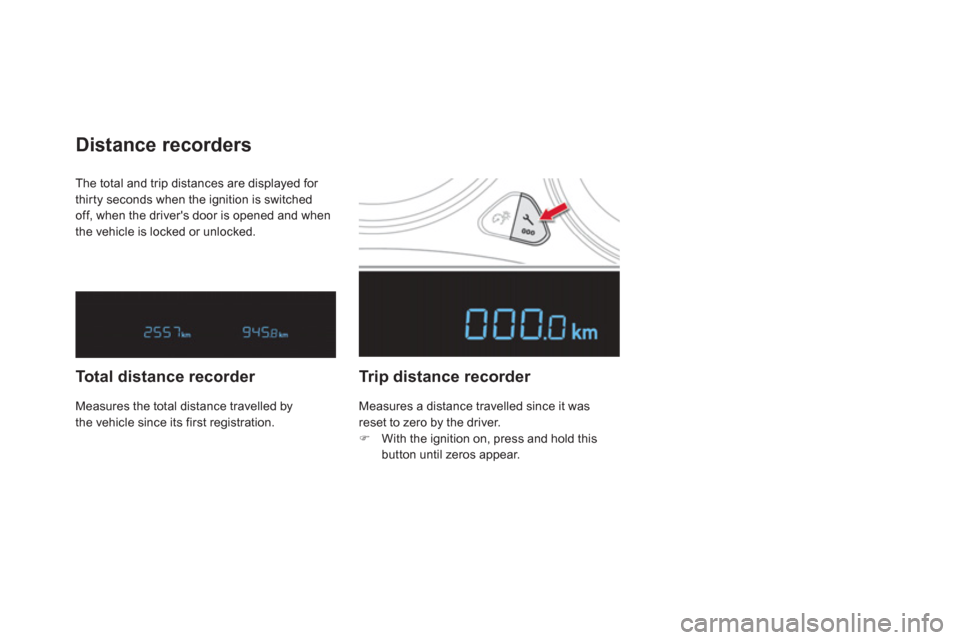

Page 58 of 396
The total and trip distances are displayed for
thir ty seconds when the ignition is switched
off, when the driver's door is opened and when
the vehicle is locked or unlocked.
Distance recorders
Total distance recorder
Trip distance recorder
Measures a distance travelled since it was
reset to zero by the driver.
)
With the ignition on, press and hold this
button until zeros appear.
Measures the total distance travelled by
the vehicle since its first registration.
Page 64 of 396
Monochrome screen C
This displays the following information:
- time,
- date,
- ambient temperature (this flashes if there is
a risk of ice),
- openings check (if a doors or the boot is
open),
- parking sensor information,
- current audio source,
- telephone or Bluetooth system information,
- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission control
system faulty") or information messages (e.g.:
"Automatic switching on of the headlamps
activated") may appear temporarily. These can
be cleared by pressing the "ESC"
button.
Displays in the screen
From the control panel of your audio system,
you can press:
)
button A
to chooses between the display
of audio information in full screen or the
shared display of audio and trip computer
information,
)
the "MENU"
button for access to the main
menu
,
)
the "
" or "
" buttons to scroll through the
items on the screen,
)
the "
" or "
" buttons to change a setting
value,
)
the "OK"
button to confirm,
or
)
the "ESC"
button to abandon the operation
in progress.
Controls
)
Press the "MENU"
button for access to the
main menu
:
- "Multimedia",
- "Telephone",
- "Trip computer",
- "Bluetooth connection",
- "Personalisation-configuration",
)
Press the "
" or "
" button to select the
menu required, then confirm by pressing
the "OK"
button.
Main menu
Page 65 of 396
63Multifunction screens
With the audio system switched on, this
menu allows you to activate or deactivate the
functions associated with use of the radio
(RDS, DAB/FM auto tracking, RadioText (TXT)
display) or to choose the media play mode
(Normal, Random, Random all, Repeat).
For more information on the "Multimedia"
application, refer to the "Audio and
Telematics" section.
"Multimedia" menu
"Trip computer" menu
This menu allows you to view information on
the status of the vehicle.
Warning log
This summarises the status and warning
messages for systems (active, not active or
faulty), displaying them in succession in the
multifunction screen.
)
Press the "MENU"
button for access to the
main menu.
)
Press the arrows, then the "OK"
button to
select the " Tr i p c o m p u t e r
" menu.
)
In the " Tr i p c o m p u t e r
" menu, select the
" Warning log" line and confirm.
"Telephone" menu
With the audio system switched on, this menu
allows you to make a call or view the various
telephone directories.
For more information on the "Telephone"
application, refer to the "Audio and
Telematics" section.
"Bluetooth
connection" menu
Wit the audio system on, this menu allows a
Bluetooth device (telephone, media player)
to be connected or disconnected and the
connection mode to be defined (hands-free,
playing audio files).
For more information on the "Bluetooth
connection" application, refer to the "Audio and
Telematics" section.
Page 66 of 396
Defi ne the vehicle
parameters
- "Driving assistance":
●
"Parking brake automatic" (Automatic
electric parking brake; see the "Driving"
section),
●
"Rear wipe in reverse gear" (Rear
wiper coupled to reverse gear; see the
"Visibility" section),
●
"Speeds memorised" (Memorising
speeds; see the "Driving" section).
- "Vehicle lighting" (see the "Visibility"
section):
●
"Directional headlamps" (Main/additional
directional lighting),
●
"Daytime lights" (Daytime running
lamps).
- "Interior lighting" (see the "Visibility"
section:
●
"Follow-me-home headlamps"
(Automatic operation of headlamps after
switching off the ignition),
●
" Welcome lighting" (Exterior and interior
welcome lighting).
For example: setting of the duration of the
"follow-me-home" lighting
)
Press the "
" or "
" buttons, to select the
"Define the vehicle parameters" menu, then
the " OK
" button.
)
Press the "
" or "
" buttons to select
the "Interior lighting" line, then the
"OK"
button; then follow the same
procedure to select the "Follow-me-home
headlamps" line. This menu allows you to activate or deactivate
the following equipment, classified in different
categories:
- "Access to the vehicle" (see the "Access"
section):
●
"Plip action" (Selective unlocking of the
driver's door),
●
"Unlocking boot only" (Selective
unlocking of the boot).
"Personalisation-
configuration" menu
This menu gives access to the following
functions:
- "Define the vehicle parameters",
- "Choice of language",
- "Display configuration",
- "Choice of sounds".
Page 67 of 396
65Multifunction screens
)
Press the "
" or "
" buttons to set the
value required (15, 30 or 60 seconds), then
press the "OK"
button to confirm.
Choice of language
Once this menu has been selected, you can
choose the language used by the display from
a pre-defined list.
Display confi guration
This menu gives access to the following
settings:
- "Choice of units",
- "Date and time adjustment",
- "Display parameters",
- "Brightness".
Choice of sounds
This menu allows you to choose a family of
polyphonic sounds from the four available.
These sounds are grouped together in a family
and are adapted to suit the situation and
context (alert, confirmation, rejection, direction
indicators, lighting left on, key in ignition...).
For safety reasons, configuration of the
multifunction screen by the driver must
only be done when stationary.
)
Press the "
" or "
" buttons, then the
"OK"
button to select the "OK"
box and
confirm or press the "ESC"
button to
cancel.
