Starting preventedYou have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting.
Every time the ignition is switched on, the
SERVICE and engine diagnostic warning
lamps come on and the UREA warning lamp
flashes, accompanied by the temporary display
of "NO START IN" and 0 miles or kilometres
-
("NO START IN 0 miles" means "Starting
prevented").
To be able to start the engine, you must call on
a CITROËN dealer or a qualified workshop.Type 2 instrument panel
A system that prevents engine
starting is activated automatically
from 650
miles (1 100 km) after
confirmation of a fault with the SCR
emissions control system. Have the
system checked by a CITROËN dealer
or a qualified workshop as soon as
possible.
In the event of a fault with the the SCR emissions control system
The UREA, SERVICE and diagnostic warning
lamps comes on, accompanied by an audible
signal and the display of the message
"Emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists. In the event of the detection of a fault
If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnosis of the SCR system.
Checks

Freezing of the AdBlue® additive
The AdBlue
® additive freezes at
temperatures below around -11°C.
The SCR system includes a heater
for the AdBlue
® tank, allowing you to
continue driving in very cold conditions.
If a fault with the SCR system is confirmed
(after 30 miles (50 km) covered with the
permanent display of the message signalling
a fault), the SERVICE and engine diagnostic
warning lamps come on and the UREA
warning lamp flashes, accompanied by an
audible signal and the display of a message
(e.g.: "Emissions fault: Starting prevented in
150

miles") indicating the remaining range
express in miles or kilometres.
While driving, the message is displayed every
30 seconds while the fault with the SCR system
persists.
The alert is repeated when switching on the
ignition.
You should go to a CITROËN dealer or a
qualified workshop as soon as possible.
Other wise, you will not be able to restart your
engine.
du

ring an authorised driving phase (between
650 miles and 0 miles) (1 100 km and 0 km)Every time the ignition is switched on, the SERVICE
and engine diagnostic warning lamps come on and
the UREA warning lamp flashes, accompanied by
an audible signal and the display of the message
"Emissions fault: Starting prevented".
Starting prevented
You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting.
To be able to start the engine, you must call on
a CITROËN dealer or a qualified workshop.

301
DS4_en_Chap10_verifications_ed03-2015
Topping-up the AdBlue® additive
Precautions in use
Keep AdBlue® out of the reach of
children, in its original bottle.
Never transfer AdBlue
® to another
container: it would lose its purity. Never dilute the additive with water.
Never pour the additive into the Diesel
fuel tank.
Never top-up from an AdBlue®
dispenser reserved for heavy goods
vehicles.
The AdBlue
® additive is an urea-based
solution. This liquid is non-flammable,
colourless and odourless (kept in a cool area).
In the event of contact with the skin, wash
the affected area with soap and water. In the
event of contact with the eyes, wash (irrigate)
the eyes with large amounts of water or with
an eye wash solution for at least 15 minutes.
If a burning sensation or irritation persists, get
medical attention.
If swallowed, immediately wash out the mouth
with clean water and then drink plenty of water.
In certain conditions (high ambient
temperature, for example), the risk of release
of ammonia cannot be excluded: do not inhale
the product. Ammonia vapour has en irritant
effect on mucous membranes (eyes, nose and
throat).
Filling the AdBlue
® tank is an operation
included in every routine service on your
vehicle by a CITROËN dealer or a qualified
workshop.
Nevertheless, given the capacity of the tank,
it may be necessary to top-up the additive
between services, more particularly if an alert
(warning lamps and a message) signals the
requirement.
You can got to a CITROËN dealer or a qualified
workshop.
If you envisage topping-up yourself, please
read the following warnings carefully. Use only AdBlue
® additive that meets the
ISO

22241 standard.
The supply in a non-drip bottle simplifies
toping-up. You can obtain 1.89 litre (half a
US

gallon) bottles from a CITROËN dealer or a
qualified workshop.
Checks

Never store bottles of AdBlue® in your
vehicle.
Recommendations on storage
AdBlue® freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
Under these conditions, the additive can be
kept for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out. Before topping-up, ensure that the vehicle is
parked on a flat and level sur face.
In wintry conditions, ensure that the
temperature of the vehicle is above -11°C.
Otherwise the AdBlue
® may be frozen and
so cannot be poured into its tank. Park your
vehicle in a warmer area for a few hours to
allow the top-up to be carried out.
Procedure
F Switch off the ignition and remove the key, or if your vehicle has one, press the
START/STOP button to switch off the
engine. F

R
aise the boot floor for access to the
AdBlue
® tank. S
ecure the boot floor by attaching its cord
to the hook on the parcel shelf support.
F

U

nclip the black plastic blanking plug using
its tab.
F

I

nsert your fingers into the aperture and
turn the blue cap a 6
th of a turn anti-
clockwise.
F

C

arefully lift off the cap, without dropping it.

303
DS4_en_Chap10_verifications_ed03-2015
Never dispose of AdBlue® additive
bottles in the household waste. Place
them in a special container provided
this purpose or take them to your
dealer.
Important: if your vehicle's
AdBlue
® tank is completely empty -
w
hich is confirmed by the alert displays
and the impossibility of starting the
engine - you must add at least 3.8 litres
(so two 1.89 litre bottles). If any additive is split or splashed, wash
immediately with cold water or wipe
with a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.
Important:
in the event of a top-
up after a breakdown because of
a lack of additive , you must wait
around 5 minutes before switching
on the ignition, without opening the
driver's door, locking the vehicle,
introducing the key into the ignition
switch, or introducing the key of the
"Keyless Entr y and Star ting" system
into the passenger compartment .
Switch on the ignition, then, after
10 seconds, start the engine.
F

O

btain a bottle of AdBlue
®. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
® tank. F
A
fter emptying the bottle, wipe away any
spillage around the tank filler using a damp
cloth.
F
R
efit the blue cap to the tank and turn it a
6
th of a turn clockwise, to its stop.
F
R
efit the black plastic blanking plug,
clipping it in on the flap.
F

D

etach the cord from the parcel shelf
support and lower the boot floor.
Checks

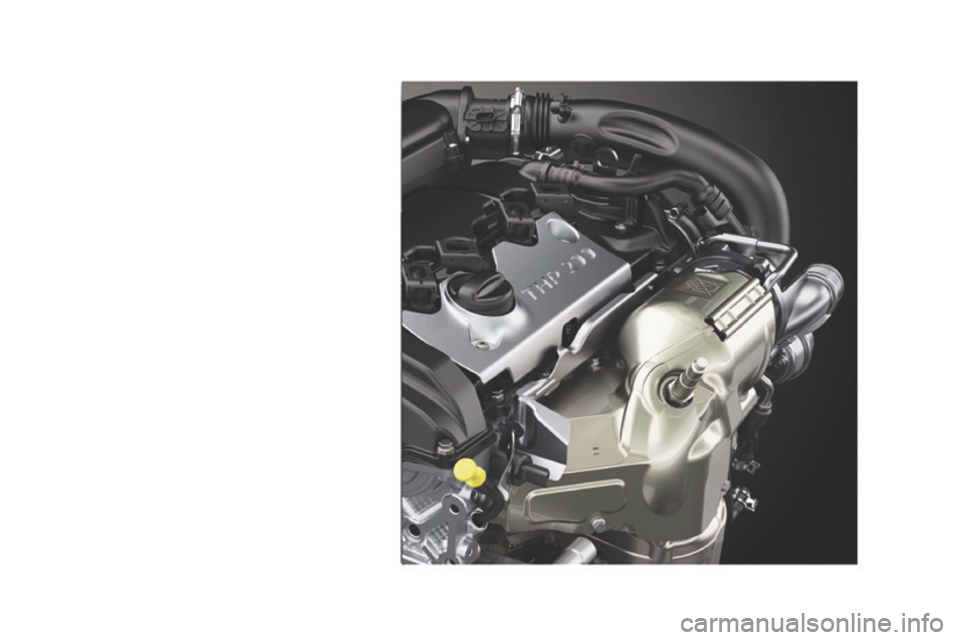

DS4_en_Chap11_caracteristiques_ed03-2015
Technical data
011

DS4_en_Chap11_caracteristiques_ed03-2015

DS4_en_Chap11_caracteristiques_ed03-2015
Petrol engines and gearboxes
Petrol engineV Ti 120PureTech 130 S&S THP 15 0
Gearbox Manual
(5 - speed) Manual
(6- speed) Automatic
(6- speed)
Model code:
NX... 5FS0

5FS0/1 HNYM/S
HNYM/1S
HNYM/2S 5FEA
Cubic capacity (cc) 1 5981 1991 598
Bore x stroke (mm) 77 x 85.875 x 90.577 x 85.8
Max power*: EU standard (kW) 889611 0
Max power engine speed (rpm) 6 0005 5006 050
Max torque: EU standard (Nm) 160230 240
Max torque engine speed (rpm) 4 2501 7501 400
Fuel UnleadedUnleadedUnleaded
Catalytic converter Ye sYe sYe s
Engine oil capacity (in litres) (with filter
replacement) 4.25
3.54.25
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
*

T
he maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation
(Directive 1999/99/EC).

307
DS4_en_Chap11_caracteristiques_ed03-2015
Petrol engineTHP 160THP 165 S&S THP 200THP 210 S&S
Gearbox Automatic
(6- speed) EAT6 automatic
(6- speed) Manual
(6- speed) Manual
(6- speed)
Model code:
NX... 5FMA5GZT/S
5GZ T/1S 5FU8

5FU8/1 5GMM/S
Cubic capacity (cc) 1 5981 5981 5981 598
Bore x stroke (mm) 77 x 85.877 x 85.877 x 85.877 x 85.8
Max power*: EU standard (kW) 120121147155
Max power engine speed (rpm) 6 0006 000 5 5006 000
Max torque: EU standard (Nm) 240240 275285
Max torque engine speed (rpm) 1 4001 400 1 7001 750
Fuel UnleadedUnleadedUnleadedUnleaded
Catalytic converter Ye sYe sYe sYe s
Engine oil capacity (in litres)
(with filter replacement) 4.25
4.254.254.25
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
*

T
he maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation
(Directive 1999/99/EC).
Technical data

DS4_en_Chap11_caracteristiques_ed03-2015
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Petrol weights and towed loads (in kg)
Petrol engineV Ti 120PureTech 130 S&S THP 15 0
Gearbox Manual

(5 - speed) Manual
(6- speed) Automatic
(6- speed)
Model code:
NX... 5FS0

5FS0/1 HNYM/S
HNYM/1S - /2S 5FEA
-

U
nladen weight 1 2051 2551 363
-

K
erb weight* 1 2801 330 1 438
-

G
ross vehicle weight
(GV W) 1 755
1 790 1 835
-

G
ross train weight (GTW)
o

n a 12 % gradient 2 955
2 990 2 635
-

B
raked trailer (within the GTW limit)
o

n a 12 % gradient 1 200
1 200 800
-

B
raked trailer** (with load transfer within the
GTW limit) 1 450
1 4501 000
-

U
nbraked trailer 640675715
-

R
ecommended nose weight 757575
*

T
he kerb weight is equal to the unladen weight + driver (75 kg).
**

T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
