engine Citroen DS4 2017 1.G Owner's Manual

297
DS4_en_Chap08_en-cas-de-panne_ed01-2016
F On the front bumper, unclip the cover by pressing on the left.
F

S
crew the towing eye in fully.
F

I
nstall the towing arm.
Towing your vehicle Towing another vehicle
F Place the gear lever in neutral
(position N on an automatic
gearbox).
F

ailure to observe this instruction
could result in damage to
certain components (braking,
transmission...) and the absence
of braking assistance the next time
the engine is started.
F

U

nlock the steering and release the
parking brake.
F

S

witch on the hazard warning lamps on
both vehicles.
F

M

ove off gently, drive slowly and for a short
distance. F

O
n the rear bumper, unclip the cover by
pressing at the top.
F

S
crew the towing eye in fully.
F

I
nstall the towing arm.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently, drive slowly and for a short
distance.
08
In the event of a breakdown

298
DS4_en_Chap08_en-cas-de-panne_ed01-2016
Running out of fuel (Diesel)
On vehicles fitted with Diesel engines, the fuel
system must be primed if you run out of fuel.
For all versions other than BlueHDi, refer to the
corresponding engine compartment view.Other HDi engines
(except BlueHDi version)
For more information on Diesel
misfuel prevention , refer to the
corresponding section.
If the engine does not start first
time, don't keep trying but start the
procedure again from the beginning. F

A
dd at least five litres of Diesel fuel to the
tank.
F

O
pen the bonnet.
F

I
f necessary, unclip the styling cover for
access to the priming pump.
F

S
queeze and release the priming
pump repeatedly until resistance
is felt (there may be resistance at
the first press).
F

O
perate the starter to start the engine
(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).
F

I
f the engine does not start after a few
attempts, operate the priming pump again
then start the engine.
F

R
efit the styling cover and clip it in place.
F

C
lose the bonnet.
BlueHDi engines
F Fill the fuel tank with at least five litres of Diesel.
F

S
witch on the ignition (without starting the
engine).
F

W
ait around 6 seconds and switch off the
ignition.
F

R
epeat the operation 10 times.
F

O
perate the starter to run the engine.
08
In the event of a breakdown

302
DS4_en_Chap09_caracteristiques_ed01-2016
Engines
Engine characteristics
The engine characteristics (capacity, maximum
power, maximum engine speed, fuel, CO
2
emissions, etc.) for your vehicle are given in
the registration document, as well as in sales
brochures.
These characteristics correspond to the
values type-approved on a test bed, under
conditions defined in European legislation
(Directive
1

999/99/EC).
For more information, contact a CITROËN
dealer or a qualified workshop.
Weights
Weights and towed loads
The maximum weights and towed loads for your
vehicle are given are given in the registration
document, as well as in sales brochures.
These values are also present on the
manufacturer's plate or label.
For more information, contact a CITROËN
dealer or a qualified workshop.
The kerb weight is equal to the unladen
weight
+ driver (75 kg).
The GTW and towed load values indicated
apply up to a maximum altitude of
1
000 metres; the towed load mentioned
must be reduced by 10 % for every additional
1
000 metres.
The weight of the braked trailer can be
increased, within the GTW limit, on condition
that the GV W of the towing vehicle is reduced
by the same amount.
The recommended nose weight is the vertical
load on the towbar ball (removable with or
without tools).
GV W:

g
ross vehicle weight, the maximum
authorised vehicle weight.
GT W:

g
ross train weight, the maximum
authorised weight of vehicle plus trailer. High exterior temperatures may result
in a reduction in the per formance of
the vehicle to protect the engine; when
the exterior temperature is higher than
37
°C, limit the towed weight.
If the exterior temperature is high, it
is recommended that the engine be
allowed to idle for 1 to 2 minutes after
the vehicle comes to a stop, to facilitate
its cooling. Towing with a lightly loaded vehicle can
adversely affect roadholding.
Braking distances are increased when
towing a trailer.
Never exceed 60 mph (100 km/h) when
towing (comply with the legislation in
force in your country).
09
Technical data

303
DS4_en_Chap09_caracteristiques_ed01-2016
Petrol engines
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
*
The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engine
V Ti 120PureTech 130 S&S THP 15 0
Gearbox Manual

(5 - speed) Manual

(6- speed) Automatic

(6- speed)
Model code:
NX... 5FS0

5FS0/1 HNYM/S
HNYM/1S
HNYM/2S 5FEA
Cubic capacity (cc) 1 5981 1991 598
Max power*: EU standard (kW) 889611 0
Fuel UnleadedUnleadedUnleaded
Braked trailer (within GTW limit)
o
n 12% gradient (Kg)
1 200
1 200 800
Unbraked trailer (Kg) 640675715
Recommended nose weight (Kg) 757575
09
Technical data

304
DS4_en_Chap09_caracteristiques_ed01-2016
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
*

T
he maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engine
THP 160THP 165 S&S THP 210 S&S
Gearbox Automatic

(6- speed) EAT6 automatic

(6- speed) Manual

(6- speed)
Model code:
NX... 5FMA5GZT/S
5GZ T/1S 5GMM/S
Cubic capacity (cc) 1 5981 5981 598
Max power*: EU standard (kW) 120121155
Fuel UnleadedUnleadedUnleaded
Braked trailer (within GTW limit)
o
n 12% gradient (Kg)
800
1 400 1 000
Unbraked trailer (Kg) 715690 655
Recommended nose weight (Kg) 757575
09
Technical data

305
DS4_en_Chap09_caracteristiques_ed01-2016
Diesel engines
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
*

T
he maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engine
BlueHDi 100e-HDi 115 BlueHDi 115 S&S
Gearbox Manual
(5 - speed) Manual
(6- speed) Manual
(6- speed) EAT6 automatic
(6- speed)
Model code:
NX... BHY9HD8/6

9HD8 /1S BHXM/S
BHXM/1S -/2S -/3S BHX T/1S
BHX T/2S
Cubic capacity (cc) 1 5601 560 1 560
Max power*: EU standard (kW) 7384 85
Fuel DieselDiesel Diesel
Braked trailer (within GTW limit)
o
n 12% gradient (Kg)
1 250
1 300 1 300 1 200
Unbraked trailer 630680 680640
Recommended nose weight 75757575
09
Technical data

306
DS4_en_Chap09_caracteristiques_ed01-2016
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
Engine
BlueHDi 120 S&SBlueHDi 150 S&S BlueHDi 180
Gearbox Manual
(6- speed) EAT6 automatic
(6- speed) Manual
(6- speed) EAT6 automatic
(6- speed)
Model code:
NX... BHZM/S
BHZM/1S -/2S -/3S BHZT/SAHRM/S
AHRM/1S
AHRM/2S AHW T/S
AHW T/1S
AHW T/2S
Cubic capacity (cm
3) 1 5601 9971 997
Max power*: EU standard (kW) 8811 0132
Fuel DieselDieselDiesel
Braked trailer (within GTW limit)
o

n 12% gradient (Kg) 1 300
1 2001 300 1 300
Unbraked trailer 680640 74 074 5
Recommended nose weight 75757575
09
Technical data

315
DS4_en_Chap10b_SMEGplus_ed01-2016

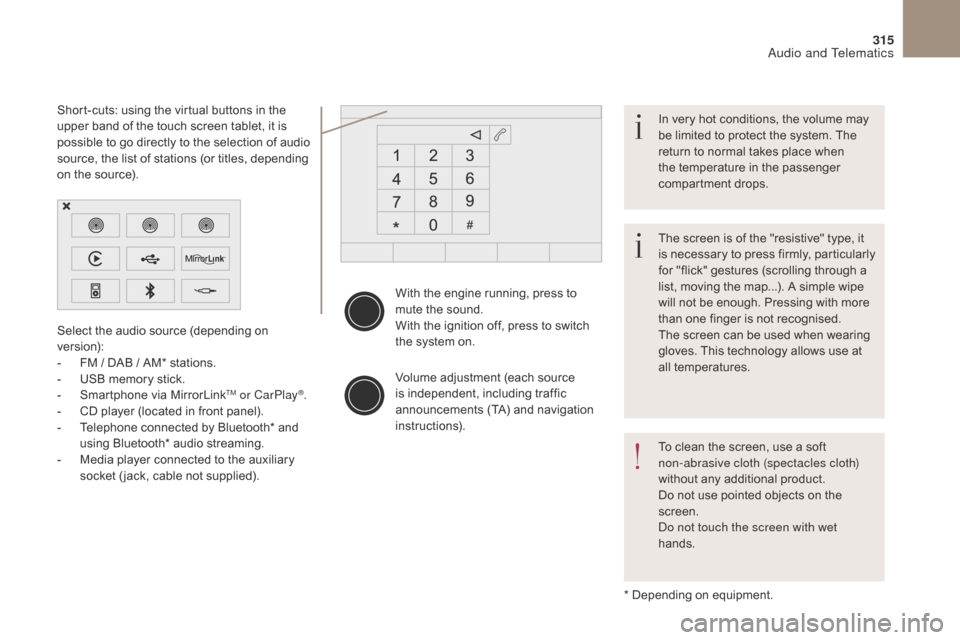

With the engine running, press to
mute the sound.
With the ignition off, press to switch
the system on.
Volume adjustment (each source
is independent, including traffic
announcements (TA) and navigation
instructions).
Select the audio source (depending on
version):
-

F

M

/ DAB

/ AM* stations.
-

U

SB memory stick.
-

S

martphone via MirrorLink
TM or CarPlay®.
-
C
D player (located in front panel).
-

T

elephone connected by Bluetooth* and
using Bluetooth* audio streaming.
-

M

edia player connected to the auxiliary
socket ( jack, cable not supplied).
* Depending on equipment.
Short-cuts: using the virtual buttons in the
upper band of the touch screen tablet, it is
possible to go directly to the selection of audio
source, the list of stations (or titles, depending
on the source).
The screen is of the "resistive" type, it
is necessary to press firmly, particularly
for "flick" gestures (scrolling through a
list, moving the map...). A simple wipe
will not be enough. Pressing with more
than one finger is not recognised.
The screen can be used when wearing
gloves. This technology allows use at
all temperatures. In very hot conditions, the volume may
be limited to protect the system. The
return to normal takes place when
the temperature in the passenger
compartment drops.
To clean the screen, use a soft
non-abrasive cloth (spectacles cloth)
without any additional product.
Do not use pointed objects on the
screen.
Do not touch the screen with wet
hands.
Audio and Telematics

374
DS4_en_Chap10b_SMEGplus_ed01-2016
QUESTIONANSWER SOLUTION
There is a difference in
sound quality between the
different audio sources. For optimum sound quality, the audio settings for Loudness,
Ambience, Treble, Bass, Volume can be adapted to the different
sound sources, which may result in audible differences when
changing source. Check that the audio settings (Loudness,
Ambience, Treble, Bass, Volume) are adapted to
the sources listened to. Adjust Balance, Treble
and Bass to the middle position, select the
"None" musical ambience and set the loudness
correction to the "Active" position in CD mode or
to the "Inactive" position in radio mode.
With the engine off, the
system switches off after a
few minutes of use. When the engine is switched off, the system's operating time
depends on the state of charge of the battery.
The switch-off is normal: the system switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
Audio and Telematics

377
DS4_en_Chap10c_RD5_ed01-2016
Audio system / Bluetooth®
Contents
First steps
3 78
Steering mounted controls

3
79
Menus

3
80
Radio
3

81
DAB (Digital Audio Broadcasting) radio

3
83
Media

3
85
Telephone
3

90
Audio settings
3

97
Screen menu map(s)

3
98
Screen C

3
98
Frequently asked questions

4
00
As a safety measure, the driver must only carry out operations
which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of
the battery, the audio system may switch off after a few minutes.
The system is coded in such a way that it will only operate in
your

vehicle.
