Additive level
(Diesel with particle filter)
Topping up
The reservoir must be topped up without delay
by a CITROËN dealer or a qualified workshop.
Used products
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a CITROËN dealer or
a qualified workshop (France) or to an
authorised waste disposal site.
According to your version of instrument panel,
the additive reservoir low level is indicated by:
-

f

ixed illumination of the particle
filter warning lamp, accompanied
by an audible signal and a
message that the particle filter
additive level is too low,
or
-

f

ixed illumination of the service
warning lamp, accompanied by
an audible signal and a message
that the particle filter additive
level is too low.
07
Practical information

250
Particle filter (Diesel)
According to your version of instrument panel, the start of
saturation of the particle emissions filter is indicated by:
- temporary illumination of the service warning lamp,
accompanied by an audible signal
and a message that there is a risk
of blockage of the particle filter.
-

f
ixed illumination of the particle
filter warning lamp, accompanied
by an audible signal and a
message that there is a risk of
blockage of the particle filter,
or
As soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at
least 40 mph (60 km/h) until the warning lamp
goes off.
If the warning lamp stays on, there is a lack of
additive.
Checking components
Air filter and passenger compartment filter
Oil filter
Unless other wise indicated, check these components in accordance with the manufacturer's service schedule and according to your engine.
Other wise, have them checked by a CITROËN dealer or a qualified workshop.
Refer to the manufacturer's
service schedule for details of the
replacement intervals for these
components.
Replace the oil filter each time the
engine oil is changed.
Refer to the manufacturer's
service schedule for details of
the replacement interval for this
component.
Versions equipped with Stop &
Start are fitted with a 12 V lead-acid
battery of specific technology and
specification.
Its replacement should be carried
out only by a CITROËN dealer or a
qualified workshop.
12 V battery
For more information and the precautions to
take before starting work on the 12 V batter y
,
refer to the corresponding section.
The battery does not require any maintenance.However, check regularly that the
terminals are correctly tightened
(versions without quick release terminals)
and that the connections are clean.
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g. city driving), replace them twice as often
if necessary .
A clogged passenger compartment filter may
have an adverse effect on the per formance
of the air conditioning system and generate
undesirable odours.
07
Practical information

251
DS4_en_Chap07_info-pratiques_ed01-2016
For more information on Checking
the levels and in particular on the
diesel additive level, refer to the
corresponding section.
On a new vehicle, the first operations
of regeneration of the particle filter
may be accompanied by the smell of
"burning", which is per fectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.
Manual gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval for
this component.
Automatic gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval for
this component.
Brake disc wear
For information on checking brake
disc wear, contact a CITROËN dealer
or a qualified workshop.
Brake pads
Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to have
the condition of the brakes checked,
even between vehicle services.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.
07
Practical information

252
Electric parking brake
This system does not require any
routine servicing. However, in the
event of a problem, have the system
checked by a CITROËN dealer or a
qualified workshop.Only use products recommended by
CITROËN or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, CITROËN selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
Parking brake
If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must be
checked, even between two services.
For more information on the Electric parking
brake , refer to the corresponding section.
Checking this system must be done by a
CITROËN dealer or a qualified workshop.
07
Practical information

253
DS4_en_Chap07_info-pratiques_ed01-2016
Once the AdBlue® tank is empty,
a s
ystem required by regulations
prevents starting of the engine.
If the SCR

system is faulty, the level
of emissions from your vehicle will no
longer meet the Euro 6 standard: your
vehicle becomes polluting.
In the event of a confirmed fault
with the SCR system, you must go
to a CITROËN dealer or a qualified
workshop as soon as possible: after
a running distance of 650 miles
(1

100 km), a system will be triggered
automatically to prevent engine
starting.
In either case, a range indicator gives
you the distance you can travel before
the vehicle is immobilised.
AdBlue® and SCR system
for BlueHDi Diesel engines
To assure respect for the environment and
conformity with the new Euro 6 emissions
standard, without adversely affecting the
per formance or fuel consumption of Diesel
engines, CITROËN has taken the decision to
equip its vehicles with an effective system that
associates SCR (Selective Catalytic Reduction)
with a particle filter (FAP) for the treatment of
exhaust gases.
SCR system
Using a fluid called AdBlue® containing urea, a
catalytic converter turns up to 85% of nitrogen
oxides (NOx) into nitrogen and water, which are
harmless to health and the environment. The AdBlue
® is held in a special tank with
a capacity of about 17 litres: this provides
a driving range of about 12 500 miles
(20

000

km). An alert is triggered automatically
to warn you when the reserve level is
reached: you can then drive about 1 500 miles
(2

400

km) before the tank is empty.
During each scheduled service of your vehicle
by a CITROËN dealer or a qualified workshop,
the AdBlue
® tank is refilled in order to allow
normal operation of the SCR system.
If the estimated mileage of your vehicle
between two services is greater than
12

500

miles (20 000 km), it will be necessary
to top-up the AdBlue
®.
07
Practical information

254

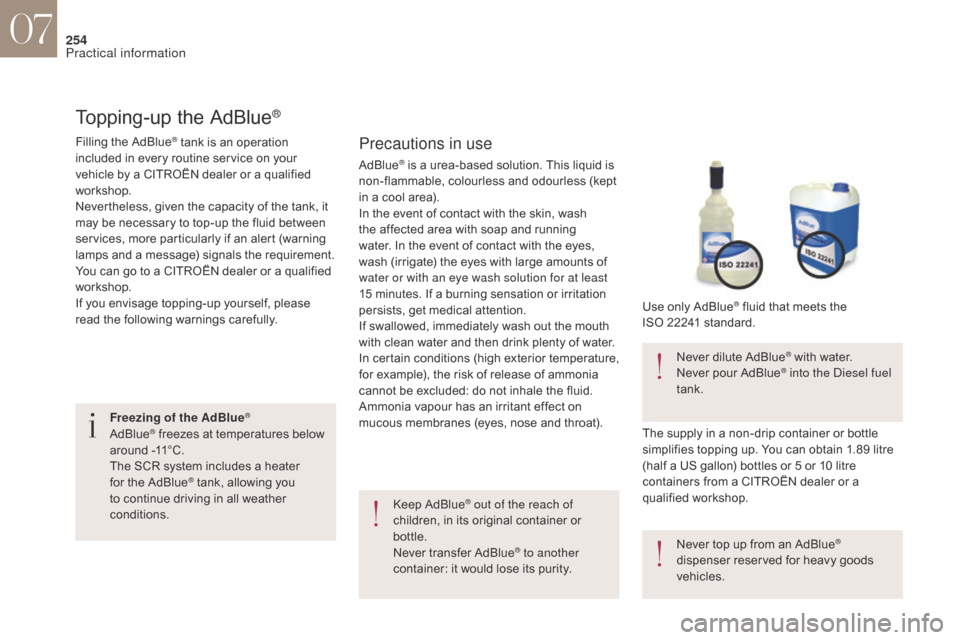

Topping-up the AdBlue®
Precautions in use
Keep AdBlue® out of the reach of
children, in its original container or
bottle.
Never transfer AdBlue
® to another
container: it would lose its purity. Never dilute AdBlue
® with water.
Never pour AdBlue® into the Diesel fuel
tank.
Never top up from an AdBlue
®
dispenser reserved for heavy goods
vehicles.
AdBlue
® is a urea-based solution. This liquid is
non-flammable, colourless and odourless (kept
in a cool area).
In the event of contact with the skin, wash
the affected area with soap and running
water. In the event of contact with the eyes,
wash (irrigate) the eyes with large amounts of
water or with an eye wash solution for at least
15

minutes. If a burning sensation or irritation
persists, get medical attention.
If swallowed, immediately wash out the mouth
with clean water and then drink plenty of water.
In certain conditions (high exterior temperature,
for example), the risk of release of ammonia
cannot be excluded: do not inhale the fluid.
Ammonia vapour has an irritant effect on
mucous membranes (eyes, nose and throat).
Filling the AdBlue
® tank is an operation
included in every routine service on your
vehicle by a CITROËN dealer or a qualified
workshop.
Nevertheless, given the capacity of the tank, it
may be necessary to top-up the fluid between
services, more particularly if an alert (warning
lamps and a message) signals the requirement.
You can go to a CITROËN dealer or a qualified
workshop.
If you envisage topping-up yourself, please
read the following warnings carefully. Use only AdBlue
® fluid that meets the
ISO

22241 standard.
The supply in a non-drip container or bottle
simplifies topping up. You can obtain 1.89
litre
(half a US gallon) bottles or 5 or 10 litre
containers from a CITROËN
dealer or a
qualified workshop.
Freezing of the AdBlue
®
AdBlue® freezes at temperatures below
around -11°C.
The SCR system includes a heater
for the AdBlue
® tank, allowing you
to continue driving in all weather
conditions.
07
Practical information

255
DS4_en_Chap07_info-pratiques_ed01-2016
Never store bottles of AdBlue® in your
vehicle.
Recommendations on storage
AdBlue® freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight .
Under these conditions, the fluid can be kept
for at least a year .
If the additive has frozen, it can be used once it
has completely thawed out. Before starting the top-up procedure, ensure
that the vehicle is parked on a flat and level
sur face.
Procedure
F Switch off the ignition and remove the
key, or if your vehicle has one, press the
START/STOP button to switch off the
engine.
F

R
aise the boot floor for access to the
AdBlue
® tank. S
ecure the boot floor by attaching its cord
to the hook on the parcel shelf support.
F

U

nclip the black plastic blanking plug using
its tab.
F

I

nsert your fingers into the aperture and
turn the blue cap a 6
th of a turn anti-
clockwise.
F

C

arefully lift off the cap, without dropping it.
Do not dispose of AdBlue
® bottles or
containers in the household waste.
Place them in a container provided
for this purpose or take them to your
dealer.
07
Practical information

256
Never dispose of AdBlue® additive
bottles in the household waste. Place
them in a special container provided
this purpose or take them to your
dealer.
Important: if your vehicle's AdBlue
®
tank is completely empty - which
is confirmed by the alert displays
and the impossibility of starting the
engine

- you must add at least 3.8 litres
(so

two

1.89

litre bottles). If any additive is split or splashed, wash
immediately with cold water or wipe
with a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.
Important:
in the event of a top-
up after a breakdown because of
a lack of additive , you must wait
around 5 minutes before switching
on the ignition, without opening the
driver's door, locking the vehicle,
introducing the key into the ignition
switch, or introducing the key of the
"Keyless Entr y and Star ting" system
into the passenger compartment .
Switch on the ignition, then, after
10 seconds, start the engine.
F

O

btain a bottle of AdBlue
®. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
® tank. F
A
fter emptying the bottle, wipe away any
spillage around the tank filler using a damp
cloth.
F R efit the blue cap to the tank and turn it a
6th of a turn clockwise, to its stop.
F
R
efit the black plastic blanking plug,
clipping it in on the flap
F

D

etach the cord from the parcel shelf
support and lower the boot floor.
07
Practical information

257
DS4_en_Chap07_info-pratiques_ed01-2016
07
Practical information

DS4_en_Chap08_en-cas-de-panne_ed01-2016
IN THE EVENT OF A F AULT
