Temporary puncture repair kit
This kit consists of a compressor and a sealant
cartridge.
It allows the temporary repair of a tyre.
You are then able to go to the nearest garage.Access to the kit
This kit is installed in the storage box, under the
boot floor.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.
Its compressor can be used to check
and adjust the pressure of the tyre.
The vehicle's electric system allows the
connection of a compressor for long enough
to inflate a tyre after a puncture repair or for
inflating a small inflatable accessory.
Tyre under-inflation detection
If the vehicle is fitted with tyre under-
inflation detection, the under-inflation
warning lamp will remain on after the
wheel has been repaired until the
system is reinitialised by a CITROËN
dealer or a qualified workshop.
Only
the 12 V socket at the front of
the vehicle allows the connection of the
compressor for long enough to repair or
inflate a tyre.
The other 12 V sockets in the vehicle
are not suited to the use of the
compressor.
08
In the event of a breakdown

261
DS4_en_Chap08_en-cas-de-panne_ed01-2016
The speed limit sticker H must be
affixed to the vehicle's steering wheel
to remind you that a wheel is in
temporary use.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.

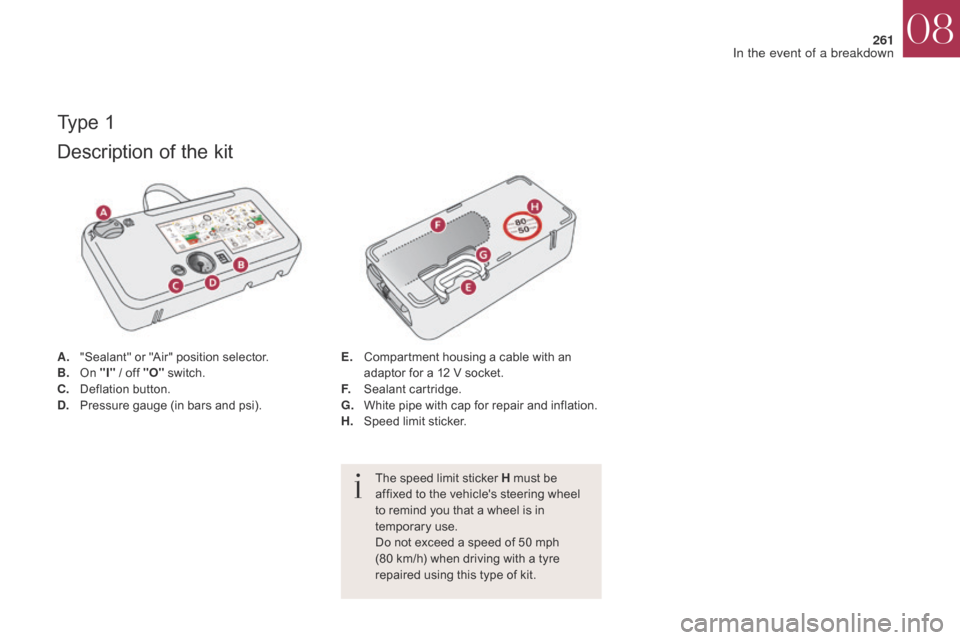

Description of the kit
A. "Sealant" or "Air" position selector.
B. O n "I" / off "O" switch.
C.
D

eflation button.
D.
P

ressure gauge (in bars and psi). E. C
ompartment housing a cable with an
adaptor for a 12 V socket.
F.
S

ealant cartridge.
G.
W

hite pipe with cap for repair and inflation.
H.
S

peed limit sticker.
Ty p e 1
08
In the event of a breakdown

262
DS4_en_Chap08_en-cas-de-panne_ed01-2016
Do not start the compressor before
connecting the white pipe to the tyre
valve: the sealant product would be
expelled through the pipe.
1. Sealing
F Uncoil the white pipe G fully.
F U nscrew the cap from the white pipe.
F

C
onnect the white pipe to the valve of the
tyre to be repaired.
Repair procedure
Avoid removing any foreign bodies
which have penetrated into the tyre. F

C
onnect the compressor's electric plug to
the vehicle's 12 V socket.
F
S
tart the vehicle and leave the engine
running.
F

S

witch off the ignition.
Take care, this product is harmful if
swallowed and causes irritation to the eyes.
Keep this product out of the reach of
children.
F Turn the selector A to the
"sealant" position.
F

C

heck that the switch B is in position "O" .
08
In the event of a breakdown

263
DS4_en_Chap08_en-cas-de-panne_ed01-2016

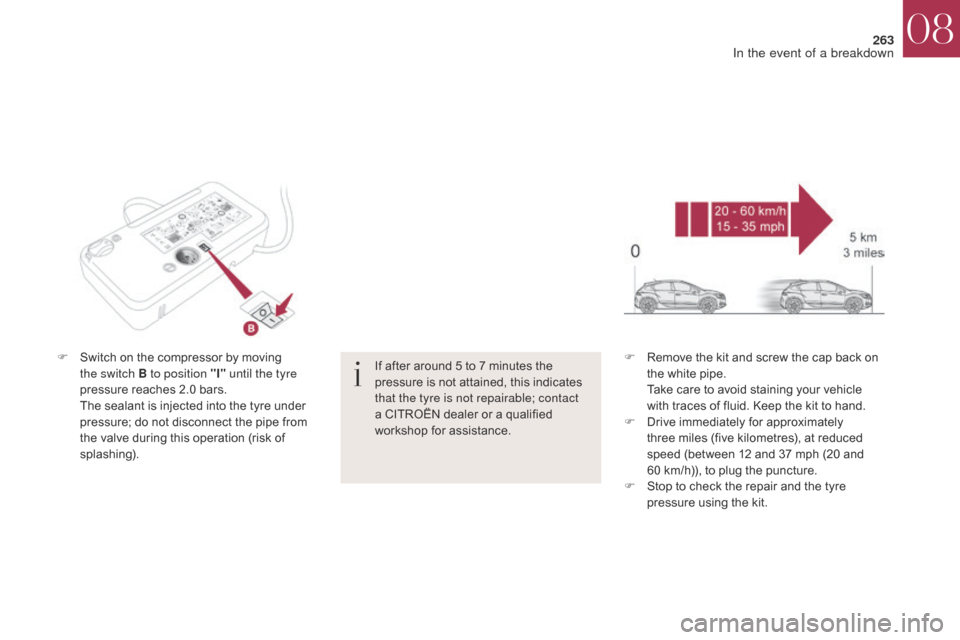

F Switch on the compressor by moving the switch B to position "I" until the tyre
pressure reaches 2.0 bars.
T

he sealant is injected into the tyre under
pressure; do not disconnect the pipe from
the valve during this operation (risk of
splashing). F
R emove the kit and screw the cap back on
the white pipe.
T

ake care to avoid staining your vehicle
with traces of fluid. Keep the kit to hand.
F

D
rive immediately for approximately
three miles (five kilometres), at reduced
speed (between 12 and 37 mph (20 and
60
km/h)), to plug the puncture.
F

S
top to check the repair and the tyre
pressure using the kit.
If after around 5 to 7 minutes the
pressure is not attained, this indicates
that the tyre is not repairable; contact
a CITROËN dealer or a qualified
workshop for assistance.
08
In the event of a breakdown

264
DS4_en_Chap08_en-cas-de-panne_ed01-2016
2. Inflation
F Adjust the pressure using the compressor (to inflate: switch B in position "I" ; to
deflate: switch B
in position "O" and press
button C ), in accordance with the vehicle's
tyre pressure label (located on the left-
hand door aperture).
A l

oss of pressure indicates that the
puncture has not been fully plugged;
contact a CITROËN dealer or qualified
workshop for assistance.
F

R
emove and stow the kit.
F

D
rive at reduced speed (50 mph [80 km/h]
max) limiting the distance travelled to
approximately 120 miles (200 km).
F
T
urn the selector A to the "Air"
position. F
C
onnect the compressor's electric plug to
the vehicle's 12 V socket.
F

S

tart the vehicle again and leave the
engine running.
As soon as possible, go to a CITROËN
dealer or a qualified workshop.
You must inform the technician that you
have used this kit. After inspection, the
technician will advise you on whether
the tyre can be repaired or if it must be
replaced.
F

U

ncoil the white pipe G fully.
F

C

onnect the white pipe to the tyre valve.
08
In the event of a breakdown

265
DS4_en_Chap08_en-cas-de-panne_ed01-2016
Removing the pipe and cartridge
F Turn the pipe assembly 2 to the left until it contacts the unit.
F

D
isconnect the union 1 from the cartridge
by turning it a quarter turn anti-clockwise.
F

E
xtract the pipe assembly 2 , then
disconnect the union 3 from the air delivery
pipe by turning it a quarter turn anti-
clockwise. Beware of discharges of fluid.
The expiry date of the fluid is indicated
on the cartridge.
The sealant cartridge is designed for
single use; even if only partly used, it
must be replaced.
After use, do not discard the cartridge
into the environment, take it to an
authorised waste disposal site or a
CITROËN dealer.
Do not forget to obtain a new sealant
cartridge, available from CITROËN
dealers or from a qualified workshop.
F
R emove the pipe assembly 2
.
F S upport the compressor vertically.
F

U
nscrew the cartridge 4 from the bottom.
To fit the new cartridge and new pipe, carry out
these operations in reverse order.
08
In the event of a breakdown

266
DS4_en_Chap08_en-cas-de-panne_ed01-2016
Checking / adjusting tyre pressures
You can also use the compressor without
injecting any product, to check and if necessary
adjust your tyre pressures.F
C onnect the compressor's electrical
connector to the vehicle's 12 V socket.
F

S
tart the vehicle and let the engine run.
F

A
djust the pressure using the compressor
(to inflate: switch B in position "I" ; to
deflate: switch B in position "O" and press
button C ), according to the vehicle's tyre
pressure label.
F

R
emove the kit then stow it.
F

T
urn the selector A to the "Air"
position.
F

U
ncoil the white pipe G fully.
F

C
onnect the pipe to the tyre valve.
08
In the event of a breakdown

267
DS4_en_Chap08_en-cas-de-panne_ed01-2016
Ty p e 2
1. 12 V compressor, with integral pressure gauge.
2.
S

ealant cartridge, with integral hose.
3.
S

peed limit sticker.
Composition of the kit
The speed limit sticker must be secured
to the interior of the vehicle in the
driver's field of vision, to remind you
that a wheel is in temporary use.
Do not exceed a speed of 50 mph
(80
km/h) when driving with a tyre
repaired using this type of kit.
Repair procedure
F Switch off the ignition.
F S ecure the speed limit sticker inside the
vehicle.
Avoid removing any foreign bodies
which have penetrated into the tyre.
F

U
ncoil the pipe stowed under the
compressor.
F

C
onnect the pipe from the compressor to
the sealant cartridge.
08
In the event of a breakdown

268
DS4_en_Chap08_en-cas-de-panne_ed01-2016
F Turn the sealant cartridge and secure it in the cut-out provided on the compressor. F

C
heck that the compressor switch is at
the "
O " position.
F
U
ncoil fully the electric cable, stowed under
the compressor.
F
R
emove the valve cap from the tyre to be
repaired, and place it in a clean area.
F
C
onnect the hose from the sealant
cartridge to the valve of the tyre to be
repaired and tighten firmly. F

C
onnect the compressor's plug to the
vehicle's 12 V socket.
F

S
witch on the ignition.
08
