CITROEN DS4 2023 Owner's Manual

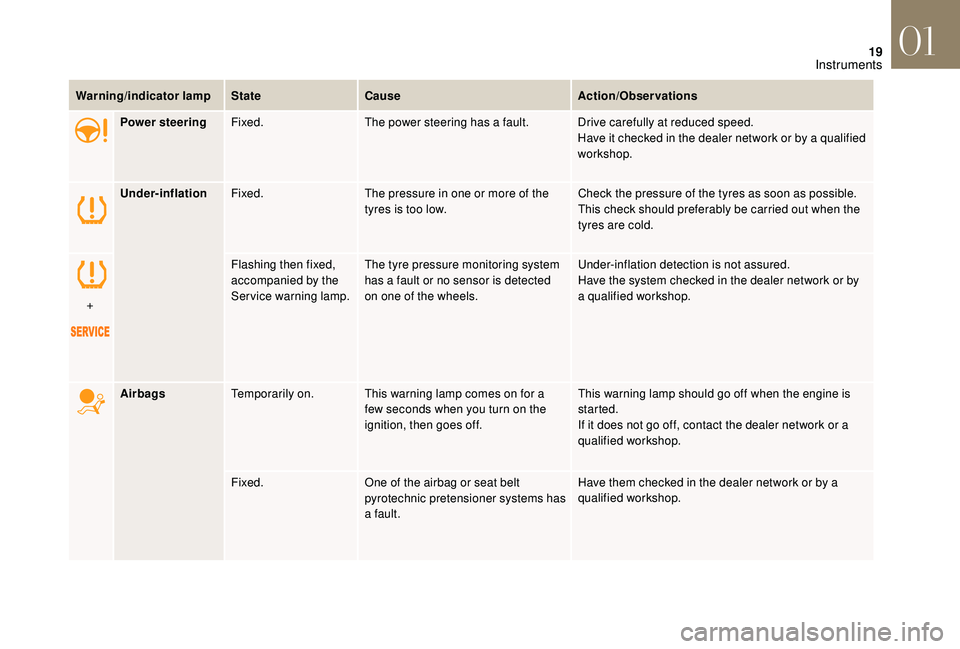

19
Warning/indicator lampStateCause Action/Observations
Power steering Fixed. The power steering has a fault. Drive carefully at reduced speed.
Have it checked in the dealer network or by a qualified
workshop.
Under-inflation Fixed. The pressure in one or more of the
tyres is too low. Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.
+ Flashing then fixed,
accompanied by the
Service warning lamp.
The tyre pressure monitoring system
has a fault or no sensor is detected
on one of the wheels. Under-inflation detection is not assured.
Have the system checked in the dealer network or by
a


qualified workshop.
Airbags Temporarily on. This warning lamp comes on for a
few seconds when you turn on the
ignition, then goes off. This warning lamp should go off when the engine is
started.
If it does not go off, contact the dealer network or a
qualified workshop.
Fixed. One of the airbag or seat belt
pyrotechnic pretensioner systems has
a fault. Have them checked in the dealer network or by a
qualified workshop.
01
Instruments

20
Warning/indicator lampStateCause Action/Observations
AdBlue
®
(BlueHDi Diesel) Fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The remaining driving range is
between 370 miles and 1,500 miles
(600 km and 2,400 km).
Have the AdBlue
® tank topped up as soon as possible:
go to a member of the dealer network or a qualified
workshop, or carry out this operation yourself.
+ Flashing, associated
with the SERVICE
warning lamp,
accompanied by an
audible signal and a
message indicating
the remaining driving
range.The remaining driving range is
between 0 and 370 miles (0 and
6 0 0


k m). You must top up the AdBlue
® tank to avoid a
breakdown : go to a member of the dealer network
or a qualified workshop, or carry out this operation
yourself.
Flashing, associated
with the SERVICE
warning lamp,
accompanied by an
audible signal and a
message indicating
that starting is
prevented. The AdBlue
® tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine. To be able to start the engine, you must top up the
AdBlue® tank: go to the dealer network or a qualified
workshop, or carry out this operation yourself.
It is essential to add at least 4 litres of AdBlue
® to the
corresponding tank.
For topping-up or for more information on AdBlue
®, refer to the corresponding section.
01
Instruments

21
Warning/indicator lampState Cause Action/Observations
+
+ SCR emissions
control system
(BlueHDi Diesel)
Fixed, on switching on
the ignition, associated
with the SERVICE and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message. A fault with the SCR emissions
control system has been detected.
This alert disappears once the exhaust emissions
return to normal levels.
Flashing, on switching on
the ignition, associated
with the SERVICE and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message indicating the
remaining driving range. After confirmation of the fault with
the emissions control system,
you can continue driving for up to
680
miles (1,100 km) before the
engine start inhibition system is
triggered. To avoid a breakdown, contact the dealer
network or a qualified workshop without delay
.
Flashing, on switching on
the ignition, associated
with the SERVICE and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message. You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine start inhibition
system prevents starting of the
engine.
To be able to restart the engine, you must
call on
the dealer network or a qualified workshop.
01
Instruments

22
Warning/indicator lampStateCause Action/Observations
Electric parking
brake Fixed.
The electric parking brake is applied. Release the electric parking brake to switch off the
warning lamp: with your foot on the brake pedal, pull
the electric brake control.
Follow the safety recommendations.
For more information on the Electric parking brake ,
refer to the corresponding section.
Deactivation of
the automatic
functions of the
electric parking
brake Fixed.
The "automatic application" (on
switching off the engine) and
"automatic release" functions are
deactivated or faulty. Activate the function (depending on the country of
sale) via the vehicle configuration menu or contact the
dealer network or a qualified workshop.
Passenger's
airbag system Fixed, in the seat belt
and passenger's front
airbag warning lamps
display. The control switch, located in the
glove box, has been placed in the
"
ON " position.
The passenger's front airbag is
activated.
In this case, do not install a rear ward
facing child seat on this seat. Move the control switch to the "
OFF" position to
deactivate the passenger's front airbag.
In this case, you can install a rear ward facing child
seat, unless there is a fault with the airbags (airbag
warning lamp on).
Passenger's
front airbag Fixed, in the seat belt
and passenger's front
airbag warning lamps
display. The control switch, located in
the glove box, is set to the "
OFF"
position.
The passenger's front airbag is
deactivated.
You can install a rear ward facing child
seat, unless there is a fault with the
airbags (airbag warning lamp on). Set the control to the "
ON" position to activate the
passenger front airbag. In this case, do not install a
rear ward facing child seat on this seat.
01
Instruments

23
Warning/indicator lampStateCause Action/Observations
Rear foglamps Fixed. The rear foglamps have been
switched on using the ring on the
lighting control stalk. Turn the ring on the lighting control stalk rear ward to
switch off the rear foglamps.
Stop & Star t Fixed.
On stopping the vehicle (red lights,
traffic jams,...) the Stop & Start system
has put the engine into STOP mode.The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.
Flashes for a few
seconds, then goes
of f. STOP mode is temporarily
unavailable.
or
START mode is triggered
automatically. For more information on Stop & Star t
, refer to the
corresponding section.
Front foglamps Fixed. The front foglamps are switched on
using the ring on the lighting control
stalk. Turn the ring on the lighting control stalk rear ward
twice to switch off the front foglamps.
Left-hand
direction
indicator Flashing with audible
signal.
The lighting control stalk has been
moved down.
Right-hand
direction
indicator Flashing with audible
signal.
The lighting control stalk has been
moved up.
Hazard warning
lamps Flashing with buzzer. The hazard warning lamps switch,
located on the dashboard, has been
operated. The left-hand and right-hand direction indicators and
their associated warning lamps flash simultaneously.
01
Instruments

24
Warning/indicator lampStateCause Action/Observations
Sidelamps Fixed. The lighting control stalk is in the
"Sidelamps" position.
Directional
headlamps Flashing.
The directional headlamps system
has a fault. Have it checked in the dealer network or by a qualified
workshop.
Dipped beam
headlamps Fixed.
The lighting control stalk is in the
"Dipped beam headlamps" position or
in the "AUTO" position in conditions
of low light.
Main beam
headlamps Fixed.
The lighting control stalk has been
pulled towards you. Pull the lever to return to dipped beam headlamps.
Foot on brake Fixed. With an automatic gearbox, you have
forgotten to press the brake pedal to
come out of position P.With the engine running, before releasing the parking
brake you must press the brake pedal to unlock the
automatic gearbox selector and come out of position
P.
01
Instruments

25
Warning/indicator lampStateCause Action/Observations
Door(s) open Fixed, associated with
a message identifying
the door, if the speed
is below 6 mph
(10


km/h).A door or the boot is still open. Close the door or boot.
Fixed, associated with
a message identifying
the door, together with
an audible signal if the
speed is above 6 mph
(10 km/h).
Par ticle filter
(Diesel) Fixed, accompanied
by an audible signal
and a message about
the risk of particle filter
blockage. This indicates that the particle filter is
beginning to saturate.
Traffic conditions permitting, regenerate the filter by
driving at a speed of at least 37 mph (60 km/h) until
the warning lamp goes off.
Fixed, accompanied
by an audible signal
and a message about
the particle filter’s
additive level being
too low. This indicates that the level in the
additive tank is low.
Quickly arrange for a top-up by the dealer network or
by a qualified workshop.
01
Instruments

26
Automatic
wipingFixed.
The wiper control stalk has been
pushed down. Automatic front wiping is activated.
To deactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.
Lighting dimmer Fixed. The lighting dimmer is making an
adjustment. You can adjust the level of illumination of the
instruments and controls between 1 and 16.
Warning/indicator lamp
StateCause Action/Observations
Diesel engine
pre-heating Fixed.
The ignition switch is at the 2nd
position (Ignition on) or the " S TA R T/
STOP " starting button has been
pressed. Wait until the warning lamp goes off before starting.
Once it goes off, starting is immediate, on condition
that the brake pedal remains pressed with an
automatic gearbox, or the clutch pedal remains
pressed with a manual gearbox.
The period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in severe wintry conditions).
If the engine does not start, switch the ignition off and
then on, wait until the indicator lamp goes off again,
then start the engine.
01
Instruments

27
Electric parking brake
Warning/indicator lamp StateCause Action/Observations
+ They light up,
accompanied by the
display of the message
"Parking brake fault". Manual release of the electric parking
brake is only available by pressing the
accelerator pedal and releasing the
electric parking brake lever.
Hill start assist is not available. The automatic functions and the manual application are still available.
Contact the dealer network or a qualified workshop.
+
+ They light up,
accompanied by the
display of the message
"Parking brake fault".
The automatic functions are
deactivated.
Hill start assist is not available.
The electric parking brake can only be used manually.
Contact the dealer network or a qualified workshop.
+ They light up,
accompanied by the
display of the message
"Parking brake fault". The electric parking brake has a fault. Contact the dealer network or a qualified workshop.
01
Instruments

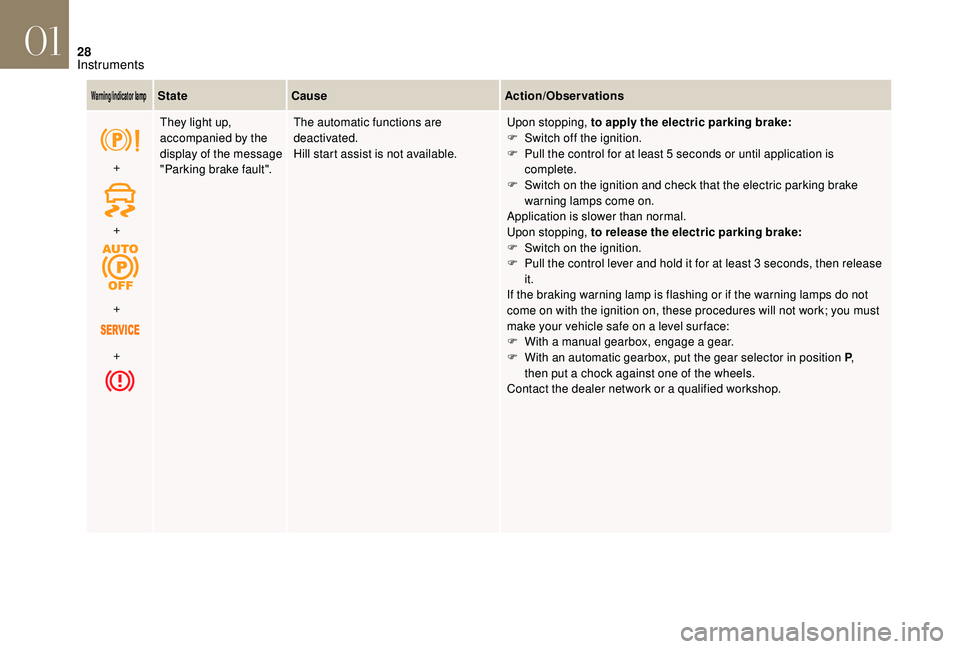

28
Warning/indicator lamp StateCause Action/Observations
+
+
+
+ They light up,
accompanied by the
display of the message
"Parking brake fault".
The automatic functions are
deactivated.
Hill start assist is not available.
Upon stopping, to apply the electric parking brake:
F

S
witch off the ignition.
F

P
ull the control for at least 5 seconds or until application is
complete.
F

S
witch on the ignition and check that the electric parking brake
warning lamps come on.
Application is slower than normal.
Upon stopping, to release the electric parking brake:
F

S
witch on the ignition.
F

P
ull the control lever and hold it for at least 3 seconds, then release
it.
If the braking warning lamp is flashing or if the warning lamps do not
come on with the ignition on, these procedures will not work; you must
make your vehicle safe on a level sur face:
F

W
ith a manual gearbox, engage a gear.
F

W
ith an automatic gearbox, put the gear selector in position P,
then
put a chock against one of the wheels.
Contact the dealer network or a qualified workshop.
01
Instruments
