9Familiarisation
Exterior


Welcome lighting

This additional exterior and interior lighting, controlled remotely, makes your approach to
the vehicle easier when the light is poor.
Temporary puncture repair kit

This kit is a complete system, consisting of acompressor and a sealant car tridge, for the
temporary repair of a tyre.
129

Under-infl ation detection
This system continuously monitors the pressure
in each tyre and warns you in the event of a
puncture or under-inflated tyre.
174
Blind spot sensors
In cer tain conditions, this system
detects the presence of a vehicle in
the blind spot. It informs you by means
of a warning lamp in the corresponding door mirror.
215

100
Opening
A.
Folding/unfolding the key
(first press this button).
3-button remote
control

When a sensor detects a low level of light,
the remote switching on of the dipped beam headlamps, the sidelamps and the side spotlamps makes your approach to the vehicle easier.

Welcome lighting
Complete or selective unlocking of
the vehicle(rapid flashing of the direction
indicators).
Opening the windows (hold until the desired position is reached).
Selective unlockin
g of the boot.Normal lockin
g
(press once; fixed lighting of the
direction indicators).
Closin
g the windows(hold until the desired position is reached).
129 In the same wa
y, the passenger compartment
lighting, such as the cour tesy lamps and the
footwell lamps, comes on.

11Familiarisation
118 , 120
A. Opening the fuel filler flap. Capacity of the fuel tank: approximately 60 litres.
Fuel t ank

Opening
101, 115
1.
Selective unlocking of the boot. 2.Opening the boot.


Boot

Panoramic windscreen


Blind
)
To open it, take the blind by its central grip A
,
and pull it rearwards, guiding it to the desired
position.
) To close it, take the blind by its central grip A ,
and pull it for wards, guiding it to the desired
position.
The sun visor should be in the folded position before moving the blind.
This includes a panoramic area in tinted glass to increase lighting and vision in the passenger compartment.
Fitted with a blind on each side to im
prove temperature control and a sun visor to avoid dazzle.

Sun visor

Fitted with a cour tesy mirror and a ticket holder. )To avoid dazzle from the front, lower the
sun visor.)To avoid dazzle from the side, disengage
the sun visor from its central fixing and turn it towards the side window.

Do not attach to or suspend heavyobjects from the blind and its guide rails.

13Familiarisation
Interior


6-speed electronic gearbox
system
This system offers driving combining a fullyautomatic mode and a manual mode.


Interior mood lighting

This dimmed lighting of the passenger compartment improves visibility inside the
vehicle when the light is poor.

Audio and communication
s
ystems
These systems benefit from the followingtechnologies: radio, CD player, USB player,
Bluetooth system, satellite navigation system
with colour screen, auxiliary sockets. Audio system
203
139
347
295

Electric parking brake

It combines the functions of automaticapplication on switching off the engine and
automatic release when moving off. Manual application and release remain
possible.
1
92 eM
yWay satellite navigation system


Massage function

This system gives a lumbar massage for a period of 60 minutes. The massage is done in6 cycles of 10 minutes each.
91

Instruments and controls
1.
Controls for audio and telematic system. 2.
Controls for Bluetooth system or telephone. 3.
Steering lock and ignition. 4.
Wiper/screenwash/trip computer controlstalk.5.
Instrument panel.
6. Driver’s airbag.
Horn. 7. Cruise control/speed limiter controls. 8.Controls for optional functions.9.
Door mirror controls.
Electric window controls.10.Storage compar tment. 11. Manual headlamp height adjustment
Lower side switch panel.
12.Fuel filler flap opening switch.
Upper side switch panel.
13.Side adjustable air vent. 14 .Front side window demisting vent.

15
Familiarisation
Instruments and controls
1.
Steering wheel adjustment control. 2.Steering mounted control paddles for the
6 -speed electronic gearbox system.
3.Lighting and direction indicator controlstalk.4. Speaker (tweeter).
5. Windscreen demisting vent.
6.Sunshine sensor. 7. Passenger’s airbag. 8.Glove box/Audio/video sockets/Passenger’s airbag deactivation switch/Fusebox.9.
Bonnet release. 10.Heated seat control. 11.
Lumbar massage control. 12.
Electric parking brake. 13.Gear lever, 6 -speed electronic gearbox system.14 .Large multifunctional storage unit.

Roof consoles - Centre consoles
A.
Rear view mirror.
B
. Microphone for audio and telematic system.C.
Interior mood lighting.D.Emergency call/Assistance call. E.Courtesy lamp/Map reading lamps.

1
.Central adjustable air vents. 2. Monochrome screen and seat belt and front airbag screen or colour and mappingscreen. 3.
Audio system or eMyWay satellite
navigation system .
4.Central switch panel.
5.Heating/air conditioning controls.
6. USB port/auxiliary Jack socket and cigarette lighter/12 V accessory socket. 7.Gear lever, manual or electronic gearboxsystem.8.
Manual or electric parking brake9.Portable ashtray.
10. Front armrest.

17Familiarisation

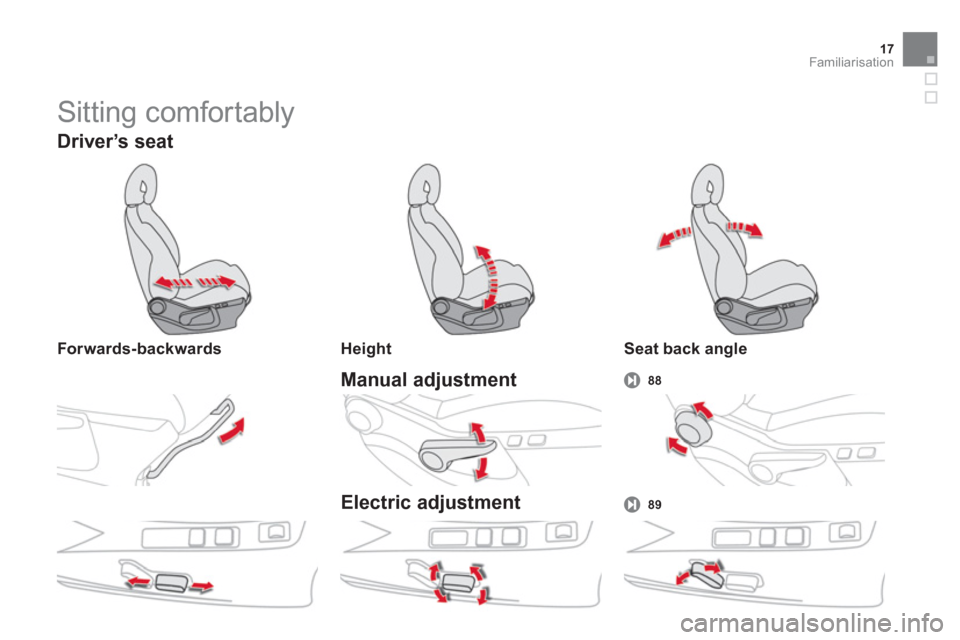

Sitting comfortably
Manual adjustment88

Driver’s seat


Forwards-backwards Height
Electric adjustment


Seat back angle
89

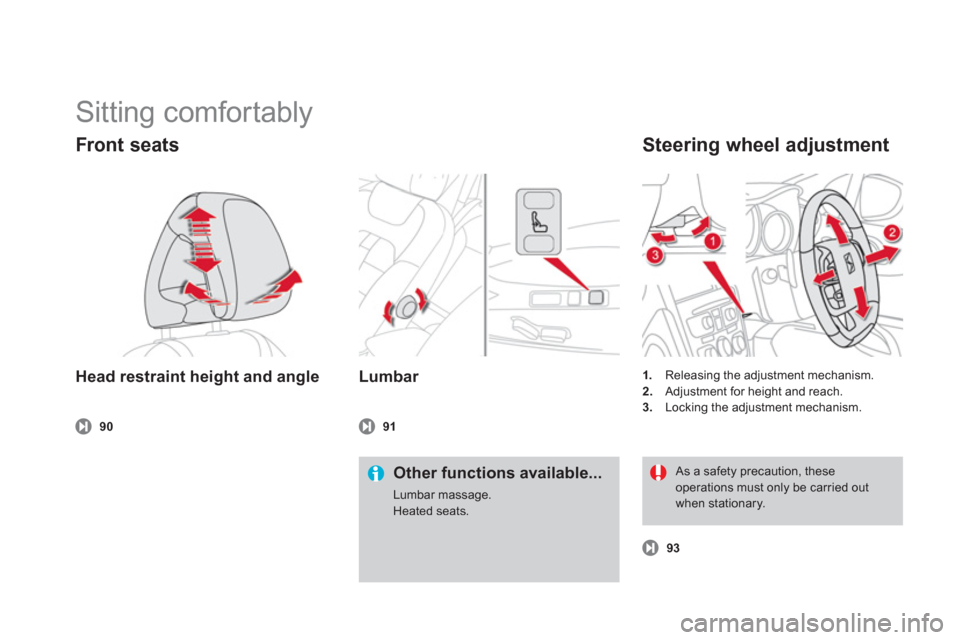

Sitting comfortably
Head restraint height and angle
Front seats
Other functions available...
Lumbar massage.Heated seats.
90
1.
Releasing the adjustment mechanism. 2.Adjustment for height and reach. 3.Locking the adjustment mechanism.


Steering wheel adjustment
93

As a safety precaution, these operations must only be carried outwhen stationary.


Lumbar
91
