ECO mode Citroen DS4 RHD 2011.5 1.G Owner's Manual

CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.
Your vehicle is fitted with only some of theequipment described in this document,
depending on the trim level, version and thespecifications for the country in which it is sold.
The
fitting of electrical equipment or accessories which are not recommended
byCITROËNmay result in a failure of your
vehicle's electronic system. Please note thisspecific warning and contact a CITROËNdealer to be shown the recommendedequipment and accessories.

At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.


Happy motoring!

We draw your attention to the following...

CHECKS PRACTICAL
INFORMATIONTECHNICAL DATA AUDIO AND
TELEMATICS
231Bonnet
232 Running out of fuel (Diesel)
233 Petrol engines
234Diesel engines
235Checking levels
238 Checks
244 Te m p o r a ry puncture repair
kit
249 Changing a wheel
256Changing a bulb
263 Changing a fuse
269 12 V battery
272 Energy economy mode
273Changing a wiper blade
273Very cold climate screen
274 Fitting roof bars
275Towing the vehicle
277 To w i ng a trailer
279Accessories
284 Petrol engines
285 Petrol weights
286 Diesel engines
287 Diesel weights
288Dimensions
289Identifi cation markings
293 Emergency or assistance
295 eMyWay
347 Audio system
012012013013010010011011

Vent ilat ion
Recommended interior settings
Digital air conditioning:
we recommend use of one of the three fully automatic modes by pressing the "AUTO"
button. I re
quire...
Manual Air Conditioning
Air distributionAir flowAir recirculation/Intake of outside airTemperatureManual A/C
HOT
COLD

DEMISTINGDEFROSTING

31Familiarisation

Stop & Start


Engine going into STOP mode
212Th
e "ECO"warning lamp comes on in
the instrument panel and the engine is automatically put into standby:


- with a manual
gearbox;
at speeds below
12 mph (20 km/h), when you put the gear
lever into neutral and release the clutchpedal, -with the 6-speed electronic gearbox
system;at speeds below 5 mph (8 km/h),
when you press the brake pedal or put the
gear lever in position N.
Engine going into START mode

Deactivation/Reactivation
You can deactivate the system at any time bypressing the "ECO OFF"
button; the button’s
warning lamp comes on.
213
213
The system is reactivated automatically every time you start the engine withthe key.


Before refuelling or doing anything under the bonnet, you must switch off the ignition with the key. Th
e "ECO"
warning lamp goes off
and the engine restarts automatically:
-
with a manual gearbox;when you fullydepress the clutch pedal, -
with the 6-speed electronic gearboxsystem;


●
with the gear lever in position A
or M ,
when you release the brake pedal,

●
or gear lever in position N
and brake
pedal released, when you change to
position
Aor M ,

●
or when you engage reverse.

In certain circumstances the ST
OP mode may not be available; the "ECO"warning lamp
flashes for a few seconds then goes off.In certain condition, START mode may engageautomatically; the "ECO"
warning lamp flashes
then goes off.
Driving safely

33Familiarisation
Driving safely
1.
Limiter mode On/Off. 2.Decrease the programmed value.3.Increase the programmed value.4.
Speed limiter On/Off.
5. Display the list of memorised speeds.


Speed limiter "LIMIT"
218
1.Cruise control mode On/Off.
2. Programme a speed/Decrease the
programmed value.3. Programme a speed/Increase the
programmed value.4. Cruise control Off/Resume.
5. Display the list of memorised speeds.
Cruise control "CRUISE"

218

The cruise control or speed limiter mode
appears in the instrument panel when it is
selected.

Display in the instrument panel

The values must be set with the engine running.
219
22
1
In order to be programmed or activated, the
vehicle speed must be higher than 25 mph (40 km/h), with at least fourth gear engaged ona manual gearbox (second gear for the6-speed electronic gearbox system or automatic gearbox).
Speed limiter

Cruise control

Customisable colour instrument panel - Type 1
1.
Rev counter (x 1 000 rpm or tr/min). 2.
Gear efficiency indicator with manualgearbox or gear lever position and gear for
the electronic gearbox system.3.Analogue speedometer (mph or km/h). 4. Cruise control or speed limiter setting. 5.
Digital speedometer (mph or km/h).
6
.Engine oil level indicator.
Dials and screens
Control buttons
7.Ser vice indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed successively on switching on the ignition.
Lighting dimmer setting (when making an
adjustment).
8. Tr i p m i l e age recorder (miles or km).9.Fuel gauge and associated low fuel
warning lamp.
10. Range (miles or km).
A.Dial COLOUR: customisation of the
background colour of the dials. B.Screen COLOUR: customisation of thebackground colour of the screens.
C.Lighting dimmer (available in night mode).D. Reminder of the ser vicing information
Reset the service indicator or the trip
mileage recorder.

39Monitoring
1. Rev counter (x 1 000 rpm or tr/min). 2.Gear efficiency indicator with manualgearbox or gear lever position and gear for
the electronic gearbox system or automaticgearbox. 3.Speedometer (mph or km/h).4. Central screen.
5. Fuel gauge and associated low fuel level
warning lamp.
Dials and screens
6.
Tr i p m i l e age recorder (miles or km).7.
Ser vice spanner (if a ser vice is due or
missed),
total mileage recorder. (miles or km)




Control buttons




















Customisable colour instrument panel - Type 2
A.Dial COLOUR: customisation of the
background colour of the dials. B. Screen COLOUR: customisation of the
background colour of the screens.C. Dashboard lighting dimmer (in night mode).D.Star t a manual test (procedure for checking
the status of systems and display of vehicle
alerts).
Reset service indicator or trip mileage
recorder.

Lighting dimmer fixed. The lighting dimmer is making an
adjustment. You can adjust the level of illumination of the
instruments between 1 and 16.
Passenger's airbag systemfixed in the seat beltand passenger's front airbag warning lamps
display.
The control switch, located in the glove
box, has been placed in the "ON"
position.
The passen
ger's front airbag is activated.
In this case, do not install a "rear facing"child seat.
Move the control switch to the "OFF"
position
to deactivate the passenger's front airbag.
In this case, you can install a "rear facing" child seat.


Automatic wiping

fixed. The wiper control is pushed
downwards. Automatic front wipin
g is activated.
To deactivate automatic wipin
g, operate the control stalk downwards or put the stalk into another position.
Warning lampis onCauseAction/Observations
Stop & Startfixed. When the vehicle stops (red lights,
traffic jams, ...) the Stop & Star t system has put the engine into STOPmode.The warnin
g lamp goes off and the engine restarts
automatically in START mode, as soon as you want
to move off.
fl
ashes for a few seconds, then goesoff. STOP mode is temporaril
y unavailable. or STA R T mode is invokedautomatically. Refer to "Drivin
g - § Stop & Star t" for special cases
with STOP mode and STA R T m o d e .
Parking space sensorsfixed.The parking space sensors function
is selected.To star t measurement, operate the direction indicator
on the side of the space to be measured, and do notexceed 12 mph (20 km/h). A message is displayed
once t
he measurement has been completed.

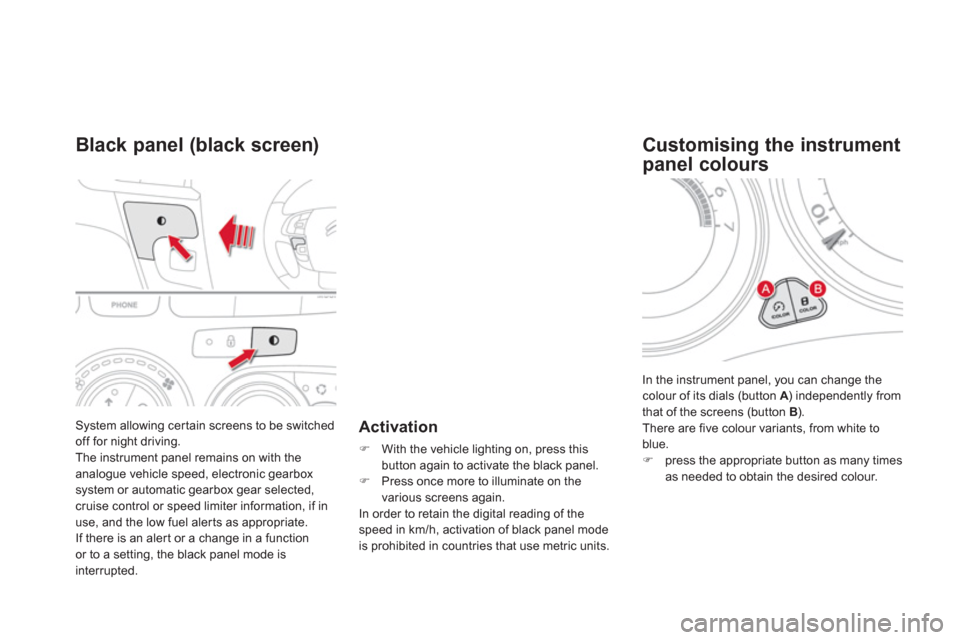

System allowing cer tain screens to be switched
off for night driving. The instrument panel remains on with theanalogue vehicle speed, electronic gearboxsystem or automatic gearbox gear selected,cruise control or speed limiter information, if in
use, and the low fuel aler ts as appropriate.
If there is an aler t or a chan
ge in a function
or to a setting, the black panel mode is
interrupted.
Black panel (black screen)
Activation
)
With the vehicle lighting on, press this button again to activate the black panel. )
Press once more to illuminate on thevarious screens again.
In order to retain the digital reading of the
speed in km/h, activation of black panel mode
is prohibited in countries that use metric units.

In the instrument panel, you can change thecolour of its dials (button A) independently fromAthat of the screens (button B ).
There are five colour variants, from white to
blue.)press the appropriate button as many times as needed to obtain the desired colour.
Customising the instrument
panel colours

65
Multifunction screens
With the audio system switched on, this menu allows you to activate or deactivate the
functions associated with use of the radio (RDS, DAB/FM auto tracking, RadioText (TXT)
display) or to choose the media play mode(Normal, Random, Random all, Repeat).
For more information on the "Multimedia"
application, refer to the "Audio and Telematics"
section.
"Multimedia" menu
"Trip computer" menu
This menu allows you to view information on
the status of the vehicle.
Warning log
This summarises the status and warning
messages for systems (active, not active or
faulty), displaying them in succession in the
multifunction screen. ) Press the "MENU"button for access to the
main menu. ) Press the arrows, then the "OK"button toselect the " Trip computer
" menu.)
In the " Trip computer" menu, select the"Warning log" line and confirm.
"Telephone" menu
With the audio system switched on, this menu
allows you to make a call or view the various
telephone directories.
For more information on the "Telephone"
application, refer to the "Audio and Telematics"
section.
"Bluetooth
connection" menu
Wit the audio system on, this menu allows a
Bluetooth device (telephone, media player)
t
o be connected or disconnected and theconnection mode to be defined (hands-free,
playing audio files).
For more information on the "Bluetoothconnection" application, refer to the "Audio and
Telematics" section.
